直流直流转换器（DC DC Converters）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 等级 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输入（最小） | 电流 - 输出（最大值） | 功率（瓦特） | 效率 | 电压 - 隔离 | 认证 | 工作温度 | 应用 | 特性 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AXA005A0X-SRDC DC CONVERTER 0.8-5.5V 27W |
0 | - |
|
数据表 |
Austin MicroLynx™ | 5-SMD Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 14V | 0.8 ~ 5.5V | - | - | - | - | 10V | 5A | 27 W | 89% | - | - | -40°C ~ 85°C | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | Surface Mount | - | Enable, Active Low | - | - | |
|
RBM-0505S/PDC DC CONVERTER 5V 1W |
0 | - |
|
数据表 |
ECONOLINE RBM (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 5.5V | 5V | - | - | - | - | 4.5V | 200mA | 1 W | 78% | 3 kV | - | -40°C ~ 85°C | ITE (Commercial), Medical | SCP | Through Hole | - | - | - | - | |
|
|
RBM-0512S/PDC DC CONVERTER 12V 1W |
0 | - |
|
数据表 |
ECONOLINE RBM (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 5.5V | 12V | - | - | - | - | 4.5V | 83mA | 1 W | 80% | 3 kV | - | -40°C ~ 85°C | ITE (Commercial), Medical | SCP | Through Hole | - | - | - | - | |
|
|
RBM-0515S/PDC DC CONVERTER 15V 1W |
0 | - |
|
数据表 |
ECONOLINE RBM (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 5.5V | 15V | - | - | - | - | 4.5V | 66mA | 1 W | 84% | 3 kV | - | -40°C ~ 85°C | ITE (Commercial), Medical | SCP | Through Hole | - | - | - | - | |
|
|
RBM-1205S/PDC DC CONVERTER 5V 1W |
0 | - |
|
数据表 |
ECONOLINE RBM (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 13.2V | 5V | - | - | - | - | 10.8V | 200mA | 1 W | 78% | 3 kV | - | -40°C ~ 85°C | ITE (Commercial), Medical | SCP | Through Hole | - | - | - | - | |
|
|
RBM-1212S/PDC DC CONVERTER 12V 1W |
0 | - |
|
数据表 |
ECONOLINE RBM (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 13.2V | 12V | - | - | - | - | 10.8V | 83mA | 1 W | 80% | 3 kV | - | -40°C ~ 85°C | ITE (Commercial), Medical | SCP | Through Hole | - | - | - | - | |
|
|
RBM-1215S/PDC DC CONVERTER 15V 1W |
0 | - |
|
数据表 |
ECONOLINE RBM (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 13.2V | 15V | - | - | - | - | 10.8V | 66mA | 1 W | 84% | 3 kV | - | -40°C ~ 85°C | ITE (Commercial), Medical | SCP | Through Hole | - | - | - | - | |
|
|
1S7BE_0303S6UISOLATED MODULE DC DC CONVERTERS |
25 | - |
|
数据表 |
1S7BE_6U (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 3.63V | 3.3V | - | - | - | - | 2.97V | 303mA | 1 W | 76% | 6 kV | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | - | Through Hole | - | - | CE, cURus | 60950-1 | |
|
AM2D-050909DZDC DC CONVERTER 2X9V 2W |
200 | - |
|
数据表 |
AM2D-Z (2W) | 7-SIP Module | Tube | Active | Isolated Module | 2 | 5.5V | 9V | 9V | - | - | - | 4.5V | 111mA, 111mA | 2 W | 78% | 1 kV | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole | - | - | CE | - | |
|
1S7WB_0512S3RPISOLATED MODULE DC DC CONVERTERS |
24 | - |
|
数据表 |
1S7WB (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 5.5V | 12V | - | - | - | - | 4.5V | 84mA | 1 W | 70% | 3 kV | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole | - | - | - | - | |
|
AM2D-1209DZDC DC CONVERTER +/-9V 2W |
200 | - |
|
数据表 |
AM2D-Z (2W) | 7-SIP Module | Tube | Active | Isolated Module | 2 | 13.2V | -9 ~ 9V | -9V | - | - | - | 10.8V | 111mA, 111mA | 2 W | 77% | 1 kV | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole | - | - | CE | - | |
|

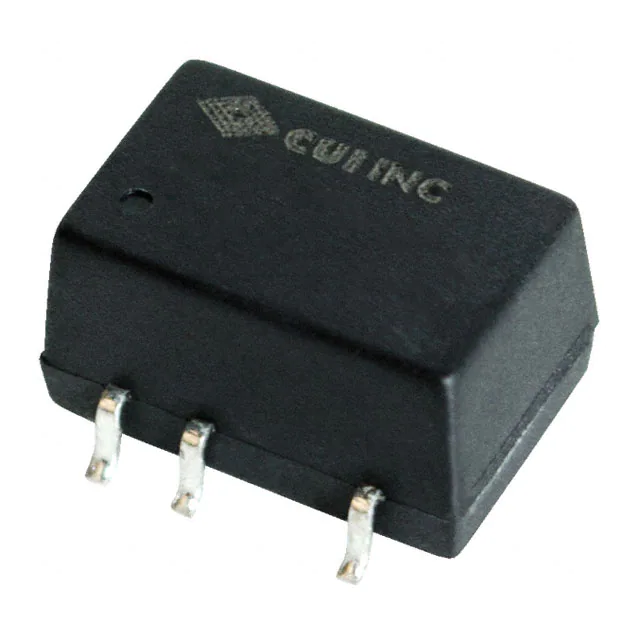

PDS2-S5-S15-M-TRDC DC CONVERTER 15V 2W |
6 | - |
|
数据表 |
PDS2-M (2W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 1 | 5.5V | 15V | - | - | - | - | 4.5V | 133mA | 2 W | 83% | 1.5 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial) | SCP | Surface Mount | - | - | EN | 55024; 55032 Class A | |
|
|
AM2D-051212DZDC DC CONVERTER 2X12V 2W |
200 | - |
|
数据表 |
AM2D-Z (2W) | 7-SIP Module | Tube | Active | Isolated Module | 2 | 5.5V | 12V | 12V | - | - | - | 4.5V | 83mA, 83mA | 2 W | 82% | 1 kV | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole | - | - | CE | - | |
|
|
VAT2-S5-D15-SMT-TRDC DC CONVERTER +/-15V 2W |
0 | - |
|
数据表 |
VAT2-SMT (2W) | 14-SMD Module, 12 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 2 | 5.5V | 15V | -15V | - | - | - | 4.5V | 67mA, 67mA | 2 W | 82% | 1 kV | - | -40°C ~ 85°C | ITE (Commercial) | SCP | Surface Mount | - | - | - | - | |
|
|
AM2D-241515DZDC DC CONVERTER 2X15V 2W |
200 | - |
|
数据表 |
AM2D-Z (2W) | 7-SIP Module | Tube | Active | Isolated Module | 2 | 26.4V | 15V | 15V | - | - | - | 21.6V | 67mA, 67mA | 2 W | 82% | 1 kV | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole | - | - | CE | - | |
|
R1S8-0515-RDC DC CONVERTER 15V 1W |
0 | - |
|
数据表 |
ECONOLINE R1S (1W) | 8-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 1 | 5.5V | 15V | - | - | - | - | 4.5V | 66mA | 1 W | 82% | 1 kV | - | -40°C ~ 100°C | ITE (Commercial) | SCP | Surface Mount | - | - | - | - | |
|
|
PDS2-S12-S12-M-TRDC DC CONVERTER 12V 2W |
0 | - |
|
数据表 |
PDS2-M (2W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 1 | 13.2V | 12V | - | - | - | - | 10.8V | 167mA | 2 W | 82% | 1.5 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial) | SCP | Surface Mount | - | - | EN | 55024; 55032 Class A | |
|
|
PDS2-S12-S5-M-TRDC DC CONVERTER 5V 2W |
0 | - |
|
数据表 |
PDS2-M (2W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 1 | 13.2V | 5V | - | - | - | - | 10.8V | 400mA | 2 W | 79% | 1.5 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial) | SCP | Surface Mount | - | - | EN | 55024; 55032 Class A | |
|
R1S-0512/HDC DC CONVERTER 12V 1W |
0 | - |
|
数据表 |
ECONOLINE R1S (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 5.5V | 12V | - | - | - | - | 4.5V | 84mA | 1 W | 80% | 3 kV | - | -40°C ~ 100°C | ITE (Commercial), Medical | SCP | Surface Mount | - | - | - | - | |
|
|
R1S-1209/HDC DC CONVERTER 9V 1W |
0 | - |
|
数据表 |
ECONOLINE R1S (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 13.2V | 9V | - | - | - | - | 10.8V | 111mA | 1 W | 78% | 3 kV | - | -40°C ~ 100°C | ITE (Commercial), Medical | SCP | Surface Mount | - | - | - | - |
