直流直流转换器（DC DC Converters）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 等级 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输入（最小） | 电流 - 输出（最大值） | 功率（瓦特） | 效率 | 电压 - 隔离 | 认证 | 工作温度 | 应用 | 特性 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JHL0324S12DC DC CONVERTER 12V 3W |
26 | - |
|
数据表 |
JHL (3W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 30V | 12V | - | - | - | - | 20V | 250mA | 3 W | 75% | 4 kV | - | -20°C ~ 80°C | Medical | OCP, OVP, SCP, UVLO | Through Hole | - | - | - | - | |
.jpg)
|
RSD-2405/PDC DC CONVERTER +/-5V 1W |
594 | - |
|
数据表 |
ECONOLINE RSD (1W) | 10-SMD Module, 6 Leads | Tube | Obsolete | Isolated Module | 2 | 26.4V | 5V | -5V | - | - | - | 21.6V | 100mA, 100mA | 1 W | 78% | 1 kV | - | -40°C ~ 85°C | ITE (Commercial) | SCP | Surface Mount | - | - | - | - | |
|
PEM1-S24-D15-SDC DC CONVERTER +/-15V 1W |
115 | - |
|
数据表 |
PEM1-S (1W) | 7-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 26.4V | 15V | -15V | - | - | - | 21.6V | 33mA, 33mA | 1 W | 79% | 3 kV | - | -40°C ~ 105°C | ITE (Commercial) | SCP | Through Hole | - | - | CB Scheme, EN, IEC, UL | 55024; 55032 Class A; 60950-1 | |
|

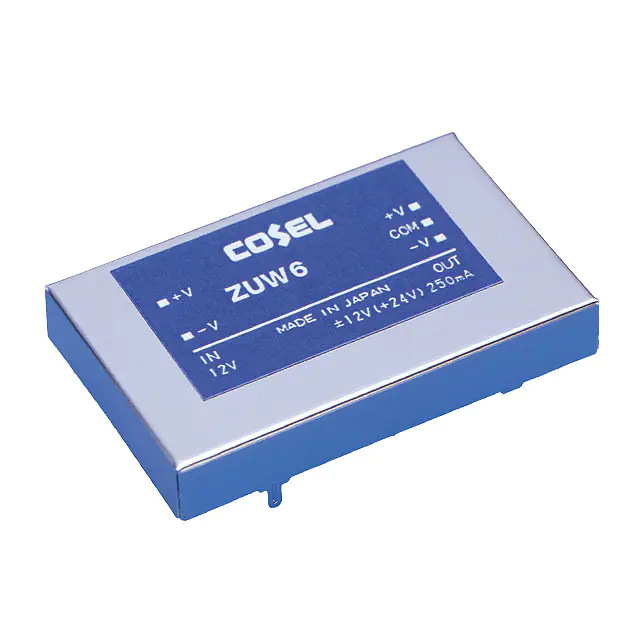

ZUW61212DC DC CONVERTER +/-12V |
50 | - |
|
数据表 |
ZUW (6W) | 5-DIP Module | Box | Obsolete | Isolated Module | 2 | 18V | 12V | -12V | - | - | - | 9V | 250mA, 250mA | - | 77% | 500 V | - | -20°C ~ 71°C (With Derating) | ITE (Commercial) | OCP | Through Hole | - | - | - | - | |
|
AM1DS-0524DJZDC DC CONVERTER +/-24V 1W |
675 | - |
|
数据表 |
AM1DS-N(J)Z (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 5.5V | 24V | -24V | - | - | - | 4.5V | 21mA, 21mA | 1 W | 85% | 1.5 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial) | - | Through Hole | - | - | cURus | - | |
|
PTB48540CAZDC DC CONVERTER 12V 10W |
0 | - |
|
数据表 |
PTB48540 (10W) | 13-SMD Module | Tray | Discontinued at Digi-Key | Isolated PoE (Power over Ethernet) Module | 1 | 57V | 12V | - | - | - | - | 36V | 850mA | 10 W | 85% | 1.5 kV | - | -40°C ~ 85°C | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | Surface Mount | - | - | - | - | |
|
|
PDL09-12D15MDC DC CONVERTER +/-15V 9W |
10 | - |
|
数据表 |
PDL09 (9W) | 12-SIP Module, 10 Leads | Tube | Active | Isolated Module | 2 | 18V | 15V | -15V | - | - | - | 9V | 300mA, 300mA | 9 W | 89% | 1.6 kV | - | -40°C ~ 100°C (With Derating) | ITE (Commercial) | Remote On/Off, Standby Output | Through Hole | - | - | CB, CE, cURus | - | |
|
|
PT6501HDC DC CONVERTER 3.3V 8A |
48 | - |
|
数据表 |
PT6500 | 14-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 6V | 3.3V | - | - | - | - | 4.5V | 8A | - | 83% | - | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole, Right Angle | - | - | - | - | |
|
|
PT6501LDC DC CONVERTER 3.3V 26W |
24 | - |
|
数据表 |
PT6500 | 14-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 6V | 3.3V | - | - | - | - | 4.5V | 8A | - | 83% | - | - | -40°C ~ 85°C | ITE (Commercial) | OTP, SCP | Surface Mount | - | - | - | - | |
|
|
PT6506FDC DC CONVERTER 1.8V 8A |
0 | - |
|
数据表 |
PT6500 | 14-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 6V | 1.8V | - | - | - | - | 3.1V | 8A | - | 74% | - | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole | - | - | - | - | |
|
|
PQC75-48-S12-OHDC-DC ISOLATED, 75 W, 36~75 VDC |
8 | - |
|
数据表 |
PQC75-O (75W) | Sixteenth Brick | Tray | Not For New Designs | Isolated Module | 1 | 75V | 12V | - | - | - | - | 36V | 6.25A | 75 W | 92% | 1.5 kV | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | Adjustable Output, Heat Sink, Remote On/Off, Remote Sense | Through Hole | Sixteenth Brick | Enable, Active High | CE, cURus, UKCA | 62368-1 | |
|

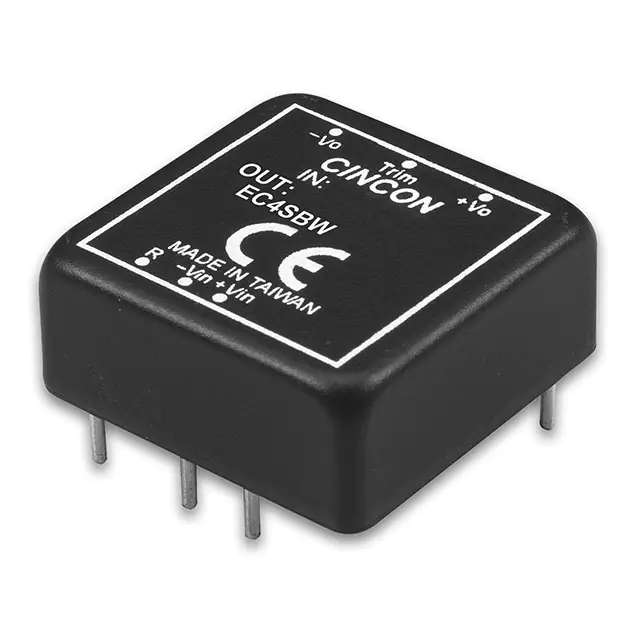

EC4SBW-24S15DC DC CONVERTER 15V 20W |
19 | - |
|
数据表 |
EC4SBW (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 75V | 15V | - | - | - | - | 18V | 1.33A | 20 W | 89% | 1.5 kV | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | Through Hole | - | Enable, Active High | CE | 62368-1 | |
|
|
UIS48T20033-PDA0GDC DC CONVERTER 3.3V 66W |
0 | - |
|
数据表 |
UIB (66W) | 8-DIP Module, 1/16 Brick | Bulk | Obsolete | Isolated Module | 1 | 75V | 3.3V | - | - | - | - | 18V | 20A | 66 W | 90% | 2.25 kV | - | -40°C ~ 85°C | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | Through Hole | - | Enable, Active High | - | - | |
|
|
LDL03-12D15MDC DC CONVERTER +/-15V 3W |
10 | - |
|
数据表 |
LDL03 (3W) | 12-SIP Module, 11 Leads | Tube | Active | Isolated Module | 2 | 18V | 15V | -15V | - | - | - | 9V | 100mA, 100mA | 3 W | 83% | 1.6 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial) | Remote On/Off | Through Hole | - | - | CE | - | |
|
|
LDL03-24D15MDC DC CONVERTER +/-15V 3W |
10 | - |
|
数据表 |
LDL03 (3W) | 12-SIP Module, 11 Leads | Tube | Active | Isolated Module | 2 | 36V | 15V | -15V | - | - | - | 18V | 100mA, 100mA | 3 W | 85% | 1.6 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial) | Remote On/Off | Through Hole | - | - | CE | - | |
|
|
LDL03-24D12MDC DC CONVERTER +/-12V 3W |
10 | - |
|
数据表 |
LDL03 (3W) | 12-SIP Module, 11 Leads | Tube | Active | Isolated Module | 2 | 36V | 12V | -12V | - | - | - | 18V | 125mA, 125mA | 3 W | 85% | 1.6 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial) | Remote On/Off | Through Hole | - | - | CE | - | |
|
|
AM12T-4805SZDC DC CONVERTER 5V 12W |
54 | - |
|
数据表 |
AM12T-Z (12W) | 24-DIP Module | Tube | Active | Isolated Module | 1 | 75V | 5V | - | - | - | - | 36V | 2.4A | 12 W | 89% | 1.6 kV | - | -40°C ~ 85°C | ITE (Commercial) | Remote On/Off | Through Hole | - | - | CE | - | |
|
JTD2048D05DC DC CONVERTER +/-5V 20W |
26 | - |
|
数据表 |
JTD20 (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 75V | 5V | -5V | - | - | - | 18V | 2A, 2A | 20 W | 87% | 3 kV | - | -40°C ~ 100°C (With Derating) | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | Through Hole | - | - | CE | 62368-1 | |
|
TIM 3.5-1215SMDC DC CONVERTER 24V 3.5W |
8 | - |
|
数据表 |
TIM 3.5SM (3.5W) | 16-SMD Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 24V | - | - | - | - | 9V | 146mA | 3.5 W | 82% | 5 kV | - | -40°C ~ 90°C (With Derating) | Medical | Remote On/Off, OVP, SCP | Surface Mount | - | - | - | - | |
|
PT4223CDC DC CONVERTER 5V 10W |
36 | - |
|
数据表 |
Excalibur™ PT4220 (10W) | 10-SMD Module | Tray | Obsolete | Isolated Module | 1 | 75V | 5V | - | - | - | - | 36V | 2A | 10 W | 85% | 1.5 kV | - | -40°C ~ 85°C | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | Surface Mount | - | - | - | - |
