直流直流转换器（DC DC Converters）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 等级 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输入（最小） | 电流 - 输出（最大值） | 功率（瓦特） | 效率 | 电压 - 隔离 | 认证 | 工作温度 | 应用 | 特性 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AM1D-0505S-RZDC DC CONVERTER 5V 1W |
200 | - |
|
数据表 |
AM1D-RZ (1W) | 7-SIP Module | Tube | Active | Isolated Module | 1 | 5.5V | 5V | - | - | - | - | 4.5V | 200mA | 1 W | 83% | 1 kV | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole | - | - | CE | - | |
|
AM1D-0505SH30-RZDC DC CONVERTER 5V 1W |
160 | - |
|
数据表 |
AM1D-RZ (1W) | 7-SIP Module | Tube | Active | Isolated Module | 1 | 5.5V | 5V | - | - | - | - | 4.5V | 200mA | 1 W | 83% | 3 kV | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole | - | - | CE | - | |
|
AM1DS-0515SJZDC DC CONVERTER 15V 1W |
520 | - |
|
数据表 |
AM1DS-N(J)Z (1W) | 6-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 5.5V | 15V | - | - | - | - | 4.5V | 67mA | 1 W | 83% | 1.5 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial) | - | Through Hole | - | - | cURus | - | |
|
0.5T8A_0505S3UPISOLATED MODULE DC DC CONVERTERS |
175 | - |
|
数据表 |
0.5T8A_3UP (500mW) | 14-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 5.5V | 5V | - | - | - | - | 4.5V | 100mA | 500 mW | 71% | 3 kV | - | -40°C ~ 105°C | ITE (Commercial) | - | Surface Mount | - | - | - | - | |
|

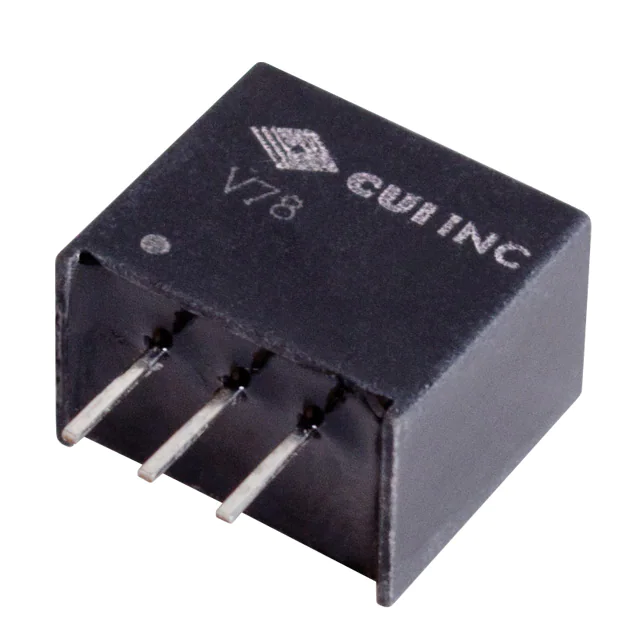

V7803-500DC DC CONVERTER 3.3V 1.65W |
708 | - |
|
数据表 |
V78-500 | 3-SIP Module | Tube | Obsolete | Linear Regulator Replacement | 1 | 28V | 3.3V | - | - | - | - | 4.75V | 500mA | 1.65 W | 90% | - | - | -40°C ~ 85°C | ITE (Commercial) | OTP, SCP | Through Hole | - | - | - | - | |
|

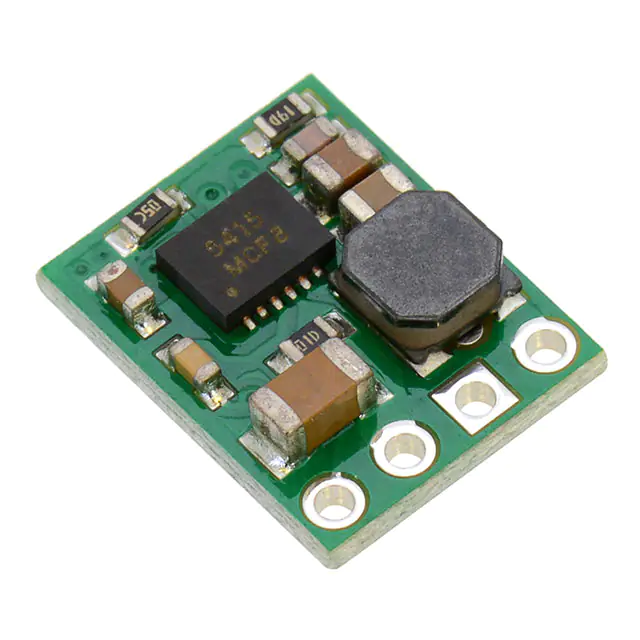

2843DC DC CONVERTER 5V 2.5W |
723 | - |
|
数据表 |
D24V5 | 4-SIP Module | - | Active | Non-Isolated PoL Module | 1 | 36V | 5V | - | - | - | - | 5.1V | 500mA | 2.5 W | 90% | - | - | - | - | - | Through Hole | - | Enable, Active Floating | - | - | |
|
2842DC DC CONVERTER 3.3V 1.7W |
263 | - |
|
数据表 |
D24V5 | 4-SIP Module | - | Active | Non-Isolated PoL Module | 1 | 36V | 3.3V | - | - | - | - | 3.4V | 500mA | 1.7 W | 90% | - | - | - | - | - | Through Hole | - | Enable, Active Floating | - | - | |
|
|
LDL03-05S09MDC DC CONVERTER 9V 3W |
10 | - |
|
数据表 |
LDL03 (3W) | 12-SIP Module, 11 Leads | Tube | Active | Isolated Module | 1 | 13.2V | 9V | - | - | - | - | 4.5V | 333mA | 3 W | 81% | 1.6 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial) | Remote On/Off | Through Hole | - | - | CE | - | |
|
2846DC DC CONVERTER 12V 6W |
233 | - |
|
数据表 |
D24V5 | 4-SIP Module | - | Active | Non-Isolated PoL Module | 1 | 36V | 12V | - | - | - | - | 12.1V | 500mA | 6 W | 93% | - | - | - | - | - | Through Hole | - | Enable, Active Floating | - | - | |
|
|
LDL03-12S24MDC DC CONVERTER 24V 3W |
10 | - |
|
数据表 |
LDL03 (3W) | 12-SIP Module, 11 Leads | Tube | Active | Isolated Module | 1 | 18V | 24V | - | - | - | - | 9V | 125mA | 3 W | 84% | 1.6 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial) | Remote On/Off | Through Hole | - | - | CE | - | |
|
2563DC DC CONVERTER 3.3V 3.2W |
206 | - |
|
数据表 |
U1V10 | 3-SIP Module | - | Active | Non-Isolated PoL Module | 1 | 5.5V | 3.3V | - | - | - | - | 0.5V | 550mA | 3.2 W | 85% | - | - | - | - | - | Through Hole | - | - | - | - | |
|
|
LDL03-24S05MDC DC CONVERTER 5V 3W |
10 | - |
|
数据表 |
LDL03 (3W) | 12-SIP Module, 11 Leads | Tube | Active | Isolated Module | 1 | 36V | 5V | - | - | - | - | 18V | 600mA | 3 W | 82% | 1.6 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial) | Remote On/Off | Through Hole | - | - | CE | - | |
|
|
2844DC DC CONVERTER 6V 3W |
163 | - |
|
数据表 |
D24V5 | 4-SIP Module | - | Active | Non-Isolated PoL Module | 1 | 36V | 6V | - | - | - | - | 6.1V | 500mA | 3 W | 93% | - | - | - | - | - | Through Hole | - | Enable, Active Floating | - | - | |
|

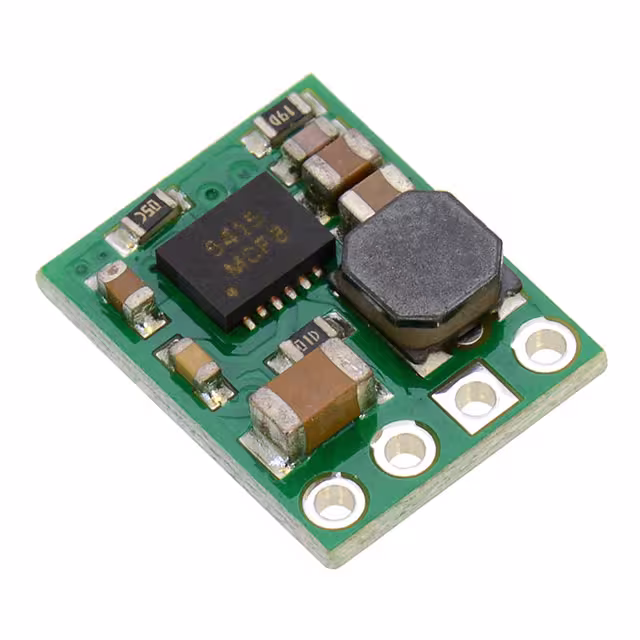

2845DC DC CONVERTER 9V 4.5W |
152 | - |
|
数据表 |
D24V5 | 4-SIP Module | - | Active | Non-Isolated PoL Module | 1 | 36V | 9V | - | - | - | - | 9.1V | 500mA | 4.5 W | 93% | - | - | - | - | - | Through Hole | - | Enable, Active Floating | - | - | |
|
2847DC DC CONVERTER 15V 7.5W |
127 | - |
|
数据表 |
D24V5 | 4-SIP Module | - | Active | Non-Isolated PoL Module | 1 | 36V | 15V | - | - | - | - | 15.1V | 500mA | 7.5 W | 95% | - | - | - | - | - | Through Hole | - | Enable, Active Floating | - | - | |
|
|
WRF2424P-3WR2ISOLATED MODULE DC DC CONVERTER |
0 | - |
|
数据表 |
WRF_P- 3WR2 (3W) | 24-DIP Module, 10 Leads | Tube | Not For New Designs | Isolated Module | 1 | 36V | 24V | - | - | - | - | 18V | 125mA | 3 W | 85% | 3 kV | - | -40°C ~ 85°C | ITE (Commercial) | Remote On/Off | Through Hole | - | - | CE | 60950-1; 62368-1 | |
|
|
MYWGC3R53FFW92RAQPOWERM |
0 | - |
|
数据表 |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
MYWGC3R53FFW92RANPOWERM |
0 | - |
|
数据表 |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
LDL03-12S12MDC DC CONVERTER 12V 3W |
10 | - |
|
数据表 |
LDL03 (3W) | 12-SIP Module, 11 Leads | Tube | Active | Isolated Module | 1 | 18V | 12V | - | - | - | - | 9V | 250mA | 3 W | 85% | 1.6 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial) | Remote On/Off | Through Hole | - | - | CE | - | |
|
|
LDL03-12S05MDC DC CONVERTER 5V 3W |
10 | - |
|
数据表 |
LDL03 (3W) | 12-SIP Module, 11 Leads | Tube | Active | Isolated Module | 1 | 18V | 5V | - | - | - | - | 9V | 600mA | 3 W | 81% | 1.6 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial) | Remote On/Off | Through Hole | - | - | CE | - |
