直流直流转换器（DC DC Converters）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 等级 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输入（最小） | 电流 - 输出（最大值） | 功率（瓦特） | 效率 | 电压 - 隔离 | 认证 | 工作温度 | 应用 | 特性 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RPA150E-4848SEW/PDC DC CONVERTER 48V 144W |
57 | - |
|
数据表 |
RPA150E (150W) | Eighth Brick | Box | Active | Isolated Module | 1 | 60V | 48V | - | - | - | - | 9V | 3A | 144 W | 91% | 3 kV | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | Baseplate | Through Hole | Eighth Brick | Enable, Active High | cURus | 62368-1 | |
|

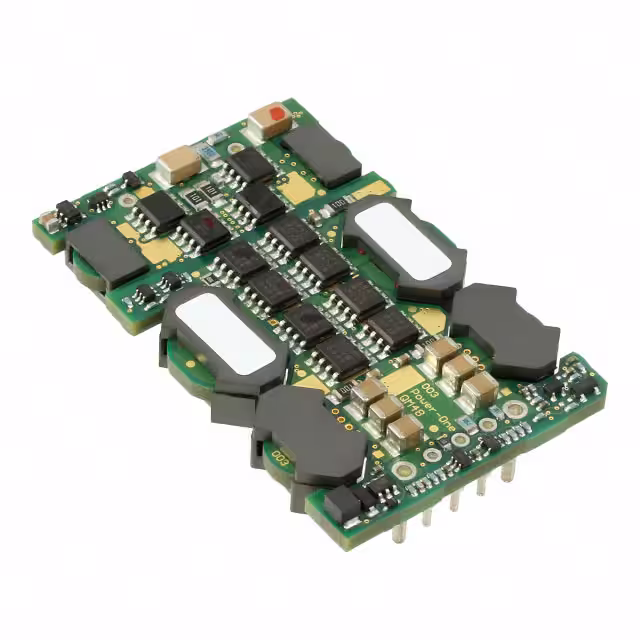

QM48T25050-NDB0GDC DC CONVERTER 5V 125W |
165 | - |
|
数据表 |
QM | 8-DIP Module, 1/4 Brick | Bulk | Active | Isolated Module | 1 | 75V | 5V | - | - | - | - | 36V | 25A | 125 W | 89.5% | 2 kV | - | -40°C ~ 85°C | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | Through Hole | - | Enable, Active Low | - | - | |
|
40IMX15-12-12-8GDC DC CONVERTER 12V 12V 15W |
38 | - |
|
数据表 |
Melcher IMX15 (15W) | 17-DIP Module, 11 Leads | Bulk | Active | Isolated Module, Conformal Coated | 2 | 75V | 12V | 12V | - | - | - | 16.8V | 700mA, 700mA | 15 W | 88% | 2.1 kV | - | -40°C ~ 85°C | ITE (Commercial), Railway | OCP, OTP, OVP, SCP, UVLO | Through Hole | - | - | - | - | |
|
TEN 40-7211WIRDC DC CONVERTER 5V 40W |
47 | - |
|
数据表 |
TEN 40WIR (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 160V | 5V | - | - | - | - | 43V | 8A | 40 W | 89% | 1.6 kV | - | -40°C ~ 85°C (With Derating) | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | Through Hole | Module | - | - | - | |
|
Q10N-5DC DC CONVERTER -1000V 500MW |
178 | - |
|
数据表 |
XP EMCO - Q (0.5W) | 4-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 5V | -1000V | - | - | - | - | 0.7V | 500µA | 500 mW | - | 500 V | - | -25°C ~ 70°C | ITE (Commercial) | Proportional Output | Through Hole | - | - | - | 62368-1 | |
|
|
Q10-12DC DC CONVERTER 1000V 500MW |
53 | - |
|
数据表 |
XP EMCO - Q (0.5W) | 4-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 12V | 1000V | - | - | - | - | 0.7V | 500µA | 500 mW | - | 500 V | - | -25°C ~ 70°C | ITE (Commercial) | Proportional Output | Through Hole | - | - | - | 62368-1 | |
|
|
REM60-2412SW60W DC/DC-CONVERTER 'MEDLINE' 2" |
29 | - |
|
数据表 |
MEDLINE REM60-W (60W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 36V | 12V | - | - | - | - | 9V | 5A | 60 W | 91.5% | 5 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial), Medical | Adjustable Output, Remote Sense | Through Hole | Quarter Brick | - | cURus | 60601-1; 62368-1 | |
|
A15N-5DC DC CONVERTER -1500V 1W |
106 | - |
|
数据表 |
XP EMCO - A (1W) | 5-DIP Module | Tube | Active | High Voltage - Isolated Module | 1 | 5V | -1500V | - | - | - | - | 0.7V | 670µA | 1 W | - | 500 V | - | -25°C ~ 75°C | ITE (Commercial) | Proportional Output | Through Hole | - | - | CE, cURus | 62368-1 | |
|
70IMX7-05-05-8GDC DC CONVERTER 5V 5V 7W |
70 | - |
|
数据表 |
Melcher IMX7 (7W) | 14-DIP Module, 9 Leads | Bulk | Active | Isolated Module, Conformal Coated | 2 | 121V | 5V | 5V | - | - | - | 40V | 700mA, 700mA | 7 W | 82% | 2.1 kV | - | -40°C ~ 85°C | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | Through Hole | - | - | - | - | |
|
LTM4678IYDC DC CNVRTR 0.5-3.3V 0.5-3.3V |
80 | - |
|
数据表 |
LTM®, uModule® | 144-BBGA Module | Tray | Active | Non-Isolated PoL Module, Digital | 2 | 16V | 0.5 ~ 3.3V | 0.5 ~ 3.3V | - | - | - | 5.75V | 25A, 25A | - | - | - | - | -40°C ~ 125°C | ITE (Commercial) | OCP, OTP, OVP, UVLO | Surface Mount | 144-BGA (16x16) | - | - | - | |
|
VHB100W-Q24-S48DC DC CONVERTER 48V 100W |
555 | - |
|
数据表 |
VHB100W (100W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 36V | 48V | - | - | - | - | 9V | 2.08A | 100 W | 85% | 1.5 kV | - | -40°C ~ 100°C | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | Through Hole | - | Enable, Active High | UL | 60950-1 | |
|
|
REC300H-2415SW300W DC/DC-CONVERTER 'POWERLINE' |
26 | - |
|
数据表 |
ECONOLINE REC300H-W (300W) | Half Brick | Tube | Active | Isolated Module | 1 | 36V | 15V | - | - | - | - | 9V | 20A | 300 W | 87% | 3 kV | - | -40°C ~ 100°C (With Derating) | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | Through Hole | Half Brick | - | - | - | |
|
20IMX35D05D15-8GDC DC CONVERTER 5V 15V 15V 35W |
62 | - |
|
数据表 |
Melcher IMX35 (35W) | 19-DIP Module | Tube | Active | Isolated Module, Conformal Coated | 4 | 36V | 5V | 15V | - | 15V | - | 9V | 1.35A, 550mA, 550mA | 35 W | 88% | 1.5 kV | - | -40°C ~ 85°C | ITE (Commercial), Railway | OCP, OTP, OVP, SCP, UVLO | Through Hole | - | - | - | - | |
|
MTC3528S12DC DC CONVERTER 12V 35W |
98 | - |
|
数据表 |
MTC (35W) | 11-DIP Module | Box | Active | Isolated Module | 1 | 40V | 12V | - | - | - | - | 10V | 2.9A | 35 W | 88% | 1.5 kV | - | -40°C ~ 100°C | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | Through Hole | - | Enable, Active High | - | - | |
|
CHB200W12-72S24NDC DC CONVERTER 24V 200W |
29 | - |
|
数据表 |
CHB200W12 (200W) | Half Brick | Box | Active | Isolated Module | 1 | 160V | 24V | - | - | - | - | 14V | 8.4A | 200 W | 90% | 3 kV | - | -40°C ~ 100°C | ITE (Commercial), Railway | Remote On/Off, Remote Sense | Through Hole | Half Brick | Enable, Active Low | CB, CE, cURus | 50155; 62368-1 | |
|
VHB200W-Q24-S5DC DC CONVERTER 5V 200W |
49 | - |
|
数据表 |
VHB200W (200W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 36V | 5V | - | - | - | - | 10V | 40A | 200 W | 87% | 1.5 kV | - | -40°C ~ 100°C | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | Through Hole | Half Brick | Enable, Active High | EN, UL | 55024; 55032 Class A; 60950-1 | |
|
|
VHB200W-Q24-S15DC DC CONVERTER 15V 200W |
48 | - |
|
数据表 |
VHB200W (200W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 36V | 15V | - | - | - | - | 10V | 13.3A | 200 W | 86% | 1.5 kV | - | -40°C ~ 100°C | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | Through Hole | Half Brick | Enable, Active High | EN, UL | 55024; 55032 Class A; 60950-1 | |
|
|
VHB200W-Q48-S24DC DC CONVERTER 24V 200W |
38 | - |
|
数据表 |
VHB200W (200W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 75V | 24V | - | - | - | - | 18V | 8.3A | 200 W | 88% | 1.5 kV | - | -40°C ~ 100°C | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | Through Hole | - | Enable, Active High | EN, UL | 55024; 55032 Class A; 60950-1 | |
|
|
AEQ5-100FL0.5HVPS,100VDC, 5V INPUT, 0.5 WATT, |
62 | - |
|
数据表 |
UltraVolt© AEQ | 6-DIP Module | Bulk | Active | High Voltage - Isolated Module | 1 | 5.5V | 100V | - | - | - | - | 4.5V | 5mA | 500 mW | - | 1.5 kV | - | -25°C ~ 70°C | ITE (Commercial) | Adjustable Output | Through Hole | Module | - | No | 62368-1 | |
|
CFB600-48S12DC DC CONVERTER 12V 600W |
31 | - |
|
数据表 |
CFB600 (600W) | Full Brick | Box | Active | Isolated Module | 1 | 75V | 12V | - | - | - | - | 36V | 50A | 600 W | 90% | 1.5 kV | - | -40°C ~ 100°C (With Derating) | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | Through Hole | Full Brick | Enable, Active Low | CE, cURus | 60950-1 |
