直流直流转换器（DC DC Converters）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 等级 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输入（最小） | 电流 - 输出（最大值） | 功率（瓦特） | 效率 | 电压 - 隔离 | 认证 | 工作温度 | 应用 | 特性 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IV4812SADC DC CONVERTER 12V 1W |
0 | - |
|
数据表 |
IV (1W) | 7-SIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 52.8V | 12V | - | - | - | - | 43.2V | 84mA | 1 W | 75% | 3 kV | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole | - | - | - | 62368-1 | |
|
RV-0512S/R8DC DC CONVERTER 12V 2W |
15 | - |
|
数据表 |
ECONOLINE RV/R (2W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 1 | 5.5V | 12V | - | - | - | - | 4.5V | 167mA | 2 W | 85% | 8 kV | - | -40°C ~ 85°C | ITE (Commercial), Medical | - | Through Hole | - | - | - | - | |
|
|
IV4815SDC DC CONVERTER +/-15V 1W |
0 | - |
|
数据表 |
IV (1W) | 7-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 52.8V | 15V | -15V | - | - | - | 43.2V | 33mA, 33mA | 1 W | 75% | 3 kV | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole | - | - | - | 62368-1 | |
|
|
LMT78_1.8-0.5RDC-DC STEP DOWN REGULATORS |
576 | - |
|
数据表 |
LMT78_0.5R | 10-SMD Module, 8 Leads | Tube | Obsolete | Non-Isolated PoL Module | 1 | 36V | 1.8V | - | - | - | - | 4.75V | 500mA | 900 mW | 76% | - | - | -40°C ~ 85°C | ITE (Commercial) | Adjustable Output, Remote On/Off | Surface Mount | - | - | CE, cURus | 62368-1 | |
|

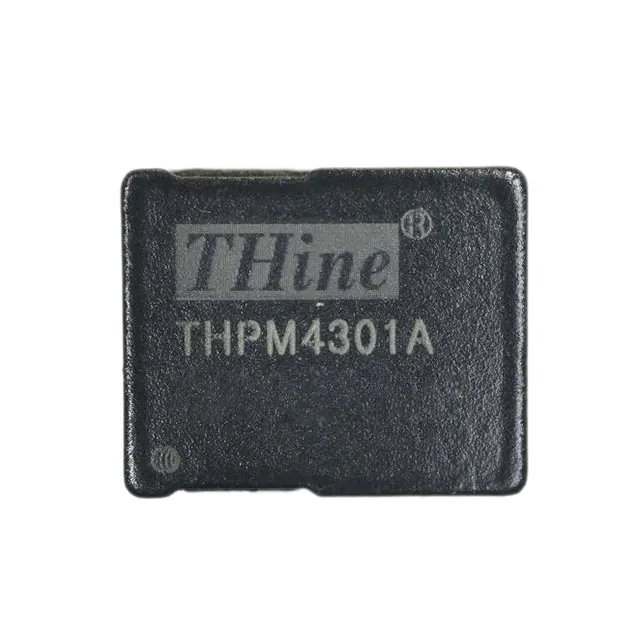

THPM4301ADC DC CONVERTER 0.6-3.6V |
16 | - |
|
数据表 |
THine® | 56-BLGA Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 6V | 0.6 ~ 3.6V | - | - | - | - | 2.96V | 6A | - | 96% | - | - | -40°C ~ 85°C | ITE (Commercial) | Adjustable Output | Surface Mount | 56-LGA (11x9.1) | - | - | - | |
|
|
IV4815SADC DC CONVERTER 15V 1W |
0 | - |
|
数据表 |
IV (1W) | 7-SIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 52.8V | 15V | - | - | - | - | 43.2V | 66mA | 1 W | 75% | 3 kV | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole | - | - | - | 62368-1 | |
|
VCB4828SBO-30WR3DC DC CONVERTER, 30W, 28V |
58 | - |
|
数据表 |
VCB48_SBO-30WR3 (30W) | Sixteenth Brick | Tray | Not For New Designs | Isolated Module | 1 | 75V | 28V | - | - | - | - | 36V | 1.072A | 30 W | 90% | 1.5 kV | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | Adjustable Output, Remote Sense | Through Hole | Sixteenth Brick | - | CE | 62368-1 | |
|
|
LMT78_02-0.5RDC-DC STEP DOWN REGULATORS |
574 | - |
|
数据表 |
LMT78_0.5R | 10-SMD Module, 8 Leads | Tube | Obsolete | Non-Isolated PoL Module | 1 | 36V | 2V | - | - | - | - | 4.75V | 500mA | 1 W | 81% | - | - | -40°C ~ 85°C | ITE (Commercial) | Adjustable Output, Remote On/Off | Surface Mount | - | - | CE, cURus | 62368-1 | |
|
R05P12S/R8DC DC CONVERTER 12V 1W |
50 | - |
|
数据表 |
ECONOLINE RxxPxx/R (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 5.5V | 12V | - | - | - | - | 4.5V | 84mA | 1 W | 82% | 8 kV | - | -40°C ~ 85°C | ITE (Commercial), Medical | - | Through Hole | - | - | - | - | |
|
|
LMT78_6.5-0.5RDC-DC POL |
266 | - |
|
数据表 |
LMT78_0.5R | 10-SMD Module, 8 Leads | Tube | Obsolete | Non-Isolated PoL Module | 1 | 36V | 6.5V | - | - | - | - | 8V | 500mA | 3.25 W | 92% | - | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | Adjustable Output, Remote On/Off | Surface Mount | - | - | cURus | 62368-1 | |
|
|
B0524XT-2WR3-TRDC DC CONVERTER 24V 2W |
1,474 | - |
|
数据表 |
B0524XT-2WR3 (2W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 5.5V | 24V | - | - | - | - | 4.5V | 83mA | 1.99 W | 86% | 1.5 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial) | - | Surface Mount | - | - | CE, UKCA | 62368-1 | |
|
|
B0505XT-2WR3-TRDC DC CONVERTER 5V 2W |
500 | - |
|
数据表 |
B0505XT-2WR3 (2W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 5.5V | 5V | - | - | - | - | 4.5V | 400mA | 2 W | 84% | 1.5 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial) | - | Surface Mount | - | - | CE, UKCA | 62368-1 | |
|
|
B0509XT-2WR3-TRDC DC CONVERTER 9V 2W |
500 | - |
|
数据表 |
B0509XT-2WR3 (2W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 5.5V | 9V | - | - | - | - | 4.5V | 222mA | 1.99 W | 85% | 1.5 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial) | - | Surface Mount | - | - | CE, UKCA | 62368-1 | |
|
|
3DAW_2405S3RPDC-DC INDUSTRIAL |
14 | - |
|
数据表 |
3DAW_3RP (3W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V, 36V | 5V | - | - | - | - | - | 600mA | 3 W | 81% | 3 kV | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | - | Through Hole | - | - | CE | - | |
|
|
MPU02-05S15ISOLATED / 2W / VOUT: 15 |
12 | - |
|
数据表 |
MPU02 (2W) | 9-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 7V | 15V | - | - | - | - | 4.5V | 134mA | 2.01 W | 83% | 5 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial), Medical | Adjustable Output | Through Hole | - | - | CB, CE, cURus, UKCA | 60601-1; 62368-1 | |
|
|
MPU02-05S12ISOLATED / 2W / VOUT: 12 |
10 | - |
|
数据表 |
MPU02 (2W) | 9-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 7V | 12V | - | - | - | - | 4.5V | 167mA | 2.004 W | 83% | 5 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial), Medical | Adjustable Output | Through Hole | - | - | CB, CE, cURus, UKCA | 60601-1; 62368-1 | |
|
|
MPU02-12S15ISOLATED / 2W / VOUT: 15 |
10 | - |
|
数据表 |
MPU02 (2W) | 9-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 14.4V | 15V | - | - | - | - | 9.6V | 134mA | 2.01 W | 83% | 5 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial), Medical | Adjustable Output | Through Hole | - | - | CB, CE, cURus, UKCA | 60601-1; 62368-1 | |
|
|
B0503XT-2WR3-TRDC DC CONVERTER 3.3V 2W |
479 | - |
|
数据表 |
B0503XT-2WR3 (2W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 5.5V | 3.3V | - | - | - | - | 4.5V | 400mA | 1.3 W | 78% | 1.5 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial) | - | Surface Mount | - | - | CE, UKCA | 62368-1 | |
|
|
B0515XT-2WR3-TRDC DC CONVERTER 15V 2W |
290 | - |
|
数据表 |
B0515XT-2WR3 (2W) | 8-SMD Module, 5 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 5.5V | 15V | - | - | - | - | 4.5V | 133mA | 1.99 W | 86% | 1.5 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial) | - | Surface Mount | - | - | CE, UKCA | 62368-1 | |
|
IE0309SHDC DC CONVERTER 9V 1W |
0 | - |
|
数据表 |
IE (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 3.63V | 9V | - | - | - | - | 2.97V | 111mA | 1 W | 74% | 3 kV | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole | - | - | - | - |
