直流直流转换器（DC DC Converters）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 等级 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输入（最小） | 电流 - 输出（最大值） | 功率（瓦特） | 效率 | 电压 - 隔离 | 认证 | 工作温度 | 应用 | 特性 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
REM3-1205S/ADC DC CONVERTER 5V 3W |
117 | - |
|
数据表 |
MEDLINE REM3 (3W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 18V | 5V | - | - | - | - | 9V | 600mA | 3 W | 84.5% | 5 kV | - | -40°C ~ 105°C | ITE (Commercial), Medical | Remote On/Off, OCP, OVP, SCP, UVLO | Through Hole | - | - | - | - | |
|
E48SC12030NRFHDC DC CONVERTER 12V 360W |
39 | - |
|
数据表 |
Delphi E48SC (360W) | 13-DIP Module, 1/8 Brick | Tray | Active | Isolated Module, Digital | 1 | 75V | 12V | - | - | - | - | 36V | 30A | 360 W | 94.5% | 1.5 kV | - | -40°C ~ 85°C | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | Through Hole | - | Enable, Active Low | - | - | |
|
I7C4W008A120V-0F3-RDC DC CONVERTER 10-48V 300W |
132 | - |
|
数据表 |
I7c (300W) | Sixteenth Brick | Tray | Active | Non-Isolated PoL Module | 1 | 36V | 9.6 ~ 48V | - | - | - | - | 9V | 8A | 384 W | 97% | - | - | -40°C ~ 125°C | ITE (Commercial) | Adjustable Output, Heat Sink, Remote On/Off, Remote Sense | Through Hole | Sixteenth Brick | Enable, Active Low | CE, UKCA | 60950-1; 62368-1 | |
|
CHB50-24S05DC DC CONVERTER 5V 50W |
138 | - |
|
数据表 |
CHB50 (50W) | Half Brick | Tray | Active | Isolated Module | 1 | 36V | 5V | - | - | - | - | 18V | 10A | 50 W | 85% | 1.5 kV | - | -40°C ~ 100°C (With Derating) | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | Through Hole | Half Brick | Enable, Active High | CE, cURus | 60950-1 | |
|
THM 10-2423WIDC DC CONVERTER +/-15V 10W |
100 | - |
|
数据表 |
THM 10WI (10W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 36V | 15V | -15V | - | - | - | 9V | 333mA, 333mA | 10 W | 88% | 5 kV | - | -40°C ~ 90°C (With Derating) | Medical | OCP, OVP, SCP | Through Hole | - | - | - | - | |
|
PXC-M10-24WS24-ADC DC CONVERTER 24V 10W |
600 | - |
|
数据表 |
PXC-M10 (10W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 36V | 24V | - | - | - | - | 9V | 416mA | 10 W | 89% | 5 kV | - | -40°C ~ 105°C | Medical | OCP, OVP, SCP | Through Hole | - | - | - | - | |
|
|
PXC-M10-24WS12-ADC DC CONVERTER 12V 10W |
201 | - |
|
数据表 |
PXC-M10 (10W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 36V | 12V | - | - | - | - | 9V | 830mA | 10 W | 89% | 5 kV | - | -40°C ~ 105°C | Medical | OCP, OVP, SCP | Through Hole | - | - | - | - | |
|
|
PXC-M10-24WS05-ADC DC CONVERTER 5V 10W |
57 | - |
|
数据表 |
PXC-M10 (10W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 36V | 5V | - | - | - | - | 9V | 2A | 10 W | 86.5% | 5 kV | - | -40°C ~ 105°C | Medical | OCP, OVP, SCP | Through Hole | - | - | - | - | |
|
THN 30-2413WIR33 WATT DC/DC CONVERTER, RAILWAY |
41 | - |
|
数据表 |
THN 30WIR (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 15V | - | - | - | - | 9V | 2A | 30 W | 89% | 3 kV | - | -40°C ~ 105°C | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | Through Hole | - | - | CB, cURus | 62368-1 | |
|
TEN 20-1212DC DC CONVERTER 12V 20W |
392 | - |
|
数据表 |
TEN 20 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 18V | 12V | - | - | - | - | 9V | 1.67A | 20 W | 88% | 1.5 kV | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | SCP | Through Hole | - | - | - | - | |
|
TEN 20-2411DC DC CONVERTER 5V 20W |
137 | - |
|
数据表 |
TEN 20 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 36V | 5V | - | - | - | - | 18V | 4A | 20 W | 85% | 1.5 kV | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | SCP | Through Hole | - | - | - | - | |
|
THP 3-7222DC DC CONVERTER +/-12V 3W |
38 | - |
|
数据表 |
THP 3 (3W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 160V | 12V | -12V | - | - | - | 36V | 125mA, 125mA | 3 W | 83% | 3 kV | - | -40°C ~ 85°C (With Derating) | ITE (Commercial), Medical | SCP | Through Hole | - | - | - | - | |
|
|
TEN 20-2412DC DC CONVERTER 12V 20W |
30 | - |
|
数据表 |
TEN 20 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 36V | 12V | - | - | - | - | 18V | 1.67A | 20 W | 89% | 1.5 kV | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | SCP | Through Hole | - | - | - | - | |
|
REC20-245.1SZDC DC CONVERTER 5.1V 20W |
30 | - |
|
数据表 |
ECONOLINE REC20-Z (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 5.1V | - | - | - | - | 9V | 4A | 20 W | 90% | 1.6 kV | - | -40°C ~ 100°C | ITE (Commercial) | Remote On/Off, OVP, SCP, UVLO | Through Hole | - | Enable, Active High | - | - | |
|
|
LGA110D-01DADJJBDCDC POL DUAL 55A DIGITAL/ANALOG |
167 | - |
|
数据表 |
LGA (350W) | 34-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 14V | 0.5 ~ 5V | - | - | - | - | 7.5V | 110A | 350 W | 96% | - | - | -40°C ~ 85°C | ITE (Commercial) | Adjustable Output, Remote On/Off | Surface Mount | - | - | - | - | |
|

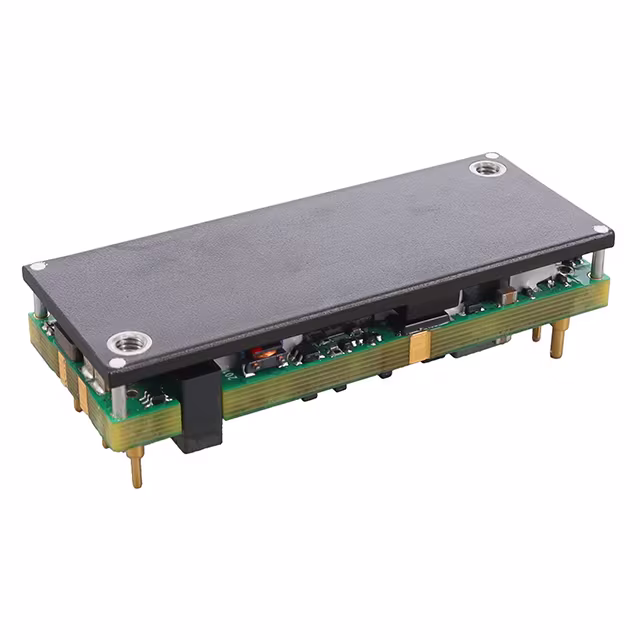

AVO250-48S28B-6LDC DC CONVERTER 28V 250W |
291 | - |
|
数据表 |
AVO250 (250W) | 8-DIP Module | Tray | Active | Isolated Module | 1 | 75V | 28V | - | - | - | - | 36V | 9A | 250 W | 93% | 1.5 kV | - | -40°C ~ 85°C | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | Through Hole | - | - | - | - | |
|
VG10-12S250DC DC CONVERTER 250V 10W |
26 | - |
|
数据表 |
VG10 (10W) | 4-DIP Module | Bulk | Active | High Voltage - Isolated Module | 1 | 18V | 250V | - | - | - | - | 9V | 40mA | 10 W | 81% | 1.5 kV | - | -25°C ~ 70°C (With Derating) | ITE (Commercial) | OCP, OVP, SCP | Through Hole | 4-DIP | - | - | - | |
|
PTH08T250WAZDC DC CONVERTER 0.7-3.6V |
63 | - |
|
数据表 |
PTH08T250W | 22-SMD Module | Tray | Active | Non-Isolated PoL Module | 1 | 14V | 0.7 ~ 3.6V | - | - | - | - | 4.5V | 50A | - | 94% | - | - | -40°C ~ 85°C | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | Surface Mount | - | - | - | - | |
|
THM 20-2412DC DC CONVERTER 12V 20W |
239 | - |
|
数据表 |
THM 20 (20W) | 5-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 12V | - | - | - | - | 18V | 1.67A | 20 W | 90% | 5 kV | - | -40°C ~ 80°C (With Derating) | Medical | OCP, OTP, OVP, SCP | Through Hole | - | - | - | - | |
|
20IMX4-1212-8GDC DC CONVERTER +/-12V 4W |
153 | - |
|
数据表 |
Melcher IMX4 (4W) | 24-DIP Module, 13 Leads | Bulk | Active | Isolated Module, Conformal Coated | 2 | 36V | 12V | -12V | - | - | - | 8.4V | 170mA, 170mA | 4 W | 82% | 1.2 kV | - | -40°C ~ 85°C | ITE (Commercial), Railway | OTP, OVP, SCP | Through Hole | - | - | - | - |
