直流直流转换器（DC DC Converters）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 等级 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输入（最小） | 电流 - 输出（最大值） | 功率（瓦特） | 效率 | 电压 - 隔离 | 认证 | 工作温度 | 应用 | 特性 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTM8003IYDC DC CONVERTER 0.97-18V |
158 | - |
|
数据表 |
µModule® | 48-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 40V | 0.97 ~ 18V | - | - | - | - | 3.4V | 3.5A | - | - | - | - | -40°C ~ 125°C | ITE (Commercial) | - | Surface Mount | 48-BGA (9x6.25) | - | - | - | |
|
PTN78020AAZDC DC CONVERTER -15 TO -3V |
402 | - |
|
数据表 |
PTN78020A (25W) | 7-SMD Module | Tray | Active | Non-Isolated PoL Module | 1 | 29V | -15 ~ -3V | - | - | - | - | 9V | 4A | - | 87% | - | - | -40°C ~ 85°C | ITE (Commercial) | OCP, OTP, UVLO | Surface Mount | - | - | - | - | |
|
EC5SAW-24S05NDC DC CONVERTER 5V 10W |
583 | - |
|
数据表 |
EC5SAW (10W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 36V | 5V | - | - | - | - | 9V | 2A | 10 W | 85% | 3 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial) | Remote On/Off | Through Hole | - | Enable, Active Low | CE | - | |
|
SKA20B-05DC DC CONVERTER 5V 20W |
140 | - |
|
数据表 |
SKA20 (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 5V | - | - | - | - | 18V | 4A | 20 W | 88% | 1.5 kV | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | Through Hole | - | - | - | - | |
|
REC5-2412DRWZ/H2/C/MDC DC CONVERTER +/-12V 5W |
785 | - |
|
数据表 |
ECONOLINE REC5 (5W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 36V | 12V | -12V | - | - | - | 9V | 210mA, 210mA | 5 W | 83% | 2 kV | - | -40°C ~ 75°C | ITE (Commercial) | SCP | Through Hole | - | - | - | - | |
|
SDM30-24S12DC DC CONVERTER 12V 30W |
154 | - |
|
数据表 |
SDM30 (30W) | 8-DIP Module | Box | Active | Isolated Module | 1 | 36V | 12V | - | - | - | - | 18V | 2.5A | 30 W | 82% | 1 kV | - | -25°C ~ 85°C (With Derating) | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | Through Hole | - | - | - | - | |
|
THD 10-2423NDC DC CONVERTER +/-15V 10W |
409 | - |
|
数据表 |
THD 10N (10W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 36V | 15V | -15V | - | - | - | 18V | 333mA, 333mA | 10 W | 89% | 1.5 kV | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | Remote On/Off, OCP, SCP | Through Hole | - | - | - | - | |
|

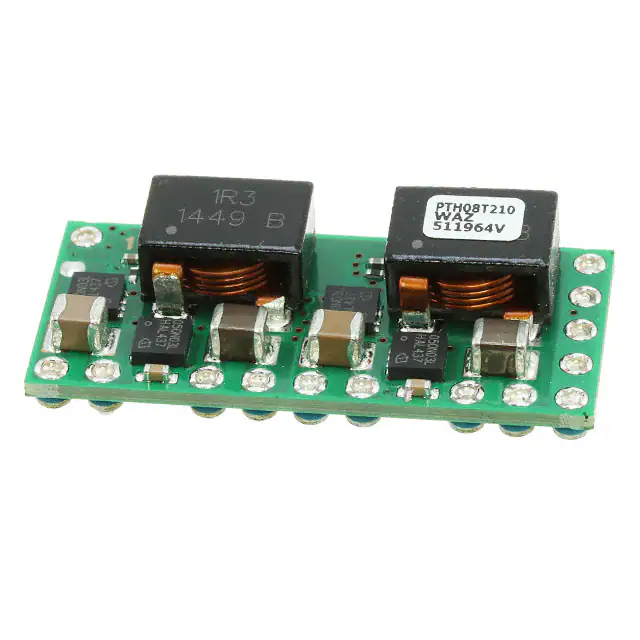

PTH08T210WAZTDC DC CONVERTER 0.7-3.6V |
900 | - |
|
数据表 |
PTH08T210W | 14-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 14V | 0.7 ~ 3.6V | - | - | - | - | 5.5V | 25A | - | 93% | - | - | -40°C ~ 85°C | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | Surface Mount | - | - | - | - | |
|
PKV3211PIDC DC CONVERTER 5V 2.5W |
280 | - |
|
数据表 |
PKV 5000 | 24-DIP Module, 10 Leads | Tray | Active | Isolated Module | 1 | 36V | 5V | - | - | - | - | 9V | 500mA | 2.5 W | 82% | 1.5 kV | - | -40°C ~ 95°C (With Derating) | ITE (Commercial) | - | Through Hole | - | - | CB, CSA, IEC, TUV, UL | 62368-1 | |
|
TEN 5-2412WIDC DC CONVERTER 12V 6W |
291 | - |
|
数据表 |
TEN 5WI (6W) | 24-DIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 1 | 36V | 12V | - | - | - | - | 9V | 500mA | 6 W | 83% | 1.5 kV | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | SCP | Through Hole | Module | - | - | - | |
|
TDR 2-2411WIDC DC CONVERTER 5V 2W |
135 | - |
|
数据表 |
TDR 2WI (2W) | 14-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 36V | 5V | - | - | - | - | 9V | 400mA | 2 W | 79% | 1.6 kV | - | -40°C ~ 85°C | ITE (Commercial) | Remote On/Off, SCP | Through Hole | - | - | - | - | |
|
LTM8058IY#PBFDC DC CONVERTER 2.3-13V 1.2-12V |
85 | - |
|
数据表 |
µModule® | 38-BBGA Module | Tray | Active | Isolated Module | 2 | 31V | 2.3 ~ 13V | 1.2 ~ 12V | - | - | - | 3.1V | 440mA, 300mA | - | - | 3 kV | - | -40°C ~ 125°C | ITE (Commercial) | UVLO | Surface Mount | 38-BGA (11.25x9) | - | - | - | |
|
|
MAXM17537ALY#DC DC CONVERTER 8-24V |
2,160 | - |
|
数据表 |
Himalaya | 29-PowerBLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 60V | 8 ~ 24V | - | - | - | - | 4.5V | 3A | - | - | - | - | -40°C ~ 125°C | ITE (Commercial) | Adjustable Output | Surface Mount | 29-SIP LGA (9x15) | - | - | - | |
|
YS12S16-0GDC DC CONVERTER 0.75-5.5V 88W |
1,734 | - |
|
数据表 |
Y (88W) | 6-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 14V | 0.75 ~ 5.5V | - | - | - | - | 9.6V | 16A | 88 W | 94.8% | - | - | -40°C ~ 85°C | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | Surface Mount | - | Enable, Active High | - | - | |
|
R-555.0PADC DC CONVERTER 5V 25W |
176 | - |
|
数据表 |
INNOLINE R-5xxxA | 12-SIP Module | Tube | Active | Non-Isolated PoL Module | 1 | 18V | 5V | - | - | - | - | 7V | 5A | 25 W | 94% | - | - | -40°C ~ 85°C | ITE (Commercial) | Remote On/Off, OCP, SCP | Through Hole | - | Enable, Active High | - | - | |
|
REC7.5-2415DRW/H2/A/MDC DC CONVERTER +/-15V 8W |
669 | - |
|
数据表 |
ECONOLINE REC7.5 (7.5W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 36V | 15V | -15V | - | - | - | 18V | 250mA, 250mA | 8 W | 86% | 2 kV | - | -40°C ~ 71°C | ITE (Commercial), Medical | SCP | Through Hole | - | - | - | - | |
|
REC7.5-2412DRW/H2/A/MDC DC CONVERTER +/-12V 8W |
359 | - |
|
数据表 |
ECONOLINE REC7.5 (7.5W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 36V | 12V | -12V | - | - | - | 18V | 312mA, 312mA | 8 W | 85% | 2 kV | - | -40°C ~ 71°C | ITE (Commercial), Medical | SCP | Through Hole | - | - | - | - | |
|
DKA30B-15DC DC CONVERTER +/-15V 30W |
113 | - |
|
数据表 |
DKA30 (30W) | 8-DIP Module | Tube | Active | Isolated Module | 2 | 36V | 15V | -15V | - | - | - | 18V | 1A, 1A | 30 W | 83% | 1 kV | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | Remote On/Off, OCP, SCP | Through Hole | - | - | - | - | |
|

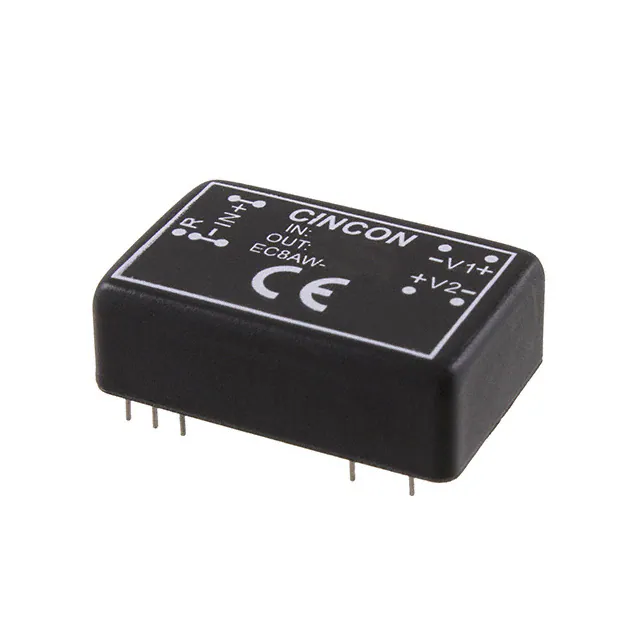

EC8AW-24S05DC DC CONVERTER 5V 15W |
127 | - |
|
数据表 |
EC8AW (15W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 36V | 5V | - | - | - | - | 9V | 3A | 15 W | 90% | 1.5 kV | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | Through Hole | - | - | CE | 60950-1 | |
|
LTM4603EV-1#PBFDC DC CONVERTER 0.6-5V |
383 | - |
|
数据表 |
µModule® | 118-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 20V | 0.6 ~ 5V | - | - | - | - | 4.5V | 6A | - | 93% | - | - | -40°C ~ 85°C | ITE (Commercial) | - | Surface Mount | 118-LGA (15x15) | - | - | - |
