直流直流转换器（DC DC Converters）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 等级 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输入（最小） | 电流 - 输出（最大值） | 功率（瓦特） | 效率 | 电压 - 隔离 | 认证 | 工作温度 | 应用 | 特性 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G2412WS-1WR3ISOLATED MODULE DC DC CONVERTER2 |
50 | - |
|
数据表 |
G_WS-1WR3 (1W) | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 26.4V | 12V | -12V | - | - | - | 21.6V | 42mA, 42mA | 1.008 W | 76% | 6 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial), Medical | - | Through Hole | - | - | - | 60601-1; 62368-1 | |
|
EPM12V1-05R5-01R0PDCDC CONV 1000MA 0.9-5.5VDC |
628 | - |
|
数据表 |
- | 12-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 14V | 0.9 ~ 5.5V | - | - | - | - | 3V | 1A | - | 89.5% | - | - | -40°C ~ 82°C (With Derating) | ITE (Commercial) | Adjustable Output, Remote On/Off | Surface Mount | - | Enable, Active High | - | - | |
|
|
H1215WS-2WR3ISOLATED MODULE DC DC CONVERTER1 |
47 | - |
|
数据表 |
H_WS-2WR3 (2W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 13.2V | 15V | - | - | - | - | 10.8V | 133mA | 1.995 W | 84% | 6 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial), Medical | - | Through Hole | - | - | - | 60601-1; 62368-1 | |
|
R1DX-0505/H-RDC DC CONVERTER +/-5V 1W |
240 | - |
|
数据表 |
ECONOLINE R1DX (1W) | 10-SMD, 6 Leads | Tape & Reel (TR) | Active | Isolated Module | 2 | 5.5V | 5V | -5V | - | - | - | 4.5V | 100mA, 100mA | 1 W | 78% | 3 kV | - | -40°C ~ 95°C | ITE (Commercial) | - | Surface Mount | - | - | - | - | |
|
EPM7051V-12R-084SHDC DC CONV 1W 5VIN 12VOUT 84MA |
332 | - |
|
数据表 |
EPM7-1V (1W) | 7-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 5.5V | 12V | - | - | - | - | 4.5V | 84mA | 1 W | 78% | 4 kV | - | -40°C ~ 100°C (With Derating) | ITE (Commercial) | - | Through Hole | - | - | - | 62368-1 | |
|
0.1S4A_1205S1.5UISOLATED MODULE DC DC CONVERTERS |
164 | - |
|
数据表 |
0.1S4A_1.5U (0.1W) | 4-SIP Module | Tube | Not For New Designs | Isolated Module | 1 | 13.2V | 5V | - | - | - | - | 10.8V | 20mA | 100 mW | 80% | 1.5 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial) | - | Through Hole | - | - | - | - | |
|
1S7BE_0305S6UISOLATED MODULE DC DC CONVERTERS |
229 | - |
|
数据表 |
1S7B_6U (1W) | 7-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 3.465V | 5V | - | - | - | - | 3.135V | 200mA | 1 W | 70% | 6 kV | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole | - | - | - | - | |
|
NXF1S0305MC-R7DC DC CONVERTER 5V 1W |
615 | - |
|
数据表 |
NXF1 (1W) | 14-SMD Module, 5 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 3.465V | 5V | - | - | - | - | 3.135V | 200mA | 1 W | 59% | 3 kV | - | -40°C ~ 90°C (With Derating) | ITE (Commercial) | SCP | Surface Mount | - | - | - | - | |
|
EPM6122V-12R-084SRDC DC CONV 1W 12VIN 12VOUT 84MA |
296 | - |
|
数据表 |
EPM6-2V (1W) | 7-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 13.2V | 12V | - | - | - | - | 10.8V | 84mA | 1 W | 80% | 3 kV | - | -40°C ~ 100°C (With Derating) | ITE (Commercial) | - | Through Hole | - | - | - | 62368-1 | |
|
1MD8A_0505S3UPISOLATED MODULE DC DC CONVERTERS |
168 | - |
|
数据表 |
1MD8A_3UP (1W) | 8-DIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 5.5V | 5V | - | - | - | - | 4.5V | 200mA | 1 W | 69% | 3 kV | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole | - | - | - | - | |
|
1MS4A_2405S3UPISOLATED MODULE DC DC CONVERTERS |
160 | - |
|
数据表 |
1MS4A_3UP (1W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 26.4V | 5V | - | - | - | - | 21.6V | 200mA | 1 W | 71% | 3 kV | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole | - | - | - | - | |
|
|
1S7BE_0524D6UISOLATED MODULE DC DC CONVERTERS |
167 | - |
|
数据表 |
1S7B_6U (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 5.25V | 24V | -24V | - | - | - | 4.75V | 21mA, 21mA | 1 W | 82% | 6 kV | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole | - | - | - | - | |
|
|
1S7BE_1209D6UISOLATED MODULE DC DC CONVERTERS |
175 | - |
|
数据表 |
1S7B_6U (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 12.6V | 9V | -9V | - | - | - | 11.4V | 56mA, 56mA | 1 W | 75% | 6 kV | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole | - | - | - | - | |
|

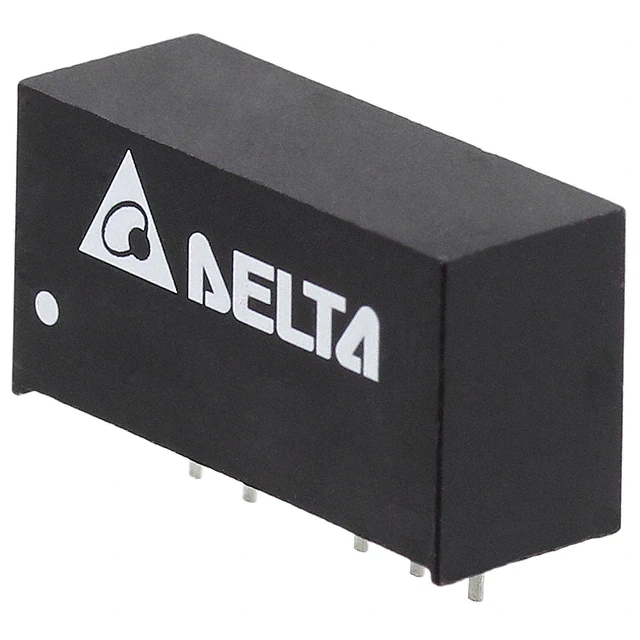

PE01D0505ADC DC CONVERTER +/-5V 1W |
235 | - |
|
数据表 |
PE01S/D (1W) | 6-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 5.5V | 5V | -5V | - | - | - | 4.5V | 100mA, 100mA | 1 W | 84.5% | 1 kV | - | -40°C ~ 85°C | Medical | SCP | Through Hole | - | - | - | - | |
|
1T8E_0505S1UISOLATED MODULE DC DC CONVERTERS |
180 | - |
|
数据表 |
1T8E_1U (1W) | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 5.5V | 5V | - | - | - | - | 4.5V | 200mA | 1 W | 70% | 1 kV | - | -40°C ~ 85°C | ITE (Commercial) | - | Surface Mount | - | - | - | - | |
|
|
G1205WS-1WR3ISOLATED MODULE DC DC CONVERTER2 |
47 | - |
|
数据表 |
G_WS-1WR3 (1W) | 7-SIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 2 | 13.2V | 5V | -5V | - | - | - | 10.8V | 100mA, 100mA | 1 W | 79% | 6 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial), Medical | - | Through Hole | - | - | - | 60601-1; 62368-1 | |
|
|
H2405WS-2WR3ISOLATED MODULE DC DC CONVERTER1 |
34 | - |
|
数据表 |
H_WS-2WR3 (2W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 26.4V | 5V | - | - | - | - | 21.6V | 400mA | 2 W | 79% | 6 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial), Medical | - | Through Hole | - | - | - | 60601-1; 62368-1 | |
|
|
H1205WS-2WR3ISOLATED MODULE DC DC CONVERTER1 |
32 | - |
|
数据表 |
H_WS-2WR3 (2W) | 7-SIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 13.2V | 5V | - | - | - | - | 10.8V | 400mA | 2 W | 80% | 6 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial), Medical | - | Through Hole | - | - | - | 60601-1; 62368-1 | |
|
PDSE1-S5-S12-MDC DC CONVERTER 12V 1W |
95 | - |
|
数据表 |
PDSE1-M (1W) | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 5.5V | 12V | - | - | - | - | 4.5V | 84mA | 1 W | 83% | 1.5 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial) | SCP | Surface Mount | - | - | CB Scheme, EN, IEC | 55024; 55032 Class A; 62368-1 | |
|
|
PDSE1-S5-S24-MDC DC CONVERTER 24V 1W |
47 | - |
|
数据表 |
PDSE1-M (1W) | 8-SMD Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 5.5V | 24V | - | - | - | - | 4.5V | 42mA | 1 W | 85% | 1.5 kV | - | -40°C ~ 105°C (With Derating) | ITE (Commercial) | SCP | Surface Mount | - | - | CB Scheme, EN, IEC | 55024; 55032 Class A; 62368-1 |
