首页 > 产品 > 隔离器 > 光耦合器、光隔离器 > 三端双向可控硅、SCR 输出光隔离器

三端双向可控硅、SCR 输出光隔离器

制造商	系列	封装/外壳	包装	产品状态	输出类型	零交叉电路	电压 - 隔离	电压 - 关断状态	静态 dV/dt（最小值）	认证机构	电流 - LED 触发 (Ift)（最大值）	电流 - 导通状态 (It (RMS))（最大值）	通道数	电流 - 保持 (Ih)	开启时间	供应商设备封装	电压 - 正向 (Vf)（典型值）	安装类型	电流 - 直流正向（If）（最大值）	工作温度
American Bright Optoelectronics Corporation Central Semiconductor Corp Fairchild Semiconductor Fairchild/ON Semiconductor Lite-On Inc. onsemi Panasonic Electric Works Sharp Microelectronics SHARP/Socle Technology Texas Instruments Toshiba Semiconductor and Storage Vicor Corporation Vishay Semiconductor Opto Division Weidmuller Würth Elektronik	* - 3SD11 APC-305X APT ELM302X ELM306X ELM308X ELRX223 H11J H11J1 H11J2 H11J3 H11J4 H11J5 IS3020 IS3021 IS3022 IS3051 IS3052 IS6005 IS6010 IS6015 IS607 IS608 IS62 MF301x MF302x MF303x MF304x MF306x MOC3009 MOC301 MOC302 MOC302x MOC3030 MOC3031 MOC3032 MOC3033 MOC303x MOC304 MOC305 MOC3051 MOC305x MOC306 MOC306x MOC308 MOC308x Q302X Q305X Q306X Q308X QTM302X QTM303X QTM304X QTM305X QTM306X QTM308X QTTX213 QTX213 QTX223 S2S4 TLP VO3021 VO3022 VO3023 WAVESERIES WL-OCTR	- 16-DIP (0.300", 7.62mm), 10 Leads 4-DIP (0.300", 7.62mm) 4-DIP (0.400", 10.16mm) 4-SIP 4-SMD 4-SMD (0.300", 7.62mm) 4-SMD, Gull Wing 4-SOIC (0.173", 4.40mm Width) 5-SMD, Gull Wing 6-DIP (0.300", 7.62mm) 6-DIP (0.300", 7.62mm), 5 Leads 6-DIP (0.400", 10.16mm) 6-DIP (0.400", 10.16mm), 5 Leads 6-SMD 6-SMD (5 Leads), Gull Wing 6-SMD, Gull Wing 6-SMD, Gull Wing, 5 Leads 6-SOIC (0.173", 4.40mm Width), 4 Leads 8-DIP (0.300", 7.62mm) 8-DIP (0.300", 7.62mm), 7 Leads 8-SMD (7 Leads), Gull Wing Din Rail Module	Box Bulk Cut Tape (CT) Tape & Reel (TR) Tube	Active Discontinued at InFortune Last Time Buy Obsolete	- SCR Triac Triac, Power	- No Yes	- 2500Vrms 3000Vrms 3750Vrms 4000Vrms 4170Vrms 4470Vrms 5000Vrms 5300Vrms 7500Vpk	- 200 V 250 V 300 V 400 V 450 V 600 V 700 V 800 V	- 1.5kV/µs 100V/µs 100V/µs (Typ) 10kV/µs 10kV/µs (Typ) 10V/µs (Typ) 12V/µs 1kV/µs 200V/µs 210V/µs (Typ) 2kV/µs (Typ) 30V/µs 3V/µs 500V/µs 500V/µs (Typ) 50V/µs 50V/µs (Typ) 5kV/µs 5V/µs 600V/µs 600V/µs (Typ) 800V/µs	- BSI, CQC, CSA, cUR, UR, VDE BSI, CQC, cUR, FIMKO, UR, VDE BSI, CQC, UR, VDE BSI, CSA, cUR, FIMKO, UR BSI, CSA, cUR, FIMKO, UR, VDE BSI, CSA, cUR, UR BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE BSI, CSA, UL BSI, CSA, UL, VDE BSI, cUR, FIMKO, UR BSI, cUR, FIMKO, UR, VDE BSI, DEMKO, SEMKO, UR, VDE BSI, SEMKO, UR BSI, SEMKO, UR, VDE BSI, UR, VDE CQC, CSA, cUL, FIMKO, UL CQC, CSA, cUL, FIMKO, UL, VDE CQC, CSA, cUL, UL CQC, CSA, cUL, UL, VDE CQC, CSA, cUR, UR CQC, CSA, cUR, UR, VDE CQC, CSA, TUV, UL, VDE CQC, cUL, DEMKO, FIMKO, NEMKO, SEMKO, UL, VDE CQC, cUL, UL, VDE CQC, cULus, cURus, UL, VDE CQC, cUR, UR CQC, cUR, UR, VDE CQC, UL CQC, UL, VDE CSA, cUL, UL CSA, cUL, UL, VDE CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL, VDE CSA, DEMKO, FIMKO, NEMKO, SEMKO, UR, VDE CSA, DIN, UR CSA, FIMKO, UL CSA, UL CSA, UL, VDE CSA, UR CSA, UR, VDE cUL, Demko, Fimko, Nemko, Semko, UL cUL, Demko, Fimko, Nemko, Semko, UL, VDE cUL, FIMKO, UL cUL, FIMKO, UL, VDE cUL, UL cUL, UL, VDE cUL, UR, VDE cUR, FIMKO, UR cUR, FIMKO, UR, VDE cUR, UR cUR, UR, VDE cUR, VDE DEMKO, FIMKO, NEMKO, SEMKO, UL DEMKO, FIMKO, NEMKO, SEMKO, UL, VDE IEC/EN/DIN, UL SEMKO, UR UL UL, VDE UR UR, VDE VDE	- 1.2mA 1.3mA 1.6mA 10mA 14mA 15mA 20mA 25mA 2mA 30mA 3mA 5mA 6mA 700µA (Typ) 7mA 8mA	- 1 A 1.2 A 100 mA 15 mA 150 mA 200 mA 300 mA 50 mA 600 mA 70 mA 8 A 80 mA 900 mA	- 1 2	- 100µA 100µA (Typ) 1mA 1mA (Typ) 200µA 200µA (Typ) 220µA (Typ) 237µA (Typ) 250µA 250µA (Typ) 257µA 257µA (Typ) 25mA 280µA 280µA (Typ) 3.5mA 300µA (Typ) 3mA 400µA 400µA (Typ) 450µA (Typ) 500µA 500µA (Typ) 50mA 540µA (Typ) 5mA 600µA 600µA (Typ)	- 100µs 100µs (Max) 10ms (Max) 10µs 10µs (Max) 15µs 1ms (Max) 20µs 30µs 35µs 50µs (Max) 60µs 8µs	- 10-DIP 4-DIP 4-DIP Gull Wing 4-DIP-M 4-DIP-SL 4-MFP 4-Mini-Flat 4-SIP 4-SMD 4-SOP 4-SOP (2.54mm) 5-SMD 6-DIP 6-DIP (Cut), 5 Lead 6-DIP Gull Wing 6-MFSOP, 4 Lead 6-PDIP 6-SMD 6-SO, 5 Lead 6-SOP 7-DIP 7-SMD 8-DIP 8-SMD Module SMD	- 1.15V 1.16V 1.18V 1.1V 1.21V 1.24V 1.25V 1.27V 1.28V 1.2V 1.3V 1.3V (Max) 1.4V 1.4V (Max) 1.5V (Max)	- DIN Rail Surface Mount Through Hole	- 1 A 15 mA 20 mA 25 mA 3 mA 30 mA 50 mA 6 mA 60 mA 80 mA	- -25°C ~ 100°C -25°C ~ 50°C -25°C ~ 85°C -30°C ~ 100°C -30°C ~ 85°C -40°C ~ 100°C -40°C ~ 110°C -40°C ~ 85°C -55°C ~ 100°C -55°C ~ 110°C -55°C ~ 85°C

全部重置

全部应用

结果

厂商料号	价格	数量	数据表	系列	封装/外壳	包装	产品状态	输出类型	零交叉电路	电压 - 隔离	电压 - 关断状态	静态 dV/dt（最小值）	认证机构	电流 - LED 触发 (Ift)（最大值）	电流 - 导通状态 (It (RMS))（最大值）	通道数	电流 - 保持 (Ih)	开启时间	供应商设备封装	电压 - 正向 (Vf)（典型值）	安装类型	电流 - 直流正向（If）（最大值）	工作温度
BRT22-H PHOTOCOUPLER TRIAC 600V 6DIP Vishay Semiconductor Opto Division	-	询价单	数据表	-	6-DIP (0.300", 7.62mm)	Tube	Obsolete	Triac	Yes	5300Vrms	600 V	10kV/µs	CQC, UL	2mA	300 mA	1	500µA	35µs	6-DIP	1.16V	Through Hole	60 mA	-40°C ~ 100°C
BRT23-F PHOTOCOUPLER TRIAC 800V 6DIP Vishay Semiconductor Opto Division	-	询价单	数据表	-	6-DIP (0.300", 7.62mm)	Tube	Obsolete	Triac	Yes	5300Vrms	800 V	10kV/µs	CQC, UL	1.2mA	300 mA	1	500µA	35µs	6-DIP	1.16V	Through Hole	60 mA	-40°C ~ 100°C
BRT23-H PHOTOCOUPLER TRIAC 800V 6DIP Vishay Semiconductor Opto Division	-	询价单	数据表	-	6-DIP (0.300", 7.62mm)	Tube	Obsolete	Triac	Yes	5300Vrms	800 V	10kV/µs	CQC, UL	2mA	300 mA	1	500µA	35µs	6-DIP	1.16V	Through Hole	60 mA	-40°C ~ 100°C
BRT23-M PHOTOCOUPLER TRIAC 800V 6DIP Vishay Semiconductor Opto Division	-	询价单	数据表	-	6-DIP (0.300", 7.62mm)	Tube	Obsolete	Triac	Yes	5300Vrms	800 V	10kV/µs	CQC, UL	3mA	300 mA	1	500µA	35µs	6-DIP	1.16V	Through Hole	60 mA	-40°C ~ 100°C
H11C4M OPTOISOLATOR 5KV SCR 6DIP Central Semiconductor Corp	-	询价单	数据表	-	6-DIP (0.300", 7.62mm)	Tube	Obsolete	SCR	No	5000Vrms	400 V	-	-	20mA	150 mA	1	500µA	-	6-DIP	1.5V (Max)	Through Hole	50 mA	-30°C ~ 100°C
PC3SD11NTZBH OPTOISOLATOR 5KV TRIAC DIP SHARP/Socle Technology	-	询价单	数据表	-	4-DIP (0.300", 7.62mm)	Tube	Active	Triac	No	5000Vrms	600 V	1kV/µs	CSA, UR	7mA	100 mA	1	3.5mA	100µs (Max)	4-DIP	1.2V	Through Hole	50 mA	-30°C ~ 100°C
PC3SD11YTZAH OPTOISOLATOR 5KV TRIAC DIP SHARP/Socle Technology	-	询价单	数据表	-	4-DIP (0.300", 7.62mm)	Tube	Active	Triac	No	5000Vrms	600 V	1kV/µs	CSA, UR, VDE	10mA	100 mA	1	3.5mA	100µs (Max)	4-DIP	1.2V	Through Hole	50 mA	-30°C ~ 100°C
PC3SD11YXPCH OPTOISOLATOR 5KV TRIAC SMD Sharp Microelectronics	-	询价单	数据表	-	6-SMD (5 Leads), Gull Wing	Tube	Discontinued at Digi-Key	Triac	No	5000Vrms	600 V	1kV/µs	CSA, UR, VDE	5mA	100 mA	1	3.5mA	100µs (Max)	6-SMD	1.2V	Surface Mount	50 mA	-30°C ~ 100°C
PC3SD21NTZBH OPTOISOLATOR 5KV TRIAC DIP Sharp Microelectronics	-	询价单	数据表	-	6-DIP (0.300", 7.62mm), 5 Leads	Tube	Discontinued at Digi-Key	Triac	Yes	5000Vrms	600 V	1kV/µs	CSA, UR	7mA	100 mA	1	3.5mA	50µs (Max)	6-DIP	1.2V	Through Hole	50 mA	-30°C ~ 100°C
PC3SD21NTZDH OPTOISOLATOR 5KV TRIAC 6DIP SHARP/Socle Technology	-	询价单	数据表	-	6-DIP (0.300", 7.62mm), 5 Leads	Tube	Active	Triac	Yes	5000Vrms	600 V	1kV/µs	CSA, UR	3mA	100 mA	1	3.5mA	50µs (Max)	6-DIP	1.2V	Through Hole	50 mA	-30°C ~ 100°C

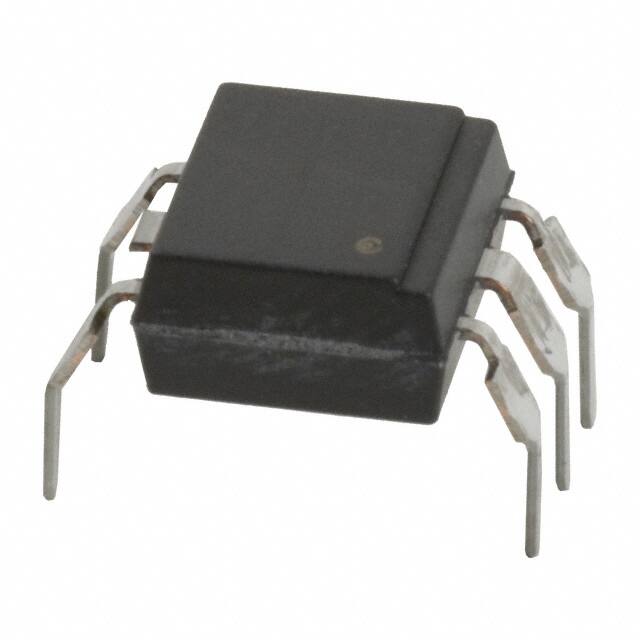

PC3SF11YVZAH OPTOISOLATOR 5KV TRIAC DIP Sharp Microelectronics	-	询价单	数据表	-	6-DIP (0.400", 10.16mm), 5 Leads	Tube	Discontinued at Digi-Key	Triac	No	5000Vrms	600 V	1kV/µs	BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE	10mA	100 mA	1	3.5mA	100µs (Max)	6-DIP	1.2V	Through Hole	50 mA	-30°C ~ 100°C
PC3SF11YVZBH OPTOISOLATOR 5KV TRIAC DIP SHARP/Socle Technology	-	询价单	数据表	-	6-DIP (0.400", 10.16mm), 5 Leads	Tube	Active	Triac	No	5000Vrms	600 V	1kV/µs	BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE	7mA	100 mA	1	3.5mA	100µs (Max)	6-DIP	1.2V	Through Hole	50 mA	-30°C ~ 100°C
PC3SF21YVZBH OPTOISOLATOR 5KV TRIAC DIP Sharp Microelectronics	-	询价单	数据表	-	6-DIP (0.400", 10.16mm), 5 Leads	Tube	Discontinued at Digi-Key	Triac	Yes	5000Vrms	600 V	1kV/µs	BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE	7mA	100 mA	1	3.5mA	50µs (Max)	6-DIP	1.2V	Through Hole	50 mA	-30°C ~ 100°C
PC4SD21NTZCH OPTOISOLATOR 5KV TRIAC DIP Sharp Microelectronics	-	询价单	数据表	-	6-DIP (0.300", 7.62mm), 5 Leads	Tube	Discontinued at Digi-Key	Triac	Yes	5000Vrms	800 V	500V/µs	CSA, UR	5mA	100 mA	1	3.5mA	50µs (Max)	6-DIP	1.2V	Through Hole	50 mA	-30°C ~ 100°C
PC4SF21YVZBH OPTOISOLATOR 5KV TRIAC DIP SHARP/Socle Technology	-	询价单	数据表	-	6-DIP (0.400", 10.16mm), 5 Leads	Tube	Discontinued at Digi-Key	Triac	Yes	5000Vrms	800 V	500V/µs	BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE	7mA	100 mA	1	3.5mA	50µs (Max)	6-DIP	1.2V	Through Hole	50 mA	-30°C ~ 100°C
PR36MF51NSLH OPTOISOLATOR 4KV PWR TRIAC DIP Sharp Microelectronics	-	询价单	数据表	-	-	Tube	Discontinued at Digi-Key	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PC3SD21NTZAH OPTOISOLATOR 5KV TRIAC DIP Sharp Microelectronics	-	询价单	数据表	-	-	Tape & Reel (TR)	Discontinued at Digi-Key	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PC3SD21YXPLH OPTOISOLATOR 5KV TRIAC SMD Sharp Microelectronics	-	询价单	数据表	-	-	Tape & Reel (TR)	Discontinued at Digi-Key	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PC4SD11YXPCH OPTOISOLATOR 5KV TRIAC SMD Sharp Microelectronics	-	询价单	数据表	-	6-SMD (5 Leads), Gull Wing	Tape & Reel (TR)	Discontinued at Digi-Key	Triac	No	5000Vrms	800 V	50V/µs	CSA, UR, VDE	5mA	100 mA	1	3.5mA	100µs (Max)	6-SMD	1.2V	Surface Mount	50 mA	-30°C ~ 100°C
TLP3042(TP1,S,C,F) X36 PB-F PHOTOCOUPLER SMD T&R JA Toshiba Semiconductor and Storage	-	询价单	数据表	-	6-DIP (0.300", 7.62mm), 5 Leads	Tape & Reel (TR)	Obsolete	Triac	Yes	5000Vrms	400 V	200V/µs	BSI, SEMKO, UR	10mA	100 mA	1	600µA (Typ)	-	6-DIP (Cut), 5 Lead	1.15V	Through Hole	50 mA	-40°C ~ 100°C

共 1850 条记录«上一页 1... 84 85 86 878889 90 91...93 下一页»
