三端双向可控硅、SCR 输出光隔离器

制造商	系列	封装/外壳	包装	产品状态	输出类型	零交叉电路	电压 - 隔离	电压 - 关断状态	静态 dV/dt（最小值）	认证机构	电流 - LED 触发 (Ift)（最大值）	电流 - 导通状态 (It (RMS))（最大值）	通道数	电流 - 保持 (Ih)	开启时间	供应商设备封装	电压 - 正向 (Vf)（典型值）	安装类型	电流 - 直流正向（If）（最大值）	工作温度
American Bright Optoelectronics Corporation Central Semiconductor Corp Fairchild Semiconductor Fairchild/ON Semiconductor Lite-On Inc. onsemi Panasonic Electric Works Sharp Microelectronics SHARP/Socle Technology Texas Instruments Toshiba Semiconductor and Storage Vicor Corporation Vishay Semiconductor Opto Division Weidmuller Würth Elektronik	* - 3SD11 APC-305X APT ELM302X ELM306X ELM308X ELRX223 H11J H11J1 H11J2 H11J3 H11J4 H11J5 IS3020 IS3021 IS3022 IS3051 IS3052 IS6005 IS6010 IS6015 IS607 IS608 IS62 MF301x MF302x MF303x MF304x MF306x MOC3009 MOC301 MOC302 MOC302x MOC3030 MOC3031 MOC3032 MOC3033 MOC303x MOC304 MOC305 MOC3051 MOC305x MOC306 MOC306x MOC308 MOC308x Q302X Q305X Q306X Q308X QTM302X QTM303X QTM304X QTM305X QTM306X QTM308X QTTX213 QTX213 QTX223 S2S4 TLP VO3021 VO3022 VO3023 WAVESERIES WL-OCTR	- 16-DIP (0.300", 7.62mm), 10 Leads 4-DIP (0.300", 7.62mm) 4-DIP (0.400", 10.16mm) 4-SIP 4-SMD 4-SMD (0.300", 7.62mm) 4-SMD, Gull Wing 4-SOIC (0.173", 4.40mm Width) 5-SMD, Gull Wing 6-DIP (0.300", 7.62mm) 6-DIP (0.300", 7.62mm), 5 Leads 6-DIP (0.400", 10.16mm) 6-DIP (0.400", 10.16mm), 5 Leads 6-SMD 6-SMD (5 Leads), Gull Wing 6-SMD, Gull Wing 6-SMD, Gull Wing, 5 Leads 6-SOIC (0.173", 4.40mm Width), 4 Leads 8-DIP (0.300", 7.62mm) 8-DIP (0.300", 7.62mm), 7 Leads 8-SMD (7 Leads), Gull Wing Din Rail Module	Box Bulk Cut Tape (CT) Tape & Reel (TR) Tube	Active Discontinued at InFortune Last Time Buy Obsolete	- SCR Triac Triac, Power	- No Yes	- 2500Vrms 3000Vrms 3750Vrms 4000Vrms 4170Vrms 4470Vrms 5000Vrms 5300Vrms 7500Vpk	- 200 V 250 V 300 V 400 V 450 V 600 V 700 V 800 V	- 1.5kV/µs 100V/µs 100V/µs (Typ) 10kV/µs 10kV/µs (Typ) 10V/µs (Typ) 12V/µs 1kV/µs 200V/µs 210V/µs (Typ) 2kV/µs (Typ) 30V/µs 3V/µs 500V/µs 500V/µs (Typ) 50V/µs 50V/µs (Typ) 5kV/µs 5V/µs 600V/µs 600V/µs (Typ) 800V/µs	- BSI, CQC, CSA, cUR, UR, VDE BSI, CQC, cUR, FIMKO, UR, VDE BSI, CQC, UR, VDE BSI, CSA, cUR, FIMKO, UR BSI, CSA, cUR, FIMKO, UR, VDE BSI, CSA, cUR, UR BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE BSI, CSA, UL BSI, CSA, UL, VDE BSI, cUR, FIMKO, UR BSI, cUR, FIMKO, UR, VDE BSI, DEMKO, SEMKO, UR, VDE BSI, SEMKO, UR BSI, SEMKO, UR, VDE BSI, UR, VDE CQC, CSA, cUL, FIMKO, UL CQC, CSA, cUL, FIMKO, UL, VDE CQC, CSA, cUL, UL CQC, CSA, cUL, UL, VDE CQC, CSA, cUR, UR CQC, CSA, cUR, UR, VDE CQC, CSA, TUV, UL, VDE CQC, cUL, DEMKO, FIMKO, NEMKO, SEMKO, UL, VDE CQC, cUL, UL, VDE CQC, cULus, cURus, UL, VDE CQC, cUR, UR CQC, cUR, UR, VDE CQC, UL CQC, UL, VDE CSA, cUL, UL CSA, cUL, UL, VDE CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL, VDE CSA, DEMKO, FIMKO, NEMKO, SEMKO, UR, VDE CSA, DIN, UR CSA, FIMKO, UL CSA, UL CSA, UL, VDE CSA, UR CSA, UR, VDE cUL, Demko, Fimko, Nemko, Semko, UL cUL, Demko, Fimko, Nemko, Semko, UL, VDE cUL, FIMKO, UL cUL, FIMKO, UL, VDE cUL, UL cUL, UL, VDE cUL, UR, VDE cUR, FIMKO, UR cUR, FIMKO, UR, VDE cUR, UR cUR, UR, VDE cUR, VDE DEMKO, FIMKO, NEMKO, SEMKO, UL DEMKO, FIMKO, NEMKO, SEMKO, UL, VDE IEC/EN/DIN, UL SEMKO, UR UL UL, VDE UR UR, VDE VDE	- 1.2mA 1.3mA 1.6mA 10mA 14mA 15mA 20mA 25mA 2mA 30mA 3mA 5mA 6mA 700µA (Typ) 7mA 8mA	- 1 A 1.2 A 100 mA 15 mA 150 mA 200 mA 300 mA 50 mA 600 mA 70 mA 8 A 80 mA 900 mA	- 1 2	- 100µA 100µA (Typ) 1mA 1mA (Typ) 200µA 200µA (Typ) 220µA (Typ) 237µA (Typ) 250µA 250µA (Typ) 257µA 257µA (Typ) 25mA 280µA 280µA (Typ) 3.5mA 300µA (Typ) 3mA 400µA 400µA (Typ) 450µA (Typ) 500µA 500µA (Typ) 50mA 540µA (Typ) 5mA 600µA 600µA (Typ)	- 100µs 100µs (Max) 10ms (Max) 10µs 10µs (Max) 15µs 1ms (Max) 20µs 30µs 35µs 50µs (Max) 60µs 8µs	- 10-DIP 4-DIP 4-DIP Gull Wing 4-DIP-M 4-DIP-SL 4-MFP 4-Mini-Flat 4-SIP 4-SMD 4-SOP 4-SOP (2.54mm) 5-SMD 6-DIP 6-DIP (Cut), 5 Lead 6-DIP Gull Wing 6-MFSOP, 4 Lead 6-PDIP 6-SMD 6-SO, 5 Lead 6-SOP 7-DIP 7-SMD 8-DIP 8-SMD Module SMD	- 1.15V 1.16V 1.18V 1.1V 1.21V 1.24V 1.25V 1.27V 1.28V 1.2V 1.3V 1.3V (Max) 1.4V 1.4V (Max) 1.5V (Max)	- DIN Rail Surface Mount Through Hole	- 1 A 15 mA 20 mA 25 mA 3 mA 30 mA 50 mA 6 mA 60 mA 80 mA	- -25°C ~ 100°C -25°C ~ 50°C -25°C ~ 85°C -30°C ~ 100°C -30°C ~ 85°C -40°C ~ 100°C -40°C ~ 110°C -40°C ~ 85°C -55°C ~ 100°C -55°C ~ 110°C -55°C ~ 85°C

全部重置

全部应用

结果

厂商料号	价格	数量	数据表	系列	封装/外壳	包装	产品状态	输出类型	零交叉电路	电压 - 隔离	电压 - 关断状态	静态 dV/dt（最小值）	认证机构	电流 - LED 触发 (Ift)（最大值）	电流 - 导通状态 (It (RMS))（最大值）	通道数	电流 - 保持 (Ih)	开启时间	供应商设备封装	电压 - 正向 (Vf)（典型值）	安装类型	电流 - 直流正向（If）（最大值）	工作温度
PC3SD21YXPDF OPTOISOLATOR 5KV TRIAC 6SMD SHARP/Socle Technology	-	询价单	数据表	-	6-SMD	Tape & Reel (TR)	Discontinued at Digi-Key	Triac	Yes	5000Vrms	600 V	1kV/µs	CSA, UR, VDE	3mA	100 mA	1	3.5mA	50µs (Max)	6-SMD	1.2V	Surface Mount	50 mA	-30°C ~ 100°C
PC3SD21YXPLF OPTOISOLATOR 5KV TRIAC 6SMD Sharp Microelectronics	-	询价单	数据表	-	6-SMD	Tape & Reel (TR)	Discontinued at Digi-Key	Triac	Yes	5000Vrms	600 V	1kV/µs	CSA, UR, VDE	-	100 mA	1	3.5mA	50µs (Max)	6-SMD	1.2V	Surface Mount	50 mA	-30°C ~ 100°C
PC4SD11YXPCF OPTOISOLATOR 5KV TRIAC 6SMD SHARP/Socle Technology	-	询价单	数据表	-	6-SMD	Tape & Reel (TR)	Discontinued at Digi-Key	Triac	No	5000Vrms	800 V	50V/µs	CSA, UR, VDE	5mA	100 mA	1	3.5mA	100µs (Max)	6-SMD	1.2V	Surface Mount	50 mA	-30°C ~ 100°C
PC4SF11YVZBF OPTOISOLATOR 5KV TRIAC 6DIP Sharp Microelectronics	-	询价单	数据表	-	6-DIP (0.300", 7.62mm), 5 Leads	Tube	Obsolete	Triac	No	5000Vrms	800 V	50V/µs	BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE	7mA	100 mA	1	3.5mA	100µs (Max)	6-DIP	1.2V	Through Hole	50 mA	-30°C ~ 100°C
PC4SF21YVZBF OPTOISOLATOR 5KV TRIAC 6DIP SHARP/Socle Technology	-	询价单	数据表	-	6-DIP (0.300", 7.62mm), 5 Leads	Tube	Discontinued at Digi-Key	Triac	Yes	5000Vrms	800 V	500V/µs	BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE	7mA	100 mA	1	3.5mA	50µs (Max)	6-DIP	1.2V	Through Hole	50 mA	-30°C ~ 100°C
PC4SF21YVZCF OPTOISOLATOR 5KV TRIAC 6DIP Sharp Microelectronics	-	询价单	数据表	-	6-DIP (0.300", 7.62mm), 5 Leads	Tube	Obsolete	Triac	Yes	5000Vrms	800 V	500V/µs	BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE	5mA	100 mA	1	3.5mA	50µs (Max)	6-DIP	1.2V	Through Hole	50 mA	-30°C ~ 100°C
PC4SD21NXZCF OPTOISOLATOR 5KV TRIAC 6SMD Sharp Microelectronics	-	询价单	数据表	-	6-SMD	Tube	Obsolete	Triac	Yes	5000Vrms	800 V	500V/µs	CSA, UR	5mA	100 mA	1	3.5mA	50µs (Max)	6-SMD	1.2V	Surface Mount	50 mA	-30°C ~ 100°C
PC4SF11YVZAF OPTOISOLATOR 5KV TRIAC 6DIP Sharp Microelectronics	-	询价单	数据表	-	6-DIP (0.300", 7.62mm), 5 Leads	Tube	Obsolete	Triac	No	5000Vrms	800 V	50V/µs	BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE	10mA	100 mA	1	3.5mA	100µs (Max)	6-DIP	1.2V	Through Hole	50 mA	-30°C ~ 100°C
TLP160J(U,C,F) OPTOISOLATOR 2.5KV TRIAC 6MFSOP Toshiba Semiconductor and Storage	-	询价单	数据表	-	6-SOIC (0.173", 4.40mm Width), 4 Leads	Tube	Obsolete	Triac	No	2500Vrms	600 V	500V/µs	UR	10mA	70 mA	1	1mA (Typ)	30µs	6-MFSOP, 4 Lead	1.15V	Surface Mount	50 mA	-40°C ~ 100°C
TLP160J(TPR,U,C,F) OPTOISOLATOR 2.5KV TRIAC 6MFSOP Toshiba Semiconductor and Storage	-	询价单	数据表	-	6-SOIC (0.173", 4.40mm Width), 4 Leads	Tape & Reel (TR)	Obsolete	Triac	No	2500Vrms	600 V	500V/µs	UR	10mA	70 mA	1	1mA (Typ)	30µs	6-MFSOP, 4 Lead	1.15V	Surface Mount	50 mA	-40°C ~ 100°C
TLP161G(U,C,F) OPTOISOLATOR 2.5KV TRIAC 6MFSOP Toshiba Semiconductor and Storage	-	询价单	数据表	-	6-SOIC (0.173", 4.40mm Width), 4 Leads	Tube	Obsolete	Triac	Yes	2500Vrms	400 V	200V/µs	UR	10mA	70 mA	1	600µA (Typ)	-	6-MFSOP, 4 Lead	1.15V	Surface Mount	50 mA	-40°C ~ 100°C
TLP161J(U,C,F) OPTOISOLATOR 2.5KV TRIAC 6MFSOP Toshiba Semiconductor and Storage	-	询价单	数据表	-	6-SOIC (0.173", 4.40mm Width), 4 Leads	Tube	Obsolete	Triac	Yes	2500Vrms	600 V	200V/µs	UR	10mA	70 mA	1	600µA (Typ)	-	6-MFSOP, 4 Lead	1.15V	Surface Mount	50 mA	-40°C ~ 100°C
TLP260JTPRPF OPTOISOLATOR 3KV TRIAC 4SOP Toshiba Semiconductor and Storage	-	询价单	数据表	-	4-SMD, Gull Wing	Tape & Reel (TR)	Obsolete	Triac	No	3000Vrms	600 V	500V/µs (Typ)	UR	10mA	70 mA	1	1mA (Typ)	30µs	4-SOP	1.15V	Surface Mount	50 mA	-40°C ~ 100°C
TLP3023SF OPTOISOLATOR 5KV TRIAC 6DIP 5L Toshiba Semiconductor and Storage	-	询价单	数据表	-	6-DIP (0.300", 7.62mm), 5 Leads	Tube	Obsolete	Triac	No	5000Vrms	400 V	200V/µs	BSI, SEMKO, UR	5mA	100 mA	1	600µA (Typ)	-	6-DIP (Cut), 5 Lead	1.15V	Through Hole	50 mA	-40°C ~ 100°C
TLP3042SCF OPTOISOLATOR 5KV TRIAC 6DIP 5L Toshiba Semiconductor and Storage	-	询价单	数据表	-	6-DIP (0.300", 7.62mm), 5 Leads	Tube	Obsolete	Triac	Yes	5000Vrms	400 V	200V/µs	BSI, SEMKO, UR	10mA	100 mA	1	600µA (Typ)	-	6-DIP (Cut), 5 Lead	1.15V	Through Hole	50 mA	-40°C ~ 100°C

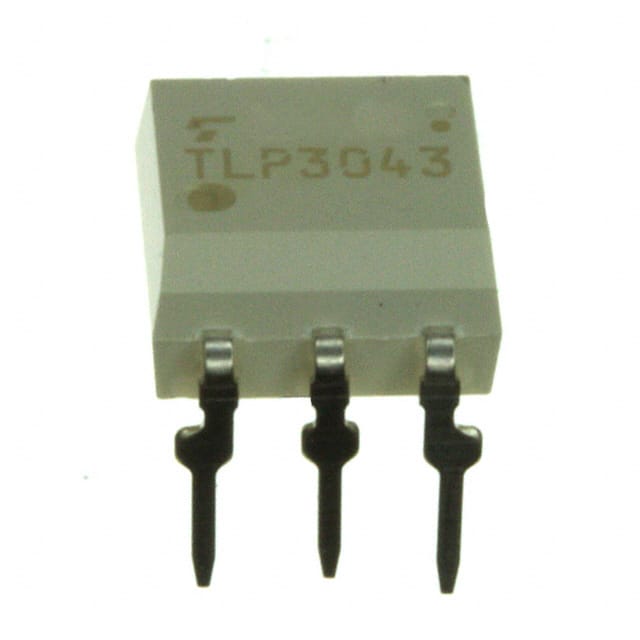

TLP3043(S,C,F) OPTOISOLATOR 5KV TRIAC 6DIP 5L Toshiba Semiconductor and Storage	-	询价单	数据表	-	6-DIP (0.300", 7.62mm), 5 Leads	Tube	Obsolete	Triac	Yes	5000Vrms	400 V	200V/µs	BSI, SEMKO, UR	5mA	100 mA	1	600µA (Typ)	-	6-DIP (Cut), 5 Lead	1.15V	Through Hole	50 mA	-40°C ~ 100°C
TLP525G-2(F) OPTOISOLATOR 2.5KV TRIAC 8DIP Toshiba Semiconductor and Storage	-	询价单	数据表	-	8-DIP (0.300", 7.62mm)	Tube	Active	Triac	No	2500Vrms	400 V	200V/µs	UR	10mA	80 mA	2	200µA (Typ)	-	8-DIP	1.15V	Through Hole	50 mA	-40°C ~ 100°C
MOC3031SDM OPTOISOLATOR 4.17KV TRIAC 6SMD onsemi	-	询价单	数据表	-	6-SMD, Gull Wing	Tape & Reel (TR)	Obsolete	Triac	Yes	4170Vrms	250 V	1kV/µs	UL	15mA	-	1	400µA (Typ)	-	6-SMD	1.25V	Surface Mount	60 mA	-40°C ~ 85°C

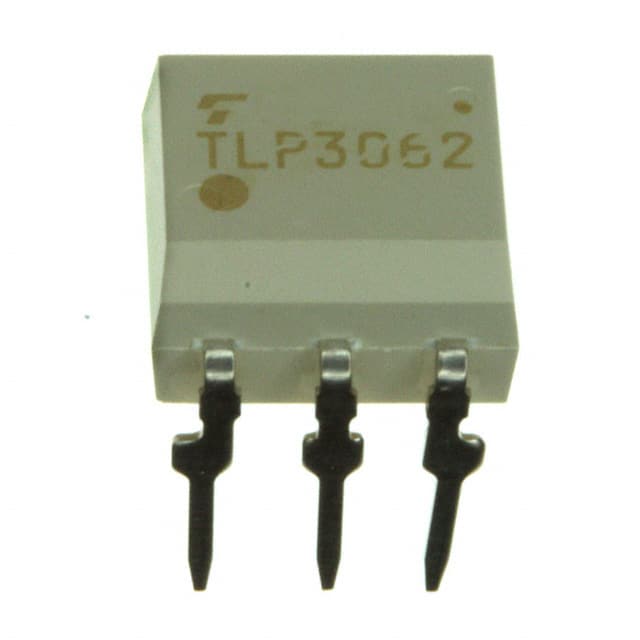

TLP3062(S,C,F) OPTOISOLATOR 5KV TRIAC 6DIP 5L Toshiba Semiconductor and Storage	-	询价单	数据表	-	6-DIP (0.300", 7.62mm), 5 Leads	Tube	Obsolete	Triac	Yes	5000Vrms	600 V	200V/µs	BSI, SEMKO, UR	10mA	100 mA	1	600µA (Typ)	-	6-DIP (Cut), 5 Lead	1.15V	Through Hole	50 mA	-40°C ~ 100°C
PC4SD21YXPCF OPTOISOLATOR 5KV TRIAC 6SMD SHARP/Socle Technology	-	询价单	数据表	-	6-SMD	Tape & Reel (TR)	Discontinued at Digi-Key	Triac	Yes	5000Vrms	800 V	500V/µs	CSA, UR, VDE	5mA	100 mA	1	3.5mA	50µs (Max)	6-SMD	1.2V	Surface Mount	50 mA	-30°C ~ 100°C

共 1850 条记录«上一页 1... 78 79 80 818283 84 85...93 下一页»
