首页 > 产品 > 隔离器 > 光耦合器、光隔离器 > 三端双向可控硅、SCR 输出光隔离器

三端双向可控硅、SCR 输出光隔离器

制造商	系列	封装/外壳	包装	产品状态	输出类型	零交叉电路	电压 - 隔离	电压 - 关断状态	静态 dV/dt（最小值）	认证机构	电流 - LED 触发 (Ift)（最大值）	电流 - 导通状态 (It (RMS))（最大值）	通道数	电流 - 保持 (Ih)	开启时间	供应商设备封装	电压 - 正向 (Vf)（典型值）	安装类型	电流 - 直流正向（If）（最大值）	工作温度
American Bright Optoelectronics Corporation Central Semiconductor Corp Fairchild Semiconductor Fairchild/ON Semiconductor Lite-On Inc. onsemi Panasonic Electric Works Sharp Microelectronics SHARP/Socle Technology Texas Instruments Toshiba Semiconductor and Storage Vicor Corporation Vishay Semiconductor Opto Division Weidmuller Würth Elektronik	* - 3SD11 APC-305X APT ELM302X ELM306X ELM308X ELRX223 H11J H11J1 H11J2 H11J3 H11J4 H11J5 IS3020 IS3021 IS3022 IS3051 IS3052 IS6005 IS6010 IS6015 IS607 IS608 IS62 MF301x MF302x MF303x MF304x MF306x MOC3009 MOC301 MOC302 MOC302x MOC3030 MOC3031 MOC3032 MOC3033 MOC303x MOC304 MOC305 MOC3051 MOC305x MOC306 MOC306x MOC308 MOC308x Q302X Q305X Q306X Q308X QTM302X QTM303X QTM304X QTM305X QTM306X QTM308X QTTX213 QTX213 QTX223 S2S4 TLP VO3021 VO3022 VO3023 WAVESERIES WL-OCTR	- 16-DIP (0.300", 7.62mm), 10 Leads 4-DIP (0.300", 7.62mm) 4-DIP (0.400", 10.16mm) 4-SIP 4-SMD 4-SMD (0.300", 7.62mm) 4-SMD, Gull Wing 4-SOIC (0.173", 4.40mm Width) 5-SMD, Gull Wing 6-DIP (0.300", 7.62mm) 6-DIP (0.300", 7.62mm), 5 Leads 6-DIP (0.400", 10.16mm) 6-DIP (0.400", 10.16mm), 5 Leads 6-SMD 6-SMD (5 Leads), Gull Wing 6-SMD, Gull Wing 6-SMD, Gull Wing, 5 Leads 6-SOIC (0.173", 4.40mm Width), 4 Leads 8-DIP (0.300", 7.62mm) 8-DIP (0.300", 7.62mm), 7 Leads 8-SMD (7 Leads), Gull Wing Din Rail Module	Box Bulk Cut Tape (CT) Tape & Reel (TR) Tube	Active Discontinued at InFortune Last Time Buy Obsolete	- SCR Triac Triac, Power	- No Yes	- 2500Vrms 3000Vrms 3750Vrms 4000Vrms 4170Vrms 4470Vrms 5000Vrms 5300Vrms 7500Vpk	- 200 V 250 V 300 V 400 V 450 V 600 V 700 V 800 V	- 1.5kV/µs 100V/µs 100V/µs (Typ) 10kV/µs 10kV/µs (Typ) 10V/µs (Typ) 12V/µs 1kV/µs 200V/µs 210V/µs (Typ) 2kV/µs (Typ) 30V/µs 3V/µs 500V/µs 500V/µs (Typ) 50V/µs 50V/µs (Typ) 5kV/µs 5V/µs 600V/µs 600V/µs (Typ) 800V/µs	- BSI, CQC, CSA, cUR, UR, VDE BSI, CQC, cUR, FIMKO, UR, VDE BSI, CQC, UR, VDE BSI, CSA, cUR, FIMKO, UR BSI, CSA, cUR, FIMKO, UR, VDE BSI, CSA, cUR, UR BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE BSI, CSA, UL BSI, CSA, UL, VDE BSI, cUR, FIMKO, UR BSI, cUR, FIMKO, UR, VDE BSI, DEMKO, SEMKO, UR, VDE BSI, SEMKO, UR BSI, SEMKO, UR, VDE BSI, UR, VDE CQC, CSA, cUL, FIMKO, UL CQC, CSA, cUL, FIMKO, UL, VDE CQC, CSA, cUL, UL CQC, CSA, cUL, UL, VDE CQC, CSA, cUR, UR CQC, CSA, cUR, UR, VDE CQC, CSA, TUV, UL, VDE CQC, cUL, DEMKO, FIMKO, NEMKO, SEMKO, UL, VDE CQC, cUL, UL, VDE CQC, cULus, cURus, UL, VDE CQC, cUR, UR CQC, cUR, UR, VDE CQC, UL CQC, UL, VDE CSA, cUL, UL CSA, cUL, UL, VDE CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL, VDE CSA, DEMKO, FIMKO, NEMKO, SEMKO, UR, VDE CSA, DIN, UR CSA, FIMKO, UL CSA, UL CSA, UL, VDE CSA, UR CSA, UR, VDE cUL, Demko, Fimko, Nemko, Semko, UL cUL, Demko, Fimko, Nemko, Semko, UL, VDE cUL, FIMKO, UL cUL, FIMKO, UL, VDE cUL, UL cUL, UL, VDE cUL, UR, VDE cUR, FIMKO, UR cUR, FIMKO, UR, VDE cUR, UR cUR, UR, VDE cUR, VDE DEMKO, FIMKO, NEMKO, SEMKO, UL DEMKO, FIMKO, NEMKO, SEMKO, UL, VDE IEC/EN/DIN, UL SEMKO, UR UL UL, VDE UR UR, VDE VDE	- 1.2mA 1.3mA 1.6mA 10mA 14mA 15mA 20mA 25mA 2mA 30mA 3mA 5mA 6mA 700µA (Typ) 7mA 8mA	- 1 A 1.2 A 100 mA 15 mA 150 mA 200 mA 300 mA 50 mA 600 mA 70 mA 8 A 80 mA 900 mA	- 1 2	- 100µA 100µA (Typ) 1mA 1mA (Typ) 200µA 200µA (Typ) 220µA (Typ) 237µA (Typ) 250µA 250µA (Typ) 257µA 257µA (Typ) 25mA 280µA 280µA (Typ) 3.5mA 300µA (Typ) 3mA 400µA 400µA (Typ) 450µA (Typ) 500µA 500µA (Typ) 50mA 540µA (Typ) 5mA 600µA 600µA (Typ)	- 100µs 100µs (Max) 10ms (Max) 10µs 10µs (Max) 15µs 1ms (Max) 20µs 30µs 35µs 50µs (Max) 60µs 8µs	- 10-DIP 4-DIP 4-DIP Gull Wing 4-DIP-M 4-DIP-SL 4-MFP 4-Mini-Flat 4-SIP 4-SMD 4-SOP 4-SOP (2.54mm) 5-SMD 6-DIP 6-DIP (Cut), 5 Lead 6-DIP Gull Wing 6-MFSOP, 4 Lead 6-PDIP 6-SMD 6-SO, 5 Lead 6-SOP 7-DIP 7-SMD 8-DIP 8-SMD Module SMD	- 1.15V 1.16V 1.18V 1.1V 1.21V 1.24V 1.25V 1.27V 1.28V 1.2V 1.3V 1.3V (Max) 1.4V 1.4V (Max) 1.5V (Max)	- DIN Rail Surface Mount Through Hole	- 1 A 15 mA 20 mA 25 mA 3 mA 30 mA 50 mA 6 mA 60 mA 80 mA	- -25°C ~ 100°C -25°C ~ 50°C -25°C ~ 85°C -30°C ~ 100°C -30°C ~ 85°C -40°C ~ 100°C -40°C ~ 110°C -40°C ~ 85°C -55°C ~ 100°C -55°C ~ 110°C -55°C ~ 85°C

全部重置

全部应用

结果

厂商料号	价格	数量	数据表	系列	封装/外壳	包装	产品状态	输出类型	零交叉电路	电压 - 隔离	电压 - 关断状态	静态 dV/dt（最小值）	认证机构	电流 - LED 触发 (Ift)（最大值）	电流 - 导通状态 (It (RMS))（最大值）	通道数	电流 - 保持 (Ih)	开启时间	供应商设备封装	电压 - 正向 (Vf)（典型值）	安装类型	电流 - 直流正向（If）（最大值）	工作温度
IL4216-X016 OPTOISOLATOR 5.3KV TRIAC 6DIP Vishay Semiconductor Opto Division	-	询价单	数据表	-	6-DIP (0.400", 10.16mm)	Tube	Active	Triac	No	5300Vrms	600 V	10kV/µs	BSI, CSA, cUR, FIMKO, UR, VDE	700µA (Typ)	300 mA	1	200µA	-	6-DIP	1.3V	Through Hole	60 mA	-55°C ~ 100°C
APT1231WAY PHOTOTRIAC COUPLER 600V 4DIP Panasonic Electric Works	-	询价单	数据表	APT	4-SMD, Gull Wing	Tape & Reel (TR)	Active	Triac	Yes	3750Vrms	600 V	500V/µs	cUR, VDE	10mA	50 mA	1	3.5mA	100µs (Max)	4-DIP Gull Wing	1.21V	Surface Mount	50 mA	-40°C ~ 100°C
IL4216-X007T OPTOISOLATOR 5.3KV TRIAC Vishay Semiconductor Opto Division	-	询价单	数据表	-	6-SMD	Tape & Reel (TR)	Active	Triac	No	5300Vrms	600 V	10kV/µs	BSI, CSA, cUR, FIMKO, UR	700µA (Typ)	300 mA	1	200µA	-	-	1.3V	Surface Mount	60 mA	-55°C ~ 100°C
IL4118-X006 OPTOISOLATOR 5.3KV TRIAC 6DIP Vishay Semiconductor Opto Division	-	询价单	数据表	-	6-DIP (0.400", 10.16mm)	Tube	Active	Triac	Yes	5300Vrms	800 V	10kV/µs	BSI, CSA, cUR, FIMKO, UR	1.3mA	300 mA	1	200µA	35µs	6-DIP	1.3V	Through Hole	60 mA	-55°C ~ 100°C
IL4218-X016 OPTOISOLATOR 5.3KV TRIAC 6DIP Vishay Semiconductor Opto Division	-	询价单	数据表	-	6-DIP (0.400", 10.16mm)	Tube	Obsolete	Triac	No	5300Vrms	800 V	10kV/µs	BSI, CSA, cUR, FIMKO, UR, VDE	700µA (Typ)	300 mA	1	200µA	-	6-DIP	1.3V	Through Hole	60 mA	-55°C ~ 100°C
IL4218-X017 OPTOISOLATOR 5.3KV TRIAC Vishay Semiconductor Opto Division	-	询价单	数据表	-	6-SMD	Tube	Active	Triac	No	5300Vrms	800 V	10kV/µs	BSI, CSA, cUR, FIMKO, UR, VDE	700µA (Typ)	300 mA	1	200µA	-	-	1.3V	Surface Mount	60 mA	-55°C ~ 100°C
ELR0223 LINEAR IC Everlight Electronics Co Ltd	-	询价单	数据表	ELRX223	8-DIP (0.300", 7.62mm), 7 Leads	Bulk	Active	Triac, Power	No	5000Vrms	600 V	200V/µs	CQC, cUL, DEMKO, FIMKO, NEMKO, SEMKO, UL, VDE	10mA	300 mA	1	25mA	10µs (Max)	7-DIP	1.2V	Through Hole	60 mA	-40°C ~ 85°C
FOD4218T OPTOISOLATOR 5KV TRIAC 6DIP onsemi	-	询价单	数据表	-	6-DIP (0.400", 10.16mm)	Bulk	Obsolete	Triac	No	5000Vrms	800 V	10kV/µs	cUL, FIMKO, UL	1.3mA	-	1	500µA	60µs	6-DIP	1.28V	Through Hole	30 mA	-55°C ~ 100°C
IL4118-X017T OPTOISOLATOR 5.3KV TRIAC Vishay Semiconductor Opto Division	-	询价单	数据表	-	6-SMD	Tape & Reel (TR)	Active	Triac	Yes	5300Vrms	800 V	10kV/µs	BSI, CSA, cUR, FIMKO, UR, VDE	1.3mA	300 mA	1	200µA	35µs	-	1.3V	Surface Mount	60 mA	-55°C ~ 100°C
PC4SD21YXPDH OPTOISOLATOR 5KV TRIAC SMD SHARP/Socle Technology	-	询价单	数据表	-	5-SMD, Gull Wing	Tape & Reel (TR)	Active	Triac	Yes	5000Vrms	800 V	500V/µs	CSA, UR, VDE	3mA	100 mA	1	3.5mA	50µs (Max)	5-SMD	1.2V	Surface Mount	50 mA	-30°C ~ 100°C
VO4156D-X007T OPTOISOLATOR 5.3KV TRIAC 6SMD Vishay Semiconductor Opto Division	-	询价单	数据表	-	6-SMD, Gull Wing	Tape & Reel (TR)	Obsolete	Triac	Yes	5300Vrms	600 V	5kV/µs	cUR, UR	1.6mA	300 mA	1	500µA	-	6-SMD	1.2V	Surface Mount	60 mA	-55°C ~ 100°C
QTT1223ST1 7 PIN RANDOM-PHASE HIGH POWER TR QT Brightek (QTB)	-	询价单	数据表	QTX223	8-SMD (7 Leads), Gull Wing	Tape & Reel (TR)	Active	Triac, Power	No	5000Vrms	600 V	200V/µs	UL, VDE	10mA	600 mA	1	25mA	-	7-SMD	1.3V (Max)	Surface Mount	50 mA	-55°C ~ 85°C

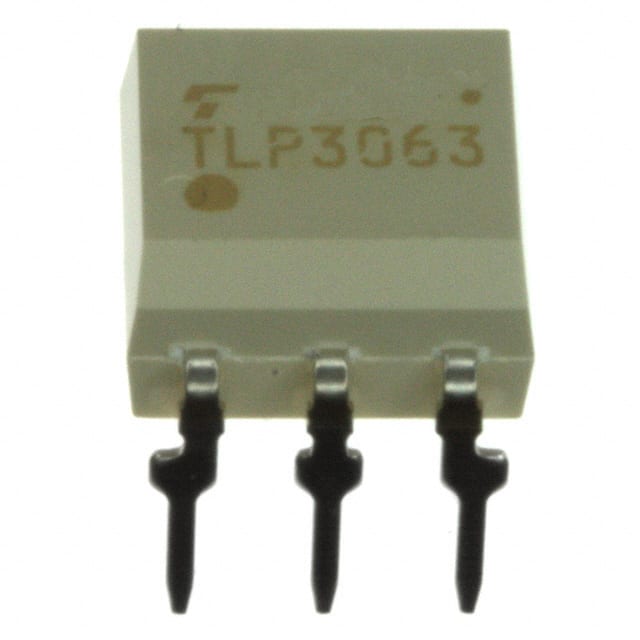

TLP3063SCF OPTOISOLATOR 5KV TRIAC 6DIP 5L Toshiba Semiconductor and Storage	-	询价单	数据表	-	6-DIP (0.300", 7.62mm), 5 Leads	Tube	Obsolete	Triac	Yes	5000Vrms	600 V	200V/µs	BSI, SEMKO, UR	5mA	100 mA	1	600µA (Typ)	-	6-DIP (Cut), 5 Lead	1.15V	Through Hole	50 mA	-40°C ~ 100°C
MOC3020S-TA1 OPTOISOLATOR 5KV TRIAC 6SMD Lite-On Inc.	-	询价单	数据表	MOC302x	6-SMD, Gull Wing	Tape & Reel (TR)	Active	Triac	No	5000Vrms	400 V	1kV/µs	CQC, CSA, TUV, UL, VDE	30mA	-	1	250µA (Typ)	-	6-SMD	1.15V	Surface Mount	50 mA	-40°C ~ 100°C
MOC3021S-TA OPTOISOLATOR 5KV TRIAC 6SMD Lite-On Inc.	-	询价单	数据表	MOC302x	6-SMD, Gull Wing	Tape & Reel (TR)	Active	Triac	No	5000Vrms	400 V	1kV/µs	CQC, CSA, TUV, UL, VDE	15mA	-	1	250µA (Typ)	-	6-SMD	1.15V	Surface Mount	50 mA	-40°C ~ 100°C
MOC3022S-TA OPTOISOLATOR 5KV TRIAC 6SMD Lite-On Inc.	-	询价单	数据表	MOC302x	6-SMD, Gull Wing	Tape & Reel (TR)	Active	Triac	No	5000Vrms	400 V	1kV/µs	CQC, CSA, TUV, UL, VDE	10mA	-	1	250µA (Typ)	-	6-SMD	1.15V	Surface Mount	50 mA	-40°C ~ 100°C
MOC3020M OPTOISOLATOR 5KV TRIAC 6DIP Lite-On Inc.	-	询价单	数据表	MOC302x	6-DIP (0.400", 10.16mm)	Tube	Active	Triac	No	5000Vrms	400 V	1kV/µs	CQC, CSA, TUV, UL, VDE	30mA	-	1	250µA (Typ)	-	6-DIP	1.15V	Through Hole	50 mA	-40°C ~ 100°C
MOC3023TM OPTOISOLATOR 4.17KV TRIAC 6DIP onsemi	-	询价单	数据表	-	6-DIP (0.400", 10.16mm)	Tube	Obsolete	Triac	No	4170Vrms	400 V	-	UL	5mA	-	1	100µA (Typ)	-	6-DIP	1.15V	Through Hole	60 mA	-40°C ~ 85°C
MOC3063TM OPTOISOLATOR 4.17KV TRIAC 6DIP onsemi	-	询价单	数据表	-	6-DIP (0.400", 10.16mm)	Tube	Obsolete	Triac	Yes	4170Vrms	600 V	600V/µs	UL	5mA	-	1	500µA (Typ)	-	6-DIP	1.3V	Through Hole	60 mA	-40°C ~ 85°C
MOC3010FM OPTOISOLATOR 7.5KV TRIAC 6SMD onsemi	-	询价单	数据表	-	6-SMD, Gull Wing	Tube	Obsolete	Triac	No	7500Vpk	250 V	-	-	15mA	-	1	100µA (Typ)	-	6-SMD	-	Surface Mount	60 mA	-

共 1850 条记录«上一页 1... 71 72 73 747576 77 78...93 下一页»
