多导体电缆
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 导体股数 | 导体材料 | 护套（绝缘）材料 | 护套（绝缘）厚度 | 护套（绝缘）直径 | 屏蔽类型 | 线规 | 长度 | 护套颜色 | 用途 | 额定值 | 导体绝缘 | 工作温度 | 特性 | 电压 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
30-01057CBL 6COND 26AWG BLACK SHLD METER |
192 | - |
|
数据表 |
- | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 6 | 7/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.0315" (0.800mm) | 0.224" (5.69mm) | Foil, Braid | 26 AWG | Enter Number of Meters in Order Quantity | Black | - | UL Style 2464 | Poly-Vinyl Chloride (PVC) | -25°C ~ 80°C | Drain Wire | 300 V | - | |
|
44A0121-12-90/92CABLE 2COND 12AWG WHT/BLK STRIPE |
4,915 | - |
|
数据表 |
- | Bulk | Active | Multi-Conductor | 2 (1 Pair Twisted) | 37/28 | Copper, Tinned | - | - | 0.216" (5.49mm) | - | 12 AWG | - | White, Black Stripe; White, Red Stripe | - | - | - | -65°C ~ 150°C | - | 600 V | - | |
|
|
30-01674CABLE 6COND 22AWG BLACK METER |
251 | - |
|
数据表 |
- | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 6 | 17/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.0315" (0.800mm) | 0.260" (6.60mm) | - | 22 AWG | Enter Number of Meters in Order Quantity | Black | - | UL Style 20387 | Poly-Vinyl Chloride (PVC) | -40°C ~ 105°C | Drain Wire, Oil Resistant, UV Resistant | 300 V | - | |
|
|
30-03391CABLE 4COND 26AWG BLACK METER |
296 | - |
|
数据表 |
- | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 4 | 19/0.0039" | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.0236" (0.600mm) | 0.142" (3.61mm) | Spiral | 26 AWG | Enter Number of Meters in Order Quantity | Black | - | UL Style 21296 | Fluorinated Ethylene-Propylene (FEP) | -40°C ~ 105°C | - | 300 V | - | |
|
30-01984CABLE 3COND 22AWG BLACK METER |
269 | - |
|
数据表 |
- | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 3 | 17/0.0063" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.0102" (0.260mm) | 0.177" (4.50mm) | - | 22 AWG | Enter Number of Meters in Order Quantity | Black | - | UL Style 21509 | Polyphenylene Ether, Modified (mPPE) | -40°C ~ 105°C | Biological Compatibility | 600 V | - | |
|
DC3331804CABLE 4COND 18AWG TAN 1=1FT |
2,963 | - |
|
数据表 |
DC 105 | Spool | Active | Multi-Conductor | 4 | 19/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | - | 0.313" (7.95mm) | - | 18 AWG | Enter Number of Feet in Order Quantity | Tan | Industrial, Signal, Control | UL Style CMG | Poly-Vinyl Chloride (PVC), Nylon | -25°C ~ 105°C | Flame Retardant, Oil Resistant | 300 V | - | |
|
2611804CABLE 4COND 18 AWG GRAY 1=1FT |
2,833 | - |
|
数据表 |
CC 600 P | Spool | Active | Multi-Conductor | 4 | 30/32 | Copper, Bare | Polyurethane (PU) | - | 0.303" (7.70mm) | - | 18 AWG | Enter Number of Feet in Order Quantity | Gray | Industrial, Control | UL Style 21060 | Poly-Vinyl Chloride (PVC) | -40°C ~ 80°C | Abrasion Resistant, Oil Resistant | 600 V | - | |
|
6272341CABLE 2COND 22AWG PUR SHLD 1=1FT |
1,097 | - |
|
数据表 |
CB 627 | Spool | Active | Multi-Conductor | 2 | 7/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | - | 0.252" (6.40mm) | Foil, Braid | 22 AWG | Enter Number of Feet in Order Quantity | Purple | Industrial, Network | - | Polyethylene (PE) | -30°C ~ 80°C | Flame Retardant | 300 V | - | |
|
35681604DCABLE 4COND 16AWG BLK SHD 1=1FT |
17,338 | - |
|
数据表 |
VFD XLPE TR D | Spool | Active | Multi-Conductor | 4 | 26/30 | Copper, Tinned | Copolymer | - | 0.493" (12.52mm) | Foil, Braid | 16 AWG | Enter Number of Feet in Order Quantity | Black | Motor Supply, Variable Frequency Drive (VFD) | UL Style TC-ER | Polyethylene (XLPE), Irradiated | -40°C ~ 105°C | Direct Burial, Drain Wire, Flame Retardant, Oil Resistant, UV Resistant | 1000 V | - | |
|
|
32300C77082A18GAALFLEX TRAY DATA 302 STP UL CA |
2,691 | - |
|
数据表 |
- | Spool | Active | Multi-Pair | 16 (8 Pair) | - | Copper, Bare | Poly-Vinyl Chloride (PVC) | - | 0.642" (16.31mm) | Foil | 18 AWG | Enter Number of Feet in Order Quantity | Black | Industrial, Data | UL Style 13 | Poly-Vinyl Chloride (PVC) | -30°C ~ 105°C | Flame Retardant, Oil Resistant, UV Resistant | 300 V | - | |
|
|
44A7434-22-9/5CABLE 2COND 22AWG |
4,664 | - |
|
数据表 |
- | Bulk | Active | Multi-Conductor | 2 (1 Pair Twisted) | 7/30 | Alumel, Chromel | - | - | 0.118" (3.00mm) | - | 22 AWG | - | - | - | - | Polyvinylidene Fluoride (PVDF) | 150°C | - | - | - | |
|
CFBUS-010MULTI-PAIR 6COND 24AWG VIO 1=1FT |
4,976 | - |
|
数据表 |
chainflex® | Bulk | Active | Multi-Pair | 6 (3 Pair Twisted) | - | Copper, Bare | Thermoplastic Elastomer (TPE) | - | 0.354" (8.99mm) | Foil, Braid | 24 AWG | Enter Number of Feet in Order Quantity | Violet | Industrial | - | Thermoplastic Elastomer (TPE) | - | Flame Retardant, Oil Resistant | 50 V | - | |
|
|
CF11-013-DCABLE 8COND 20/26AWG GRN/YL FEET |
4,962 | - |
|
数据表 |
chainflex® | Bulk | Active | Multi-Conductor | 8 (3 Twisted Pairs + 2) | - | Copper, Tinned | Thermoplastic Elastomer (TPE) | - | 0.354" (8.99mm) | Foil, Braid | 20 AWG, 26 AWG | Enter Number of Feet in Order Quantity | Green, Yellow | Industrial | - | Thermoplastic Elastomer (TPE) | - | Abrasion Resistant, Oil Resistant, Rip Cord | 50 V | - | |
|
|
EN50306-3-RAIL-3X2.50CABLE 3COND BLACK SHLD METER |
1,935 | - |
|
数据表 |
EN50306 | Digi-Spool®, Continuous Spool | Obsolete | Multi-Conductor | 3 | 37/0.0118" | Copper, Tinned | Polymer | 0.0080" (0.203mm) | 0.307" (7.80mm) | Braid | 2.50mm² | Enter Number of Meters in Order Quantity | Black | - | - | - | -40°C ~ 120°C | - | 300 V | - | |
|
DC3332209CABLE 9COND 22 AWG GRAY 1=1FT |
13,123 | - |
|
数据表 |
DC 105 | Spool | Active | Multi-Conductor | 9 | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | - | 0.261" (6.63mm) | - | 22 AWG | Enter Number of Feet in Order Quantity | Tan | Industrial, Signal, Control | UL Style CMG, PLTC | Poly-Vinyl Chloride (PVC), Semi-Rigid | -25°C ~ 105°C | Flame Retardant, Oil Resistant | 300 V | - | |
|
|
CF11-009-DCABLE 10CON 20/24AWG GRN/YL FEET |
4,980 | - |
|
数据表 |
chainflex® | Bulk | Active | Multi-Conductor | 10 (4 Twisted Pairs + 2) | - | Copper, Tinned | Thermoplastic Elastomer (TPE) | - | 0.335" (8.51mm) | Foil, Braid | 20 AWG, 24 AWG | Enter Number of Feet in Order Quantity | Green, Yellow | Industrial | - | Thermoplastic Elastomer (TPE) | - | Abrasion Resistant, Oil Resistant, Rip Cord | 50 V | - | |
|
|
CF113-028-DCABLE 6COND 22AWG/26AWG GRN FEET |
3,963 | - |
|
数据表 |
chainflex® | Bulk | Active | Multi-Conductor | 6 (2 Twisted Pairs + 2) | - | Copper, Tinned | Polyurethane (PU) | - | 0.295" (7.49mm) | Foil, Braid | 22 AWG, 26 AWG | Enter Number of Feet in Order Quantity | Green | Industrial, Servo Motor | - | Thermoplastic Elastomer (TPE) | - | Abrasion Resistant, Flame Retardant, Oil Resistant, Rip Cord | 50 V | - | |
|

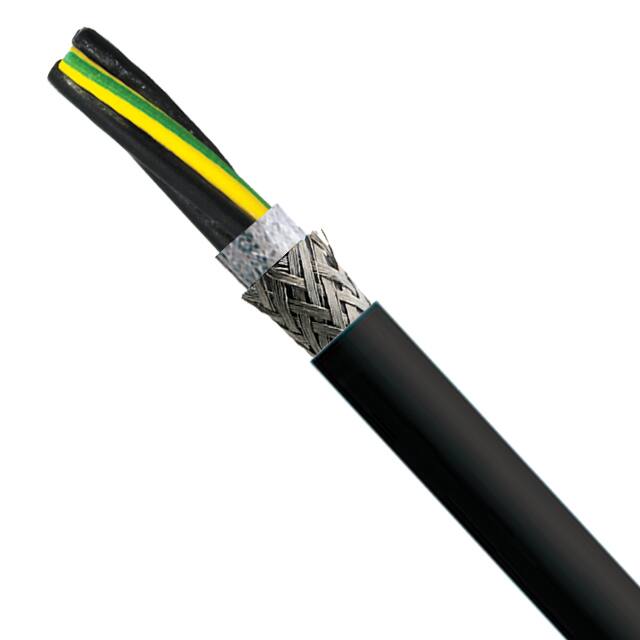

32321605CABLE 5COND 16 AWG BLACK 1=1FT |
263 | - |
|
数据表 |
TR 600 Auto HD | Spool | Active | Multi-Conductor | 5 | 65/34 | Copper, Bare | Thermoplastic Elastomer (TPE) | - | 0.394" (10.01mm) | - | 16 AWG | Enter Number of Feet in Order Quantity | Black | Industrial, Control | UL Style TC-ER | Poly-Vinyl Chloride (PVC), Nylon | -40°C ~ 105°C | Oil Resistant | 600 V | - | |
|
2041203CABLE 3COND 12 AWG GRAY 1=1FT |
13,831 | - |
|
数据表 |
CC 600 | Spool | Active | Multi-Conductor | 3 | 52/28 | Copper, Bare | Poly-Vinyl Chloride (PVC) | - | 0.402" (10.21mm) | - | 12 AWG | Enter Number of Feet in Order Quantity | Gray | Industrial, Signal, Control | UL Style 21216 | Poly-Vinyl Chloride (PVC) | -40°C ~ 90°C | Flame Retardant, Oil Resistant | 600 V | - | |
|
3242207CABLE 7COND 22AWG TAN SHD 1=1FT |
3,350 | - |
|
数据表 |
DC 300 DS | Spool | Active | Multi-Conductor | 7 | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | - | 0.248" (6.30mm) | Foil, Braid | 22 AWG | Enter Number of Feet in Order Quantity | Tan | Control, Signal | UL Style 2464 | Poly-Vinyl Chloride (PVC), Semi-Rigid | -30°C ~ 80°C | Flame Retardant, Oil Resistant | 300 V | - |
