磁性、干簧开关

制造商	系列	包装	产品状态	类型	电路	释放范围	电流 - 切换	电压 - 切换交流	工作温度	电压 - 切换直流	额定功率	工作范围	动作时间	释放时间	板上高度	安装类型	电容	尺寸 - 主体	端接样式	长度 - 总体	电流 - 承载
Celduc Inc. Comus International Coto Technology IXYS Littelfuse Inc. Magnasphere Corp. PIC GmbH Reed Switch Developments Corp. SparkFun Electronics Standex-Meder Electronics	* - 2230 2450 2451 2501 2602 59045 59050 59165 59166 59170 CM15 CM15S CM5 CM5S CT05 CT10 DRR-129 DRR-DTH DRS-50 DRS-DTH DRT-DTH FLEX-14 FR2 FRB GC GC1513 GC1917 GC2717 GP501 GP560 GR100 GR501 GR560 HA15-2 KSK KSK-1A52 KSK-1A85 KSK-1B52 KSK-1B85 KSK-1E52 KSK-1E85 L MACD-14 MARR-2 MARR-5 MASM-14 MATE-12B MDCG-4 MDRR-DT MDSM-10 MDSM-4 MDSM-DT MDSR-10 MDSR-4 MDSR-7 MISM-3V1 MISM-7 MITI-3 MITI-3V1 MITI-7 MK01 MK02 MK06 MK15 MK15-501 MK16 MK17 MK22 MK23 MK24 MK31 MK33 MLRR-2 MLRR-3 MLRR-4 MMS MRPR-20 MRPR-3 MRPR-8 MVSR-20 N NL126 ORD ORD2210V PR126 PR560 RedRock™ RI-01B RI-01C RI-02 RI-02SMDM RI-03 RI-07 RI-07GP RI-08 RI-21 RI-23 RI-23GP RI-25 RI-26GP RI-27 RI-29 RI-46 RI-46GP RI-48 RI-48GP RI-60 RI-60SMDM RI-69 RI-69SMDM RI-70 RI-80 RI-80 SMD RI-80 SMD-FL RI-90 S TW UM2	- Bag Box Bulk Retail Package Tape & Reel (TR) Tray	Active Discontinued at InFortune Obsolete	- Glass Body Reed Magnasphere® Magnetic Molded Body Reed	- SPDT SPST-NC SPST-NO SPST-NO, Latching	- 0.5 ~ 3.2mT 1.76 ~ 4.73mT 10 ~ 15AT 10 ~ 18AT 10 ~ 35AT 12 ~ 16AT 12 ~ 22.5AT 12 ~ 29AT 13 ~ 20AT 13 ~ 27AT 15 ~ 18.75AT 15 ~ 20AT 16 ~ 23AT 16 ~ 32AT 16.33mm 16.51mm 17.5 ~ 21AT 18 ~ 24AT 18 ~ 32AT 18 ~ 37AT 18.11mm 19.5 ~ 22.75AT 2 ~ 13AT 2 ~ 17AT 2 ~ 8AT 20 ~ 25AT 20 ~ 42AT 20AT 22 ~ 47AT 22.78mm 22.91mm 23 ~ 31AT 23.27mm 24 ~ 52AT 25.12mm 27.74mm 28 ~ 36AT 2AT 3 ~ 16AT 3 ~ 35AT 3.7 ~ 7mm 30AT 33 ~ 41AT 33.35mm 38 ~ 46AT 3AT 4 ~ 12AT 4 ~ 13AT 4 ~ 14AT 4 ~ 16AT 4 ~ 18AT 4 ~ 21AT 4 ~ 9AT 43 ~ 51AT 4AT 5 ~ 15AT 5 ~ 16AT 5 ~ 18AT 5 ~ 19AT 5 ~ 20AT 5 ~ 25AT 5 ~ 30AT 5 ~ 45AT 5AT 6 ~ 21AT 6 ~ 24AT 6AT 7 ~ 17AT 7 ~ 19.5AT 7 ~ 27AT 7.5 ~ 17.5AT 8 ~ 15mm 8 ~ 16AT 8 ~ 19AT 8 ~ 20.5AT 8 ~ 20AT 8 ~ 22AT	- 0.1mA (AC/DC) 1.1A (AC), 1.5A (DC) 1.3A (AC) 1.5A (AC/DC) 100mA (AC/DC) 180mA (AC), 250mA (DC) 1A (AC), 1.5A (DC) 1A (AC/DC) 1A (DC) 1mA (DC) 2.1A (AC), 3A (DC) 200mA (AC/DC) 250mA (AC), 350mA (DC) 250mA (AC/DC) 250mA (DC) 280mA (AC), 400mA (DC) 300mA (AC), 400mA (DC) 300mA (AC/DC) 300mA (DC) 350mA (AC), 500mA (DC) 3A (AC) 3A (AC/DC) 400mA (AC/DC) 400mA (DC) 500mA (AC), 700mA (DC) 500mA (AC/DC) 500mA (DC) 50mA (DC) 700mA (AC), 1A (DC) 700mA (AC/DC) 750mA (AC/DC) 750mA (DC)	- 100 V 1000 V 10000 V 110 V 120 V 125 V 130 V 140 V 150 V 1500 V 170 V 175 V 180 V 200 V 230 V 24 V 250 V 260 V 265 V 280 V 3 V 30 V 300 V 350 V 400 V 50 V 500 V 7500 V	- -20°C ~ 100°C -20°C ~ 105°C -20°C ~ 125°C -20°C ~ 130°C -20°C ~ 80°C -20°C ~ 85°C -25°C ~ 80°C -40°C ~ 100°C -40°C ~ 105°C -40°C ~ 115°C -40°C ~ 125°C -40°C ~ 130°C -40°C ~ 150°C -40°C ~ 85°C -55°C ~ 125°C -55°C ~ 75°C -60°C ~ 100°C -60°C ~ 125°C -60°C ~ 155°C -75°C ~ 125°C	- 100 V 1000 V 10000 V 110 V 140 V 150 V 1500 V 160 V 170 V 175 V 180 V 200 V 230 V 24 V 250 V 3 V 30 V 300 V 350 V 400 V 50 V 500 V 6 V 7.5 kV 750 V 7500 V	- 0.3mW 100VA 100W 10VA 10W 120W 150W 15W 1VA 1W 20VA 20W 25W 30W 3VA 3W 40W 50VA 50W 5VA 5W 60W 70VA 70W 80W 8W	- 0 ~ 22AT 0 ~ 37AT 1.8 ~ 4mT 10 ~ 120AT 10 ~ 13AT 10 ~ 15AT 10 ~ 19AT 10 ~ 20AT 10 ~ 25AT 10 ~ 30AT 10 ~ 40AT 10 ~ 50AT 10 ~ 60AT 100 ~ 105AT 100 ~ 150AT 102 ~ 108AT 107 ~ 113AT 117 ~ 123AT 12 ~ 18AT 12 ~ 23AT 12 ~ 28AT 12 ~ 33AT 12 ~ 38AT 120 ~ 170AT 12mT 13 ~ 19AT 14 ~ 23AT 14.45mm 14.66mm 15 ~ 17AT 15 ~ 20AT 15 ~ 25AT 15 ~ 28AT 15 ~ 30AT 15 ~ 35AT 15 ~ 40AT 15 ~ 50AT 15 ~ 60AT 15.90mm 16 ~ 21AT 16 ~ 25AT 16.56mm 17 ~ 20AT 17 ~ 23AT 17 ~ 28AT 17 ~ 33AT 17 ~ 38AT 17 ~ 43AT 18 ~ 32AT 19 ~ 21AT 2.2 ~ 5.25mT 20 ~ 22AT 20 ~ 25AT 20 ~ 30AT 20 ~ 34AT 20 ~ 35AT 20 ~ 40AT 20.78mm 20mT 21.41mm 22 ~ 25AT 22 ~ 28AT 22 ~ 33AT 22 ~ 38AT 22 ~ 43AT 22 ~ 55AT 23 ~ 50AT 23.39mm 24 ~ 51AT 25 ~ 30AT 25 ~ 32AT 25 ~ 35AT 25 ~ 40AT 25 ~ 50AT 25.40mm 27 ~ 30AT 27 ~ 33AT 27 ~ 38AT 27 ~ 48AT 28 ~ 52AT 3.5 ~ 5.5mm 3.81mm 30 ~ 35AT 30 ~ 40AT 30 ~ 50AT 30 ~ 73AT 32 ~ 38AT 32 ~ 43AT 32 ~ 58AT 33 ~ 67AT 35 ~ 40AT 35 ~ 45AT 35 ~ 55AT 37 ~ 43AT 37 ~ 71AT 4 ~ 12mm 40 ~ 45AT 40 ~ 50AT 40 ~ 83AT 42 ~ 45AT 42 ~ 48AT 42 ~ 53AT 42 ~ 58AT 42 ~ 83AT 42 ~ 84AT 45 ~ 50AT 45 ~ 55AT 46 ~ 70AT 46 ~ 90AT 47 ~ 52AT 47 ~ 63AT 47 ~ 68AT 47 ~ 78AT 5 ~ 10AT 5 ~ 14AT 5 ~ 15AT 5 ~ 18AT 50 ~ 100AT 50 ~ 112AT 50 ~ 55AT 50 ~ 60AT 50 ~ 65AT 50 ~ 70AT 50 ~ 75AT 50 ~ 80AT 50 ~ 86AT 52 ~ 103AT 52 ~ 58AT 52 ~ 63AT 52 ~ 73AT 52 ~ 78AT 55 ~ 60AT 57 ~ 63AT 57 ~ 68AT 57 ~ 78AT 6 ~ 10AT 6 ~ 12AT 6 ~ 15AT 6 ~ 8AT 60 ~ 100AT 60 ~ 65AT 60 ~ 70AT 60 ~ 80AT 61 ~ 100AT 62 ~ 68AT 62 ~ 73AT 62 ~ 78AT 62 ~ 83AT 65 ~ 70AT 65 ~ 75AT 65 ~ 80AT 67 ~ 73AT 7 ~ 10AT 7 ~ 10mm 7 ~ 13AT 7 ~ 14AT 7 ~ 15AT 7 ~ 18AT 7 ~ 21AT 7 ~ 30AT 70 ~ 75AT 70 ~ 80AT 70 ~ 85AT 72 ~ 78AT 72 ~ 83AT 72 ~ 88AT 75 ~ 80AT 77 ~ 83AT 77 ~ 88AT 8 ~ 10AT 8 ~ 12AT 8 ~ 13AT 8 ~ 16AT 80 ~ 85AT 82 ~ 88AT 85 ~ 90AT 87 ~ 93AT 90 ~ 100AT 90 ~ 95AT 97 ~ 103AT	- 0.1 ms 0.15 ms 0.2 ms 0.25 ms 0.3 ms 0.35 ms 0.4 ms 0.45 ms 0.5 ms 0.55 ms 0.6 ms 0.7 ms 0.75 ms 0.8 ms 1 ms 1.1 ms 1.5 ms 2 ms 2.5 ms 200 µs 3 ms 3.2 ms 3.5 ms 30 ms 4 ms 4.5 ms 450 µs 5.5 ms 500 µs 550 µs 650 µs 800 µs	- 0.02 ms 0.03 ms 0.05 ms 0.07 ms 0.1 ms 0.15 ms 0.2 ms 0.25 ms 0.3 ms 0.4 ms 0.5 ms 0.5 µs 1 ms 1.5 ms 2 ms 2.5 ms 200 ms 3 ms 30 µs 50 ms 50 µs 7 ms 8 ms	- 0.041" (1.05mm) 0.053" (1.35mm) 0.064" (1.64mm) 0.071" (1.80mm) 0.075" (1.90mm) 0.076" (1.92mm) 0.077" (1.95mm) 0.079" (2.00mm) 0.080" (2.03mm) 0.083" (2.10mm) 0.087" (2.20mm) 0.089" (2.26mm) 0.090" (2.28mm) 0.091" (2.30mm) 0.094" (2.40mm) 0.095" (2.41mm) 0.098" (2.50mm) 0.099" (2.52mm) 0.100" (2.54mm) 0.101" (2.56mm) 0.102" (2.60mm) 0.106" (2.70mm) 0.107" (2.72mm) 0.110" (2.80mm) 0.112" (2.85mm) 0.113" (2.87mm) 0.114" (2.90mm) 0.115" (2.92mm) 0.120" (3.05mm) 0.126" (3.20mm) 0.130" (3.30mm) 0.134" (3.40mm) 0.152" (3.85mm) 0.165" (4.20mm) 0.170" (4.33mm) 0.175" (4.45mm) 0.180" (4.57mm) 0.183" (4.65mm) 0.205" (5.20mm) 0.213" (5.40mm) 0.220" (5.60mm) 0.225" (5.72mm) 0.244" (6.20mm) 0.303" (7.70mm) 0.413" (10.50mm) 0.500" (12.70mm)	- Surface Mount Through Hole	- 0.1 pF 0.2 pF 0.25 pF 0.3 pF 0.35 pF 0.4 pF 0.45 pF 0.5 pF 0.6 pF 0.7 pF 0.8 pF 1 pF 1.5 pF 2 pF 2.5 pF	- 0.052" L x 0.033" W x 0.041" H (1.32mm x 0.84mm x 1.05mm) 0.059" Dia x 0.193" L (1.50mm x 4.90mm) 0.070" Dia x 0.196" L (1.78mm x 4.98mm) 0.071" Dia x 0.197" L (1.80mm x 5.00mm) 0.071" Dia x 0.276" L (1.80mm x 7.00mm) 0.071" Dia x 0.390" L (1.80mm x 9.91mm) 0.071" Dia x 0.394" L (1.80mm x 10.00mm) 0.071" Dia x 0.400" L (1.80mm x 10.16mm) 0.071" Dia x 0.500" L (1.80mm x 12.70mm) 0.071" Dia x 0.531" L (1.80mm x 13.50mm) 0.072" Dia x 0.270" L (1.82mm x 6.86mm) 0.079" Dia x 0.394" L (2.00mm x 10.00mm) 0.079" Dia x 0.472" L (2.00mm x 12.00mm) 0.083" Dia x 0.472" L (2.10mm x 12.00mm) 0.086" Dia x 0.377" L (2.18mm x 9.58mm) 0.087" Dia x 0.378" L (2.20mm x 9.60mm) 0.087" Dia x 0.413" L (2.20mm x 10.50mm) 0.087" Dia x 0.551" L (2.20mm x 14.00mm) 0.087" Dia x 0.571" L (2.20mm x 14.50mm) 0.090" Dia x 0.551" L (2.28mm x 14.00mm) 0.090" Dia x 0.551" L (2.29mm x 14.00mm) 0.090" Dia x 0.600" L (2.28mm x 15.24mm) 0.091" Dia x 0.500" L (2.30mm x 12.70mm) 0.091" Dia x 0.559" L (2.30mm x 14.20mm) 0.098" Dia x 0.799" L (2.50mm x 20.30mm) 0.100" Dia x 0.551" L (2.54mm x 14.00mm) 0.100" Dia x 0.563" L (2.54mm x 14.30mm) 0.100" Dia x 0.570" L (2.54mm x 14.50mm) 0.100" Dia x 0.580" L (2.54mm x 14.73mm) 0.100" Dia x 0.591" L (2.54mm x 15.00mm) 0.100" Dia x 0.787" L (2.54mm x 20.00mm) 0.102" Dia x 0.551" L (2.60mm x 14.00mm) 0.102" Dia x 0.748" L (2.60mm x 19.00mm) 0.105" Dia x 0.600" L (2.66mm x 15.24mm) 0.105" Dia x 0.750" L (2.66mm x 19.05mm) 0.105" Dia x 0.775" L (2.66mm x 19.69mm) 0.106" Dia x 0.807" L (2.70mm x 20.50mm) 0.108" Dia x 0.827" L (2.75mm x 21.00mm) 0.110" Dia x 0.650" L (2.80mm x 16.50mm) 0.110" Dia x 0.669" L (2.80mm x 17.00mm) 0.110" L x 0.081" W x 0.049" H (2.80mm x 2.05mm x 1.25mm) 0.112" Dia x 0.775" L (2.84mm x 19.69mm) 0.112" Dia x 0.800" L (2.84mm x 20.32mm) 0.138" Dia x 0.559" L (3.50mm x 14.20mm) 0.161" L x 0.057" W x 0.043" H (4.10mm x 1.45mm x 1.10mm) 0.197" L x 0.087" W x 0.067" H (5.00mm x 2.20mm x 1.70mm) 0.197" L x 0.087" W x 0.102" H (5.00mm x 2.20mm x 2.60mm) 0.198" Dia x 0.183" L (5.03mm x 4.65mm) 0.198" Dia x 0.244" L (5.03mm x 6.20mm) 0.200" Dia x 0.205" L (5.08mm x 5.21mm) 0.207" Dia x 2.000" L (5.25mm x 50.80mm) 0.210" Dia x 1.500" L (5.33mm x 38.10mm) 0.213" Dia x 1.350" L (5.40mm x 34.30mm) 0.213" Dia x 2.047" L (5.40mm x 52.00mm) 0.213" Dia x 2.102" L (5.40mm x 53.40mm) 0.217" Dia x 2.000" L (5.50mm x 50.80mm) 0.220" Dia x 1.417" L (5.59mm x 36.00mm) 0.220" Dia x 1.420" L (5.59mm x 36.07mm) 0.232" L x 0.076" W x 0.060" H (5.89mm x 1.93mm x 1.53mm) 0.244" Dia x 0.175" L (6.20mm x 4.45mm) 0.244" Dia x 1.969" L (6.20mm x 50.00mm) 0.252" L x 0.087" W x 0.077" H (6.40mm x 2.20mm x 1.95mm) 0.252" L x 0.091" W x 0.091" H (6.40mm x 2.31mm x 2.31mm) 0.256" L x 0.114" W x 0.091" H (6.50mm x 2.90mm x 2.30mm) 0.265" L x 0.115" W x 0.094" H (6.73mm x 2.92mm x 2.40mm) 0.275" L x 0.091" W x 0.091" H (7.00mm x 2.31mm x 2.31mm) 0.276" L x 0.059" W x 0.079" H (7.00mm x 1.50mm x 2.00mm) 0.276" L x 0.079" W x 0.091" H (7.00mm x 2.00mm x 2.30mm) 0.335" L x 0.083" W x 0.083" H (8.50mm x 2.10mm x 2.10mm) 0.335" L x 0.110" W x 0.098" H (8.50mm x 2.80mm x 2.50mm) 0.374" L x 0.110" W x 0.091" H (9.50mm x 2.80mm x 2.30mm) 0.394" L x 0.079" W x 0.091" H (10.00mm x 2.00mm x 2.30mm) 0.413" L x 0.087" W x 0.077" H (10.50mm x 2.20mm x 1.95mm) 0.449" L x 0.106" W x 0.110" H (11.40mm x 2.70mm x 2.80mm) 0.450" L x 0.090" W x 0.090" H (11.43mm x 2.29mm x 2.29mm) 0.452" L x 0.090" W x 0.090" H (11.48mm x 2.29mm x 2.29mm) 0.457" L x 0.091" W x 0.091" H (11.60mm x 2.30mm x 2.30mm) 0.457" L x 0.116" W x 0.091" H (11.60mm x 2.95mm x 2.30mm) 0.458" L x 0.095" W x 0.115" H (11.63mm x 2.41mm x 2.92mm) 0.475" L x 0.130" W x 0.130" H (12.06mm x 3.30mm x 3.30mm) 0.492" L x 0.114" W x 0.110" H (12.50mm x 2.90mm x 2.80mm) 0.505" L x 0.090" W x 0.095" H (12.83mm x 2.29mm x 2.41mm) 0.505" L x 0.095" W x 0.095" H (12.83mm x 2.41mm x 2.41mm) 0.531" Dia x 0.071" L (13.49mm x 1.80mm) 0.549" L x 0.100" W x 0.090" H (13.94mm x 2.54mm x 2.29mm) 0.559" L x 0.098" W x 0.118" H (14.20mm x 2.50mm x 3.00mm) 0.563" L x 0.110" W x 0.126" H (14.30mm x 2.80mm x 3.20mm) 0.567" L x 0.110" W x 0.126" H (14.40mm x 2.80mm x 3.20mm) 0.575" L x 0.118" W x 0.138" H (14.60mm x 3.00mm x 3.50mm) 0.591" L x 0.134" W x 0.161" H (15.00mm x 3.40mm x 4.10mm) 0.600" L x 0.090" W x 0.065" H (15.24mm x 2.29mm x 1.65mm) 0.610" L x 0.114" W x 0.110" H (15.50mm x 2.90mm x 2.80mm) 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm) 0.630" L x 0.098" W x 0.098" H (16.00mm x 2.50mm x 2.50mm) 0.630" L x 0.098" W x 0.148" H (16.00mm x 2.50mm x 3.75mm) 0.630" L x 0.110" W x 0.110" H (16.00mm x 2.80mm x 2.80mm) 0.640" L x 0.150" W x 0.106" H (16.25mm x 3.80mm x 2.70mm) 0.669" L x 0.110" W x 0.126" H (17.00mm x 2.80mm x 3.20mm) 0.679" L x 0.130" W x 0.165" H (17.25mm x 3.30mm x 4.20mm) 0.700" L x 0.130" W x 0.170" H (17.78mm x 3.30mm x 4.32mm) 0.709" L x 0.146" W x 0.134" H (18.00mm x 3.70mm x 3.40mm) 0.776" L x 0.110" W x 0.126" H (19.70mm x 2.80mm x 3.20mm) 0.779" L x 0.130" W x 0.165" H (19.79mm x 3.30mm x 4.20mm) 0.787" L x 0.100" W x 0.118" H (20.00mm x 2.54mm x 3.00mm) 0.878" L x 0.130" W x 0.165" H (22.30mm x 3.30mm x 4.20mm) 0.879" L x 0.130" W x 0.165" H (22.33mm x 3.30mm x 4.20mm) 0.900" L x 0.170" W x 0.180" H (22.86mm x 4.32mm x 4.57mm) 0.945" L x 0.350" W x 0.303" H (24.00mm x 8.90mm x 7.70mm) 1.125" L x 0.150" W x 0.225" H (28.58mm x 3.81mm x 5.72mm) 1.594" L x 0.343" W x 0.500" H (40.50mm x 8.70mm x 12.70mm)	- Axial Axial, Flat Gull Wing J Lead PC Pin SMD (SMT) Tab Wire Leads	- 0.051" (1.30mm) 0.052" (1.32mm) 0.189" (4.80mm) 0.217" (5.51mm) 0.272" (6.91mm) 0.279" (7.09mm) 0.283" (7.20mm) 0.295" (7.49mm) 0.298" (7.57mm) 0.303" (7.70mm) 0.342" (8.68mm) 0.376" (9.55mm) 0.382" (9.70mm) 0.394" (10.00mm) 0.398" (10.11mm) 0.400" (10.16mm) 0.449" (11.40mm) 0.475" (12.06mm) 0.484" (12.30mm) 0.492" (12.50mm) 0.512" (13.00mm) 0.524" (13.30mm) 0.540" (13.72mm) 0.563" (14.30mm) 0.567" (14.40mm) 0.609" (15.48mm) 0.613" (15.57mm) 0.614" (15.60mm) 0.615" (15.62mm) 0.620" (15.75mm) 0.639" (16.23mm) 0.640" (16.26mm) 0.646" (16.40mm) 0.658" (16.71mm) 0.669" (17.00mm) 0.679" (17.25mm) 0.700" (17.78mm) 0.701" (17.80mm) 0.720" (18.30mm) 0.723" (18.36mm) 0.724" (18.40mm) 0.740" (18.80mm) 0.760" (19.30mm) 0.768" (19.50mm) 0.770" (19.56mm) 0.772" (19.60mm) 0.776" (19.70mm) 0.779" (19.79mm) 0.795" (20.19mm) 0.799" (20.30mm) 0.800" (20.32mm) 0.805" (20.45mm) 0.846" (21.50mm) 0.878" (22.30mm) 0.879" (22.33mm) 0.900" (22.86mm) 0.945" (24.00mm) 0.980" (24.90mm) 1.000" (25.40mm) 1.125" (28.58mm) 1.126" (28.60mm) 1.154" (29.30mm) 1.181" (30.00mm) 1.230" (31.24mm) 1.355" (34.42mm) 1.358" (34.50mm) 1.360" (34.54mm) 1.406" (35.70mm) 1.409" (35.80mm) 1.417" (36.00mm) 1.590" (40.39mm) 1.594" (40.50mm) 1.646" (41.80mm) 1.728" (43.90mm) 1.732" (44.00mm) 1.736" (44.10mm) 1.740" (44.20mm) 1.744" (44.30mm) 1.760" (44.70mm) 1.811" (46.00mm) 1.988" (50.50mm) 2.000" (50.80mm) 2.008" (51.00mm) 2.034" (51.66mm) 2.063" (52.40mm) 2.066" (52.48mm) 2.126" (54.00mm) 2.157" (54.79mm) 2.165" (55.00mm) 2.169" (55.10mm) 2.181" (55.40mm) 2.209" (56.10mm) 2.230" (56.64mm) 2.232" (56.70mm) 2.235" (56.77mm) 2.750" (69.85mm) 2.756" (70.00mm) 3.110" (79.00mm) 3.150" (80.00mm) 3.213" (81.60mm) 3.250" (82.55mm) 3.287" (83.50mm) 3.375" (85.73mm) 3.390" (86.10mm)	- 0.1mA (AC/DC) 0.5A 1.25A (AC/DC) 1.25A (DC) 1.2A (AC/DC) 1.2A (DC) 1.3A (DC) 1.4A (AC/DC) 1.4A (DC) 1.5A (AC/DC) 1.5A (DC) 1.75A (AC/DC) 1.75A (DC) 1A (AC/DC) 1A (DC) 2.25A (AC/DC) 2.25A (DC) 2.5A (AC/DC) 2.5A (DC) 2.75A (AC/DC) 2.75A (DC) 2A 2A (AC/DC) 2A (DC) 300mA (AC/DC) 3A (AC/DC) 3A (DC) 400mA (AC/DC) 500mA (AC/DC) 500mA (DC) 5A (AC/DC) 5A (DC) 6A (DC) 700mA (AC/DC) 700mA (DC) 800mA (DC)

全部重置

全部应用

结果

厂商料号	价格	数量	数据表	系列	包装	产品状态	类型	电路	释放范围	电流 - 切换	电压 - 切换交流	工作温度	电压 - 切换直流	额定功率	工作范围	动作时间	释放时间	板上高度	安装类型	电容	尺寸 - 主体	端接样式	长度 - 总体	电流 - 承载
MLRR-4-17-33 SWITCH REED SPST-NO 700MA 140V Littelfuse Inc.	-	询价单	数据表	MLRR-4	Bulk	Active	Glass Body Reed	SPST-NO	-	700mA (AC), 1A (DC)	140 V	-40°C ~ 125°C	200 V	20W	17 ~ 33AT	0.6 ms	0.2 ms	-	Through Hole	0.4 pF	0.105" Dia x 0.600" L (2.66mm x 15.24mm)	Axial	1.590" (40.39mm)	1A (DC)
MLRR-4-32-43 SWITCH REED SPST-NO 700MA 140V Littelfuse Inc.	-	询价单	数据表	MLRR-4	Bulk	Active	Glass Body Reed	SPST-NO	-	700mA (AC), 1A (DC)	140 V	-40°C ~ 125°C	200 V	20W	32 ~ 43AT	0.6 ms	0.2 ms	-	Through Hole	0.4 pF	0.105" Dia x 0.600" L (2.66mm x 15.24mm)	Axial	1.590" (40.39mm)	1A (DC)
MRPR-3-17-23 SWITCH REED SPST-NO 1.1A 140V Littelfuse Inc.	-	询价单	数据表	MRPR-3	Bulk	Obsolete	Glass Body Reed	SPST-NO	-	1.1A (AC), 1.5A (DC)	140 V	-40°C ~ 125°C	200 V	50W	17 ~ 23AT	0.75 ms	0.3 ms	-	Through Hole	0.2 pF	0.112" Dia x 0.775" L (2.84mm x 19.69mm)	Axial	2.230" (56.64mm)	3A (DC)
MRPR-3-22-28 SWITCH REED SPST-NO 1.1A 140V Littelfuse Inc.	-	询价单	数据表	MRPR-3	Box	Obsolete	Glass Body Reed	SPST-NO	-	1.1A (AC), 1.5A (DC)	140 V	-40°C ~ 125°C	200 V	50W	22 ~ 28AT	0.75 ms	0.3 ms	-	Through Hole	0.2 pF	0.112" Dia x 0.775" L (2.84mm x 19.69mm)	Axial	2.230" (56.64mm)	3A (DC)
MRPR-3-42-48 SWITCH REED SPST-NO 1.1A 140V Littelfuse Inc.	-	询价单	数据表	MRPR-3	Bulk	Obsolete	Glass Body Reed	SPST-NO	-	1.1A (AC), 1.5A (DC)	140 V	-40°C ~ 125°C	200 V	50W	42 ~ 48AT	0.75 ms	0.3 ms	-	Through Hole	0.2 pF	0.112" Dia x 0.775" L (2.84mm x 19.69mm)	Axial	2.230" (56.64mm)	3A (DC)
MRPR-8-12-18 SWITCH REED SPST-NO 700MA 265V Littelfuse Inc.	-	询价单	数据表	MRPR-8	Bulk	Active	Glass Body Reed	SPST-NO	-	700mA (AC), 1A (DC)	265 V	-20°C ~ 125°C	250 V	50W	12 ~ 18AT	0.75 ms	0.3 ms	-	Through Hole	0.2 pF	0.112" Dia x 0.800" L (2.84mm x 20.32mm)	Axial	2.230" (56.64mm)	2.5A (DC)

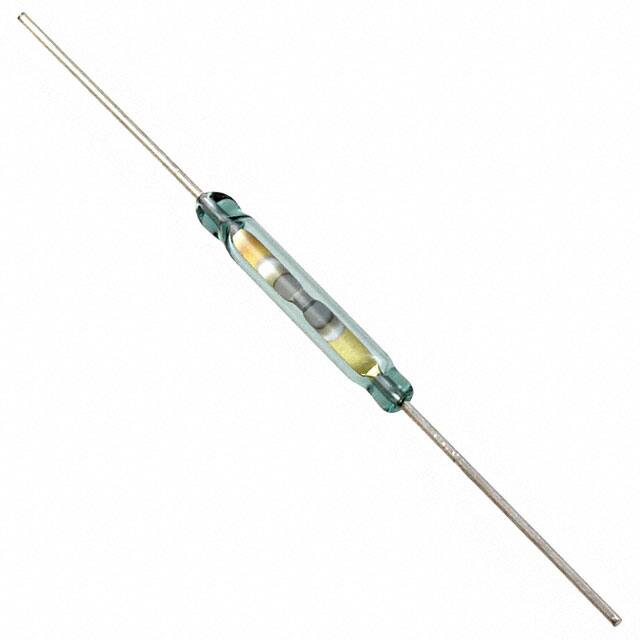

MRPR-8-22-28 SWITCH REED SPST-NO 700MA 265V Littelfuse Inc.	-	询价单	数据表	MRPR-8	Bulk	Obsolete	Glass Body Reed	SPST-NO	-	700mA (AC), 1A (DC)	265 V	-20°C ~ 125°C	250 V	50W	22 ~ 28AT	0.75 ms	0.3 ms	-	Through Hole	0.2 pF	0.112" Dia x 0.800" L (2.84mm x 20.32mm)	Axial	2.230" (56.64mm)	2.5A (DC)
MRPR-8-27-33 SWITCH REED SPST-NO 700MA 265V Littelfuse Inc.	-	询价单	数据表	MRPR-8	Bulk	Obsolete	Glass Body Reed	SPST-NO	-	700mA (AC), 1A (DC)	265 V	-20°C ~ 125°C	250 V	50W	27 ~ 33AT	0.75 ms	0.3 ms	-	Through Hole	0.2 pF	0.112" Dia x 0.800" L (2.84mm x 20.32mm)	Axial	2.230" (56.64mm)	2.5A (DC)
MRPR-8-27-38 SWITCH REED SPST-NO 700MA 265V Littelfuse Inc.	-	询价单	数据表	MRPR-8	Box	Obsolete	Glass Body Reed	SPST-NO	-	700mA (AC), 1A (DC)	265 V	-20°C ~ 125°C	250 V	50W	27 ~ 38AT	0.75 ms	0.3 ms	-	Through Hole	0.2 pF	0.112" Dia x 0.800" L (2.84mm x 20.32mm)	Axial	2.230" (56.64mm)	2.5A (DC)

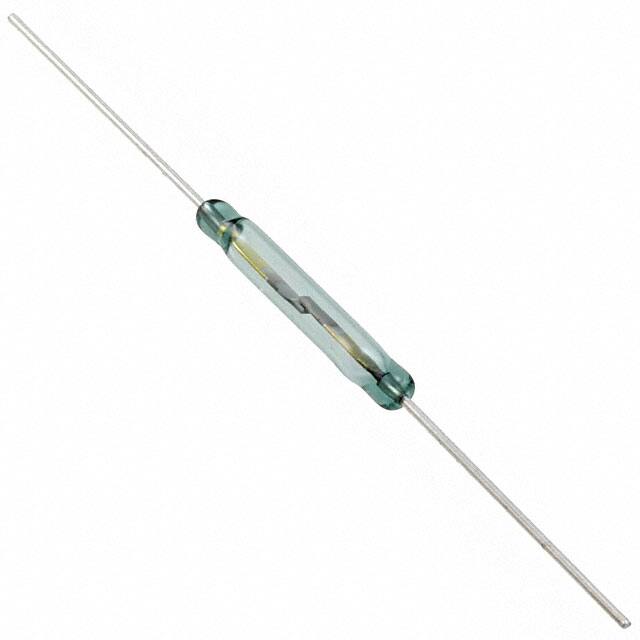

MRPR-8-32-38 SWITCH REED SPST-NO 700MA 265V Littelfuse Inc.	-	询价单	数据表	MRPR-8	Bulk	Obsolete	Glass Body Reed	SPST-NO	-	700mA (AC), 1A (DC)	265 V	-20°C ~ 125°C	250 V	50W	32 ~ 38AT	0.75 ms	0.3 ms	-	Through Hole	0.2 pF	0.112" Dia x 0.800" L (2.84mm x 20.32mm)	Axial	2.230" (56.64mm)	2.5A (DC)
MRPR-8-37-43 SWITCH REED SPST-NO 700MA 265V Littelfuse Inc.	-	询价单	数据表	MRPR-8	Box	Obsolete	Glass Body Reed	SPST-NO	-	700mA (AC), 1A (DC)	265 V	-20°C ~ 125°C	250 V	50W	37 ~ 43AT	0.75 ms	0.3 ms	-	Through Hole	0.2 pF	0.112" Dia x 0.800" L (2.84mm x 20.32mm)	Axial	2.230" (56.64mm)	2.5A (DC)
RI-03AA SWITCH REED SPST-NO 500MA 140V Comus International	-	询价单	数据表	RI-03	Bulk	Obsolete	Glass Body Reed	SPST-NO	6 ~ 21AT	500mA (AC/DC)	140 V	-55°C ~ 125°C	200 V	10W	14 ~ 23AT	0.25 ms	0.03 ms	-	Through Hole	0.3 pF	0.100" Dia x 0.591" L (2.54mm x 15.00mm)	Axial	1.811" (46.00mm)	1.5A (DC)
KSK-1A69-120170 SWITCH REED SPST-NO 3A 10000V Standex-Meder Electronics	-	询价单	数据表	KSK	Bulk	Obsolete	Glass Body Reed	SPST-NO	-	3A (AC/DC)	10000 V	-40°C ~ 130°C	10000 V	50W	120 ~ 170AT	3 ms	1.5 ms	-	Surface Mount	0.8 pF	0.213" Dia x 2.102" L (5.40mm x 53.40mm)	Axial, Flat	3.213" (81.60mm)	5A (AC/DC)
KSK-1A85-3040 SWITCH REED SPST-NO 1A 1000V Standex-Meder Electronics	-	询价单	数据表	KSK	Bulk	Obsolete	Glass Body Reed	SPST-NO	-	1A (AC/DC)	1000 V	-40°C ~ 130°C	1000 V	100W	30 ~ 40AT	1.1 ms	0.1 ms	-	Through Hole	0.5 pF	0.108" Dia x 0.827" L (2.75mm x 21.00mm)	Axial	2.181" (55.40mm)	2.5A (AC/DC)
ORD 2210/10-20 AT SWITCH REED SPST-NO 700MA 150V Standex-Meder Electronics	-	询价单	数据表	ORD	Bulk	Obsolete	Glass Body Reed	SPST-NO	-	700mA (AC), 1A (DC)	150 V	-	200 V	50W	10 ~ 20AT	0.6 ms	0.05 ms	-	Through Hole	0.5 pF	0.108" Dia x 0.827" L (2.75mm x 21.00mm)	Axial	2.181" (55.40mm)	2.5A (AC/DC)
ORD 2212/20-30 AT SWITCH REED SPST-NO 200MA 100V Standex-Meder Electronics	-	询价单	数据表	ORD	Bulk	Obsolete	Glass Body Reed	SPST-NO	-	200mA (AC/DC)	100 V	-	100 V	10W	20 ~ 30AT	0.4 ms	0.05 ms	-	Through Hole	0.5 pF	0.110" Dia x 0.650" L (2.80mm x 16.50mm)	Axial	1.728" (43.90mm)	500mA (AC/DC)
ORD 9216/20-30 AT SWITCH REED SPST-NO 500MA 100V Standex-Meder Electronics	-	询价单	数据表	ORD	Bulk	Obsolete	Glass Body Reed	SPST-NO	-	500mA (AC/DC)	100 V	-	100 V	10W	20 ~ 30AT	0.4 ms	0.05 ms	-	Through Hole	0.3 pF	0.087" Dia x 0.551" L (2.20mm x 14.00mm)	Axial	1.744" (44.30mm)	1A (AC/DC)
KSK-1A04-1015 SWITCH REED SPST-NO 300MA 30V Standex-Meder Electronics	-	询价单	数据表	KSK	Bulk	Obsolete	Glass Body Reed	SPST-NO	-	300mA (AC/DC)	30 V	-40°C ~ 130°C	30 V	1W	10 ~ 15AT	0.2 ms	0.15 ms	-	Surface Mount	0.1 pF	0.161" L x 0.057" W x 0.043" H (4.10mm x 1.45mm x 1.10mm)	Axial, Flat	1.358" (34.50mm)	500mA (AC/DC)
FRB2S1015 SWITCH REED SPST-NO 500MA 200V Coto Technology	-	询价单	数据表	FRB	Bulk	Obsolete	Glass Body Reed	SPST-NO	-	500mA (AC/DC)	200 V	-40°C ~ 125°C	200 V	10VA	10 ~ 15AT	0.5 ms	0.2 ms	-	Surface Mount	0.3 pF	0.549" L x 0.100" W x 0.090" H (13.94mm x 2.54mm x 2.29mm)	Axial, Flat	1.360" (34.54mm)	1.5A (AC/DC)
FRB2S1520 SWITCH REED SPST-NO 500MA 200V Coto Technology	-	询价单	数据表	FRB	Bulk	Obsolete	Glass Body Reed	SPST-NO	-	500mA (AC/DC)	200 V	-40°C ~ 125°C	200 V	10VA	15 ~ 20AT	0.5 ms	0.2 ms	-	Surface Mount	0.3 pF	0.549" L x 0.100" W x 0.090" H (13.94mm x 2.54mm x 2.29mm)	Axial, Flat	1.360" (34.54mm)	1.5A (AC/DC)

共 1007 条记录«上一页 1... 39 40 41 424344 45 46...51 下一页»
