LED COB、引擎、模块、灯条
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 颜色 | 波长 | 配置 | 光通量 @ 电流/温度 | 高度 | 电流 - 测试 | 测试温度 | 相关色温 (CCT)（K） | 电压 - 正向 (Vf)（典型值） | 流明/瓦特 @ 电流 - 测试 | 尺寸 / 尺寸 | 电流 - 最大值 | 发光表面 (LES) | 特性 | 显色指数 (CRI) | 视角 | 透镜类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT-39-G-L21-MPGLED MOD PT-39 GREEN RECT Luminus Devices Inc. |
1,988 | - |
|
数据表 |
PT-39 | Tray | Not For New Designs | LED Module | Green | 525nm | Rectangle | 1615lm (1330lm ~ 1900lm) | 6.30mm | 9.8A | 40°C | - | 5.2V | 32 lm/W | 26.50mm L x 16.00mm W | 9.8A | 1.87mm L x 2.09mm W | With Connector | - | - | Flat |
|
CVM-27-31-95-54-AB30-F4-2STUDIO COBS Luminus Devices Inc. |
4,111 | - |
|
数据表 |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CVM-27-56-95-54-AB32-F4-2STUDIO COBS Luminus Devices Inc. |
3,752 | - |
|
数据表 |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

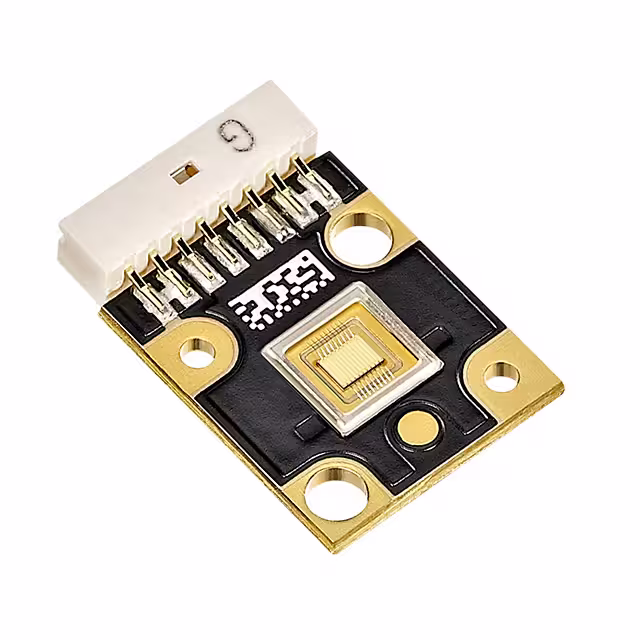

PT-40-G-L51-MPHLED MOD PT-40 GREEN RECT Luminus Devices Inc. |
2,519 | - |
|
数据表 |
PT-40 | Tray | Obsolete | LED Module | Green | 525nm | Rectangle | 1735lm (1450lm ~ 2020lm) | 3.70mm | 9.8A | 40°C | - | 5.1V | 35 lm/W | 21.85mm L x 15.00mm W | - | 1.61mm L x 2.42mm W | With Connector | - | - | Flat |
|

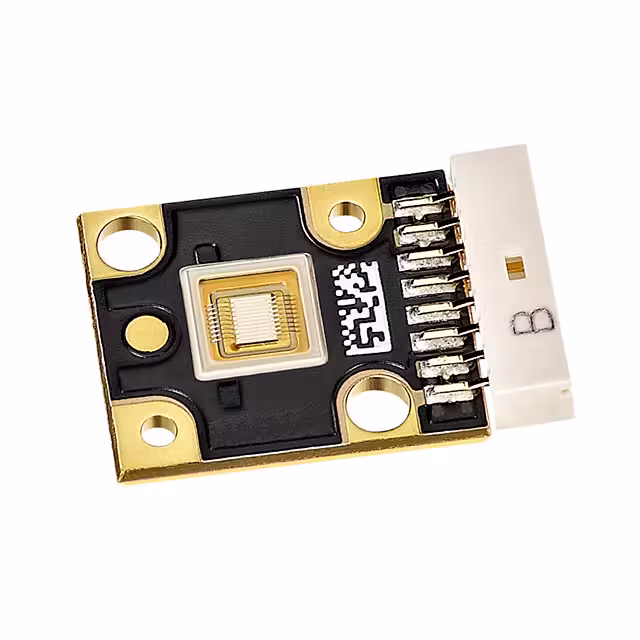

PT-40-B-L51-EPJLED MOD PT-40 BLUE RECT Luminus Devices Inc. |
2,708 | - |
|
数据表 |
PT-40 | Tray | Obsolete | LED Module | Blue | 462nm | Rectangle | 365lm (300lm ~ 430lm) | 3.70mm | 9.8A | 40°C | - | 3.8V | 10 lm/W | 21.85mm L x 15.00mm W | - | 1.61mm L x 2.42mm W | With Connector | - | - | Flat |
|
SBR-90-WDLS-R71-NA150LED MOD SBR-90 WHT STARBOARD Luminus Devices Inc. |
4,431 | - |
|
数据表 |
SBR-90 | Tray | Active | LED Module | - | - | Starboard | - | 1.54mm | - | - | - | - | - | 10.00mm L x 11.00mm W | - | 3.00mm L x 3.00mm W | - | - | - | Flat |
|
|
PT-39-G-L21-MPHLED MOD PT-39 GREEN RECT Luminus Devices Inc. |
4,280 | - |
|
数据表 |
PT-39 | Tray | Not For New Designs | LED Module | Green | 525nm | Rectangle | 1735lm (1450lm ~ 2020lm) | 6.30mm | 9.8A | 40°C | - | 5.2V | 34 lm/W | 26.50mm L x 16.00mm W | 9.8A | 1.87mm L x 2.09mm W | With Connector | - | - | Flat |
|
PT-54-RAX-L35-MPHLED MOD PT-54 AMBER RECT Luminus Devices Inc. |
4,231 | - |
|
数据表 |
PT-54 | Tray | Active | LED Module | Amber | 613nm | Rectangle | 1213lm (990lm ~ 1435lm) | 6.40mm | 13.5A | 40°C | - | 3V | 30 lm/W | 26.50mm L x 16.00mm W | - | 2.00mm L x 2.70mm W | With Connector | - | - | Flat |
|
PT-39-B-L21-EPFLED MOD PT-39 BLUE RECT Luminus Devices Inc. |
3,453 | - |
|
数据表 |
PT-39 | Tray | Not For New Designs | LED Module | Blue | 462nm | Rectangle | - | 6.30mm | 9.8A | 40°C | - | 3.9V | - | 26.50mm L x 16.00mm W | 9.8A | 1.87mm L x 2.09mm W | With Connector | - | - | Flat |
|
|
CVM-32-56-95-54-TC42-F5-3STUDIO COBS Luminus Devices Inc. |
2,787 | - |
|
数据表 |
CVM-32 Gen4 | Tray | Active | Chip On Board (COB) | White, Cool | - | Square | 30000lm (Typ) | 1.37mm | 5A | 85°C | 5600K 3-Step MacAdam Ellipse | 55.1V | 109 lm/W | 38.00mm L x 38.00mm W | 6A | 33.00mm Dia | - | 95 | 120° | Flat |
