隔离器 - 栅极驱动器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 技术 | 通道数 | 共模瞬态抗扰度（最小值） | 传播延迟 tpLH / tpHL（最大值） | 脉宽失真（最大值） | 安装类型 | 上升/下降时间（典型值） | 电流 - 输出高、低 | 电压 - 隔离 | 电流 - 峰值输出 | 电压 - 正向 (Vf)（典型值） | 工作温度 | 电流 - 直流正向（If）（最大值） | 供应商设备封装 | 认证 | 电压 - 输出电源 | 等级 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.JPG)
|
ACNU-3430-500EOPTOISO 5KV 1CH GATE DVR 8SO Broadcom Limited |
252 | - |
|
数据表 |
- | 8-SOIC (0.378", 9.60mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 100kV/µs | 150ns, 150ns | 80ns | Surface Mount | 20ns, 10ns | 4A, 4A | 5000Vrms | 5A | 1.45V | -40°C ~ 110°C | 25 mA | 8-SO Stretched | - | 15V ~ 30V | - | CSA, IEC/EN/DIN, UR |
|
ACPL-332J-000EOPTOISO 5KV 2CH GATE DVR 16SO Broadcom Limited |
367 | - |
|
数据表 |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 2 | 15kV/µs | 250ns, 250ns | 100ns | Surface Mount | 50ns, 50ns | 2A, 2A | 5000Vrms | 2.5A | 1.6V | -40°C ~ 105°C | 25 mA | 16-SO | - | 15V ~ 30V | - | CSA, IEC/EN/DIN, UR |
|

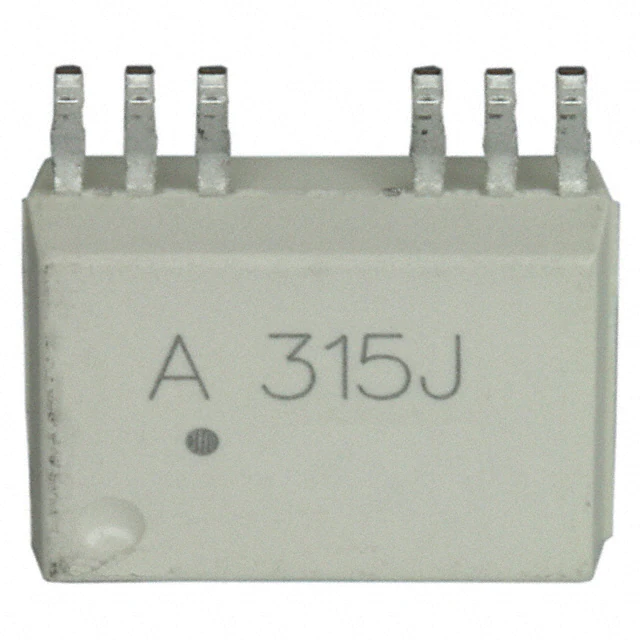

HCPL-315J-000EOPTOISO 5KV 2CH GATE DVR 16SO Broadcom Limited |
599 | - |
|
数据表 |
- | 16-SOIC (0.295", 7.50mm Width), 12 Leads | Tube | Active | Optical Coupling | 2 | 15kV/µs | 500ns, 500ns | 300ns | Surface Mount | 100ns, 100ns | 500mA, 500mA | 5000Vrms | 600mA | 1.6V | -40°C ~ 100°C | 25 mA | 16-SO | - | 15V ~ 30V | - | CSA, IEC/EN/DIN, UR |
|
ACNT-H343-000EOPTOISO 7.5KV 1CH GATE DVR 8SO Broadcom Limited |
877 | - |
|
数据表 |
- | 8-SOIC (0.535", 13.60mm Width) | Tube | Active | Optical Coupling | 1 | 100kV/µs | 150ns, 150ns | 80ns | Surface Mount | 26ns, 7.5ns | 4A, 4A | 7500Vrms | 5A, 5A | 1.5V | -40°C ~ 110°C | 25 mA | 8-SO Stretched | - | 15V ~ 30V | - | CSA, IEC/EN/DIN, UR |
|
|
HCPL-316JOPTOISO 5KV 1CH GATE DVR 16SO Broadcom Limited |
905 | - |
|
数据表 |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 15kV/µs | 500ns, 500ns | 300ns | Surface Mount | 100ns, 100ns | 2A, 2A | 5000Vrms | 2.5A | - | -40°C ~ 100°C | - | 16-SO | - | 15V ~ 30V | - | CSA, IEC/EN/DIN, UR |
|
|
HCPL-316J#500OPTOISO 5KV 1CH GATE DVR 16SO Broadcom Limited |
4,228 | - |
|
数据表 |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 15kV/µs | 500ns, 500ns | 300ns | Surface Mount | 100ns, 100ns | 2A, 2A | 5000Vrms | 2.5A | - | -40°C ~ 100°C | - | 16-SO | - | 15V ~ 30V | - | CSA, IEC/EN/DIN, UR |
|
HCPL-3020-000EOPTOISO 3.75KV 1CH GATE DVR 8DIP Broadcom Limited |
4,243 | - |
|
数据表 |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Optical Coupling | 1 | 10kV/µs | 700ns, 700ns | - | Through Hole | 50ns, 50ns | 200mA, 200mA | 3750Vrms | 400mA | 1.5V | -40°C ~ 100°C | 20 mA | 8-DIP | - | 10V ~ 30V | - | CSA, UR |
|
HCPL-0302-000EOPTOISO 3.75KV 1CH GATE DVR 8SO Broadcom Limited |
2,286 | - |
|
数据表 |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Optical Coupling | 1 | 10kV/µs | 700ns, 700ns | - | Surface Mount | 50ns, 50ns | 200mA, 200mA | 3750Vrms | 400mA | 1.5V | -40°C ~ 100°C | 20 mA | 8-SO | - | 10V ~ 30V | - | CSA, UR |
|
|
HCPL-0314-500EOPTOISO 3.75KV 1CH GATE DVR 8SO Broadcom Limited |
9,298 | - |
|
数据表 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Optical Coupling | 1 | 25kV/µs | 700ns, 700ns | - | Surface Mount | 50ns, 50ns | 400mA, 400mA | 3750Vrms | 600mA | 1.5V | -40°C ~ 100°C | 25 mA | 8-SO | - | 10V ~ 30V | - | CSA, UR |
|
|
HCPL-3140-000EOPTOISO 3.75KV 1CH GATE DVR 8DIP Broadcom Limited |
3,745 | - |
|
数据表 |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Optical Coupling | 1 | 25kV/µs | 700ns, 700ns | - | Through Hole | 50ns, 50ns | 400mA, 400mA | 3750Vrms | 600mA | 1.5V | -40°C ~ 100°C | 25 mA | 8-DIP | - | 10V ~ 30V | - | CSA, UR |
