隔离器 - 栅极驱动器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 技术 | 通道数 | 共模瞬态抗扰度（最小值） | 传播延迟 tpLH / tpHL（最大值） | 脉宽失真（最大值） | 安装类型 | 上升/下降时间（典型值） | 电流 - 输出高、低 | 电压 - 隔离 | 电流 - 峰值输出 | 电压 - 正向 (Vf)（典型值） | 工作温度 | 电流 - 直流正向（If）（最大值） | 供应商设备封装 | 认证 | 电压 - 输出电源 | 等级 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACFL-3161T-000EAUTOMOTIVE OPTOCOUPLER, LF Broadcom Limited |
0 | - |
|
数据表 |
- | 12-BSOP (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 100kV/µs | 95ns, 95ns | 25ns | Surface Mount | 7ns, 7ns | 6A, 6A | 5000Vrms | 10A | 1.55V | -40°C ~ 125°C | 20 mA | 12-SO Stretched | AEC-Q100 | 15V ~ 30V | Automotive | CSA, IEC/EN/DIN, UR, VDE |
|
HCPL-3180OPTOISO 3.75KV 1CH GATE DVR 8DIP Broadcom Limited |
0 | - |
|
数据表 |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Optical Coupling | 1 | 10kV/µs | 200ns, 200ns | 65ns | Through Hole | 25ns, 25ns | 2A, 2A | 3750Vrms | 2.5A | 1.5V | -40°C ~ 125°C | 25 mA | 8-DIP | - | 10V ~ 20V | - | CSA, UR |
|
|
ACFJ-332B-000EGATE DRIVE OPTOCOUPLER,IEC+LF Broadcom Limited |
0 | - |
|
数据表 |
- | 24-SOIC (0.295", 7.50mm Width), 20 Leads | Tube | Active | Optical Coupling | 2 | 150kV/µs | 65ns, 65ns | 22ns | Surface Mount | 10ns, 10ns | 2.5A, 2.4A | 5000Vrms | 4A | - | -40°C ~ 125°C | - | 24-SO | - | 10V ~ 25V | - | cUR, UR |
|
|
ACFJ-332BT-000EAUTOMOTIVE OPTOCOUPLER, LF Broadcom Limited |
0 | - |
|
数据表 |
- | 24-SOIC (0.295", 7.50mm Width), 20 Leads | Tube | Active | Optical Coupling | 2 | 150kV/µs | 65ns, 65ns | 22ns | Surface Mount | 10ns, 10ns | 2.5A, 2.4A | 5000Vrms | 4A | - | -40°C ~ 125°C | - | 24-SO | AEC-Q100 | 10V ~ 25V | Automotive | cUL, UL |
|
|
ACPL-338J-000EPLASTIC OPTOCOUPLER LEADFREE Broadcom Limited |
0 | - |
|
数据表 |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 100kV/µs | 135ns, 135ns | 30ns | Surface Mount | 20ns, 10ns | 2A, 2A | 5000Vrms | 3A | 1.6V | -40°C ~ 125°C | 25 mA | 16-SOIC | - | 15V ~ 30V | - | CSA, IEC/EN/DIN, UR, VDE |
|
|
ACPL-334J-000EPLASTIC OPTOCOUPLER LEADFREE Broadcom Limited |
0 | - |
|
数据表 |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 100kV/µs | 135ns, 135ns | 30ns | Surface Mount | 20ns, 10ns | 2A, 2A | 5000Vrms | 3A | 1.6V | -40°C ~ 125°C | 25 mA | 16-SOIC | - | 15V ~ 30V | - | CSA, IEC/EN/DIN, UR, VDE |
|
|
ACFJ-3531T-000EAUTOMOTIVE OPTOCOUPLER, LF Broadcom Limited |
0 | - |
|
数据表 |
- | 24-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 50kV/µs | 200ns, 200ns | 100ns | Surface Mount | 15ns, 15ns | 1.5A, 1.5A | 5000Vrms | 1.5A | 1.55V | -40°C ~ 125°C | 20 mA | 24-SOIC | AEC-Q100 | 17.4V ~ 19.2V | Automotive | CSA, IEC/EN/DIN, UR, VDE |
|

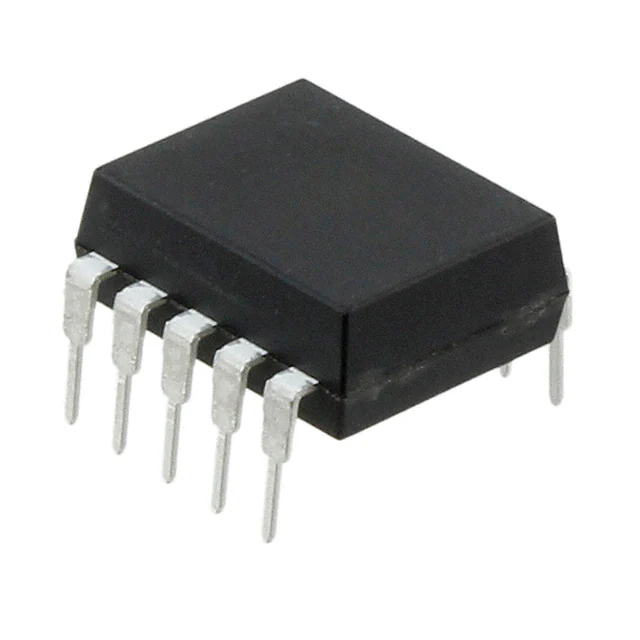

ACNV3130-000EOPTOISO 7.5KV 1CH GATE DVR 10DIP Broadcom Limited |
0 | - |
|
数据表 |
- | 10-DIP (0.512", 13.01mm) | Tube | Active | Optical Coupling | 1 | 40kV/µs | 500ns, 500ns | 300ns | Through Hole | 100ns, 100ns | 2A, 2A | 7500Vrms | 2.5A | 1.6V | -40°C ~ 105°C | 25 mA | 10-DIP | - | 15V ~ 30V | - | CSA, IEC/EN/DIN, UR |
|
HCPL-3020-300EOPTOISO 3.75KV 1CH GT DVR 8DIP Broadcom Limited |
0 | - |
|
数据表 |
- | 8-SMD, Gull Wing | Tube | Active | Optical Coupling | 1 | 10kV/µs | 700ns, 700ns | - | Surface Mount | 50ns, 50ns | 200mA, 200mA | 3750Vrms | 400mA | 1.5V | -40°C ~ 100°C | 20 mA | 8-DIP Gull Wing | - | 10V ~ 30V | - | CSA, UR |
|
HCPL-0302-060EOPTOISO 3.75KV 1CH GATE DVR 8SO Broadcom Limited |
0 | - |
|
数据表 |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Optical Coupling | 1 | 10kV/µs | 700ns, 700ns | - | Surface Mount | 50ns, 50ns | 200mA, 200mA | 3750Vrms | 400mA | 1.5V | -40°C ~ 100°C | 20 mA | 8-SO | - | 10V ~ 30V | - | CSA, IEC/EN/DIN, UR |
