模拟开关、复用器、解复用器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 开关电路 | 多路复用器/解复用器电路 | 导通状态电阻（最大） | 通道与通道匹配（ΔRon） | 电压 - 供应，单（V+） | 认证 | 电压 - 供应，双（V±） | 开关时间（Ton, Toff）（最大） | 电路数量 | -3db 带宽 | 电荷注入 | 等级 | 通道电容（CS(off), CD(off)） | 安装类型 | 工作温度 | 漏电流（IS(off)）（最大） | 串扰 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX327CSEIC SW SPST-NOX4 3.5KOHM 16SOIC |
0 | - |
|
数据表 |
- | Tube | Obsolete | SPST - NO | 1:1 | 3.5kOhm | 175Ohm | 10V ~ 30V | - | ±5V ~ 18V | 1µs, 500ns | 4 | - | 2pC | - | 1.7pF, 1.7pF | Surface Mount | 0°C ~ 70°C (TA) | 10pA | -90dB @ 100kHz | 16-SOIC |
|
MAX4602CWEIC SW SPST-NOX4 2.5OHM 16SOIC |
0 | - |
|
数据表 |
- | Tube | Obsolete | SPST - NO | 1:1 | 2.5Ohm | 100mOhm | 4.5V ~ 36V | - | ±4.5V ~ 20V | 250ns, 350ns | 4 | - | 120pC | - | 55pF, 55pF | Surface Mount | 0°C ~ 70°C (TA) | 500pA | -59dB @ 1MHz | 16-SOIC |
|
ADG453BRUZ-REELIC SW SPST-NO/NCX4 5OHM 16TSSOP |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Active | SPST - NO/NC | 1:1 | 5Ohm | 100mOhm | 12V | - | ±4.5V ~ 20V | 180ns, 140ns | 4 | - | 20pC | - | 37pF, 37pF | Surface Mount | -40°C ~ 85°C (TA) | 500pA | -90dB @ 1MHz | 16-TSSOP |
|
|
MAX4661CWEIC SW SPST-NCX4 2.5OHM 16SOIC |
0 | - |
|
数据表 |
- | Tube | Obsolete | SPST - NC | 1:1 | 2.5Ohm | 100mOhm | 4.5V ~ 36V | - | ±4.5V ~ 20V | 275ns, 175ns | 4 | - | 300pC | - | 55pF, 55pF | Surface Mount | 0°C ~ 70°C (TA) | 500pA | -59dB @ 1MHz | 16-SOIC |
|

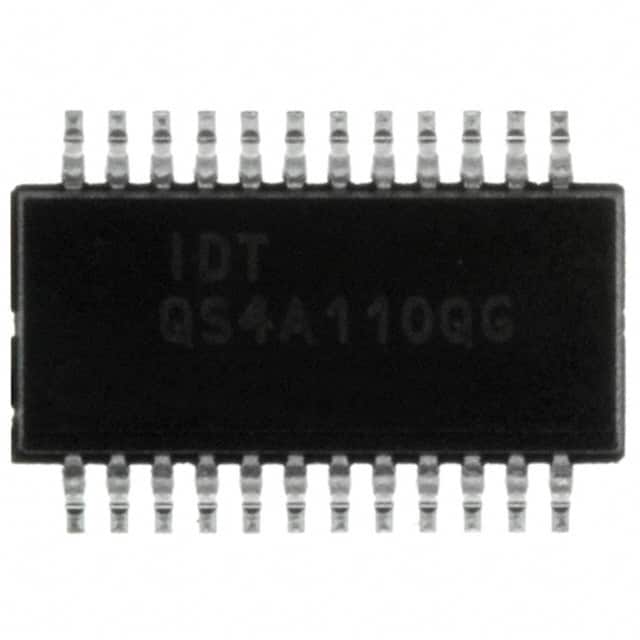

QS4A110QGIC SWITCH 5PST-NOX2 17OHM 24QSOP |
0 | - |
|
数据表 |
- | Tube | Obsolete | 5PST - NO | - | 17Ohm | - | 5V | - | - | 6ns, 6.5ns | 2 | 1.8GHz | 1.5pC | - | 5pF | Surface Mount | -40°C ~ 85°C (TA) | 1nA | -70dB @ 5.5MHz | 24-QSOP |
|
MAX303CPEIC SWITCH SPDT X 2 35OHM 16DIP |
0 | - |
|
数据表 |
- | Tube | Obsolete | SPDT | 2:1 | 35Ohm | 500mOhm | 10V ~ 30V | - | ±4.5V ~ 20V | 150ns, 100ns | 2 | - | 10pC | - | 12pF, 12pF | Through Hole | 0°C ~ 70°C (TA) | 500pA | -90dB @ 1MHz | 16-PDIP |
|
|
MAX305CPEIC SWITCH DPST-NOX2 35OHM 16DIP |
0 | - |
|
数据表 |
- | Tube | Obsolete | DPST - NO | 2:1 | 35Ohm | 500mOhm | 10V ~ 30V | - | ±4.5V ~ 20V | 150ns, 100ns | 2 | - | 10pC | - | 12pF, 12pF | Through Hole | 0°C ~ 70°C (TA) | 500pA | -90dB @ 1MHz | 16-PDIP |
|
DG407CJIC MUX DUAL 8:1 100OHM 28DIP |
0 | - |
|
数据表 |
- | Tube | Obsolete | - | 8:1 | 100Ohm | 1.5Ohm | 5V ~ 30V | - | ±4.5V ~ 20V | 200ns, 150ns | 2 | - | 2pC | - | 8pF, 65pF | Through Hole | 0°C ~ 70°C (TA) | 500pA | -92dB @ 100kHz | 28-PDIP |
|
|
DG509AEWE-C30144IC SWITCH SP4T X 2 450OHM 16SOIC |
0 | - |
|
数据表 |
- | Tube | Obsolete | SP4T | 4:1 | 450Ohm | 27Ohm | - | - | ±4.5V ~ 18V | 1.5µs, 1µs | 2 | - | - | - | 5pF, 12pF | Surface Mount | -40°C ~ 85°C (TA) | 1nA | - | 16-SOIC |
|
MAX4560CEE+TIC SWITCH SPDT X 3 160OHM 16QSOP |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 160Ohm | 2Ohm | 2V ~ 12V | - | ±2V ~ 6V | 150ns, 120ns | 3 | - | 2.4pC | - | 2pF, 4pF | Surface Mount | 0°C ~ 70°C (TA) | 1nA | -93dB @ 100kHz | 16-QSOP |
|
|
MAX4559CSE+TIC SWITCH SP4T X 2 160OHM 16SOIC |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Active | SP4T | 4:1 | 160Ohm | 2Ohm | 2V ~ 12V | - | ±2V ~ 6V | 150ns, 120ns | 2 | - | 2.4pC | - | 2.5pF, 6pF | Surface Mount | 0°C ~ 70°C (TA) | 1nA | -93dB @ 100kHz | 16-SOIC |
|
DG406BDN-E3IC MUX 16:1 60OHM 28PLCC |
0 | - |
|
数据表 |
- | Tube | Last Time Buy | - | 16:1 | 60Ohm | 3Ohm | 7.5V ~ 44V | - | ±5V ~ 20V | 107ns, 88ns | 1 | - | 11pC | - | 6pF, 108pF | Surface Mount | -40°C ~ 85°C (TA) | 500pA | - | 28-PLCC (11.51x11.51) |
|
|
MAX301CSE+TIC SWITCH SPST-NOX2 35OHM 16SOIC |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 35Ohm | 500mOhm | 10V ~ 30V | - | ±4.5V ~ 20V | 150ns, 100ns | 2 | - | 10pC | - | 12pF, 12pF | Surface Mount | 0°C ~ 70°C (TA) | 500pA | -90dB @ 1MHz | 16-SOIC |
|
|
ALD4211SCLIC SW SPST-NCX4 135OHM 16SOIC |
0 | - |
|
数据表 |
- | Tube | Active | SPST - NC | 1:1 | 135Ohm | 2.7Ohm | 3V ~ 12V | - | ±1.5V ~ 6V | 130ns, 130ns | 4 | - | 0.2pC | - | 3pF, 3pF | Surface Mount | -40°C ~ 85°C (TA) | 100pA | -90dB @ 100kHz | 16-SOIC |
|
|
DG304ACWE+TIC SWITCH SPST-NOX2 50OHM 16SOIC |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 50Ohm | - | - | - | ±5V ~ 18V | 250ns, 150ns | 2 | - | 12pC | - | 14pF, 14pF | Surface Mount | 0°C ~ 70°C (TA) | 5nA | -74dB @ 500kHz | 16-SOIC |
|
DG211CUE+TIC SW SPST-NCX4 175OHM 16TSSOP |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 175Ohm | - | - | - | ±4.5V ~ 18V | 1µs, 500ns | 4 | - | - | - | 5pF, 5pF | Surface Mount | 0°C ~ 70°C (TA) | 5nA | -90dB @ 100kHz | 16-TSSOP |
|
|
MAX361ESE+TIC SWITCH SPST-NCX4 85OHM 16SOIC |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 85Ohm | 2Ohm (Max) | 10V ~ 30V | - | ±4.5V ~ 20V | 250ns, 120ns | 4 | - | 5pC | - | 4pF, 4pF | Surface Mount | -40°C ~ 85°C (TA) | 500pA | -100dB @ 1MHz | 16-SOIC |
|
|
MAX361CSE+TIC SWITCH SPST-NCX4 85OHM 16SOIC |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 85Ohm | 2Ohm (Max) | 10V ~ 30V | - | ±4.5V ~ 20V | 250ns, 120ns | 4 | - | 5pC | - | 4pF, 4pF | Surface Mount | 0°C ~ 70°C (TA) | 500pA | -100dB @ 1MHz | 16-SOIC |
|
|
DG211EUE+TIC SW SPST-NCX4 175OHM 16TSSOP |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 175Ohm | - | - | - | ±4.5V ~ 18V | 1µs, 500ns | 4 | - | - | - | 5pF, 5pF | Surface Mount | -40°C ~ 85°C (TA) | 5nA | -90dB @ 100kHz | 16-TSSOP |
|
MAX4527EUA+TIC SWITCH SPDT X 2 175OHM 8UMAX |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 175Ohm | 500mOhm | 4.5V ~ 36V | - | ±4.5V ~ 18V | - | 2 | - | 1pC | - | 13pF | Surface Mount | -40°C ~ 85°C (TA) | 500pA | - | 8-uMAX/uSOP |
