模拟开关、复用器、解复用器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 开关电路 | 多路复用器/解复用器电路 | 导通状态电阻（最大） | 通道与通道匹配（ΔRon） | 电压 - 供应，单（V+） | 认证 | 电压 - 供应，双（V±） | 开关时间（Ton, Toff）（最大） | 电路数量 | -3db 带宽 | 电荷注入 | 等级 | 通道电容（CS(off), CD(off)） | 安装类型 | 工作温度 | 漏电流（IS(off)）（最大） | 串扰 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX4610ESD+TG074IC SW SPST-NOX4 100OHM 14SOIC |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 100Ohm | 1Ohm | 2V ~ 12V | - | - | 65ns, 28ns | 4 | 300MHz | 1pC | - | 16pF, 16pF | Surface Mount | -40°C ~ 85°C (TA) | 100pA | -80dB @ 1MHz | 14-SOIC |
|
MAX4610EUD+TIC SW SPST-NOX4 100OHM 14TSSOP |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 100Ohm | 1Ohm | 2V ~ 12V | - | - | 65ns, 28ns | 4 | 300MHz | 1pC | - | 16pF, 16pF | Surface Mount | -40°C ~ 85°C (TA) | 100pA | -80dB @ 1MHz | 14-TSSOP |
|
|
MAX4610ESD+TIC SW SPST-NOX4 100OHM 14SOIC |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 100Ohm | 1Ohm | 2V ~ 12V | - | - | 65ns, 28ns | 4 | 300MHz | 1pC | - | 16pF, 16pF | Surface Mount | -40°C ~ 85°C (TA) | 100pA | -80dB @ 1MHz | 14-SOIC |
|
|
MAX4611ESD+TIC SW SPST-NCX4 100OHM 14SOIC |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 100Ohm | 1Ohm | 2V ~ 12V | - | - | 65ns, 28ns | 4 | 300MHz | 1pC | - | 16pF, 16pF | Surface Mount | -40°C ~ 85°C (TA) | 100pA | -80dB @ 1MHz | 14-SOIC |
|
DG643DY-T1IC SWITCH SPDT X 2 15OHM 16SOIC |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 15Ohm | 1Ohm | 3V ~ 15V | - | ±3V ~ 15V | 70ns, 50ns | 2 | 500MHz | 19pC | - | 12pF, 12pF | Surface Mount | -40°C ~ 85°C (TA) | 10nA | -87dB @ 5MHz | 16-SOIC |
|
MAX4066CEE+TIC SWITCH SPST-NOX4 45OHM 16QSOP |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 45Ohm | 500mOhm | 2V ~ 16V | - | - | 100ns, 75ns | 4 | 100MHz | 1pC | - | 9pF, 9pF | Surface Mount | 0°C ~ 70°C (TA) | 1nA | -86dB @ 1MHz | 16-QSOP |
|
CD74HC4051MDREPIC MUX 8:1 130OHM 16SOIC |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Obsolete | - | 8:1 | 130Ohm | 5Ohm | 2V ~ 6V | - | ±1V ~ 5V | - | 1 | 180MHz | - | - | 25pF | Surface Mount | -55°C ~ 125°C (TA) | 400nA | - | 16-SOIC |
|
PS392EPEIC SWITCH SPST-NOX4 45OHM 16DIP |
0 | - |
|
数据表 |
- | - | Obsolete | SPST - NO | 1:1 | 45Ohm | 500mOhm | 3V ~ 15V | - | ±3V ~ 8V | 130ns, 75ns | 4 | 100MHz | 3pC | - | 12pF, 12pF | Through Hole | -40°C ~ 85°C (TA) | 100pA | -90dB @ 1MHz | 16-PDIP |
|
|
PS393EPEIC SW SPST-NO/NCX4 45OHM 16DIP |
0 | - |
|
数据表 |
- | Tray | Obsolete | SPST - NO/NC | 1:1 | 45Ohm | 500mOhm | 3V ~ 15V | - | ±3V ~ 8V | 130ns, 75ns | 4 | 100MHz | 3pC | - | 12pF, 12pF | Through Hole | -40°C ~ 85°C (TA) | 100pA | -90dB @ 1MHz | 16-PDIP |
|
DG418LEUA+TIC SWITCH SPST-NOX1 35OHM 8UMAX |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 35Ohm | 100mOhm | 9V ~ 36V | - | ±4.5V ~ 20V | 175ns, 185ns | 1 | - | 15pC | - | 8pF, 8pF | Surface Mount | -40°C ~ 85°C (TA) | 250pA | - | 8-uMAX/uSOP |
|
|
DG641DJIC SWITCH SPST-NOX4 15OHM 16DIP |
0 | - |
|
数据表 |
- | Tube | Obsolete | SPST - NO | 1:1 | 15Ohm | 1Ohm | 3V ~ 15V | - | ±3V ~ 15V | 70ns, 50ns | 4 | 500MHz | 19pC | - | 12pF, 12pF | Through Hole | -40°C ~ 85°C (TA) | 10nA | -87dB @ 5MHz | 16-PDIP |
|
ISL76123AHZ-T7AIC SWITCH SPDT X 1 23OHM 6SOT |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 23Ohm | 800mOhm | 2.7V ~ 12V | AEC-Q100 | - | 25ns, 17ns (Typ) | 1 | - | 5pC | Automotive | 8pF, 8pF | Surface Mount | -40°C ~ 105°C (TA) | 3nA | -105dB @ 1MHz | 6-SOT |
|
MAX4621CPEIC SWITCH SPST-NO X 2 5OHM 16DIP |
0 | - |
|
数据表 |
- | Tube | Obsolete | SPST - NO | 1:1 | 5Ohm | 250mOhm | 4.5V ~ 36V | - | ±4.5V ~ 18V | 250ns, 200ns | 2 | - | 480pC | - | 34pF, 34pF | Through Hole | 0°C ~ 70°C (TA) | 500pA | -60dB @ 1MHz | 16-PDIP |
|
|
MAX4622CPEIC SWITCH SPDT X 2 5OHM 16DIP |
0 | - |
|
数据表 |
- | Tube | Obsolete | DPST | 1:1 | 5Ohm | 250mOhm | 4.5V ~ 36V | - | ±4.5V ~ 18V | 250ns, 200ns | 2 | - | 480pC | - | 34pF, 34pF | Through Hole | 0°C ~ 70°C (TA) | 500pA | -60dB @ 1MHz | 16-PDIP |
|
|
MAX4622CSEIC SWITCH SPDT X 2 5OHM 16SOIC |
0 | - |
|
数据表 |
- | Tube | Obsolete | DPST | 1:1 | 5Ohm | 250mOhm | 4.5V ~ 36V | - | ±4.5V ~ 18V | 250ns, 200ns | 2 | - | 480pC | - | 34pF, 34pF | Surface Mount | 0°C ~ 70°C (TA) | 500pA | -60dB @ 1MHz | 16-SOIC |
|
|
MAX4623CSEIC SWITCH DPST-NOX2 5OHM 16SOIC |
0 | - |
|
数据表 |
- | Tube | Obsolete | DPST - NO | 2:1 | 5Ohm | 250mOhm | 4.5V ~ 36V | - | ±4.5V ~ 18V | 250ns, 200ns | 2 | - | 480pC | - | 34pF, 34pF | Surface Mount | 0°C ~ 70°C (TA) | 500pA | -60dB @ 1MHz | 16-SOIC |
|

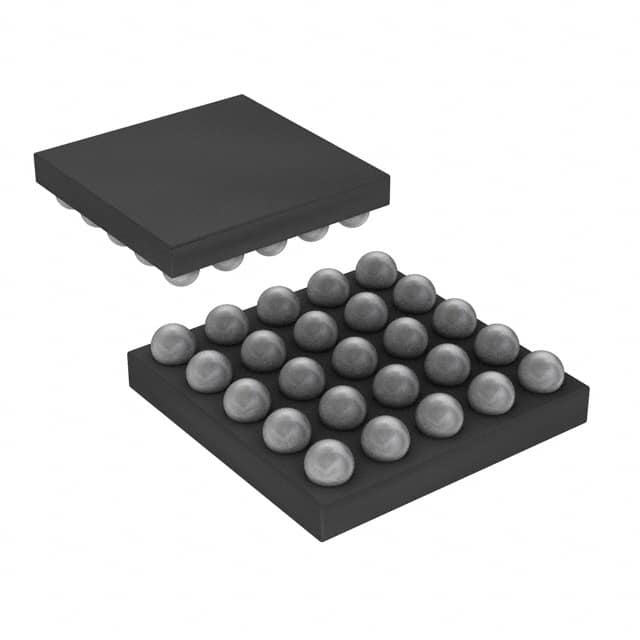

MAX4948EBA+TIC SWITCH SPDT X 6 5.5OHM 25UCSP |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 5.5Ohm | 300mOhm | 1.8V ~ 5.5V | - | - | 800ns, 800ns | 6 | 300MHz | 10pC | - | 15pF | Surface Mount | -40°C ~ 85°C (TA) | 3nA | -90dB @ 1MHz | 25-UCSP (2.54x2.54) |
|
MAX4748EWE+TIC SWITCH SPST-NCX4 25OHM 16WLP |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 25Ohm | 100mOhm | 2V ~ 11V | - | - | 85ns, 45ns | 4 | 250MHz | 9pC | - | 20pF, 20pF | Surface Mount | -40°C ~ 85°C (TA) | 100pA | -84dB @ 1MHz | 16-WLP |
|
|
MAX4632ESE-TIC SWITCH SPDT X 2 85OHM 16SOIC |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 85Ohm | 3Ohm | 9V ~ 36V | - | ±4.5V ~ 18V | 150ns, 100ns | 2 | - | 5pC | - | 18pF, 18pF | Surface Mount | -40°C ~ 85°C (TA) | 500pA | -66dB @ 1MHz | 16-SOIC |
|
PI5A392AQEXIC SWITCH SPST-NOX4 18OHM 16QSOP |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 18Ohm | 400mOhm | 2V ~ 6V | - | - | 20ns, 10ns | 4 | 200MHz | 5pC | - | 13pF | Surface Mount | -40°C ~ 85°C (TA) | 30nA | -72dB @ 30MHz | 16-QSOP |
