模拟开关、复用器、解复用器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 开关电路 | 多路复用器/解复用器电路 | 导通状态电阻（最大） | 通道与通道匹配（ΔRon） | 电压 - 供应，单（V+） | 认证 | 电压 - 供应，双（V±） | 开关时间（Ton, Toff）（最大） | 电路数量 | -3db 带宽 | 电荷注入 | 等级 | 通道电容（CS(off), CD(off)） | 安装类型 | 工作温度 | 漏电流（IS(off)）（最大） | 串扰 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADG859BRYZ-REEL7IC SWITCH SPDT SOT66 |
0 | - |
|
数据表 |
- | Cut Tape (CT) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | - | - | - | SOT-66 |
|
DG411LDY-T1-E3IC SWITCH SPST-NCX4 17OHM 16SOIC |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 17Ohm | - | 2.7V ~ 12V | - | ±3V ~ 6V | 19ns, 12ns | 4 | 280MHz | 5pC | - | 5pF, 6pF | Surface Mount | -40°C ~ 85°C (TA) | 250pA | -95dB @ 1MHz | 16-SOIC |
|
MAX4685EUBIC SWITCH SPDTX2 800MOHM 10UMAX |
0 | - |
|
数据表 |
- | Tube | Obsolete | SPDT | 2:1 | 800mOhm | 60mOhm | 1.8V ~ 5.5V | - | - | 50ns, 30ns | 2 | - | 200pC | - | 84pF, 37pF | Surface Mount | -40°C ~ 85°C (TA) | 1nA | -68dB @ 100kHz | 10-uMAX/uSOP |
|
STG3684QTRIC SWITCH SPDT X 2 500MOHM 16QFN |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 500mOhm | 60mOhm | 1.65V ~ 4.3V | - | - | 50ns, 30ns | 2 | 50MHz | 35pC | - | 5pF | Surface Mount | -40°C ~ 85°C (TA) | 10nA | -54dB @ 100kHz | 16-QFN (3x3) |
|
DG308BDJIC SWITCH SPST-NOX4 85OHM 16DIP |
0 | - |
|
数据表 |
- | Tube | Obsolete | SPST - NO | 1:1 | 85Ohm | 1.7Ohm | 4V ~ 44V | - | ±4V ~ 22V | 200ns, 150ns | 4 | - | 1pC | - | 5pF, 5pF | Through Hole | -40°C ~ 85°C (TA) | 500pA | -95dB @ 100kHz | 16-PDIP |
|
NLAS324USIC SWITCH SPST-NC X 2 25OHM US8 |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 25Ohm | - | 2V ~ 5.5V | - | - | 9ns, 10ns | 2 | 220MHz | 3pC | - | 10pF, 10pF | Surface Mount | -55°C ~ 125°C (TA) | 1nA | - | US8 |
|

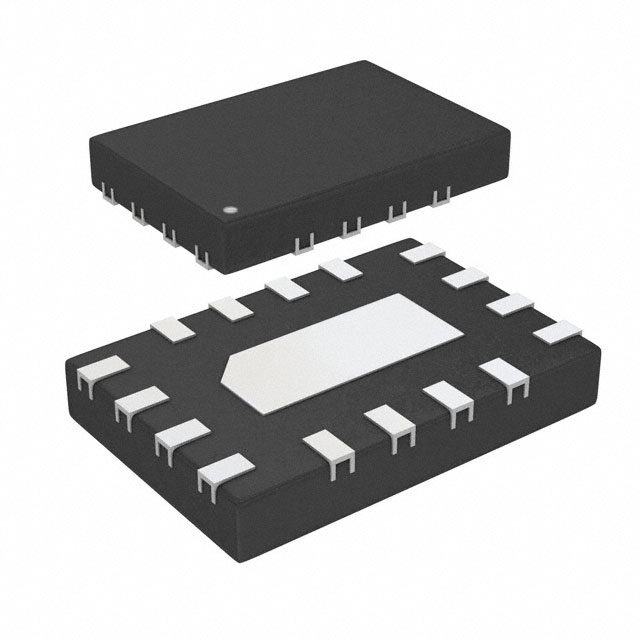

STG3482QTRIC SWITCH SP4T X 2 5.2OHM 16QFN |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Obsolete | SP4T | 4:1 | 5.2Ohm | 300mOhm | 1.65V ~ 4.3V | - | - | 18ns, 15ns | 2 | 300MHz | 11pC | - | - | Surface Mount | -40°C ~ 85°C | 20nA | -77dB @ 1MHz | 16-QFN (2.6x1.8) |
|
NLVAS1053USGIC SWITCH SPDT X 1 16OHM |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Discontinued at Digi-Key | SPDT | 2:1 | 16Ohm | 2Ohm | 2V ~ 5.5V | - | - | 8ns, 8ns | 1 | 200MHz | 3pC | - | 10pF, 10pF | - | -55°C ~ 125°C (TA) | 100nA | - | - |
|
MAX4051CPEIC MUX 8:1 100OHM 16DIP |
0 | - |
|
数据表 |
- | Tube | Obsolete | - | 8:1 | 100Ohm | 12Ohm (Max) | 2V ~ 16V | - | ±2.7V ~ 8V | 175ns, 150ns | 1 | - | 2pC | - | 2pF, 2pF | Through Hole | 0°C ~ 70°C (TA) | 1nA | -90dB @ 100kHz | 16-PDIP |
|
|
MAX4053CPEIC SWITCH SPDT X 3 100OHM 16DIP |
0 | - |
|
数据表 |
- | Tube | Obsolete | SPDT | 2:1 | 100Ohm | 12Ohm (Max) | 2V ~ 16V | - | ±2.7V ~ 8V | 175ns, 150ns | 3 | - | 2pC | - | 2pF, 2pF | Through Hole | 0°C ~ 70°C (TA) | 1nA | -90dB @ 100kHz | 16-PDIP |
|
|
MAX4613EPEIC SW SPST-NO/NCX4 70OHM 16DIP |
0 | - |
|
数据表 |
- | Tube | Obsolete | SPST - NO/NC | 1:1 | 70Ohm | 4Ohm (Max) | 4.5V ~ 40V | - | ±4.5V ~ 20V | 250ns, 120ns | 4 | - | 5pC | - | 4pF, 4pF | Through Hole | -40°C ~ 85°C (TA) | 500pA | -100dB @ 1MHz | 16-PDIP |
|
|
MAX4613ESEIC SW SPST-NO/NCX4 70OHM 16SOIC |
0 | - |
|
数据表 |
- | Tube | Obsolete | SPST - NO/NC | 1:1 | 70Ohm | 4Ohm (Max) | 4.5V ~ 40V | - | ±4.5V ~ 20V | 250ns, 120ns | 4 | - | 5pC | - | 4pF, 4pF | Surface Mount | -40°C ~ 85°C (TA) | 500pA | -100dB @ 1MHz | 16-SOIC |
|
|
DG309DYIC SWITCH SPST-NCX4 85OHM 16SOIC |
0 | - |
|
数据表 |
- | Tube | Obsolete | SPST - NC | 1:1 | 85Ohm | 1.7Ohm | 4V ~ 44V | - | ±4V ~ 22V | 200ns, 150ns | 4 | - | 1pC | - | 5pF, 5pF | Surface Mount | -40°C ~ 85°C (TA) | 500pA | -95dB @ 100kHz | 16-SOIC |
|
ISL43121IHZ-TIC SWITCH SPST-NCX2 20OHM SOT23 |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 20Ohm | 800mOhm | 2.7V ~ 12V | - | - | 35ns, 30ns | 2 | - | 5pC | - | 8pF, 8pF | Surface Mount | -40°C ~ 85°C (TA) | 100pA | -105dB @ 1MHz | SOT-23-8 |
|
ISL54053IHZ-TIC SWITCH SPDT X 1 860MOHM 6SOT |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 860mOhm (Typ) | 4mOhm | 1.8V ~ 5.5V | - | - | 24ns, 10ns | 1 | 190MHz | 26pC | - | 16pF | Surface Mount | -40°C ~ 85°C (TA) | 10nA | -83dB @ 100kHz | 6-SOT |
|
DG9236DN-T1-E4IC SW SPDTX2 145OHM 10MINIQFN |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 145Ohm | 2Ohm | 2.7V ~ 16V | - | - | 70ns, 55ns | 2 | 800MHz | 6pC | - | 2pF | Surface Mount | -40°C ~ 85°C (TA) | 1nA | -70dB @ 10MHz | 10-miniQFN (1.4x1.8) |
|
|
DG442LDY-T1IC SWITCH SPST-NOX4 30OHM 16SOIC |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 30Ohm | 100mOhm | 2.7V ~ 12V | - | ±3V ~ 6V | 60ns, 35ns | 4 | 280MHz | 5pC | - | 5pF, 6pF | Surface Mount | -40°C ~ 85°C (TA) | 1nA | -95dB @ 1MHz | 16-SOIC |
|
MAX4521CEE+TIC SW SPST-NCX4 100OHM 16QSOP |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 100Ohm | 1Ohm | 2V ~ 12V | - | ±2V ~ 6V | 80ns, 30ns | 4 | - | 1pC | - | 2pF, 2pF | Surface Mount | 0°C ~ 70°C (TA) | 1nA | -90dB @ 100kHz | 16-QSOP |
|
DG9424DQ-T1IC SWITCH SPST-NOX4 3OHM 16TSSOP |
0 | - |
|
数据表 |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 3Ohm | - | 3V ~ 16V | - | ±3V ~ 8V | 51ns, 35ns | 4 | - | 38pC | - | 49pF, 37pF | Surface Mount | -40°C ~ 85°C (TA) | 1nA | -77dB @ 1MHz | 16-TSSOP |
|
MC14067BCPIC MUX 16:1 280OHM 24DIP |
0 | - |
|
数据表 |
- | Tube | Obsolete | - | 16:1 | 280Ohm | 10Ohm | 3V ~ 18V | - | - | - | 1 | 15MHz | - | - | 100pF | Through Hole | -55°C ~ 125°C (TA) | 100nA | - | 24-PDIP |
