工业用 DIN 导轨电源
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 输入类型 | 输出数量 | 直流电压 - 输入（最小值） | 直流电压 - 输入（最大值） | 电压 - 输出 1 | 效率 | 电压 - 输出 2 | 电压 - 输出 3 | 交流电压 - 输入 | 电压 - 输出 4 | 电压 - 输出 5 | 应用 | 电压 - 输出 6 | 工作温度 | 电压 - 隔离 | 电流 - 输出（最大值） | 功率（瓦特） | 特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRS-5V30W1NZAC/DC DIN RAIL SUPPLY 5V 30W Delta Electronics |
293 | - |
|
数据表 |
Sync (30W) | Box | Active | AC | 1 | - | - | 5V | 79% | - | - | 85 ~ 264 VAC | - | - | ITE (Commercial) | - | -20°C ~ 70°C (With Derating) | 3 kV | 3A | 30W | Adjustable Output, IP20, Universal Input | CB Scheme, CE, EAC, EN, NEC Class 2, SIQ, UL | 508; 50581; 55011; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-2; 61000-6-3; 61000-6-4; 61204-3; 62368-1 |
|
DRL-48V120W1AAAC/DC DIN RAIL SUPPLY 48V 120W Delta Electronics |
62 | - |
|
数据表 |
LYTE (120W) | Box | Active | AC | 1 | - | - | 48V | 90% | - | - | 85 ~ 264 VAC | - | - | ITE (Commercial) | - | -20°C ~ 70°C (With Derating) | 3 kV | 2.5A | 120W | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | CB, CCC, CE, cURus, TUV | - |
|
DRS-24V100W1NRAC/DC DIN RAIL SUPPLY 24V 100W Delta Electronics |
269 | - |
|
数据表 |
Sync (100W) | Box | Active | AC | 1 | - | - | 24V | 89% | - | - | 85 ~ 264 VAC | - | - | ITE (Commercial) | - | -20°C ~ 70°C (With Derating) | 3 kV | 3.8A | 100W | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | CB, CE, cULus, cURus, TUV | - |
|
|
DRL-24V120W1AAAC/DC DIN RAIL SUPPLY 24V 120W Delta Electronics |
268 | - |
|
数据表 |
LYTE (120W) | Box | Active | AC | 1 | - | - | 24V | 88% | - | - | 85 ~ 264 VAC | - | - | ITE (Commercial) | - | -20°C ~ 70°C (With Derating) | 3 kV | 5A | 120W | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | CB, CCC, CE, cURus, TUV | - |
|
DRP024V120W3BNAC/DC DIN RAIL SUPPLY 24V 120W Delta Electronics |
168 | - |
|
数据表 |
CliQ II (120W) | Bulk | Active | AC | 1 | - | - | 24V | 88% | - | - | 400 ~ 500 VAC (3 Phase) | - | - | ITE (Commercial) | - | -25°C ~ 85°C (With Derating) | 4 kV | 5A | 120W | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | CB Scheme, CE, CSA, EAC, EN, SIQ, UL | 107.1-01; 508; 50581; 55011; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61204-3; 62368-1 |
|
DRF-48V240W1GBAAC/DC DIN RAIL 48V 240W COATED Delta Electronics |
27 | - |
|
数据表 |
DRF (240W) | Box | Active | AC | 1 | - | - | 48V | 94.5% | - | - | 90 ~ 264 VAC | - | - | ITE (Commercial), Laboratory | - | -30°C ~ 70°C (With Derating) | 4 kV | 5A | 240W | Adjustable Output, PFC, Universal Input | CB, CE, cURus, EAC, KC, TUV, UKCA | 60950-1; 61010-1; 62368-1 |
|
|
DRP-24V240W1CANAC/DC DIN RAIL SUPPLY 24V 240W Delta Electronics |
63 | - |
|
数据表 |
CliQ III (240W) | Box | Active | AC | 1 | - | - | 24V | 94.48% | - | - | 88 ~ 264 VAC | - | - | Industrial, ITE (Commercial) | - | -25°C ~ 70°C (With Derating) | 4 kV | 10A | 240W | Adjustable Output, PFC, Universal Input | CB, CE, cULus, cURus, EAC, SIQ | - |
|

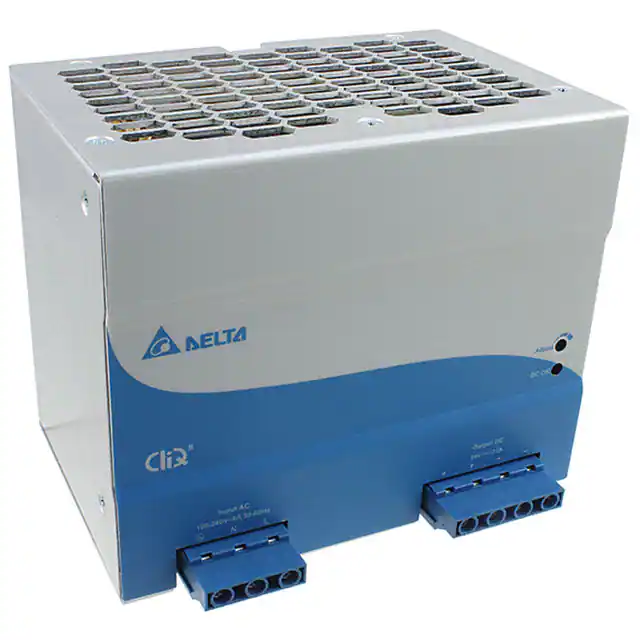

DRP024V480W1BNAC/DC DIN RAIL SUPPLY 24V 480W Delta Electronics |
51 | - |
|
数据表 |
CliQ II (480W) | Bulk | Active | AC | 1 | - | - | 24V | 92% | - | - | 85 ~ 264 VAC | - | - | ITE (Commercial) | - | -25°C ~ 75°C (With Derating) | 4 kV | 20A | 480W | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | CB Scheme, CE, CSA, EAC, EN, SIQ, UL | 107.1-01; 508; 50581; 55011; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61204-3 |
|

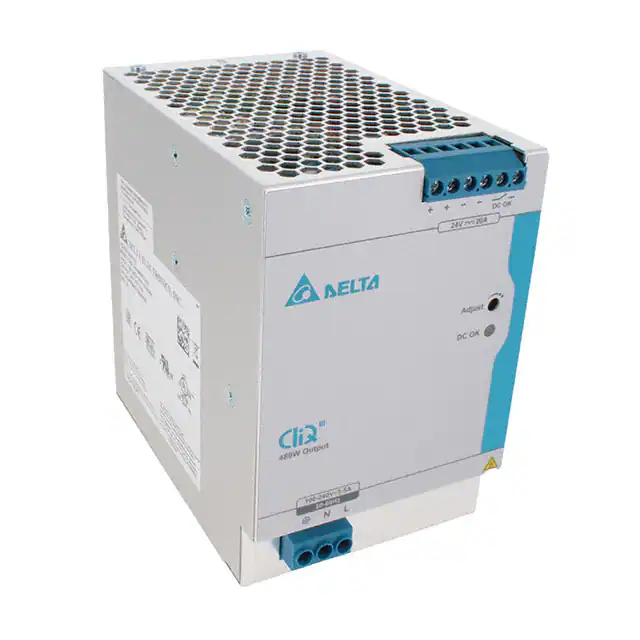

DRP-24V480W1CANAC/DC DIN RAIL SUPPLY 24V 480W Delta Electronics |
80 | - |
|
数据表 |
CliQ III (480W) | Box | Active | AC | 1 | - | - | 24V | 94% | - | - | 88 ~ 264 VAC | - | - | Industrial, ITE (Commercial) | - | -25°C ~ 70°C (With Derating) | 4 kV | 20A | 480W | Adjustable Output, PFC, Universal Input | CB, CE, cULus, cURus, EAC, SIQ | - |
|
|
DRF-48V120W1GTADIN-RAIL PS 120W / 48V (COATED) Delta Electronics |
26 | - |
|
数据表 |
Force-GT (120W) | Box | Active | AC or DC | 1 | 127V | 375V | 48V | 93% | - | - | 90 ~ 264 VAC | - | - | ITE (Commercial), Laboratory | - | -30°C ~ 70°C (With Derating) | 4 kV | 2.5A | 120W | Adjustable Output, DC Input Capable, PFC, Universal Input | CB, CCC, CE, cURus, EAC, KC, TUV, UKCA | 61010-1;60950-1;62368-1 |
