工业用 DIN 导轨电源
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 输入类型 | 输出数量 | 直流电压 - 输入（最小值） | 直流电压 - 输入（最大值） | 电压 - 输出 1 | 效率 | 电压 - 输出 2 | 电压 - 输出 3 | 交流电压 - 输入 | 电压 - 输出 4 | 电压 - 输出 5 | 应用 | 电压 - 输出 6 | 工作温度 | 电压 - 隔离 | 电流 - 输出（最大值） | 功率（瓦特） | 特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRF-48V480W3GTADIN-RAIL PS 480W / 48V 3PHASE Delta Electronics |
0 | - |
|
数据表 |
DRF (480W) | Box | Active | AC or DC | 1 | 450V | 800V | 48V | 95.5% | - | - | 320 ~ 575 VAC (3 Phase) | - | - | ITE (Commercial), Laboratory | - | -40°C ~ 70°C | 4 kV | 10A | 480W | Adjustable Output, IP20, Universal Input | - | 60950-1; 61010-1; 62368-1 |
|
|
DRF-48V960W3GBADIN-RAIL PS 960W / 48V 3PHASE Delta Electronics |
0 | - |
|
数据表 |
* | Box | Active | AC or DC | 1 | 450V | 800V | 48V | 96% | - | - | 320 ~ 575 VAC (3 Phase) | - | - | ITE (Commercial), Laboratory | - | -40°C ~ 70°C | 4 kV | 20A | 960W | Adjustable Output, IP20, Universal Input | - | 60950-1; 61010-1; 62368-1 |
|
DRS-24V30W1AZAC/DC DIN RAIL SUPPLY 24V 30W Delta Electronics |
0 | - |
|
数据表 |
Sync (30W) | Bulk | Active | AC | 1 | - | - | 24V | 88% | - | - | 85 ~ 264 VAC | - | - | ITE (Commercial) | - | -20°C ~ 70°C (With Derating) | 3 kV | 1.25A | 30W | Adjustable Output, IP20, Universal Input | CB Scheme, CE, EN, NEC Class 2, SIQ, UL | 50581; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3 |
|

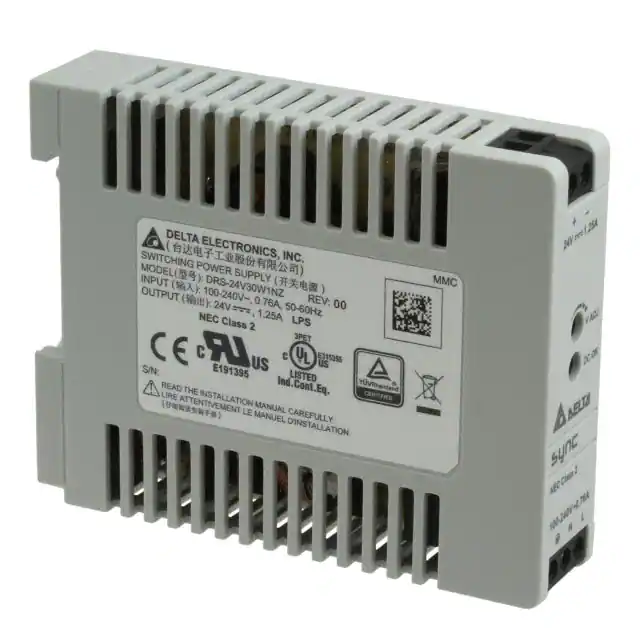

DRS-24V30W1NZAC/DC DIN RAIL SUPPLY 24V 30W Delta Electronics |
0 | - |
|
数据表 |
Sync (30W) | Box | Active | AC | 1 | - | - | 24V | 88% | - | - | 85 ~ 264 VAC | - | - | ITE (Commercial) | - | -20°C ~ 70°C (With Derating) | 3 kV | 1.25A | 30W | Adjustable Output, IP20, Universal Input | CB Scheme, CE, EAC, EN, NEC Class 2, SIQ, UL | 50581; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3 |
|
DRP-24V48W1AZAC/DC DIN RAIL SUPPLY 24V 48W Delta Electronics |
0 | - |
|
数据表 |
CliQ (48W) | Bulk | Obsolete | AC | 1 | - | - | 24V | 85% | - | - | 85 ~ 264 VAC | - | - | ITE (Commercial) | - | -20°C ~ 70°C (With Derating) | 4 kV | 2A | 48W | Adjustable Output, Load Sharing, Universal Input | CB Scheme, CE, CSA, EAC, EN, SIQ, UL | 107.1-01; 508; 50581; 55011; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2 |
|

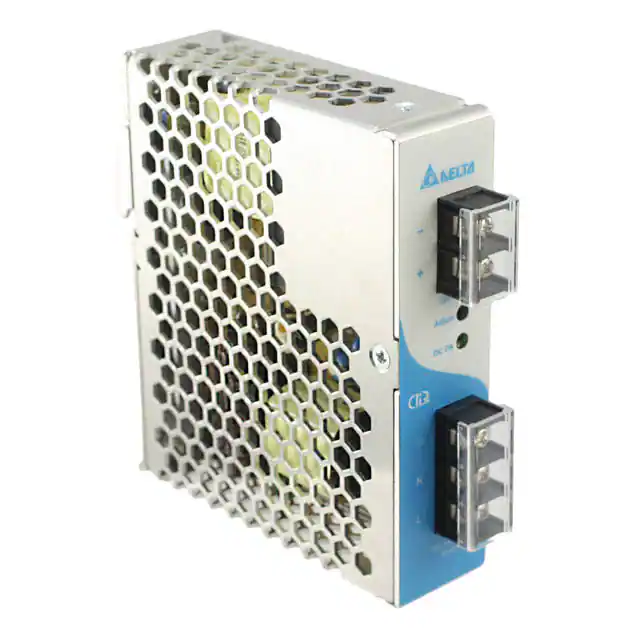

DRP012V060W1AAAC/DC DIN RAIL SUPPLY 12V 60W Delta Electronics |
0 | - |
|
数据表 |
CliQ (60W) | Box | Obsolete | AC | 1 | - | - | 12V | 86% | - | - | 85 ~ 264 VAC | - | - | ITE (Commercial) | - | -20°C ~ 80°C (With Derating) | 4 kV | 5A | 60W | Adjustable Output, Load Sharing, Universal Input | ATEX EN, CB Scheme, CE, CSA, DNV GL, EAC, EN, SIQ, UL | 107.1-01; 213, 12.12.09; 508; 50581; 55011; 55024; 55032; 60079-15; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-2 |
|
|
DRP024V060W1AAAC/DC DIN RAIL SUPPLY 24V 60W Delta Electronics |
0 | - |
|
数据表 |
CliQ (60W) | Box | Obsolete | AC | 1 | - | - | 24V | 87% | - | - | 85 ~ 264 VAC | - | - | ITE (Commercial) | - | -20°C ~ 75°C (With Derating) | 4 kV | 2.5A | 60W | Adjustable Output, Load Sharing, Universal Input | ATEX EN, CB Scheme, CE, CSA, DNV GL, EAC, EN, SEMI, SIQ, UL | 107.1-01; 213, 12.12.09; 508; 50581; 55011; 55024; 55032; 60079-15; 60950-1; 61000-3-2; 61000-6-1; 61000-6-2; 61204-3; 62368-1 |
|
DRS-12V50W1NRAC/DC DIN RAIL SUPPLY 12V 50W Delta Electronics |
0 | - |
|
数据表 |
Sync (50W) | Box | Active | AC | 1 | - | - | 12V | 89% | - | - | 85 ~ 264 VAC | - | - | ITE (Commercial) | - | -20°C ~ 70°C (With Derating) | 3 kV | 4A | 50W | Adjustable Output, IP20, Load Sharing, Universal Input | CB, CE, cULus, cURus, TUV | - |
|
DRS-24V50W1NRAC/DC DIN RAIL SUPPLY 24V 50W Delta Electronics |
0 | - |
|
数据表 |
Sync (50W) | Box | Active | AC | 1 | - | - | 24V | 90% | - | - | 85 ~ 264 VAC | - | - | ITE (Commercial) | - | -20°C ~ 70°C (With Derating) | 3 kV | 2.1A | 50W | Adjustable Output, IP20, Load Sharing, Universal Input | CB, CE, cULus, cURus, TUV | - |
|

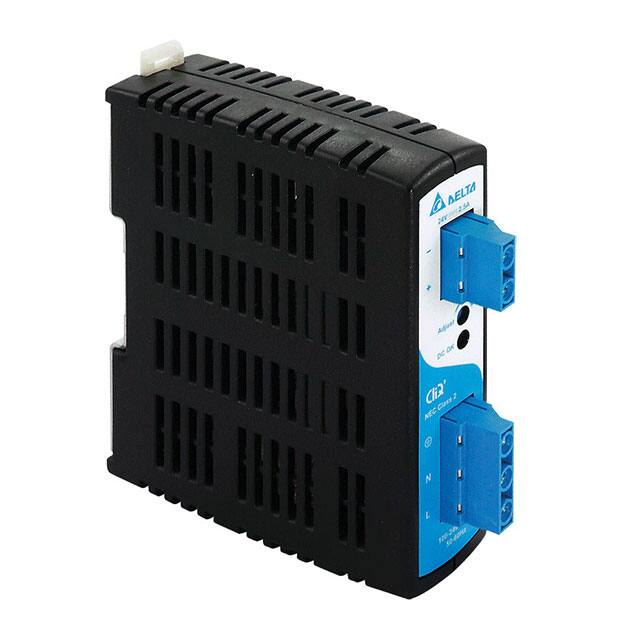

DRP024V060W1NYAC/DC DIN RAIL SUPPLY 24V 60W Delta Electronics |
0 | - |
|
数据表 |
CliQ II (60W) | Bulk | Active | AC | 1 | - | - | 24V | 87% | - | - | 85 ~ 264 VAC | - | - | ITE (Commercial) | - | -25°C ~ 85°C (With Derating) | 4 kV | 2.5A | 60W | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | ATEX EN, CB Scheme, CE, CSA, DNV GL, EAC, EN, NEC Class 2, SIQ, UL | 107.1-01; 508; 50581; 55011; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61204-3 |
