工业用 DIN 导轨电源
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 输入类型 | 输出数量 | 直流电压 - 输入（最小值） | 直流电压 - 输入（最大值） | 电压 - 输出 1 | 效率 | 电压 - 输出 2 | 电压 - 输出 3 | 交流电压 - 输入 | 电压 - 输出 4 | 电压 - 输出 5 | 应用 | 电压 - 输出 6 | 工作温度 | 电压 - 隔离 | 电流 - 输出（最大值） | 功率（瓦特） | 特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DR-75-48AC/DC DIN RAIL SUPPLY 48V 77W MEAN WELL USA Inc. |
0 | - |
|
数据表 |
DR-75 (75W) | Box | Obsolete | AC or DC | 1 | 120V | 370V | 48V | 81% | - | - | 85 ~ 264 VAC | - | - | Industrial, ITE (Commercial) | - | -10°C ~ 60°C (With Derating) | 3 kV | 1.6A | 77W | Adjustable Output, Universal Input | CB, CE, cULus, TUV | - |
|
|
KNX-40E-1280AC/DC DIN RAIL SUPPLY 30V 38W MEAN WELL USA Inc. |
0 | - |
|
数据表 |
KNX-40E (40W) | Box | Active | AC or DC | 1 | 176V | 280V | 30V | 86% | - | - | 180 ~ 264 VAC | - | - | ITE (Commercial) | - | -30°C ~ 70°C (With Derating) | 4.2 kV | 1.28A | 38W | IP20 | CE | - |
|
DRP-480S-48AC/DC DIN RAIL SUPPLY 48V 480W MEAN WELL USA Inc. |
8 | - |
|
数据表 |
DRP-480S (480W) | Box | Obsolete | AC or DC | 1 | 254V | 370V | 48V | 89% | - | - | 90 ~ 132 VAC, 180 ~ 264 VAC | - | - | Industrial, ITE (Commercial) | - | -20°C ~ 70°C (With Derating) | 3 kV | 10A | 480W | Adjustable Output, PFC, Universal Input | CB, CE, cULus, cURus, TUV | - |
|
EDR-75-24AC/DC DIN RAIL SUPPLY 24V 77W MEAN WELL USA Inc. |
0 | - |
|
数据表 |
EDR-75 (75W) | Box | Active | AC or DC | 1 | 127V | 370V | 24V | 87.5% | - | - | 90 ~ 264 VAC | - | - | Industrial, ITE (Commercial) | - | -20°C ~ 60°C (With Derating) | 3 kV | 3.2A | 77W | Adjustable Output, Universal Input | CB, CE, cULus, RCM, TUV | - |
|
|
EDR-75-12AC/DC DIN RAIL SUPPLY 12V 76W MEAN WELL USA Inc. |
0 | - |
|
数据表 |
EDR-75 (75W) | Box | Active | AC or DC | 1 | 127V | 370V | 12V | 85.5% | - | - | 90 ~ 264 VAC | - | - | Industrial, ITE (Commercial) | - | -20°C ~ 60°C (With Derating) | 3 kV | 6.3A | 76W | Adjustable Output, Universal Input | CB, CE, cULus, RCM, TUV | - |
|
EDR-120-24AC/DC DIN RAIL SUPPLY 24V 120W MEAN WELL USA Inc. |
0 | - |
|
数据表 |
EDR-120 (120W) | Box | Active | AC or DC | 1 | 127V | 370V | 24V | 87.5% | - | - | 90 ~ 264 VAC | - | - | Industrial, ITE (Commercial) | - | -20°C ~ 60°C (With Derating) | 3 kV | 5A | 120W | Adjustable Output, Universal Input | CB, CE, cULus, RCM, TUV | - |
|
NDR-240-48AC/DC DIN RAIL SUPPLY 48V 240W MEAN WELL USA Inc. |
0 | - |
|
数据表 |
NDR-240 (240W) | Box | Active | AC or DC | 1 | 127V | 370V | 48V | 90% | - | - | 90 ~ 264 VAC | - | - | Industrial, ITE (Commercial) | - | -20°C ~ 70°C (With Derating) | 3 kV | 5A | 240W | Adjustable Output, PFC, Universal Input | CB, CE, cULus, TUV | - |
|
DDR-120A-48DC/DC DIN RAIL SUPPLY 48V 101W MEAN WELL USA Inc. |
0 | - |
|
数据表 |
DDR-120 (120W) | Box | Active | DC | 1 | 9V | 18V | 48V | 88.5% | - | - | - | - | - | Industrial, ITE (Commercial), Railway | - | -40°C ~ 70°C (With Derating) | 4 kV | 2.1A | 101W | Adjustable Output | CE, EAC | - |
|
DRS-240-48AC/DC DIN RAIL SUPPLY 48V 240W MEAN WELL USA Inc. |
0 | - |
|
数据表 |
DRS-240 (240W) | Box | Active | AC or DC | 1 | 127V | 431V | 48V | 92% | - | - | 90 ~ 305 VAC | - | - | ITE (Commercial) | - | -30°C ~ 70°C (With Derating) | 4 kV | 5A | 240W | Adjustable Output, PFC, PMBus™ | CB, CE, cURus, EAC, UKCA | 62368-1 |
|

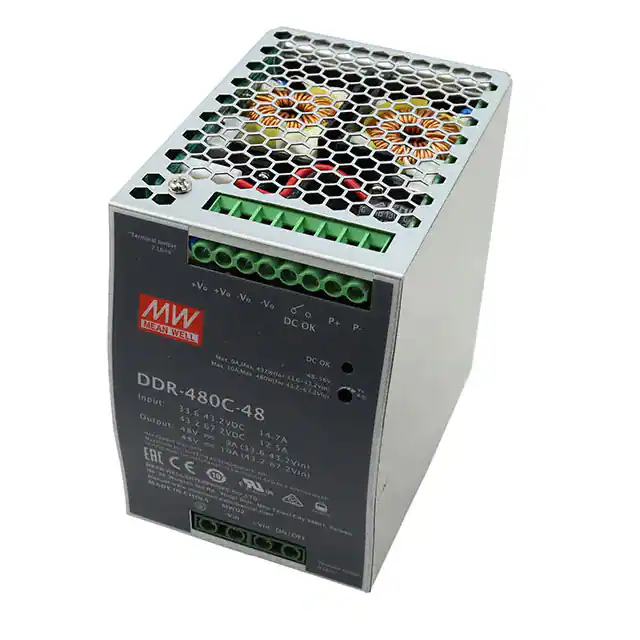

DDR-480C-48DC/DC DIN RAIL SUPPLY 48V 480W MEAN WELL USA Inc. |
0 | - |
|
数据表 |
DDR-480 (480W) | Box | Active | DC | 1 | 33.6V | 67.2V | 48V | 92% | - | - | - | - | - | ITE (Commercial), Railway | - | -40°C ~ 80°C (With Derating) | 4 kV | 10A | 480W | Adjustable Output, Remote On/Off | CB, CE, cURus, EAC | - |
