单个 IGBTs
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | IGBT 类型 | 电压 - 集电极发射极击穿（最大值） | 电流 - 集电极脉冲 (Icm) | 导通电压 (Vce(on)）（最大值）@ Vge, Ic | 功率 - 最大值 | 安装类型 | 开关能量 | 输入类型 | 电流 - 集电极 (Ic)（最大值） | 栅极电荷 | 导通/关断时间 (Td) @ 25°C | 认证 | 测试条件 | 供应商设备封装 | 等级 | 反向恢复时间 (trr) | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

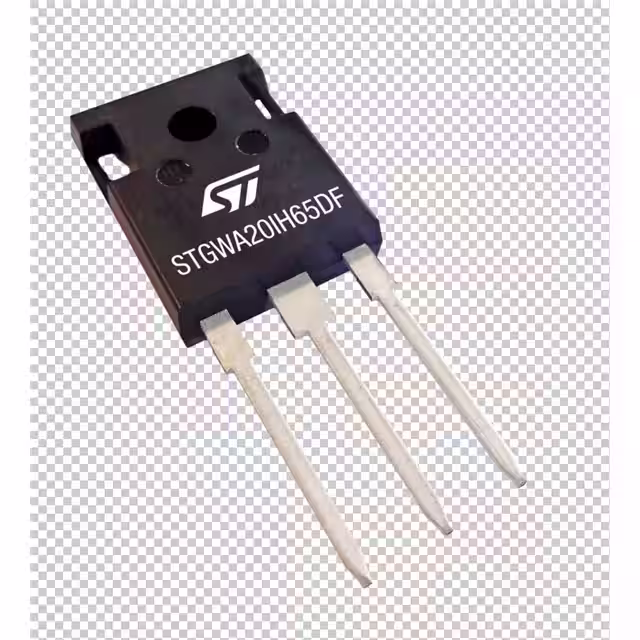

STGWA20IH65DFTRENCH GATE FIELD-STOP 650 V, 20 STMicroelectronics |
24 | - |
|
数据表 |
IH | TO-247-3 | Tube | Last Time Buy | Trench Field Stop | 650 V | 60 A | 2.05V @ 15V, 20A | 159 W | Through Hole | 110µJ (off) | Standard | 40 A | 56 nC | -/120ns | - | 400V, 20A, 22Ohm, 15V | TO-247 Long Leads | - | - | -55°C ~ 175°C (TJ) |
|
STGB20NC60VIGBT 600V 60A 200W D2PAK STMicroelectronics |
4,537 | - |
|
数据表 |
PowerMESH™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | - | 600 V | 100 A | 2.5V @ 15V, 20A | 200 W | Surface Mount | 220µJ (on), 330µJ (off) | Standard | 60 A | 100 nC | 31ns/100ns | - | 390V, 20A, 3.3Ohm, 15V | D2PAK | - | - | -55°C ~ 150°C (TJ) |
|
STGW80H65DFB-4IGBT BIPO 650V 80A TO247 STMicroelectronics |
7,956 | - |
|
数据表 |
- | TO-247-4 | Tube | Active | Trench Field Stop | 650 V | 240 A | 2V @ 15V, 80A | 469 W | Through Hole | 2.1mJ (on), 1.5mJ (off) | Standard | 120 A | 414 nC | 84ns/280ns | - | 400V, 80A, 10Ohm, 15V | TO-247-4 | - | 85 ns | -55°C ~ 175°C (TJ) |
|
STGF30H60DFIGBT 600V 60A 37W TO220FP STMicroelectronics |
1 | - |
|
数据表 |
- | TO-220-3 Full Pack | Tube | Obsolete | Trench Field Stop | 600 V | 120 A | 2.4V @ 15V, 30A | 37 W | Through Hole | 350µJ (on), 400µJ (off) | Standard | 60 A | 105 nC | 50ns/160ns | - | 400V, 30A, 10Ohm, 15V | TO-220FP | - | 110 ns | -40°C ~ 175°C (TJ) |
|
STGW30N90DIGBT 900V 60A 220W TO247 STMicroelectronics |
8,598 | - |
|
数据表 |
PowerMESH™ | TO-247-3 | Tube | Obsolete | - | 900 V | 135 A | 2.75V @ 15V, 20A | 220 W | Through Hole | 1.66mJ (on), 4.44mJ (off) | Standard | 60 A | 110 nC | 29ns/275ns | - | 900V, 20A, 10Ohm, 15V | TO-247-3 | - | 152 ns | -55°C ~ 150°C (TJ) |
|
STGP30H65FIGBT 650V 60A 260W TO-220AB STMicroelectronics |
14 | - |
|
数据表 |
- | TO-220-3 | Tube | Obsolete | Trench Field Stop | 650 V | 120 A | 2.4V @ 15V, 30A | 260 W | Through Hole | 350µJ (on), 400µJ (off) | Standard | 60 A | 105 nC | 50ns/160ns | - | 400V, 30A, 10Ohm, 15V | TO-220 | - | - | -55°C ~ 175°C (TJ) |
|
STGWA40S120DF3IGBT 1200V 40A TO247-3L STMicroelectronics |
4,884 | - |
|
数据表 |
- | TO-247-3 | Tube | Obsolete | Trench Field Stop | 1200 V | 160 A | 2.15V @ 15V, 40A | 468 W | Through Hole | 1.43mJ (on), 3.83mJ (off) | Standard | 80 A | 129 nC | 35ns/148ns | - | 600V, 40A, 15Ohm, 15V | TO-247-3 | - | 355 ns | -55°C ~ 175°C (TJ) |
|
|
STGWA40N120KDIGBT 1200V 80A 240W TO247 STMicroelectronics |
6,769 | - |
|
数据表 |
PowerMESH™ | TO-247-3 | Tube | Obsolete | - | 1200 V | 120 A | 3.85V @ 15V, 30A | 240 W | Through Hole | 3.7mJ (on), 5.7mJ (off) | Standard | 80 A | 126 nC | 48ns/338ns | - | 960V, 30A, 10Ohm, 15V | TO-247 | - | 84 ns | -55°C ~ 125°C (TJ) |
|
|
STGW60H65FIGBT 650V 120A 360W TO247 STMicroelectronics |
9,677 | - |
|
数据表 |
- | TO-247-3 | Tube | Obsolete | Trench Field Stop | 650 V | 240 A | 1.9V @ 15V, 60A | 360 W | Through Hole | 750µJ (on), 1.05mJ (off) | Standard | 120 A | 217 nC | 65ns/180ns | - | 400V, 60A, 10Ohm, 15V | TO-247-3 | - | - | -55°C ~ 150°C (TJ) |
|
STG200G65FD8AGIGBT TRENCH FS 650V 200A DIE STMicroelectronics |
4,140 | - |
|
数据表 |
M | Die | Bulk | Active | Trench Field Stop | 650 V | 600 A | 1.8V @ 15V, 200A | - | Surface Mount | 5.34mJ (on), 6.23mJ (off) | Standard | 200 A | 701 nC | 66.2ns/442.7ns | AEC-Q101 | 400V, 200A, 4.7Ohm, 15V | Die | Automotive | - | -40°C ~ 175°C (TJ) |
