onsemi|单个 IGBTs - 页 8

厂商料号	库存情况	价格	数量	数据表	系列	封装/外壳	包装	产品状态	IGBT 类型	电压 - 集电极发射极击穿（最大值）	电流 - 集电极脉冲 (Icm)	导通电压 (Vce(on)）（最大值）@ Vge, Ic	功率 - 最大值	安装类型	开关能量	输入类型	电流 - 集电极 (Ic)（最大值）	栅极电荷	导通/关断时间 (Td) @ 25°C	认证	测试条件	供应商设备封装	等级	反向恢复时间 (trr)	工作温度
AFGHL50T65SQD AEC 101 QUALIFIED, 650V, 50A FIE onsemi	255	-	询价单	数据表	-	TO-247-3	Tube	Active	Trench Field Stop	650 V	200 A	2.1V @ 15V, 50A	268 W	Through Hole	950µJ (on), 460µJ (off)	Standard	80 A	102 nC	20ns/81ns	AEC-Q101	400V, 50A, 4.7Ohm, 15V	TO-247-3	Automotive	-	-55°C ~ 175°C (TJ)
AFGHL75T65SQ IGBT WITH SIC COPACK DIODE IGBT onsemi	186	-	询价单	数据表	-	TO-247-3	Tube	Active	Trench Field Stop	650 V	300 A	2.1V @ 15V, 75A	375 W	Through Hole	1.86mJ (on), 1.13mJ (off)	Standard	80 A	139 nC	25ns/106ns	AEC-Q101	400V, 75A, 4.7Ohm, 15V	TO-247-3	Automotive	-	-55°C ~ 175°C (TJ)
AFGHL75T65SQDC IGBT TRENCH FS 650V 80A TO247-3 onsemi	328	-	询价单	数据表	-	TO-247-3	Tube	Active	Trench Field Stop	650 V	300 A	2.1V @ 15V, 75A	375 W	Through Hole	1.68mJ (on), 1.11mJ (off)	Standard	80 A	139 nC	24ns/107.2ns	AEC-Q101	400V, 75A, 4.7Ohm, 15V	TO-247-3	Automotive	-	-55°C ~ 175°C (TJ)

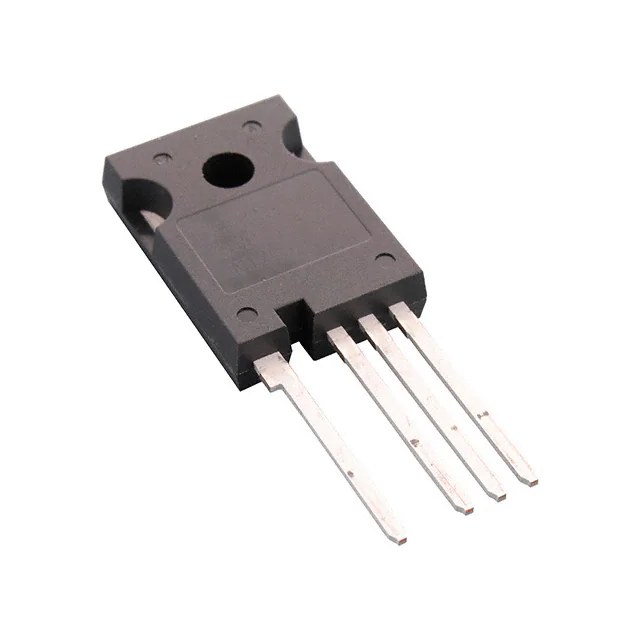

FGH40T120SQDNL4 IGBT 1200V 40A UFS FOR SO onsemi	251	-	询价单	数据表	-	TO-247-4	Tube	Active	Trench Field Stop	1200 V	160 A	1.95V @ 15V, 40A	454 W	Through Hole	1.4mJ (on), 1.1mJ (off)	Standard	160 A	221 nC	46ns/220ns	-	600V, 40A, 10Ohm, 15V	TO-247-4L	-	166 ns	-55°C ~ 175°C (TJ)
FGHL75T65MQDT FS4 MID SPEED IGBT 650V 75A TO24 onsemi	812	-	询价单	数据表	-	TO-247-3	Tube	Active	Trench Field Stop	650 V	300 A	1.8V @ 15V, 75A	375 W	Through Hole	2.35mJ (on), 1.25mJ (off)	Standard	80 A	149 nC	24ns/118ns	-	400V, 75A, 4.7Ohm, 15V	TO-247-3	-	107 ns	-55°C ~ 175°C (TJ)
FGHL75T65MQD IGBT 650V 75A TO247 onsemi	395	-	询价单	数据表	-	TO-247-3	Tube	Active	Trench Field Stop	650 V	300 A	1.8V @ 15V, 75A	375 W	Through Hole	1.94mJ (on), 1.55mJ (off)	Standard	80 A	145 nC	33ns/176ns	-	400V, 75A, 10Ohm, 15V	TO-247-3	-	36 ns	-55°C ~ 175°C (TJ)
FGH75T65SHDTL4 IGBT FIELD STOP 650V 150A TO247 onsemi	289	-	询价单	数据表	-	TO-247-4	Tube	Active	Field Stop	650 V	300 A	2.1V @ 15V, 75A	455 W	Through Hole	1.06mJ (on), 1.56mJ (off)	Standard	150 A	126 nC	55ns/189ns	-	400V, 75A, 15Ohm, 15V	TO-247-4	-	76 ns	-55°C ~ 175°C (TJ)
FGH50T65UPD IGBT TRENCH/FS 650V 100A TO247-3 onsemi	253	-	询价单	数据表	-	TO-247-3	Tube	Not For New Designs	Trench Field Stop	650 V	150 A	2.3V @ 15V, 50A	340 W	Through Hole	2.7mJ (on), 740µJ (off)	Standard	100 A	230 nC	32ns/160ns	-	400V, 50A, 6Ohm, 15V	TO-247-3	-	53 ns	-55°C ~ 175°C (TJ)
FGH75T65UPD IGBT TRENCH FS 650V 150A TO247-3 onsemi	1,131	-	询价单	数据表	-	TO-247-3	Tube	Not For New Designs	Trench Field Stop	650 V	225 A	2.3V @ 15V, 75A	375 W	Through Hole	2.85mJ (on), 1.2mJ (off)	Standard	150 A	385 nC	32ns/166ns	-	400V, 75A, 3Ohm, 15V	TO-247-3	-	85 ns	-55°C ~ 175°C (TJ)
FGHL75T65LQDTL4 FS4 LOW VCESAT IGBT 650V 75A TO2 onsemi	247	-	询价单	数据表	-	TO-247-4	Tube	Active	Trench Field Stop	650 V	300 A	1.35V @ 15V, 75A	469 W	Through Hole	1.01mJ (on), 2.53mJ (off)	Standard	80 A	779 nC	40ns/548ns	-	400V, 75A, 4.7Ohm, 15V	TO-247-4L	-	87 ns	-55°C ~ 175°C (TJ)

共 641 条记录«上一页 1... 4 5 6 789 10 11...65 下一页»
