IGBT 模块
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | IGBT 类型 | 配置 | 电流 - 集电极 (Ic)（最大值） | 功率 - 最大值 | 导通电压 (Vce(on)）（最大值）@ Vge, Ic | 电流 - 集电极截止（最大值） | 输入电容 (Cies) @ Vce | 电压 - 集电极发射极击穿（最大值） | 输入 | NTC 热敏电阻 | 工作温度 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXXN110N65B4H1IGBT MOD 650V 215A 750W SOT227B |
249 | - |
|
数据表 |
XPT™, GenX4™ | SOT-227-4, miniBLOC | Tube | Active | PT | Single | 215 A | 750 W | 2.1V @ 15V, 110A | 50 µA | 3.65 nF @ 25 V | 650 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis Mount | SOT-227B |
|
APT75GN120JDQ3IGBT MOD 1200V 124A 379W ISOTOP |
128 | - |
|
数据表 |
- | ISOTOP | Tube | Active | Trench Field Stop | Single | 124 A | 379 W | 2.1V @ 15V, 75A | 200 µA | 4.8 nF @ 25 V | 1200 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
|
IXYN120N120C3IGBT MOD 1200V 240A SOT227B |
183 | - |
|
数据表 |
XPT™, GenX3™ | SOT-227-4, miniBLOC | Tube | Active | - | Single | 240 A | 1200 W | 3.2V @ 15V, 120A | 25 µA | - | 1200 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis Mount | SOT-227B - miniBLOC |
|
VS-GT100DA120UFIGBT MOD 1200V 187A 890W SOT227 |
160 | - |
|
数据表 |
HEXFRED® | SOT-227-4, miniBLOC | Bulk | Active | Trench | Single | 187 A | 890 W | 2.55V @ 15V, 100A | 100 µA | 6.15 nF @ 25 V | 1200 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
IXGN400N60B3IGBT MOD 600V 430A 1000W SOT227B |
266 | - |
|
数据表 |
GenX3™ | SOT-227-4, miniBLOC | Tube | Active | PT | Single | 430 A | 1000 W | 1.4V @ 15V, 100A | 100 µA | 31 nF @ 25 V | 600 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227B |
|
FP35R12W2T4B11BOMA1IGBT MOD 1200V 54A 215W |
6 | - |
|
数据表 |
- | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 54 A | 215 W | 2.25V @ 15V, 35A | 1 mA | 2 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
F417MR12W1M1HPB76BPSA1LOW POWER EASY |
27 | - |
|
数据表 |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FS200R07N3E4RBOSA1IGBT MOD 650V 200A 600W |
42 | - |
|
数据表 |
EconoPACK™ 3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 200 A | 600 W | 1.95V @ 15V, 200A | 1 mA | 13 nF @ 25 V | 650 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FF400R07A01E3S6XKSA2MOD IGBT MED PWR 14MDIP |
184 | - |
|
数据表 |
- | Module | Tube | Active | Trench Field Stop | Dual, Common Source | 400 A | 1500 W | 2.3V @ 15V, 400A | 100 µA | 18000 pF @ 25 V | 700 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | PG-MDIP-14-1 |
|
FP100R12KT4B11BOSA1IGBT MOD 1200V 100A 515W |
11 | - |
|
数据表 |
EconoPIM™ 3 | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 100 A | 515 W | 2.1V @ 15V, 100A | 1 mA | 6.3 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FS150R12KE3BOSA1IGBT MOD 1200V 200A 700W |
30 | - |
|
数据表 |
- | Module | Tray | Active | NPT | Three Phase Inverter | 200 A | 700 W | 2.15V @ 15V, 150A | 5 mA | 10.5 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | Module |
|

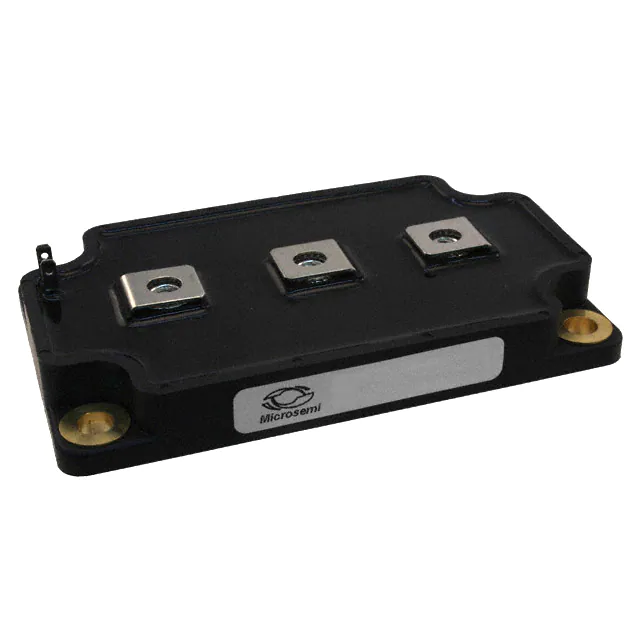

APTGT600SK60GIGBT MODULE 600V 700A 2300W SP6 |
50 | - |
|
数据表 |
- | SP6 | Bulk | Active | Trench Field Stop | Single | 700 A | 2300 W | 1.8V @ 15V, 600A | 750 µA | 49 nF @ 25 V | 600 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | SP6 |
|
FF1500R12IE5PBPSA1IGBT MOD 1200V 1500A AGPRIME3+-5 |
5 | - |
|
数据表 |
PrimePACK™3+ B | Module | Bulk | Active | Trench Field Stop | Half Bridge | 1500 A | - | 2.15V @ 15V, 1.5kA | 5 mA | - | 1200 V | Standard | Yes | -40°C ~ 175°C | Chassis Mount | AG-PRIME3+-5 |
|
|
IM241L6S1BAUMA1CIPOS MICRO |
863 | - |
|
数据表 |
IM241, CIPOS™ | 23-PowerSMD Module, Gull Wing | Tape & Reel (TR) | Active | - | Three Phase Inverter | - | 15 W | 1.62V @ 15V, 2A | - | - | 600 V | Standard | Yes | -40°C ~ 150°C (TJ) | Surface Mount | 23-SOP |
|
|
IXA27IF1200HJIGBT MOD 1200V 43A ISOPLUS247 |
1,183 | - |
|
数据表 |
- | ISOPLUS247™ | Tube | Active | PT | Single | 43 A | 150 W | 2.1V @ 15V, 25A | 100 µA | - | 1200 V | Standard | No | -40°C ~ 150°C (TJ) | Through Hole | ISOPLUS247™ |
|
|
IXYN82N120C3IGBT MOD 1200V 105A 500W SOT227B |
290 | - |
|
数据表 |
XPT™, GenX3™ | SOT-227-4, miniBLOC | Tube | Active | - | Single | 105 A | 500 W | 3.2V @ 15V, 82A | 25 µA | 4.1 nF @ 25 V | 1200 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis Mount | SOT-227B |
|
|
IXXN110N65C4H1IGBT MOD 650V 210A 750W SOT227B |
290 | - |
|
数据表 |
XPT™, GenX4™ | SOT-227-4, miniBLOC | Tube | Active | PT | Single | 210 A | 750 W | 2.35V @ 15V, 110A | 50 µA | 3.69 nF @ 25 V | 650 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis Mount | SOT-227B |
|
|
APT100GT120JU2IGBT MOD 1200V 140A 480W SOT227 |
184 | - |
|
数据表 |
- | ISOTOP | Bulk | Active | Trench Field Stop | Single | 140 A | 480 W | 2.1V @ 15V, 100A | 5 mA | 7.2 nF @ 25 V | 1200 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | SOT-227 |
|
FS35R12W1T4BOMA1IGBT MOD 1200V 65A 225W |
177 | - |
|
数据表 |
- | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 65 A | 225 W | 2.25V @ 15V, 35A | 1 mA | 2 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
APT75GP120JDQ3IGBT MOD 1200V 128A 543W ISOTOP |
900 | - |
|
数据表 |
POWER MOS 7® | ISOTOP | Tube | Active | PT | Single | 128 A | 543 W | 3.9V @ 15V, 75A | 1.25 mA | 7.04 nF @ 25 V | 1200 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP® |
