固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ETQ-P4M470KFMFIXED IND 47UH 2.9A 163.46 MOHM |
9,448 | - |
|
数据表 |
PCC-M0748M-LE | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 2.9 A | 3.7A | - | Shielded | 163.46mOhm Max | 47 µH | - | - | Surface Mount | AEC-Q200 | 0.291" L x 0.276" W (7.40mm x 7.00mm) | - | -40°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
 MHQ Series.jpg)
|
MHQ0402PSA3N0CT000FIXED IND 3NH 250MA 600MOHM SMD |
0 | - |
|
数据表 |
MHQ-PSA | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | 250 mA | - | - | Shielded | 600mOhm Max | 3 nH | 10 @ 500MHz | 7GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.009" (0.22mm) |
|
|
MHQ0402PSA3N0ST000FIXED IND 3NH 250MA 600MOHM SMD |
0 | - |
|
数据表 |
MHQ-PSA | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 250 mA | - | - | Shielded | 600mOhm Max | 3 nH | 10 @ 500MHz | 7GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.009" (0.22mm) |
|
|
MHQ0402PSA3N1CT000FIXED IND 3.1NH 250MA 650MOHM SM |
0 | - |
|
数据表 |
MHQ-PSA | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | 250 mA | - | - | Shielded | 650mOhm Max | 3.1 nH | 10 @ 500MHz | 7GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.009" (0.22mm) |
|
|
MHQ0402PSA3N1ST000FIXED IND 3.1NH 250MA 650MOHM SM |
0 | - |
|
数据表 |
MHQ-PSA | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 250 mA | - | - | Shielded | 650mOhm Max | 3.1 nH | 10 @ 500MHz | 7GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.009" (0.22mm) |
|
|
MHQ0402PSA3N2CT000FIXED IND 3.2NH 250MA 650MOHM SM |
0 | - |
|
数据表 |
MHQ-PSA | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | 250 mA | - | - | Shielded | 650mOhm Max | 3.2 nH | 10 @ 500MHz | 7GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.009" (0.22mm) |
|
|
MHQ0402PSA3N2ST000FIXED IND 3.2NH 250MA 650MOHM SM |
0 | - |
|
数据表 |
MHQ-PSA | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 250 mA | - | - | Shielded | 650mOhm Max | 3.2 nH | 10 @ 500MHz | 7GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.009" (0.22mm) |
|
|
MHQ0402PSA3N3ST000FIXED IND 3.3NH 250MA 650MOHM SM |
0 | - |
|
数据表 |
MHQ-PSA | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 250 mA | - | - | Shielded | 650mOhm Max | 3.3 nH | 10 @ 500MHz | 7GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.009" (0.22mm) |
|
|
MHQ0402PSA3N4CT000FIXED IND 3.4NH 200MA 650MOHM SM |
0 | - |
|
数据表 |
MHQ-PSA | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | 200 mA | - | - | Shielded | 650mOhm Max | 3.4 nH | 10 @ 500MHz | 6GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.009" (0.22mm) |
|
|
MHQ0402PSA3N4ST000FIXED IND 3.4NH 200MA 650MOHM SM |
0 | - |
|
数据表 |
MHQ-PSA | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 200 mA | - | - | Shielded | 650mOhm Max | 3.4 nH | 10 @ 500MHz | 6GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.009" (0.22mm) |
|
|
MHQ0402PSA3N5CT000FIXED IND 3.5NH 200MA 650MOHM SM |
0 | - |
|
数据表 |
MHQ-PSA | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | 200 mA | - | - | Shielded | 650mOhm Max | 3.5 nH | 10 @ 500MHz | 6GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.009" (0.22mm) |
|

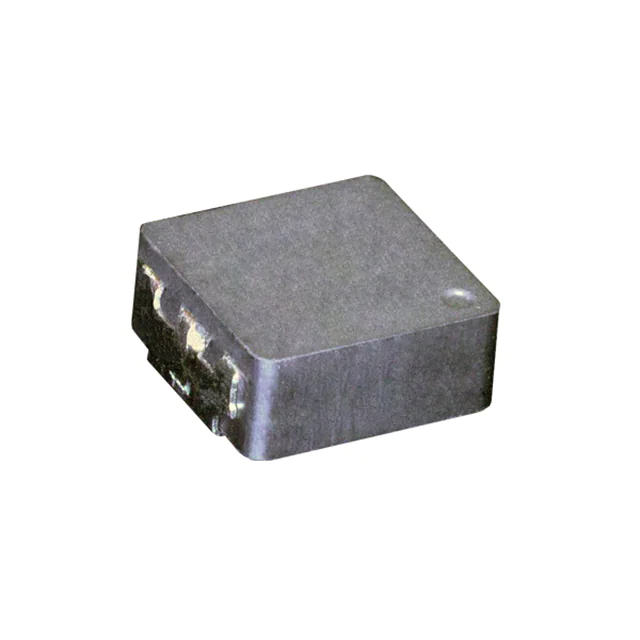

ETQ-P4M100KVKFIXED IND 10UH 5.2A 45.76MOHM SM |
6,596 | - |
|
数据表 |
PCC-M0840M-LP | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 5.2 A | 9.1A | - | Shielded | 45.76mOhm Max | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.335" L x 0.315" W (8.50mm x 8.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.157" (4.00mm) |
|
7447820115FIXED IND 15NH 180MA 710MOHM SMD |
13,335 | - |
|
数据表 |
WE-MK | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±5% | 180 mA | - | 0201 | Unshielded | 710mOhm Max | 15 nH | 4 @ 100MHz | 2.3GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 100 MHz | 0.013" (0.33mm) |
|
CDRH74NP-471MC-BFIXED IND 470UH 260MA 3.01OHM SM |
5,907 | - |
|
数据表 |
CDRH74 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 260 mA | - | - | Shielded | 3.01Ohm Max | 470 µH | - | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | - | -40°C ~ 100°C | 1 kHz | 0.177" (4.50mm) |
|
LQG15HN68NG02DFIXED IND 68NH 200MA 1.25OHM SMD |
13,315 | - |
|
数据表 |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | ±2% | 200 mA | - | 0402 | Unshielded | 1.25Ohm Max | 68 nH | 8 @ 100MHz | 800MHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | 0.022" (0.55mm) |
|
B82442T1475K050FIXED IND 4.7MH 73MA 48.6OHM SMD |
5,558 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 73 mA | 119mA | 2220 (5650 Metric) | Unshielded | 48.6Ohm Max | 4.7 mH | 30 @ 252kHz | 800kHz | Surface Mount | AEC-Q200 | 0.220" L x 0.197" W (5.60mm x 5.00mm) | - | - | 252 kHz | 0.209" (5.30mm) |
|
CDRH4D28CLDNP-100PCFIXED IND 10UH 1.8A 67.5MOHM SMD |
4,800 | - |
|
数据表 |
CDRH4D28C/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±25% | 1.8 A | 900mA | - | Shielded | 67.5mOhm Max | 10 µH | - | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | - | -40°C ~ 105°C | 100 kHz | 0.118" (3.00mm) |
.jpg)
|
LQP03TG6N8H02DFIXED IND 6.8NH 200MA 1.15OHM SM |
13,300 | - |
|
数据表 |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | ±3% | 200 mA | - | 0201 (0603 Metric) | Unshielded | 1.15Ohm Max | 6.8 nH | 12 @ 500MHz | 5.4GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
SLF7055T-6R8N2R8-3PFFIXED IND 6.8UH 2.8A 44.2MOHM SM |
4,467 | - |
|
数据表 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±30% | 2.8 A | 3A | - | Shielded | 44.2mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.228" (5.80mm) |
|
|
7447820022FIXED IND 2.2NH 360MA 190MOHM SM |
13,295 | - |
|
数据表 |
WE-MK | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.3nH | 360 mA | - | 0201 | Unshielded | 190mOhm Max | 2.2 nH | 4 @ 100MHz | 8.8GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 100 MHz | 0.013" (0.33mm) |
