固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLG0603P1N8BTD25FIXED IND 1.8NH 700MA 100MOHM SM |
29,990 | - |
|
数据表 |
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | ±0.1nH | 700 mA | - | 0201 (0603 Metric) | Unshielded | 100mOhm Max | 1.8 nH | 14 @ 500MHz | 9GHz | Surface Mount | AEC-Q200 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 500 MHz | 0.013" (0.33mm) |
|
|
MLG0603S47NHT000FIXED IND 47NH 50MA 2.2 OHM SMD |
29,990 | - |
|
数据表 |
MLG | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | ±3% | 50 mA | - | 0201 (0603 Metric) | Unshielded | 2.2Ohm Max | 47 nH | 6 @ 100MHz | 1.3GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 100 MHz | 0.013" (0.33mm) |
|
CLF7045NIT-221M-DFIXED IND 220UH 560MA 660MOHM SM |
4,348 | - |
|
数据表 |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 560 mA | 560mA | - | Shielded | 660mOhm Max | 220 µH | - | - | Surface Mount | AEC-Q200 | 0.291" L x 0.276" W (7.40mm x 7.00mm) | - | -55°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
SPM6550T-4R7MFIXED IND 4.7UH 7A 23.7MOHM SMD |
3,335 | - |
|
数据表 |
SPM | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | ±20% | 7 A | 7.6A | - | Shielded | 23.7mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
0630CDMCDDS-4R7MCFIXED IND 4.7UH 6.3A 33MOHM SMD |
1,965 | - |
|
数据表 |
0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | ±20% | 5.5 A | 10.5A | SMD | Shielded | 40mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|

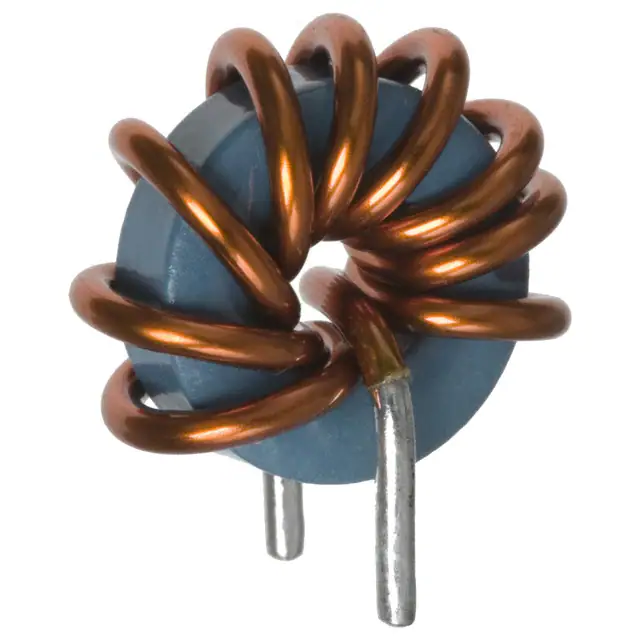

P1715LNLFIXED IND 3.5UH 14.3A 5 MOHM TH |
1,381 | - |
|
数据表 |
Bare Coil | Radial, Vertical (Open) | Tray | Active | Toroidal | - | - | 14.3 A | - | - | Unshielded | 5mOhm Max | 3.5 µH | - | - | Through Hole | - | 0.610" Dia x 0.327" W (15.50mm x 8.30mm) | - | -40°C ~ 130°C | - | - |
|
XAL7070-472MECPOWER INDUCTOR, SHIELDED, 20% TO |
15,320 | - |
|
数据表 |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | ±20% | 13.6 A | 15.2A | - | Shielded | 14.26mOhm Max | 4.7 µH | - | 26MHz | Surface Mount | AEC-Q200 | 0.295" L x 0.283" W (7.50mm x 7.20mm) | - | -40°C ~ 165°C | 1 MHz | 0.276" (7.00mm) |
|
MPEV1D0630L100FIXED IND 10UH 4.2A 78 MOHM SMD |
1,000 | - |
|
数据表 |
METCOM MPEV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | ±20% | 4.2 A | 4.5A | - | Shielded | 78mOhm Max | 10 µH | - | 15MHz | Surface Mount | AEC-Q200 | 0.276" L x 0.256" W (7.00mm x 6.50mm) | - | -55°C ~ 180°C | 100 kHz | 0.118" (3.00mm) |
|
SRR0604-100MLFIXED IND 10UH 1.3A 120 MOHM SMD |
55,066 | - |
|
数据表 |
SRR0604 | Nonstandard, Corner Terminals | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.3 A | 1.8A | - | Shielded | 120mOhm Max | 10 µH | 18 @ 2.52MHz | 30MHz | Surface Mount | - | 0.256" L x 0.256" W (6.50mm x 6.50mm) | - | -40°C ~ 125°C | 1 kHz | 0.189" (4.80mm) |
|
|
XAL7070-102MECPOWER INDUCTOR, SHIELDED, 20% TO |
9,022 | - |
|
数据表 |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | ±20% | 25 A | 34.8A | - | Shielded | 2.81mOhm Max | 1 µH | - | 64MHz | Surface Mount | AEC-Q200 | 0.295" L x 0.283" W (7.50mm x 7.20mm) | - | -40°C ~ 165°C | 1 MHz | 0.276" (7.00mm) |
|
|
XAL7070-161MECPOWER INDUCTOR, SHIELDED, 20% TO |
7,811 | - |
|
数据表 |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | ±20% | 36.1 A | 78A | - | Shielded | 0.83mOhm Max | 160 nH | - | 207MHz | Surface Mount | AEC-Q200 | 0.295" L x 0.283" W (7.50mm x 7.20mm) | - | -40°C ~ 165°C | 1 MHz | 0.276" (7.00mm) |
|
|
XAL7070-801MECPOWER INDUCTOR, SHIELDED, 20% TO |
6,539 | - |
|
数据表 |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | ±20% | 25.8 A | 37.8A | - | Shielded | 2.29mOhm Max | 800 nH | - | 67MHz | Surface Mount | AEC-Q200 | 0.295" L x 0.283" W (7.50mm x 7.20mm) | - | -40°C ~ 165°C | 1 MHz | 0.276" (7.00mm) |
|
MLG0402P27NHT000FIXED IND 27NH 200MA 3.5 OHM SMD |
0 | - |
|
数据表 |
MLG-P | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | ±3% | 200 mA | - | 01005 (0402 Metric) | Unshielded | 3.5Ohm Max | 27 nH | 7 @ 500MHz | 1.8GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.009" (0.22mm) |
|
|
XAL7070-562MECPOWER INDUCTOR, SHIELDED, 20% TO |
6,294 | - |
|
数据表 |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | ±20% | 11.4 A | 13A | - | Shielded | 15.03mOhm Max | 5.6 µH | - | 21MHz | Surface Mount | AEC-Q200 | 0.295" L x 0.283" W (7.50mm x 7.20mm) | - | -40°C ~ 165°C | 1 MHz | 0.276" (7.00mm) |
|
|
XAL7070-222MECPOWER INDUCTOR, SHIELDED, 20% TO |
5,247 | - |
|
数据表 |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | ±20% | 17.8 A | 19.6A | - | Shielded | 6.33mOhm Max | 2.2 µH | - | 35MHz | Surface Mount | AEC-Q200 | 0.295" L x 0.283" W (7.50mm x 7.20mm) | - | -40°C ~ 165°C | 1 MHz | 0.276" (7.00mm) |
|
|
MLG0402P2N0BT000FIXED IND 2NH 200MA 600 MOHM SMD |
0 | - |
|
数据表 |
MLG-P | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | ±0.1nH | 200 mA | - | 01005 (0402 Metric) | Unshielded | 600mOhm Max | 2 nH | 9 @ 500MHz | 8GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.009" (0.22mm) |
|
|
XAL7070-551MECPOWER INDUCTOR, SHIELDED, 20% TO |
4,966 | - |
|
数据表 |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | ±20% | 29 A | 43A | - | Shielded | 1.56mOhm Max | 550 nH | - | 89MHz | Surface Mount | AEC-Q200 | 0.295" L x 0.283" W (7.50mm x 7.20mm) | - | -40°C ~ 165°C | 1 MHz | 0.276" (7.00mm) |
|
|
MLG0402P2N1BT000FIXED IND 2.1NH 200MA 700MOHM SM |
0 | - |
|
数据表 |
MLG-P | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | ±0.1nH | 200 mA | - | 01005 (0402 Metric) | Unshielded | 700mOhm Max | 2.1 nH | 8 @ 500MHz | 8GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.009" (0.22mm) |
|
|
XAL7070-682MECPOWER INDUCTOR, SHIELDED, 20% TO |
4,491 | - |
|
数据表 |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | ±20% | 9.2 A | 12.8A | - | Shielded | 19.62mOhm Max | 6.8 µH | - | 20MHz | Surface Mount | AEC-Q200 | 0.295" L x 0.283" W (7.50mm x 7.20mm) | - | -40°C ~ 165°C | 1 MHz | 0.276" (7.00mm) |
|
|
MLG0402P2N2BT000FIXED IND 2.2NH 200MA 700MOHM SM |
0 | - |
|
数据表 |
MLG-P | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | ±0.1nH | 200 mA | - | 01005 (0402 Metric) | Unshielded | 700mOhm Max | 2.2 nH | 8 @ 500MHz | 8GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 500 MHz | 0.009" (0.22mm) |
