固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRR4818A-220MFIXED IND 22UH 1.25A 360MOHM SMD |
1,974 | - |
|
数据表 |
SRR4818A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.25 A | 720mA | - | Shielded | 360mOhm Max | 22 µH | - | 25MHz | Surface Mount | AEC-Q200 | 0.189" L x 0.189" W (4.80mm x 4.80mm) | - | -40°C ~ 150°C | 100 kHz | 0.079" (2.00mm) |
|
EXL1V0503-4R7-RFIXED IND 4.7UH 5.9A 36.3MOHM SM |
1,767 | - |
|
数据表 |
EXL1V0503 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | ±20% | 5.9 A | 7A | - | Shielded | 36.3mOhm Max | 4.7 µH | - | 21MHz | Surface Mount | - | 0.236" L x 0.224" W (6.00mm x 5.70mm) | - | -40°C ~ 125°C | 100 kHz | 0.122" (3.10mm) |
|
744910016FIXED IND 1.65NH 1.6A 4 MOHM SMD |
1,241 | - |
|
数据表 |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | ±10% | 1.6 A | - | 1322 | Unshielded | 4mOhm Max | 1.65 nH | 100 @ 800MHz | 10GHz | Surface Mount | AEC-Q200 | 0.087" L x 0.056" W (2.21mm x 1.42mm) | - | -40°C ~ 125°C | 800 MHz | 0.060" (1.52mm) |
|
RL622-1R0K-RCFIXED IND 1UH 10A 13 MOHM TH |
19,351 | - |
|
数据表 |
RL622 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 10 A | - | - | Unshielded | 13mOhm Max | 1 µH | 20 @ 7.96MHz | 150MHz | Through Hole | - | 0.335" Dia (8.50mm) | - | -55°C ~ 105°C | 7.96 MHz | 0.433" (11.00mm) |
|
CLF6045NIT-220M-DFIXED IND 22UH 1.4A 90 MOHM SMD |
11,227 | - |
|
数据表 |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.4 A | 1.4A | - | Shielded | 90mOhm Max | 22 µH | - | - | Surface Mount | AEC-Q200 | 0.248" L x 0.236" W (6.30mm x 6.00mm) | - | -55°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
NR10050T470MFIXED IND 47UH 1.8A 119.6MOHM SM |
7,365 | - |
|
数据表 |
NR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.8 A | 2A | - | Unshielded | 119.6mOhm Max | 47 µH | - | 7MHz | Surface Mount | - | 0.394" L x 0.386" W (10.00mm x 9.80mm) | - | -25°C ~ 105°C | 100 kHz | 0.197" (5.00mm) |
|
0630CDMCDDS-100MCFIXED IND 10UH 4.5A 62 MOHM SMD |
7,200 | - |
|
数据表 |
0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | ±20% | 4.5 A | 4.6A | SMD | Shielded | 62mOhm Max | 10 µH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
0630CDMCCDS-6R8MCFIXED IND 6.8UH 5A 48 MOHM SMD |
6,271 | - |
|
数据表 |
0630CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 5 A | 6.3A | SMD | Shielded | 48mOhm Max | 6.8 µH | - | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
CDRH4D28NP-101NCFIXED IND 100UH 290MA 1.02OHM SM |
6,185 | - |
|
数据表 |
CDRH4D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 290 mA | - | - | Shielded | 1.02Ohm Max | 100 µH | - | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | - | -40°C ~ 100°C | 100 kHz | 0.118" (3.00mm) |
|

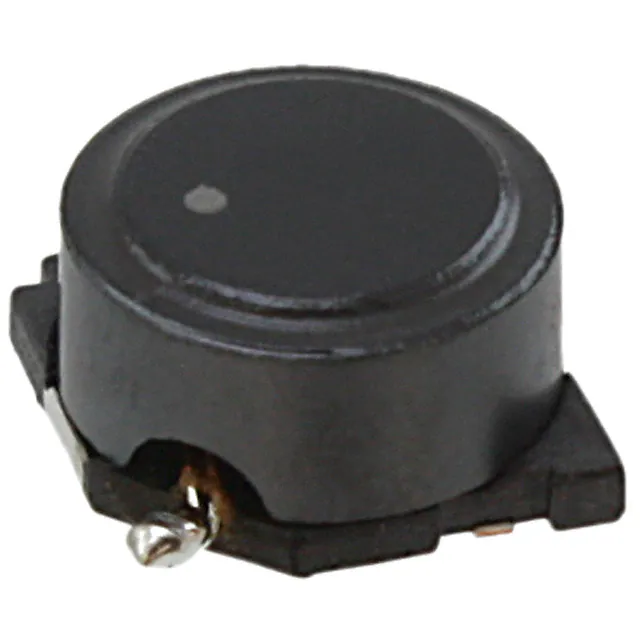

NS10155T4R7NNAFIXED IND 4.7UH 6.01A 13.2 MOHM |
4,693 | - |
|
数据表 |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 6.01 A | 7.4A | - | Shielded | 13.2mOhm Max | 4.7 µH | - | 33.4MHz | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.230" (5.85mm) |
|
|
NS10155T150MNAFIXED IND 15UH 3.65A 33.6MOHM SM |
4,600 | - |
|
数据表 |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 3.65 A | 4.03A | - | Shielded | 33.6mOhm Max | 15 µH | - | 15.5MHz | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.230" (5.85mm) |
|
|
CLF7045NIT-101M-DFIXED IND 100UH 810MA 310MOHM SM |
3,207 | - |
|
数据表 |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 810 mA | 810mA | - | Shielded | 310mOhm Max | 100 µH | - | - | Surface Mount | AEC-Q200 | 0.291" L x 0.276" W (7.40mm x 7.00mm) | - | -55°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
CDRH3D18NP-4R7NCFIXED IND 4.7UH 1.35A 107.5 MOHM |
3,124 | - |
|
数据表 |
CDRH3D18 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 1.35 A | 1.35A | - | Shielded | 107.5mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
|
MLG0402Q15NHT000FIXED IND 15NH 140MA 2.6 OHM SMD |
0 | - |
|
数据表 |
MLG-Q | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | ±3% | 140 mA | - | 01005 (0402 Metric) | Unshielded | 2.6Ohm Max | 15 nH | 3 @ 100MHz | 3GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 100 MHz | 0.009" (0.22mm) |
|
PA4987.102HLTFIXED IND 1UH 16.2A 0.81MOHM SMD |
2,436 | - |
|
数据表 |
PA4987 | Nonstandard | Tape & Reel (TR) | Active | - | - | ±15% | 16.2 A | 20.5A | - | Shielded | 0.81mOhm | 1 µH | - | - | Surface Mount | - | 0.394" L x 0.276" W (10.00mm x 7.00mm) | - | -40°C ~ 130°C | 100 kHz | 0.394" (10.00mm) |
|
SLF7045T-102MR14-PFFIXED IND 1MH 250MA 2.736OHM SMD |
2,027 | - |
|
数据表 |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | ±20% | 250 mA | 140mA | - | Shielded | 2.736Ohm Max | 1 mH | - | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.189" (4.80mm) |
|
|
MLG0402Q18NHT000FIXED IND 18NH 140MA 2.8 OHM SMD |
0 | - |
|
数据表 |
MLG-Q | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | ±3% | 140 mA | - | 01005 (0402 Metric) | Unshielded | 2.8Ohm Max | 18 nH | 3 @ 100MHz | 2.5GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 100 MHz | 0.009" (0.22mm) |
|
|
MLG0402Q22NHT000FIXED IND 22NH 130MA 3.2 OHM SMD |
0 | - |
|
数据表 |
MLG-Q | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | ±3% | 130 mA | - | 01005 (0402 Metric) | Unshielded | 3.2Ohm Max | 22 nH | 3 @ 100MHz | 2.2GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 100 MHz | 0.009" (0.22mm) |
|
|
MLG0402Q33NHT000FIXED IND 33NH 120MA 3.8 OHM SMD |
0 | - |
|
数据表 |
MLG-Q | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | ±3% | 120 mA | - | 01005 (0402 Metric) | Unshielded | 3.8Ohm Max | 33 nH | 3 @ 100MHz | 1.7GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 100 MHz | 0.009" (0.22mm) |
|
|
MLG0402Q1N0BT000FIXED IND 1NH 250MA 400 MOHM SMD |
0 | - |
|
数据表 |
MLG-Q | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | ±0.1nH | 250 mA | - | 01005 (0402 Metric) | Unshielded | 400mOhm Max | 1 nH | 2 @ 100MHz | 10GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 100 MHz | 0.009" (0.22mm) |
