固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RLB9012-221KLFIXED IND 220UH 1A 650 MOHM TH |
4,368 | - |
|
数据表 |
RLB9012 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | ±10% | 1 A | - | - | Unshielded | 650mOhm Max | 220 µH | 20 @ 796kHz | 2.7MHz | Through Hole | - | 0.354" Dia (9.00mm) | - | -55°C ~ 125°C | 1 kHz | 0.480" (12.20mm) |
|

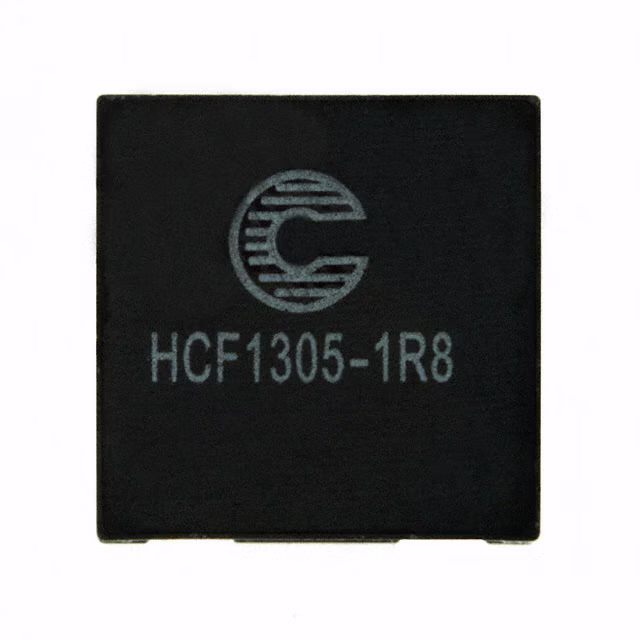

HCF1305-1R8-RFIXED IND 1.8UH 16.3A 3.1MOHM SM |
587 | - |
|
数据表 |
HCF1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 16.3 A | 18A | - | Unshielded | 3.1mOhm Max | 1.8 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
CTX50-2-52M-RFIXED IND 50UH 4.9A 32.6 MOHM TH |
0 | - |
|
数据表 |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | ±20% | 4.9 A | 4.9A | - | Unshielded | 32.6mOhm Max | 50 µH | - | - | Through Hole | - | 1.220" L x 0.630" W (31.00mm x 16.00mm) | - | -40°C ~ 75°C | 100 kHz | 0.925" (23.50mm) |
|
|
VSEB0850H-8R2MCAUTOMOTIVE SMD MOLDING POWER CHK |
700 | - |
|
数据表 |
VSEB0850H | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | ±20% | 10.3 A | 9A | 2-SMD | Shielded | 25mOhm Max | 8.2 µH | - | - | Surface Mount | AEC-Q200 | 0.346" L x 0.327" W (8.80mm x 8.30mm) | Molded Inductors, Automotive Grade Power Inductors | -55°C ~ 155°C | 100 kHz | 0.189" (4.80mm) |
|
AMPLA1707S-100MTFIXED IND 10UH 16.5A 13 MOHM SMD |
0 | - |
|
数据表 |
AMPLA1707S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | ±20% | 16.5 A | 29A | - | Shielded | 13mOhm Max | 10 µH | - | - | Surface Mount | - | 0.693" L x 0.665" W (17.60mm x 16.90mm) | - | -55°C ~ 125°C | 100 kHz | 0.276" (7.00mm) |
|
|
AMPLA1707S-470MTFIXED IND 47UH 8.7A 55 MOHM SMD |
188 | - |
|
数据表 |
AMPLA1707S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | ±20% | 8.7 A | 16A | - | Shielded | 55mOhm Max | 47 µH | - | - | Surface Mount | - | 0.693" L x 0.665" W (17.60mm x 16.90mm) | - | -55°C ~ 125°C | 100 kHz | 0.276" (7.00mm) |
|
|
AMPLA1707S-220MTFIXED IND 22UH 12A 26.5 MOHM SMD |
162 | - |
|
数据表 |
AMPLA1707S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | ±20% | 12 A | 23A | - | Shielded | 26.5mOhm Max | 22 µH | - | - | Surface Mount | - | 0.693" L x 0.665" W (17.60mm x 16.90mm) | - | -55°C ~ 125°C | 100 kHz | 0.276" (7.00mm) |
|
78439369056WE-XHMA SMT POWER INDUCTOR 1090; |
294 | - |
|
数据表 |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 11.5 A | 24.45A | - | Shielded | 5.9mOhm | 5.6 µH | - | 18MHz | Surface Mount | AEC-Q200 | 0.457" L x 0.413" W (11.60mm x 10.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.358" (9.10mm) |
|
|
78439369082WE-XHMA SMT POWER INDUCTOR 1090; |
246 | - |
|
数据表 |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 9.8 A | 20.45A | - | Shielded | 10mOhm | 8.2 µH | - | 16MHz | Surface Mount | AEC-Q200 | 0.457" L x 0.413" W (11.60mm x 10.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.358" (9.10mm) |
|
|
78439369068WE-XHMA SMT POWER INDUCTOR 1090; |
214 | - |
|
数据表 |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | ±20% | 10.5 A | 23.25A | - | Shielded | 7.16mOhm | 6.8 µH | - | 16MHz | Surface Mount | AEC-Q200 | 0.457" L x 0.413" W (11.60mm x 10.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.358" (9.10mm) |
|
MLG0402Q3N2CT000FIXED IND 3.2NH 200MA 1 OHM SMD |
0 | - |
|
数据表 |
MLG-Q | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | ±0.2nH | 200 mA | - | 01005 (0402 Metric) | Unshielded | 1Ohm Max | 3.2 nH | 2 @ 100MHz | 7GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 100 MHz | 0.009" (0.22mm) |
|
|
VSEB0850H-100MCAUTOMOTIVE SMD MOLDING POWER CHK |
700 | - |
|
数据表 |
VSEB0850H | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | ±20% | 9.8 A | 8.2A | 2-SMD | Shielded | 29.8mOhm Max | 10 µH | - | - | Surface Mount | AEC-Q200 | 0.346" L x 0.327" W (8.80mm x 8.30mm) | Molded Inductors, Automotive Grade Power Inductors | -55°C ~ 155°C | 100 kHz | 0.189" (4.80mm) |
|

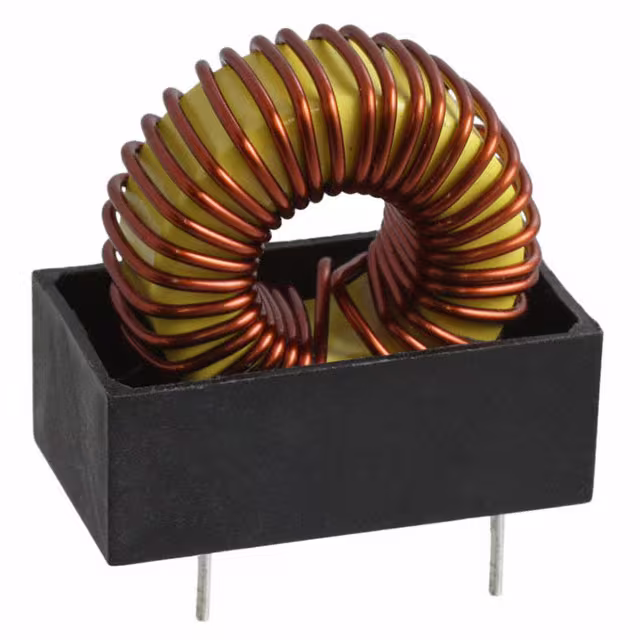

PE-51515NLFIXED IND 52UH 7A 32 MOHM TH |
327 | - |
|
数据表 |
- | Radial, Vertical, 4 Leads (Open) | Tube | Active | Toroidal | - | - | 7 A | - | - | Unshielded | 32mOhm Max | 52 µH | - | - | Through Hole | - | 1.440" L x 0.800" W (36.57mm x 20.32mm) | - | -40°C ~ 130°C | 50 kHz | 1.440" (36.57mm) |
|
|
VSEB0850H-6R8MCAUTOMOTIVE SMD MOLDING POWER CHK |
700 | - |
|
数据表 |
VSEB0850H | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | ±20% | 12 A | 9.7A | 2-SMD | Shielded | 17.8mOhm Max | 6.8 µH | - | - | Surface Mount | AEC-Q200 | 0.346" L x 0.327" W (8.80mm x 8.30mm) | Molded Inductors, Automotive Grade Power Inductors | -55°C ~ 155°C | 100 kHz | 0.189" (4.80mm) |
|
IHSM4825ER220LFIXED IND 22UH 1.7A 152 MOHM SMD |
874 | - |
|
数据表 |
IHSM-4825 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±15% | 1.7 A | 1.02A | - | Unshielded | 152mOhm Max | 22 µH | - | - | Surface Mount | - | 0.540" L x 0.250" W (13.72mm x 6.35mm) | - | -55°C ~ 125°C | 1 kHz | 0.225" (5.72mm) |
|
|
MLG0402Q3N3CT000FIXED IND 3.3NH 180MA 1.1OHM SMD |
0 | - |
|
数据表 |
MLG-Q | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | ±0.2nH | 180 mA | - | 01005 (0402 Metric) | Unshielded | 1.1Ohm Max | 3.3 nH | 2 @ 100MHz | 7GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 100 MHz | 0.009" (0.22mm) |
|
|
VSEB0850H-150MCAUTOMOTIVE SMD MOLDING POWER CHK |
700 | - |
|
数据表 |
VSEB0850H | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | ±20% | 8.1 A | 7.2A | 2-SMD | Shielded | 44mOhm Max | 15 µH | - | - | Surface Mount | AEC-Q200 | 0.346" L x 0.327" W (8.80mm x 8.30mm) | Molded Inductors, Automotive Grade Power Inductors | -55°C ~ 155°C | 100 kHz | 0.189" (4.80mm) |
|
2474R-05LFIXED IND 2.2UH 5.22A 13 MOHM TH |
788 | - |
|
数据表 |
2474R | Axial | Bulk | Active | Molded | Ferrite | ±15% | 5.22 A | 4.3A | - | Unshielded | 13mOhm Max | 2.2 µH | - | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - | -55°C ~ 125°C | 1 kHz | - |
|
|
MLG0402Q3N4CT000FIXED IND 3.4NH 180MA 1.1OHM SMD |
0 | - |
|
数据表 |
MLG-Q | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | ±0.2nH | 180 mA | - | 01005 (0402 Metric) | Unshielded | 1.1Ohm Max | 3.4 nH | 2 @ 100MHz | 6.5GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 100 MHz | 0.009" (0.22mm) |
|
|
MLG0402Q3N5CT000FIXED IND 3.5NH 180MA 1.1OHM SMD |
0 | - |
|
数据表 |
MLG-Q | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | ±0.2nH | 180 mA | - | 01005 (0402 Metric) | Unshielded | 1.1Ohm Max | 3.5 nH | 2 @ 100MHz | 6GHz | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | - | -55°C ~ 125°C | 100 MHz | 0.009" (0.22mm) |
