固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B78108E1103K000FIXED IND 10UH 2.25A 136 MOHM TH EPCOS - TDK Electronics |
453 | - |
|
数据表 |
BC+ | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 2.25 A | 2A | - | Unshielded | 136mOhm Max | 10 µH | 35 @ 7.96MHz | 20MHz | Through Hole | - | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) | - | -55°C ~ 125°C | 1 MHz | - |
|
B82498F3221G001FIXED IND 220NH 320MA 700MOHM SM EPCOS - TDK Electronics |
11,260 | - |
|
数据表 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±2% | 320 mA | - | 0805 (2012 Metric) | Unshielded | 700mOhm Max | 220 nH | 45 @ 320MHz | 950MHz | Surface Mount | - | 0.091" L x 0.067" W (2.30mm x 1.70mm) | - | -55°C ~ 125°C | 100 MHz | 0.055" (1.40mm) |
|
|
B82498F3821G000FIXED IND 820NH 180MA 1.9OHM SMD EPCOS - TDK Electronics |
5,560 | - |
|
数据表 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±2% | 180 mA | - | 0805 (2012 Metric) | Unshielded | 1.9Ohm Max | 820 nH | 23 @ 50MHz | 300MHz | Surface Mount | - | 0.091" L x 0.067" W (2.30mm x 1.70mm) | - | -55°C ~ 125°C | 25 MHz | 0.055" (1.40mm) |
|
|
B82498F1562J000FIXED IND 5.6UH 85MA 4.3 OHM SMD EPCOS - TDK Electronics |
2,545 | - |
|
数据表 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 85 mA | - | 0805 (2012 Metric) | Unshielded | 4.3Ohm Max | 5.6 µH | 20 @ 7.96MHz | 180MHz | Surface Mount | - | 0.091" L x 0.067" W (2.30mm x 1.70mm) | - | -55°C ~ 125°C | 7.96 MHz | 0.055" (1.40mm) |
|
B82144B1156J000FIXED IND 15MH 50MA 75 OHM TH EPCOS - TDK Electronics |
2,988 | - |
|
数据表 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 50 mA | - | - | Unshielded | 75Ohm Max | 15 mH | 50 @ 79.6kHz | 500kHz | Through Hole | - | 0.256" Dia (6.50mm) | - | -55°C ~ 125°C | 10 kHz | 0.571" (14.50mm) |
|

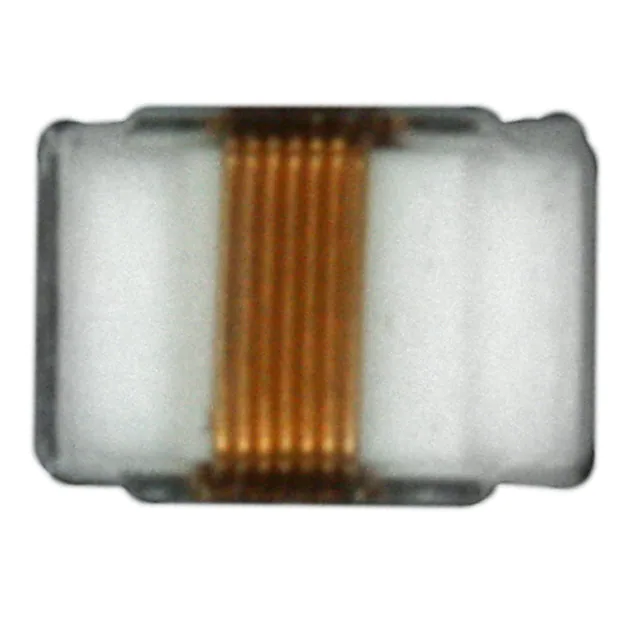

B82498F3560J000FIXED IND 56NH 600MA 140MOHM SMD EPCOS - TDK Electronics |
618 | - |
|
数据表 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 600 mA | - | 0805 (2012 Metric) | Unshielded | 140mOhm Max | 56 nH | 60 @ 500MHz | 1.7GHz | Surface Mount | - | 0.091" L x 0.067" W (2.30mm x 1.70mm) | - | -55°C ~ 125°C | 200 MHz | 0.055" (1.40mm) |
|
B82498F3680J000FIXED IND 68NH 500MA 180MOHM SMD EPCOS - TDK Electronics |
879 | - |
|
数据表 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 500 mA | - | 0805 (2012 Metric) | Unshielded | 180mOhm Max | 68 nH | 60 @ 500MHz | 1.6GHz | Surface Mount | - | 0.091" L x 0.067" W (2.30mm x 1.70mm) | - | -55°C ~ 125°C | 200 MHz | 0.055" (1.40mm) |
|
B82141A1103K000FIXED IND 10UH 410MA 600 MOHM TH EPCOS - TDK Electronics |
781 | - |
|
数据表 |
SBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 410 mA | - | - | Unshielded | 600mOhm Max | 10 µH | 55 @ 2.52MHz | 25MHz | Through Hole | - | 0.118" Dia x 0.268" L (3.00mm x 6.80mm) | - | -55°C ~ 125°C | 2.52 MHz | - |
|
|
B82144B1336J000FIXED IND 33MH 35MA 150 OHM TH EPCOS - TDK Electronics |
2,962 | - |
|
数据表 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 35 mA | - | - | Unshielded | 150Ohm Max | 33 mH | 50 @ 79.6kHz | 300kHz | Through Hole | - | 0.256" Dia (6.50mm) | - | -55°C ~ 125°C | 10 kHz | 0.571" (14.50mm) |
|
|
B82144B1107J000FIXED IND 100MH 20MA 490 OHM TH EPCOS - TDK Electronics |
2,418 | - |
|
数据表 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±5% | 20 mA | - | - | Unshielded | 490Ohm Max | 100 mH | 40 @ 79.6kHz | 180kHz | Through Hole | - | 0.256" Dia (6.50mm) | - | -55°C ~ 125°C | 10 kHz | 0.571" (14.50mm) |
