固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82464G2752MFIXED IND 7.5UH 2.6A 47 MOHM SMD EPCOS - TDK Electronics |
0 | - |
|
数据表 |
B82464G2 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 2.6 A | 2.65A | - | Shielded | 47mOhm Max | 7.5 µH | - | - | Surface Mount | AEC-Q200 | 0.409" L x 0.409" W (10.40mm x 10.40mm) | - | -55°C ~ 150°C | 100 kHz | 0.118" (3.00mm) |
|
|
B82464G2821MFIXED IND 820NH 6.2A 7.5MOHM SMD EPCOS - TDK Electronics |
0 | - |
|
数据表 |
B82464G2 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 6.2 A | 7.5A | - | Shielded | 7.5mOhm Max | 820 nH | - | - | Surface Mount | AEC-Q200 | 0.409" L x 0.409" W (10.40mm x 10.40mm) | - | -55°C ~ 150°C | 100 kHz | 0.118" (3.00mm) |
|

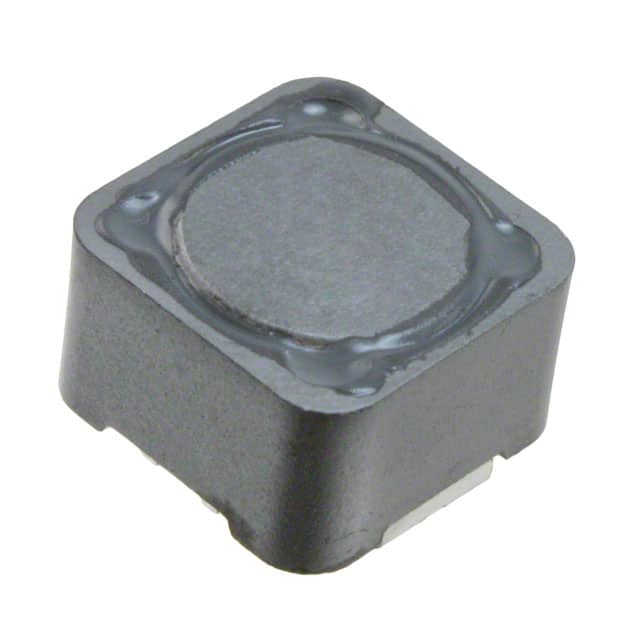

B82477G4652M000FIXED IND 5.6UH 6.7A 14.2MOHM SM EPCOS - TDK Electronics |
0 | - |
|
数据表 |
B82477G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 6.7 A | 8.4A | - | Shielded | 14.2mOhm Max | 5.6 µH | - | - | Surface Mount | - | 0.484" L x 0.484" W (12.30mm x 12.30mm) | - | -55°C ~ 125°C | 100 kHz | 0.236" (6.00mm) |
|
B82479G1104M000FIXED IND 100UH 1.7A 207MOHM SMD EPCOS - TDK Electronics |
0 | - |
|
数据表 |
B82479G1 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.7 A | 2.4A | - | Shielded | 207mOhm Max | 100 µH | - | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -55°C ~ 150°C | 100 kHz | 0.280" (7.11mm) |
|
B82479G1105M000FIXED IND 1MH 530MA 2.01 OHM SMD EPCOS - TDK Electronics |
0 | - |
|
数据表 |
B82479G1 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 530 mA | 800mA | - | Shielded | 2.01Ohm Max | 1 mH | - | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -55°C ~ 150°C | 100 kHz | 0.280" (7.11mm) |
|
|
B82479G1153M000FIXED IND 15UH 3.4A 48 MOHM SMD EPCOS - TDK Electronics |
0 | - |
|
数据表 |
B82479G1 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 3.4 A | 7A | - | Shielded | 48mOhm Max | 15 µH | - | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -55°C ~ 150°C | 100 kHz | 0.280" (7.11mm) |
|
|
B82479G1154M000FIXED IND 150UH 1.3A 293MOHM SMD EPCOS - TDK Electronics |
0 | - |
|
数据表 |
B82479G1 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.3 A | 2.1A | - | Shielded | 293mOhm Max | 150 µH | - | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -55°C ~ 150°C | 100 kHz | 0.280" (7.11mm) |
|
|
B82479G1224M000FIXED IND 220UH 1.1A 470MOHM SMD EPCOS - TDK Electronics |
0 | - |
|
数据表 |
B82479G1 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.1 A | 1.9A | - | Shielded | 470mOhm Max | 220 µH | - | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -55°C ~ 150°C | 100 kHz | 0.280" (7.11mm) |
|
|
B82479G1333M000FIXED IND 33UH 2.8A 75 MOHM SMD EPCOS - TDK Electronics |
0 | - |
|
数据表 |
B82479G1 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 2.8 A | 5A | - | Shielded | 75mOhm Max | 33 µH | - | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | - | -55°C ~ 150°C | 100 kHz | 0.280" (7.11mm) |
|
|
B82479G1473M000FIXED IND 47UH 2.4A 97 MOHM SMD EPCOS - TDK Electronics |
0 | - |
|
数据表 |
B82479G1 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 2.4 A | 4A | - | Shielded | 97mOhm Max | 47 µH | - | - | Surface Mount | - | 0.728" L x 0.600" W (18.50mm x 15.24mm) | - | -55°C ~ 150°C | 100 kHz | 0.285" (7.25mm) |
