固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82116B2625A010CMC 3.3UH 10A 1LN TH EPCOS - TDK Electronics |
0 | - |
|
数据表 |
B82116B | Radial, Horizontal Cylinder (Open) | Tray | Obsolete | - | Ferrite | ±20% | 10 A | - | - | Unshielded | 3.7mOhm | 3.3 µH | - | - | Through Hole | - | 0.394" Dia x 0.984" L (10.00mm x 25.00mm) | Choke Coils for PFC (Pin Terminal Type) | -40°C ~ 140°C | 1 MHz | - |
|
|
B82116B2828A010CMC 3.4UH 25A 1LN TH EPCOS - TDK Electronics |
0 | - |
|
数据表 |
B82116B | Radial, Horizontal Cylinder (Open) | Tray | Obsolete | - | Ferrite | ±20% | 25 A | - | - | Unshielded | 2.6mOhm | 3.4 µH | - | - | Through Hole | - | 0.492" Dia x 1.083" L (12.50mm x 27.50mm) | Choke Coils for PFC (Pin Terminal Type) | -40°C ~ 170°C | 1 MHz | - |
|
B82131A5151M000FIXED IND 80UH 150MA 11 OHM TH EPCOS - TDK Electronics |
0 | - |
|
数据表 |
B82131 | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | ±20% | 150 mA | - | - | Unshielded | 11Ohm | 80 µH | - | 22MHz | Through Hole | - | 0.197" Dia x 0.591" L (5.00mm x 15.00mm) | - | -55°C ~ 125°C | 100 kHz | - |
|

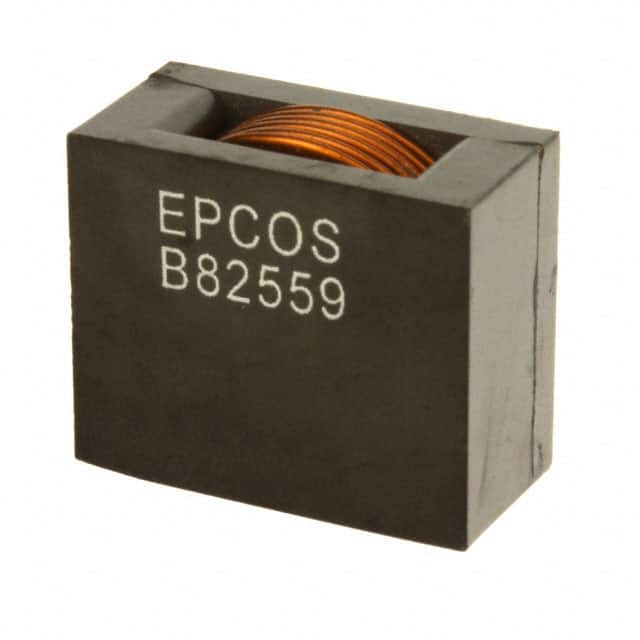

B82559A7153A025FIXED IND 15UH 2.55 MOHM SMD EPCOS - TDK Electronics |
0 | - |
|
数据表 |
ERU25 - Flat Wire Inductor | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | ±7% | - | 14A | - | Shielded | 2.55mOhm Max | 15 µH | - | - | Surface Mount | - | 0.996" L x 0.925" W (25.30mm x 23.50mm) | - | -40°C ~ 125°C | 10 kHz | 0.520" (13.20mm) |
|
B82442A1683JFIXED IND 68UH 290MA 960MOHM SMD EPCOS - TDK Electronics |
0 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 290 mA | - | - | Unshielded | 960mOhm Max | 68 µH | 10 @ 2.52MHz | 7MHz | Surface Mount | AEC-Q200 | 0.220" L x 0.197" W (5.60mm x 5.00mm) | - | -55°C ~ 150°C | 2.52 MHz | 0.209" (5.30mm) |
|
B82442A1535A300FIXED IND 5.33MH 34MA 66 OHM SMD EPCOS - TDK Electronics |
0 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±3% | 34 mA | - | - | Unshielded | 66Ohm Max | 5.33 mH | 6 @ 12kHz | 800kHz | Surface Mount | AEC-Q200 | 0.220" L x 0.197" W (5.60mm x 5.00mm) | - | -55°C ~ 150°C | 12 kHz | 0.209" (5.30mm) |
|
|
B82442H1185J50FIXED INDUCTOR SMD EPCOS - TDK Electronics |
0 | - |
|
数据表 |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B82442A1106J50FIXED INDUCTOR SMD EPCOS - TDK Electronics |
0 | - |
|
数据表 |
- | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B82442A1305A500FIXED IND 3.05MH 45MA 45 OHM SMD EPCOS - TDK Electronics |
0 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±3% | 45 mA | - | - | Unshielded | 45Ohm Max | 3.05 mH | 8 @ 16kHz | 900kHz | Surface Mount | AEC-Q200 | 0.220" L x 0.197" W (5.60mm x 5.00mm) | - | -55°C ~ 150°C | 16 kHz | 0.209" (5.30mm) |
|
|
B82442A1145A500FIXED IND 1.45MH 70MA 20 OHM SMD EPCOS - TDK Electronics |
0 | - |
|
数据表 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±3% | 70 mA | - | - | Unshielded | 20Ohm Max | 1.45 mH | 8 @ 16kHz | 1.4MHz | Surface Mount | AEC-Q200 | 0.220" L x 0.197" W (5.60mm x 5.00mm) | - | -55°C ~ 150°C | 16 kHz | 0.209" (5.30mm) |
