固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82477P4684M000FIXED IND 680UH 690MA 1.05OHM SM EPCOS - TDK Electronics |
0 | - |
|
数据表 |
B82477P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 690 mA | 780mA | - | Shielded | 1.05Ohm Max | 680 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.335" (8.50mm) |
|
B82477P2224M000FIXED IND 220UH 1.15A 300MOHM SM EPCOS - TDK Electronics |
0 | - |
|
数据表 |
B82477P2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.15 A | 800mA | - | Shielded | 300mOhm Max | 220 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.256" (6.50mm) |
|
B82477P2683M000FIXED IND 68UH 1.85A 110MOHM SMD EPCOS - TDK Electronics |
0 | - |
|
数据表 |
B82477P2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.85 A | 1.5A | - | Shielded | 110mOhm Max | 68 µH | - | - | Surface Mount | AEC-Q200 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -55°C ~ 150°C | 100 kHz | 0.256" (6.50mm) |
|
B82464P4684M000FIXED IND 680UH 420MA 1.3OHM SMD EPCOS - TDK Electronics |
0 | - |
|
数据表 |
B82464P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 420 mA | 460mA | - | Shielded | 1.3Ohm Max | 680 µH | - | - | Surface Mount | AEC-Q200 | 0.409" L x 0.409" W (10.40mm x 10.40mm) | - | -55°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
|
B82559B5332A019FIXED IND 3.3UH 25.1A 2.25 MOHM EPCOS - TDK Electronics |
0 | - |
|
数据表 |
ERU19 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 25.1 A | 35.1A | - | Shielded | 2.25mOhm | 3.3 µH | - | - | Surface Mount | AEC-Q200 | 0.783" L x 0.728" W (19.90mm x 18.50mm) | - | -40°C ~ 150°C | 100 kHz | 0.417" (10.60mm) |
|

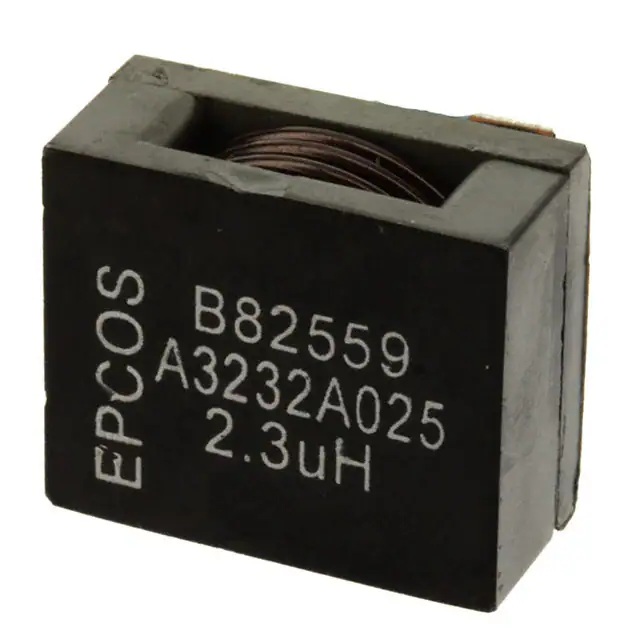

B82559A3232A025FIXED IND 2.3UH 0.6 MOHM SMD EPCOS - TDK Electronics |
0 | - |
|
数据表 |
ERU25 - Flat Wire Inductor | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | ±7% | - | 41A | - | Shielded | 0.6mOhm | 2.3 µH | - | - | Surface Mount | - | 0.996" L x 0.925" W (25.30mm x 23.50mm) | - | -40°C ~ 130°C | 10 kHz | 0.520" (13.20mm) |
|
B82559A4472A 20FIXED IND 4.7UH 2.4 MOHM SMD EPCOS - TDK Electronics |
23 | - |
|
数据表 |
ERU20 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | - | 22A | - | Shielded | 2.4mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.846" L x 0.827" W (21.50mm x 21.00mm) | - | -40°C ~ 150°C | 100 kHz | 0.386" (9.80mm) |
|
B82559A6792A025FIXED IND 7.9UH 2 MOHM SMD EPCOS - TDK Electronics |
0 | - |
|
数据表 |
ERU25 - Flat Wire Inductor | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | ±7% | - | 26A | - | Shielded | 2mOhm | 7.9 µH | - | - | Surface Mount | - | 0.996" L x 0.925" W (25.30mm x 23.50mm) | - | -40°C ~ 130°C | 10 kHz | 0.506" (12.85mm) |
|
B78148E1681M009FIXED IND 680NH 4.6A 31 MOHM TH EPCOS - TDK Electronics |
0 | - |
|
数据表 |
BC | Radial | Tape & Box (TB) | Active | Drum Core, Wirewound | Ferrite | ±20% | 4.6 A | 7.1A | - | Unshielded | 31mOhm Max | 680 nH | 60 @ 1MHz | 360MHz | Through Hole | - | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) | - | -55°C ~ 125°C | 1 MHz | - |
|
B78148S1154J009FIXED IND 150UH 280MA 2.8 OHM TH EPCOS - TDK Electronics |
0 | - |
|
数据表 |
BC | Radial | Tape & Box (TB) | Active | Wirewound | - | ±5% | 280 mA | - | - | Unshielded | 2.8Ohm Max | 150 µH | 70 @ 796kHz | 4.2MHz | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - | - | 796 kHz | - |
