固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EXLA1V0606-6R8-RIND MOLDED SHLD 6.8UH 9.0A Eaton - Electronics Division |
680 | - |
|
数据表 |
EXLA1V06 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | ±20% | 9 A | 8.7A | - | Shielded | 20.8mOhm Max | 6.8 µH | - | - | Surface Mount | AEC-Q200 | 0.283" L x 0.272" W (7.20mm x 6.90mm) | - | -55°C ~ 155°C | 100 kHz | 0.236" (6.00mm) |
|
|
EXLA1V0606-4R7-RIND MOLDED SHLD 4.7UH 11.0A Eaton - Electronics Division |
337 | - |
|
数据表 |
EXLA1V06 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | ±20% | 11 A | 9.5A | - | Shielded | 14.4mOhm Max | 4.7 µH | - | - | Surface Mount | AEC-Q200 | 0.283" L x 0.272" W (7.20mm x 6.90mm) | - | -55°C ~ 155°C | 100 kHz | 0.236" (6.00mm) |
|
|
EXLA1V0606-1R5-RIND MOLDED SHLD 1.5UH 16.0A Eaton - Electronics Division |
195 | - |
|
数据表 |
EXLA1V06 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | ±20% | 16 A | 14A | - | Shielded | 5.61mOhm Max | 1.5 µH | - | - | Surface Mount | AEC-Q200 | 0.283" L x 0.272" W (7.20mm x 6.90mm) | - | -55°C ~ 155°C | 100 kHz | 0.236" (6.00mm) |
|

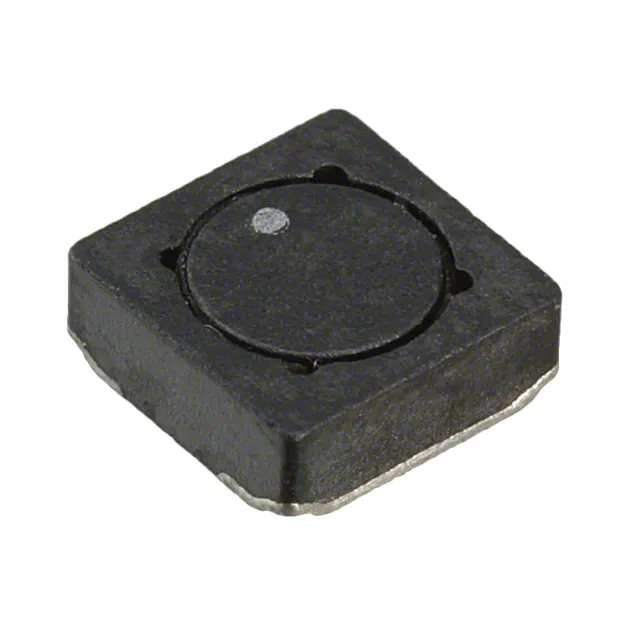

SD20-471-RFIXED IND 470UH 263MA 3.74OHM SM Eaton - Electronics Division |
24,812 | - |
|
数据表 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 263 mA | 129mA | - | Shielded | 3.74Ohm | 470 µH | - | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | - | -40°C ~ 85°C | 100 kHz | 0.079" (2.00mm) |
|
HCM1A0503V2-4R7-RFIXED IND 4.7UH 4.1A 47MOHM SMD Eaton - Electronics Division |
1,961 | - |
|
数据表 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 4.1 A | 6A | - | Shielded | 47mOhm Max | 4.7 µH | - | 22MHz | Surface Mount | AEC-Q200 | 0.213" L x 0.205" W (5.40mm x 5.20mm) | - | -55°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
|
MPIA4020V2-1R5-RFIXED IND 1.5UH 5A 30 MOHM SMD Eaton - Electronics Division |
1,545 | - |
|
数据表 |
MPIA40-V2 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 5 A | 6A | - | Shielded | 30mOhm Max | 1.5 µH | - | 45MHz | Surface Mount | AEC-Q200 | 0.195" L x 0.165" W (4.95mm x 4.20mm) | - | -55°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
DRA73-151-RFIXED IND 150UH 551MA 932MOHM SM Eaton - Electronics Division |
1,130 | - |
|
数据表 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 551 mA | 632mA | - | Shielded | 932mOhm | 150 µH | - | - | Surface Mount | AEC-Q200 | 0.299" L x 0.299" W (7.60mm x 7.60mm) | - | -40°C ~ 165°C | 100 kHz | 0.140" (3.55mm) |
|
DR127-680-SFIXED IND 68UH Eaton - Electronics Division |
350 | - |
|
数据表 |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | 68 µH | - | - | - | - | - | - | - | 100 kHz | - |
|
|
MPIA4020V2-R22-RFIXED IND 220NH 13A 6.6 MOHM SMD Eaton - Electronics Division |
307 | - |
|
数据表 |
MPIA40-V2 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Metal Composite | ±20% | 13 A | 17A | - | Shielded | 6.6mOhm Max | 220 nH | - | 165MHz | Surface Mount | AEC-Q200 | 0.195" L x 0.165" W (4.95mm x 4.20mm) | - | -55°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
HCM1A0703V2-100-RFIXED IND 10UH 3.3A 75 MOHM SMD Eaton - Electronics Division |
1,330 | - |
|
数据表 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 3.3 A | 4.4A | - | Shielded | 75mOhm Max | 10 µH | - | 12MHz | Surface Mount | AEC-Q200 | 0.276" L x 0.260" W (7.00mm x 6.60mm) | - | -55°C ~ 155°C | 100 kHz | 0.118" (3.00mm) |
