固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDCHA1V6045-101-RIND SMD POWER 100UH 0.92A Eaton - Electronics Division |
1,745 | - |
|
数据表 |
SDCHA1V60 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | ±20% | 920 mA | 1.33A | - | Shielded | 456mOhm | 100 µH | - | 8.5MHz | Surface Mount | AEC-Q200 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -55°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
SD25-100-RFIXED IND 10UH 1.8A 82.4MOHM SMD Eaton - Electronics Division |
3,031 | - |
|
数据表 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.8 A | 1.27A | - | Shielded | 82.4mOhm | 10 µH | - | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | - | -40°C ~ 85°C | 100 kHz | 0.098" (2.50mm) |
|
HC9-220-RFIXED IND 22UH 6.3A 25.7MOHM SMD Eaton - Electronics Division |
10,313 | - |
|
数据表 |
HC9 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±15% | 6.3 A | 8.7A | - | Unshielded | 25.7mOhm Max | 22 µH | - | - | Surface Mount | - | 0.555" L x 0.516" W (14.10mm x 13.10mm) | - | -40°C ~ 155°C | 100 kHz | 0.295" (7.50mm) |
|
|
SD25-220-RFIXED IND 22UH 1.34A 147.8 MOHM Eaton - Electronics Division |
8,613 | - |
|
数据表 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.34 A | 857mA | - | Shielded | 147.8mOhm | 22 µH | - | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | - | -40°C ~ 85°C | 100 kHz | 0.098" (2.50mm) |
|
SD3114-100-RFIXED IND 10UH 570MA 458MOHM SMD Eaton - Electronics Division |
6,412 | - |
|
数据表 |
SD3114 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 570 mA | 780mA | - | Shielded | 458mOhm | 10 µH | - | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | - | -40°C ~ 125°C | 100 kHz | 0.055" (1.40mm) |
|

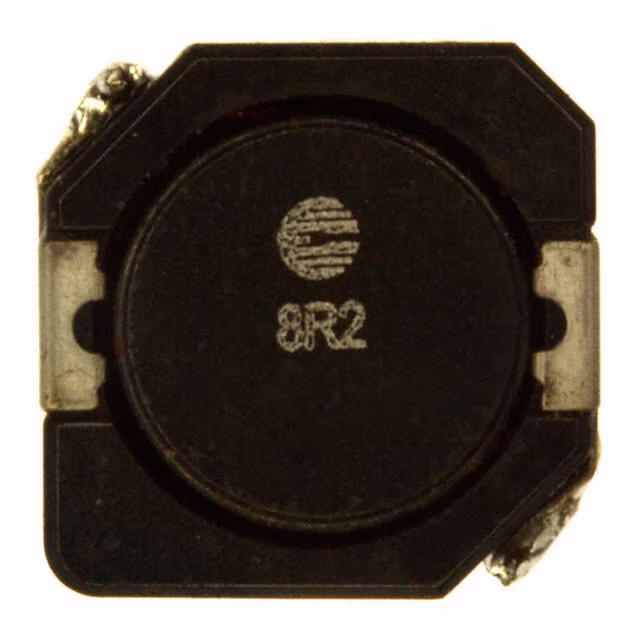

DR1040-8R2-RFIXED IND 8.2UH 3.98A 29MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
DR1040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 3.98 A | 4.6A | - | Shielded | 29mOhm Max | 8.2 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
DR74-470-TRWFIXED IND 47UH Eaton - Electronics Division |
0 | - |
|
数据表 |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | 47 µH | - | - | - | - | - | - | - | 100 kHz | - |
|
HCP0805-2R2-RFIXED IND 2.2UH 10A 11.2MOHM SMD Eaton - Electronics Division |
1,295 | - |
|
数据表 |
HCP0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 10 A | 14A | - | Shielded | 11.2mOhm | 2.2 µH | - | - | Surface Mount | - | 0.303" L x 0.291" W (7.70mm x 7.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
RL1011-330-RFIXED IND 33.2UH 2.13A 70MOHM TH Eaton - Electronics Division |
0 | - |
|
数据表 |
RL1011 | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 2.13 A | 2.6A | - | Unshielded | 70mOhm Max | 33.2 µH | - | 7MHz | Through Hole | - | 0.374" Dia (9.50mm) | - | -40°C ~ 125°C | 10 kHz | 0.413" (10.50mm) |
|
|
RL1011-470-RFIXED IND 47.1UH 1.91A 85MOHM TH Eaton - Electronics Division |
0 | - |
|
数据表 |
RL1011 | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.91 A | 2.18A | - | Unshielded | 85mOhm Max | 47.1 µH | - | 6MHz | Through Hole | - | 0.374" Dia (9.50mm) | - | -40°C ~ 125°C | 10 kHz | 0.413" (10.50mm) |
