固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCM1A1307-1R0-RFIXED IND 1UH 28A 1.77 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 28 A | 30A | - | Shielded | 1.77mOhm Max | 1 µH | - | - | Surface Mount | AEC-Q200 | 0.539" L x 0.512" W (13.70mm x 13.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.256" (6.50mm) |
|
|
HCM1A1307-330-RFIXED IND 33UH 4.7A 45 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 4.7 A | 6A | - | Shielded | 45mOhm Max | 33 µH | - | - | Surface Mount | AEC-Q200 | 0.520" L x 0.492" W (13.20mm x 12.50mm) | - | -55°C ~ 155°C | 100 kHz | 0.256" (6.50mm) |
|
|
HCM1A1307-3R3-RFIXED IND 3.3UH 15.6A 4.3MOHM SM Eaton - Electronics Division |
0 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 15.6 A | 20A | - | Shielded | 4.3mOhm Max | 3.3 µH | - | - | Surface Mount | AEC-Q200 | 0.539" L x 0.512" W (13.70mm x 13.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.256" (6.50mm) |
|
|
HCM1A1307-4R7-RFIXED IND 4.7UH 11A 7.5MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 11 A | 15A | - | Shielded | 7.5mOhm Max | 4.7 µH | - | - | Surface Mount | AEC-Q200 | 0.539" L x 0.512" W (13.70mm x 13.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.256" (6.50mm) |
|
|
HCM1A1307-R47-RFIXED IND 470NH 36.5A 1.05 MOHM Eaton - Electronics Division |
0 | - |
|
数据表 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 36.5 A | 72A | - | Shielded | 1.05mOhm Max | 470 nH | - | - | Surface Mount | AEC-Q200 | 0.539" L x 0.512" W (13.70mm x 13.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.256" (6.50mm) |
|
CL1108-3-50TR-RFIXED IND 50NH 80A 0.00028OHM SM Eaton - Electronics Division |
0 | - |
|
数据表 |
CL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 80 A | - | - | - | 0.28mOhm | 50 nH | - | - | Surface Mount | - | 1.063" L x 0.433" W (27.00mm x 11.00mm) | 3 Phase | -40°C ~ 125°C | 1 MHz | 0.315" (8.00mm) |
|
FP0404R1-R110-RFIXED IND 110NH 40A 0.32MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
FP0404 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±15% | 40 A | 14.2A | - | Unshielded | 0.32mOhm | 110 nH | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|

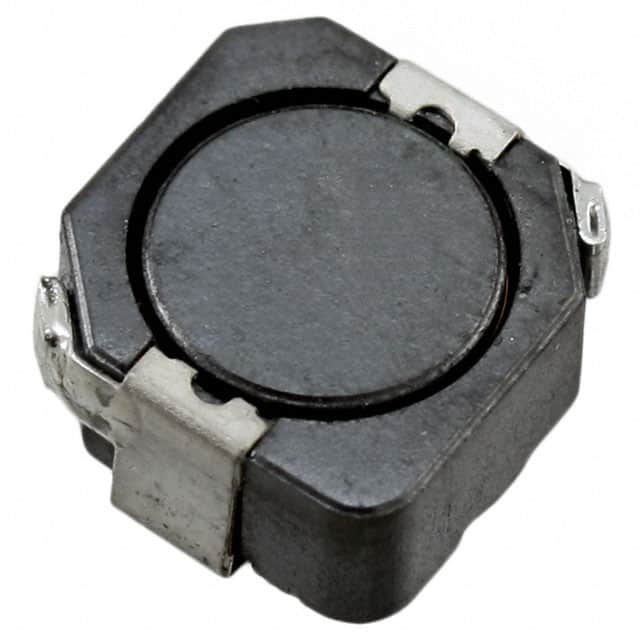

DR1050-821-RFIXED IND 820UH 540MA 1.481 OHM Eaton - Electronics Division |
0 | - |
|
数据表 |
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 540 mA | 500mA | - | Shielded | 1.481Ohm Max | 820 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
HCM1A1307V2-5R6-RFIXED IND 5.6UH 12A 8.3 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 12 A | 18A | - | Shielded | 8.3mOhm Max | 5.6 µH | - | 11MHz | Surface Mount | AEC-Q200 | 0.530" L x 0.496" W (13.45mm x 12.60mm) | - | -55°C ~ 155°C | 100 kHz | 0.256" (6.50mm) |
|
|
HCM1A1307V2-150-RFIXED IND 15UH 7A 23.4 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 7 A | 11A | - | Shielded | 23.4mOhm Max | 15 µH | - | 6MHz | Surface Mount | AEC-Q200 | 0.530" L x 0.496" W (13.45mm x 12.60mm) | - | -55°C ~ 155°C | 100 kHz | 0.256" (6.50mm) |
