固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

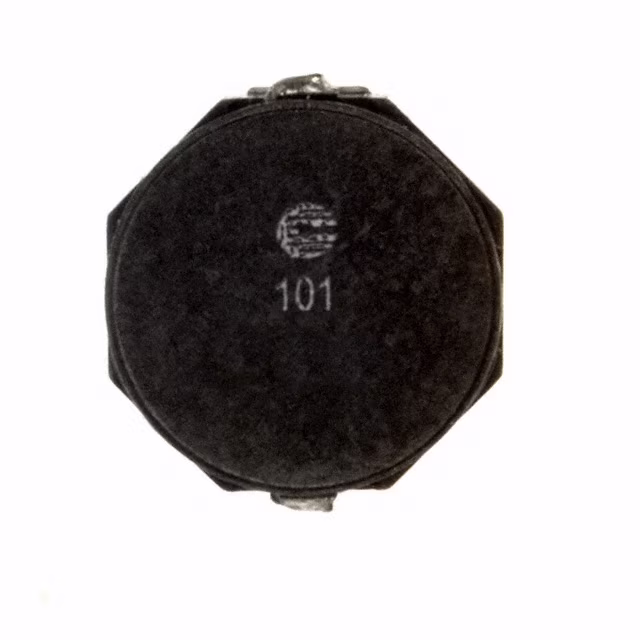

SD8350-101-RFIXED IND 100UH 800MA 360MOHM SM Eaton - Electronics Division |
0 | - |
|
数据表 |
SD8350 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 800 mA | 1.3A | - | Shielded | 360mOhm Max | 100 µH | - | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
SD8350-150-RFIXED IND 15UH 2.3A 53 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
SD8350 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2.3 A | 2.9A | - | Shielded | 53mOhm Max | 15 µH | - | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
|
SD8350-1R8-RFIXED IND 1.8UH 5.5A 14 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
SD8350 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 5.5 A | 9.1A | - | Shielded | 14mOhm Max | 1.8 µH | - | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
|
SD8350-330-RFIXED IND 33UH 1.4A 125 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
SD8350 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.4 A | 2.2A | - | Shielded | 125mOhm Max | 33 µH | - | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
|
SD8350-3R9-RFIXED IND 3.9UH 4.5A 19 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
SD8350 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 4.5 A | 6.3A | - | Shielded | 19mOhm Max | 3.9 µH | - | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
|
CLA1108-4-50TR-RFIXED IND 50NH 80A 0.00028OHM SM Eaton - Electronics Division |
0 | - |
|
数据表 |
CLA | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 80 A | - | - | - | 0.28mOhm | 50 nH | - | - | Surface Mount | - | 1.772" L x 0.433" W (45.00mm x 11.00mm) | 4 Phase | -40°C ~ 125°C | 1 MHz | 0.315" (8.00mm) |
|
UP2-100-RFIXED IND 10UH 4.3A 29.9MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
UNI-PAC™ 2 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 4.3 A | 3.3A | - | Unshielded | 29.9mOhm Max | 10 µH | - | - | Surface Mount | - | 0.541" L x 0.345" W (13.74mm x 8.76mm) | - | - | 100 kHz | 0.231" (5.86mm) |
|
|
UP2-4R7-RFIXED IND 4.7UH 5.7A 17.3MOHM SM Eaton - Electronics Division |
0 | - |
|
数据表 |
UNI-PAC™ 2 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 5.7 A | 4.2A | - | Unshielded | 17.3mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.541" L x 0.345" W (13.74mm x 8.76mm) | - | - | 100 kHz | 0.231" (5.86mm) |
|
HC8-R15-RFIXED IND 150NH 39A 0.8 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
HC8 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 39 A | 76A | - | Unshielded | 0.8mOhm Max | 150 nH | - | - | Surface Mount | - | 0.429" L x 0.409" W (10.90mm x 10.40mm) | - | -40°C ~ 155°C | 100 kHz | 0.157" (4.00mm) |
|
|
CLA1108-2-50TR-RFIXED IND 50NH 80A 0.00028OHM SM Eaton - Electronics Division |
0 | - |
|
数据表 |
CLA | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 80 A | - | - | - | 0.28mOhm | 50 nH | - | - | Surface Mount | - | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 2 Phase | -40°C ~ 125°C | 1 MHz | 0.315" (8.00mm) |
