固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WCLA1608V1-101-RFIXED IND 100NH 400MA 630MOHM SM Eaton - Electronics Division |
0 | - |
|
数据表 |
WCLA1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±5% | 400 mA | - | 0603 | Unshielded | 630mOhm Max | 100 nH | 30 @ 150MHz | 1.4GHz | Surface Mount | AEC-Q200 | 0.070" L x 0.043" W (1.78mm x 1.10mm) | - | -40°C ~ 125°C | 150 MHz | 0.037" (0.95mm) |
|
|
WCLA1608V1-470-RFIXED IND 47NH 600MA 280MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
WCLA1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±5% | 600 mA | - | 0603 | Unshielded | 280mOhm Max | 47 nH | 36 @ 200MHz | 2GHz | Surface Mount | AEC-Q200 | 0.070" L x 0.043" W (1.78mm x 1.10mm) | - | -40°C ~ 125°C | 200 MHz | 0.037" (0.95mm) |
|
|
WCLA1608V1-391-RFIXED IND 390NH 100MA 4.35OHM SM Eaton - Electronics Division |
0 | - |
|
数据表 |
WCLA1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±5% | 100 mA | - | 0603 | Unshielded | 4.35Ohm Max | 390 nH | 25 @ 100MHz | 800MHz | Surface Mount | AEC-Q200 | 0.070" L x 0.043" W (1.78mm x 1.10mm) | - | -40°C ~ 125°C | 100 MHz | 0.037" (0.95mm) |
|
|
WCLA1608V1-100-RFIXED IND 10NH 700MA 130MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
WCLA1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±5% | 700 mA | - | 0603 | Unshielded | 130mOhm Max | 10 nH | 31 @ 250MHz | 4.8GHz | Surface Mount | AEC-Q200 | 0.070" L x 0.043" W (1.78mm x 1.10mm) | - | -40°C ~ 125°C | 250 MHz | 0.037" (0.95mm) |
|

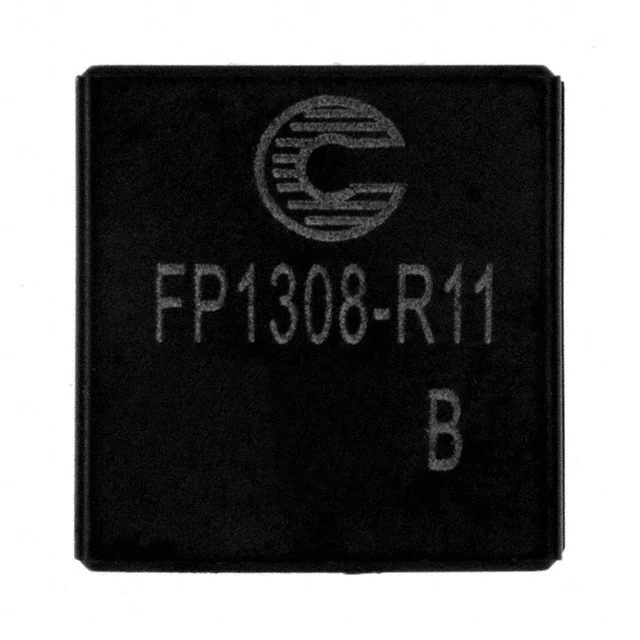

FP1308-R11-RFIXED IND 110NH 68A 0.24MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
FLAT-PAC, FP1308 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 68 A | 120A | - | Unshielded | 0.24mOhm Max | 110 nH | - | - | Surface Mount | - | 0.539" L x 0.510" W (13.70mm x 12.95mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
|
WCLA1608V1-220-RFIXED IND 22NH 700MA 190MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
WCLA1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±5% | 700 mA | - | 0603 | Unshielded | 190mOhm Max | 22 nH | 38 @ 250MHz | 3GHz | Surface Mount | AEC-Q200 | 0.070" L x 0.043" W (1.78mm x 1.10mm) | - | -40°C ~ 125°C | 250 MHz | 0.037" (0.95mm) |
|
|
WCLA1608V1-820-RFIXED IND 82NH 400MA 550MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
WCLA1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±5% | 400 mA | - | 0603 | Unshielded | 550mOhm Max | 82 nH | 34 @ 150MHz | 1.7GHz | Surface Mount | AEC-Q200 | 0.070" L x 0.043" W (1.78mm x 1.10mm) | - | -40°C ~ 125°C | 150 MHz | 0.037" (0.95mm) |
|
|
WCLA1608V1-1R8-RFIXED IND 1.8NH 700MA 45MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
WCLA1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±10% | 700 mA | - | 0603 | Unshielded | 45mOhm Max | 1.8 nH | 16 @ 250MHz | 12.5GHz | Surface Mount | AEC-Q200 | 0.070" L x 0.043" W (1.78mm x 1.10mm) | - | -40°C ~ 125°C | 250 MHz | 0.037" (0.95mm) |
|
|
WCLA1608V1-560-RFIXED IND 56NH 600MA 280MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
WCLA1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±5% | 600 mA | - | 0603 | Unshielded | 280mOhm Max | 56 nH | 38 @ 200MHz | 1.9GHz | Surface Mount | AEC-Q200 | 0.070" L x 0.043" W (1.78mm x 1.10mm) | - | -40°C ~ 125°C | 200 MHz | 0.037" (0.95mm) |
|
WCLA2012V1-121-RFIXED IND 120NH 400MA 510MOHM SM Eaton - Electronics Division |
0 | - |
|
数据表 |
WCLA2012V1 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±5% | 400 mA | - | 0805 | Unshielded | 510mOhm Max | 120 nH | 45 @ 250MHz | 1.1GHz | Surface Mount | AEC-Q200 | 0.091" L x 0.067" W (2.30mm x 1.70mm) | - | -40°C ~ 125°C | 150 MHz | 0.060" (1.52mm) |
