固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SD14-2R0-RFIXED IND 2UH 2.37A 44.5MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 2.37 A | 2.56A | - | Shielded | 44.5mOhm | 2 µH | - | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | - | -40°C ~ 85°C | 100 kHz | 0.057" (1.45mm) |
|
|
SD14-681-RFIXED IND 680UH 156MA 10.3OHM SM Eaton - Electronics Division |
0 | - |
|
数据表 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 156 mA | 142mA | - | Shielded | 10.3Ohm | 680 µH | - | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | - | -40°C ~ 85°C | 100 kHz | 0.057" (1.45mm) |
|
SD6020-6R2-RFIXED IND 6.2UH 1.63A 96MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
SD6020 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.63 A | 1.4A | - | Shielded | 96mOhm Max | 6.2 µH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
SD6020-120-RFIXED IND 12UH 1.31A 138MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
SD6020 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.31 A | 1.1A | - | Shielded | 138mOhm Max | 12 µH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|

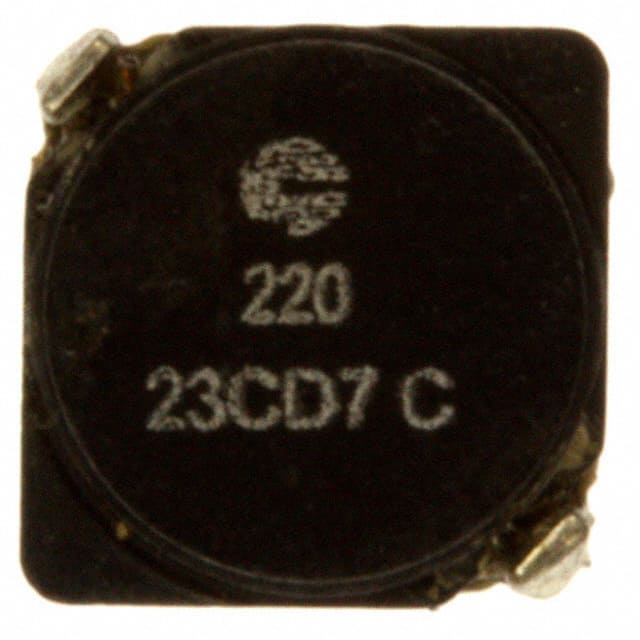

SD6020-220-RFIXED IND 22UH 940MA 290MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
SD6020 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 940 mA | 800mA | - | Shielded | 290mOhm Max | 22 µH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|

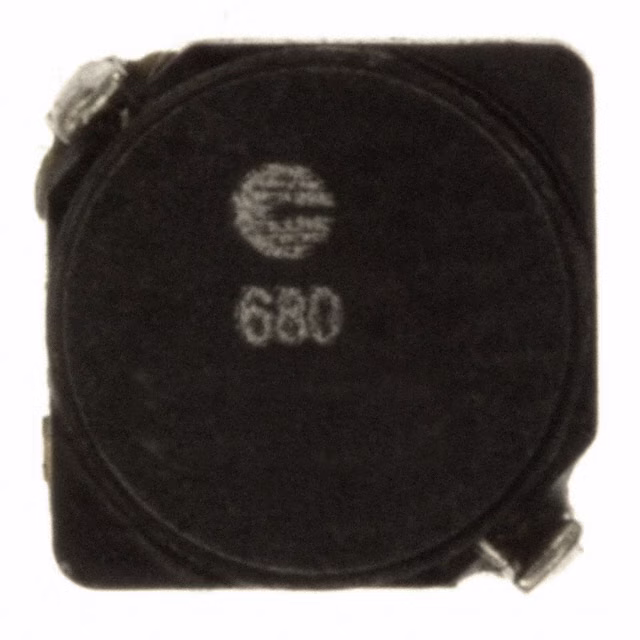

SD6020-680-RFIXED IND 68UH 500MA 840MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
SD6020 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 500 mA | 430mA | - | Shielded | 840mOhm Max | 68 µH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
SD6020-101-RFIXED IND 100UH 420MA 1.2OHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
SD6020 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 420 mA | 360mA | - | Shielded | 1.2Ohm Max | 100 µH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
TL1211V3-R150-RTRANS IND 150NH 84A 4PADS SMT Eaton - Electronics Division |
0 | - |
|
数据表 |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SD6020-150-RFIXED IND 15UH 1.07A 196MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
SD6020 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.07 A | 970mA | - | Shielded | 196mOhm Max | 15 µH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
|
|
SD6020-180-RFIXED IND 18UH 1.1A 210 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
SD6020 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.1 A | 850mA | - | Shielded | 210mOhm Max | 18 µH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.079" (2.00mm) |
