固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FP0708R1-R12-RFIXED IND 120NH 44A 0.35MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
FLAT-PAC, FP0708 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 44 A | 59A | - | Unshielded | 0.35mOhm | 120 nH | - | - | Surface Mount | - | 0.335" L x 0.276" W (8.50mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.283" (7.20mm) |
|
FP0708R1-R15-RFIXED IND 150NH 44A 0.35MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
FLAT-PAC, FP0708 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 44 A | 47A | - | Unshielded | 0.35mOhm | 150 nH | - | - | Surface Mount | - | 0.335" L x 0.276" W (8.50mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.283" (7.20mm) |
|

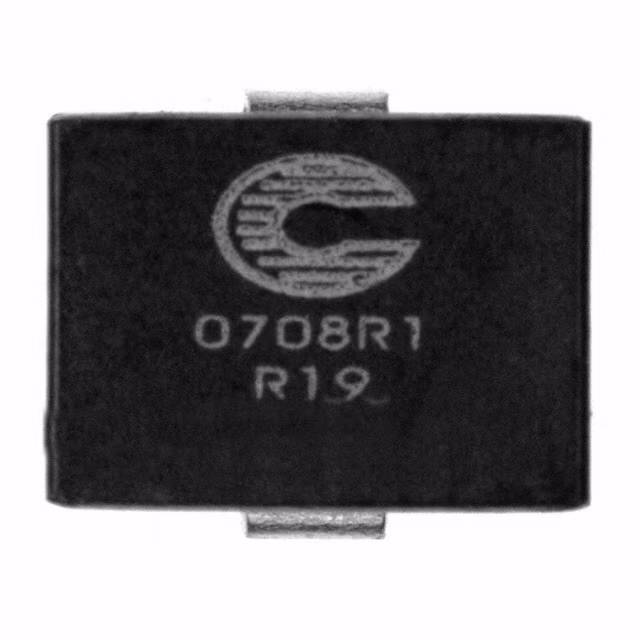

FP0708R1-R19-RFIXED IND 190NH 44A 0.35MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
FLAT-PAC, FP0708 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 44 A | 37A | - | Unshielded | 0.35mOhm | 190 nH | - | - | Surface Mount | - | 0.335" L x 0.276" W (8.50mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.283" (7.20mm) |
|
|
FP1006V1-R100-RIND FLAT PAC 100NH 69A 2 PADS Eaton - Electronics Division |
0 | - |
|
数据表 |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FP1006V1-R070-RIND FLAT PAC 70NH 95A 2 PADS Eaton - Electronics Division |
0 | - |
|
数据表 |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CPLE-4-50TR-RFIXED IND 50NH 40A 0.6 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
CPL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 40 A | - | - | Unshielded | 0.6mOhm Max | 50 nH | - | - | Surface Mount | - | 1.417" L x 0.394" W (36.00mm x 10.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.189" (4.80mm) |
|

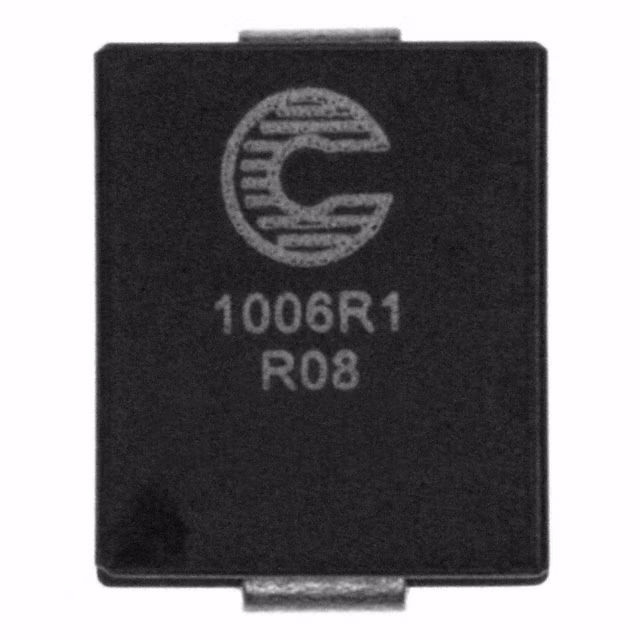

FP1006R1-R08-RFIXED IND 85NH 53A 0.27 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
FLAT-PAC, FP1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 53 A | 100A | - | Unshielded | 0.27mOhm | 85 nH | - | - | Surface Mount | - | 0.402" L x 0.315" W (10.20mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.236" (6.00mm) |
|

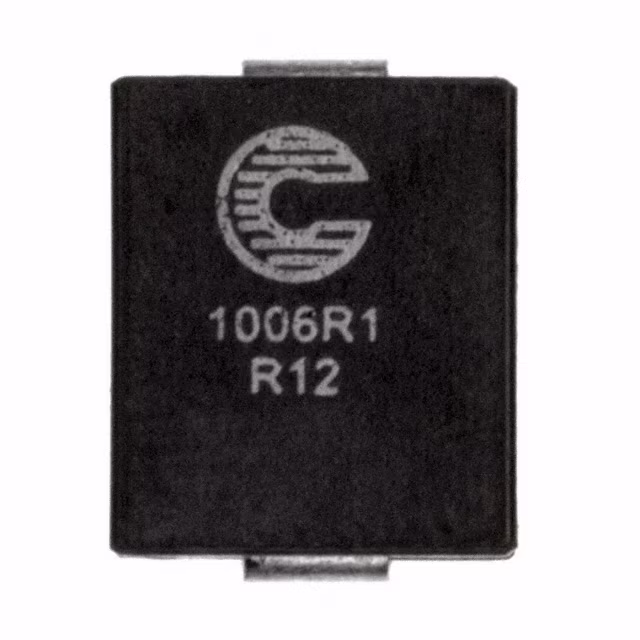

FP1006R1-R12-RFIXED IND 120NH 53A 0.27MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
FLAT-PAC, FP1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 53 A | 71A | - | Unshielded | 0.27mOhm | 120 nH | - | - | Surface Mount | - | 0.402" L x 0.315" W (10.20mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.236" (6.00mm) |
|

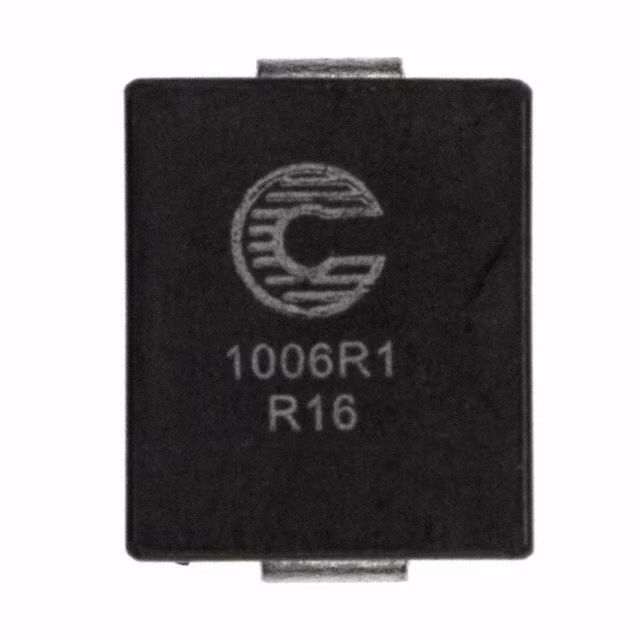

FP1006R1-R16-RFIXED IND 160NH 53A 0.27MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
FLAT-PAC, FP1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 53 A | 55A | - | Unshielded | 0.27mOhm | 160 nH | - | - | Surface Mount | - | 0.402" L x 0.315" W (10.20mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.236" (6.00mm) |
|
|
FP1006R2-R08-RFIXED IND 85NH 45A 0.36 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
FLAT-PAC, FP1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 45 A | 100A | - | Unshielded | 0.36mOhm | 85 nH | - | - | Surface Mount | - | 0.394" L x 0.315" W (10.00mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.236" (6.00mm) |
