固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UP3B-680-RFIXED IND 68UH 1.6A 155.8MOHM SM Eaton - Electronics Division |
0 | - |
|
数据表 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.6 A | 2A | - | Unshielded | 155.8mOhm Max | 68 µH | - | - | Surface Mount | - | 0.760" L x 0.520" W (19.30mm x 13.21mm) | - | -40°C ~ 85°C | 100 kHz | 0.268" (6.80mm) |
|

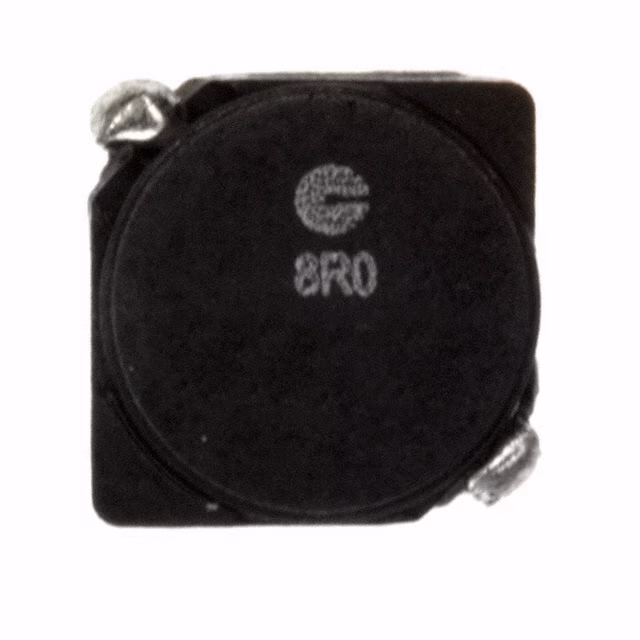

SD7030-8R0-RFIXED IND 7.8UH 2.2A 58 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
SD7030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2.2 A | 1.85A | - | Shielded | 58mOhm Max | 7.8 µH | - | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
SD7030-120-RFIXED IND 11.5UH 1.9A 70MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
SD7030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.9 A | 1.55A | - | Shielded | 70mOhm Max | 11.5 µH | - | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
SD7030-121-RFIXED IND 115.2UH 670MA 755 MOHM Eaton - Electronics Division |
0 | - |
|
数据表 |
SD7030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 670 mA | 500mA | - | Shielded | 755mOhm Max | 115.2 µH | - | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
SD7030-150-RFIXED IND 14.6UH 1.7A 84MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
SD7030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.7 A | 1.4A | - | Shielded | 84mOhm Max | 14.6 µH | - | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
SD7030-180-RFIXED IND 17.3UH 1.7A 95MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
SD7030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.7 A | 1.32A | - | Shielded | 95mOhm Max | 17.3 µH | - | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
SD7030-181-RFIXED IND 174UH 540MA 966MOHM SM Eaton - Electronics Division |
0 | - |
|
数据表 |
SD7030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 540 mA | 400mA | - | Shielded | 966mOhm Max | 174 µH | - | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
SD7030-221-RFIXED IND 211UH 510MA 1.322 OHM Eaton - Electronics Division |
0 | - |
|
数据表 |
SD7030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 510 mA | 360mA | - | Shielded | 1.322Ohm Max | 211 µH | - | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
SD7030-260-RFIXED IND 24.9UH 1.3A 142MOHM SM Eaton - Electronics Division |
0 | - |
|
数据表 |
SD7030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.3 A | 1.05A | - | Shielded | 142mOhm Max | 24.9 µH | - | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
SD7030-271-RFIXED IND 264UH 440MA 1.475 OHM Eaton - Electronics Division |
0 | - |
|
数据表 |
SD7030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 440 mA | 330mA | - | Shielded | 1.475Ohm Max | 264 µH | - | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
