固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UP0.4C-221-RFIXED IND 220UH 250MA SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
UNI-PAC™ 0.4C | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 250 mA | - | - | Unshielded | - | 220 µH | - | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | - | -40°C ~ 85°C | 100 kHz | 0.115" (2.92mm) |
|
HCM1A1105V2-3R3-RFIXED IND 3.3UH 9.5A 10.7MOHM SM Eaton - Electronics Division |
0 | - |
|
数据表 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 9.5 A | 16A | - | Shielded | 10.7mOhm Max | 3.3 µH | - | 18MHz | Surface Mount | AEC-Q200 | 0.425" L x 0.394" W (10.80mm x 10.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
|
HCM1A1105V2-5R6-RFIXED IND 5.6UH 8A 16.5 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 8 A | 12A | - | Shielded | 16.5mOhm Max | 5.6 µH | - | 13MHz | Surface Mount | AEC-Q200 | 0.425" L x 0.394" W (10.80mm x 10.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
|
HCM1A1105V2-330-RFIXED IND 33UH 3.5A 84 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 3.5 A | 3.5A | - | Shielded | 84mOhm Max | 33 µH | - | 4MHz | Surface Mount | AEC-Q200 | 0.425" L x 0.394" W (10.80mm x 10.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
|
HCM1A1105V2-2R8-RFIXED IND 2.8UH 12A 6 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 12 A | 18A | - | Shielded | 6mOhm Max | 2.8 µH | - | 21MHz | Surface Mount | AEC-Q200 | 0.425" L x 0.394" W (10.80mm x 10.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|
|
HCM1A1105V2-1R2-RFIXED IND 1.2UH 21A 2.4 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 21 A | 21A | - | Shielded | 2.4mOhm Max | 1.2 µH | - | 37MHz | Surface Mount | AEC-Q200 | 0.425" L x 0.394" W (10.80mm x 10.00mm) | - | -55°C ~ 155°C | 100 kHz | 0.197" (5.00mm) |
|

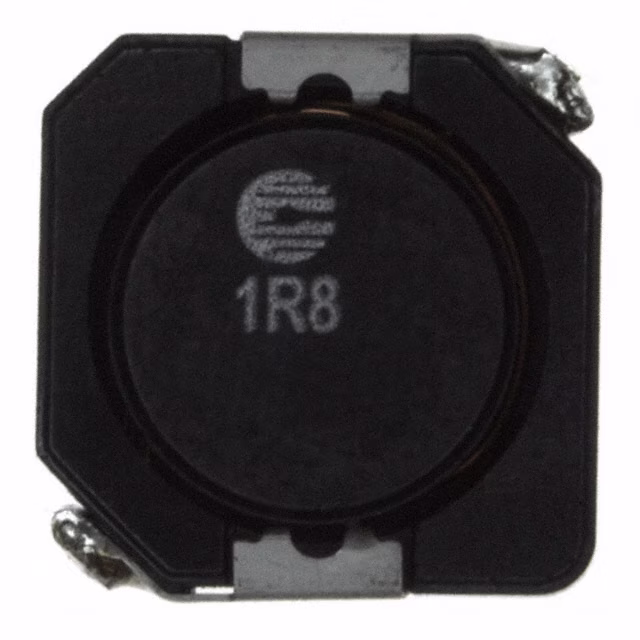

DR1030-1R8-RFIXED IND 1.8UH 5.9A 11 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
DR1030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 5.9 A | 7.41A | - | Shielded | 11mOhm Max | 1.8 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
DR1030-330-RFIXED IND 33UH 1.6A 136.3MOHM SM Eaton - Electronics Division |
0 | - |
|
数据表 |
DR1030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.6 A | 1.81A | - | Shielded | 136.3mOhm Max | 33 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
DR1030-3R9-RFIXED IND 3.9UH 4.3A 20 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
DR1030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 4.3 A | 5.13A | - | Shielded | 20mOhm Max | 3.9 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
DR1030-820-RFIXED IND 82UH 1A 382.3 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
DR1030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1 A | 1.14A | - | Shielded | 382.3mOhm Max | 82 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
