固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HC8-470-RFIXED IND 47UH 2.2A 237 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
HC8 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 2.2 A | 4.2A | - | Unshielded | 237mOhm Max | 47 µH | - | - | Surface Mount | - | 0.429" L x 0.409" W (10.90mm x 10.40mm) | - | -40°C ~ 155°C | 100 kHz | 0.157" (4.00mm) |
|
|
HC8-8R2-RFIXED IND 8.2UH 5.5A 39.6MOHM SM Eaton - Electronics Division |
0 | - |
|
数据表 |
HC8 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 5.5 A | 10A | - | Unshielded | 39.6mOhm Max | 8.2 µH | - | - | Surface Mount | - | 0.429" L x 0.409" W (10.90mm x 10.40mm) | - | -40°C ~ 155°C | 100 kHz | 0.157" (4.00mm) |
|

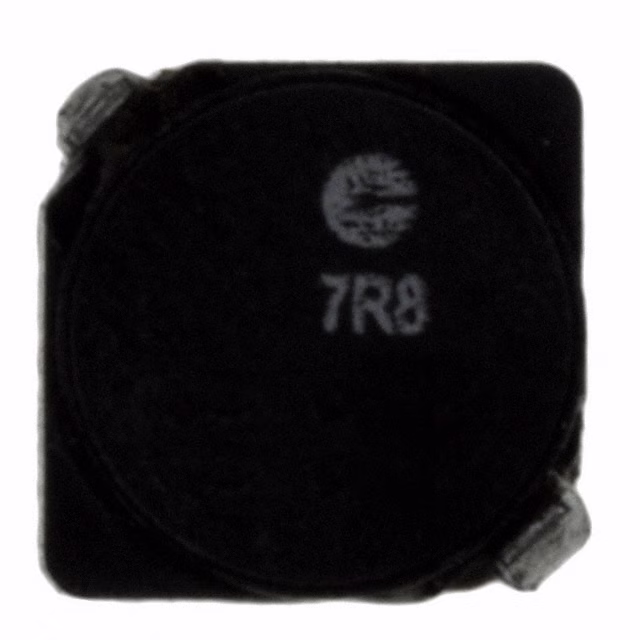

SD6030-7R8-RFIXED IND 7.8UH 2.38A 53MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 2.38 A | 1.6A | - | Shielded | 53mOhm Max | 7.8 µH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|

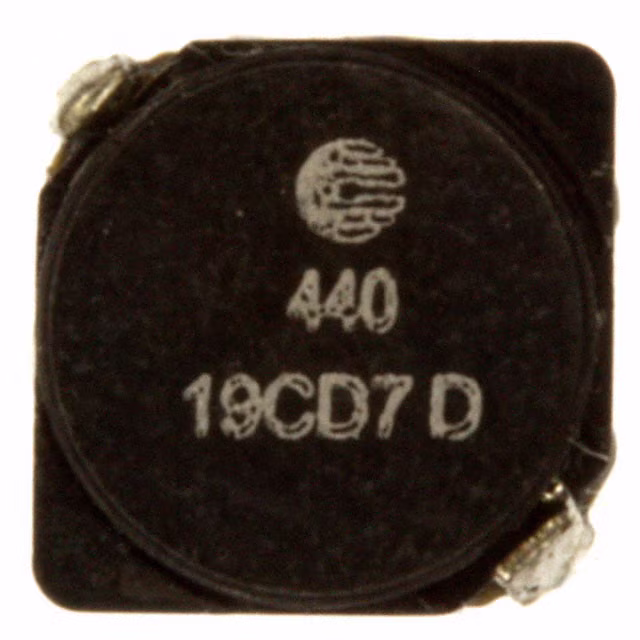

SD6030-440-RFIXED IND 44UH 1.1A 250 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.1 A | 620mA | - | Shielded | 250mOhm Max | 44 µH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
SD6030-121-RFIXED IND 110.1UH 700MA 620 MOHM Eaton - Electronics Division |
0 | - |
|
数据表 |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 700 mA | 400mA | - | Shielded | 620mOhm Max | 110.1 µH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
SD6030-150-RFIXED IND 14.1UH 1.71A 103 MOHM Eaton - Electronics Division |
0 | - |
|
数据表 |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.71 A | 1.1A | - | Shielded | 103mOhm Max | 14.1 µH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
SD6030-151-RFIXED IND 144.5UH 640MA 730 MOHM Eaton - Electronics Division |
0 | - |
|
数据表 |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 640 mA | 350mA | - | Shielded | 730mOhm Max | 144.5 µH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
SD6030-180-RFIXED IND 17.1UH 1.65A 110 MOHM Eaton - Electronics Division |
0 | - |
|
数据表 |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.65 A | 1A | - | Shielded | 110mOhm Max | 17.1 µH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
SD6030-181-RFIXED IND 175.1UH 550MA 980 MOHM Eaton - Electronics Division |
0 | - |
|
数据表 |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 550 mA | 320mA | - | Shielded | 980mOhm Max | 175.1 µH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
SD6030-271-RFIXED IND 264.2UH 440MA 1.56 OHM Eaton - Electronics Division |
0 | - |
|
数据表 |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 440 mA | 270mA | - | Shielded | 1.56Ohm Max | 264.2 µH | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
