固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MCLA3216V1-100-RFIXED IND 10UH 25MA 800MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
MCLA3216V1 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | - | ±10% | 25 mA | - | 1206 | Unshielded | 800mOhm Max | 10 µH | 35 @ 2MHz | 24MHz | Surface Mount | AEC-Q200 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | -40°C ~ 125°C | 2 MHz | 0.043" (1.10mm) |
|

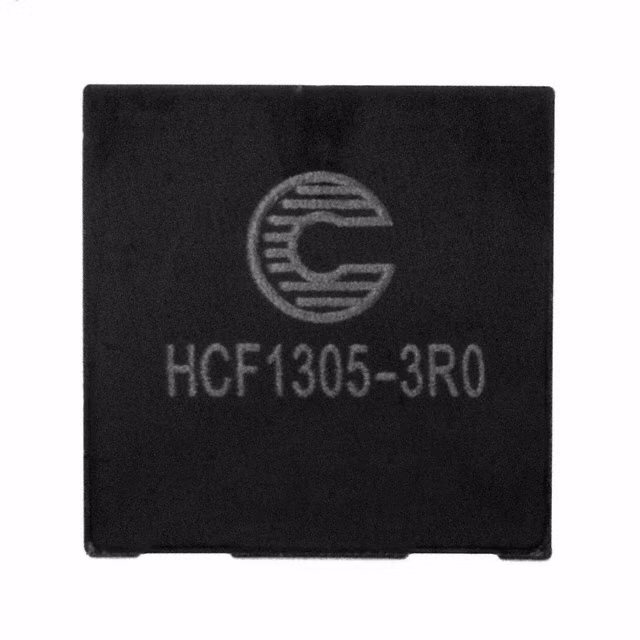

HCF1305-3R0-RFIXED IND 3UH 13.2A 4.9 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
HCF1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 13.2 A | 14.4A | - | Unshielded | 4.9mOhm Max | 3 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|

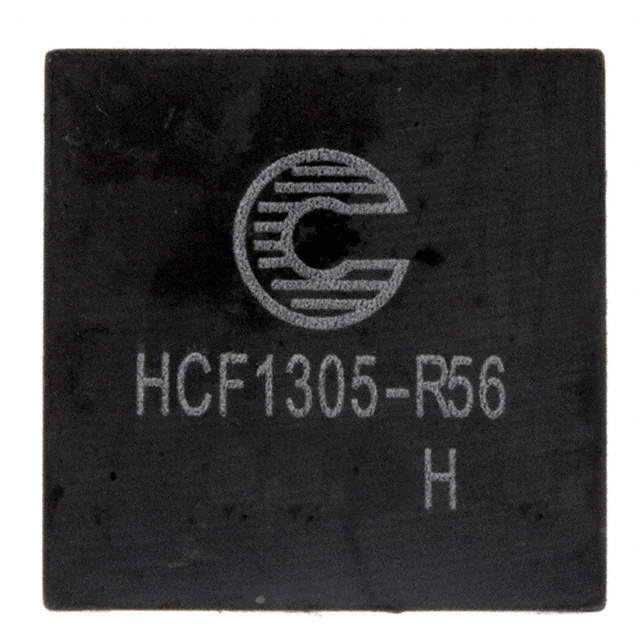

HCF1305-R56-RFIXED IND 560NH 32A 1 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
HCF1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 32 A | 30A | - | Unshielded | 1mOhm Max | 560 nH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|

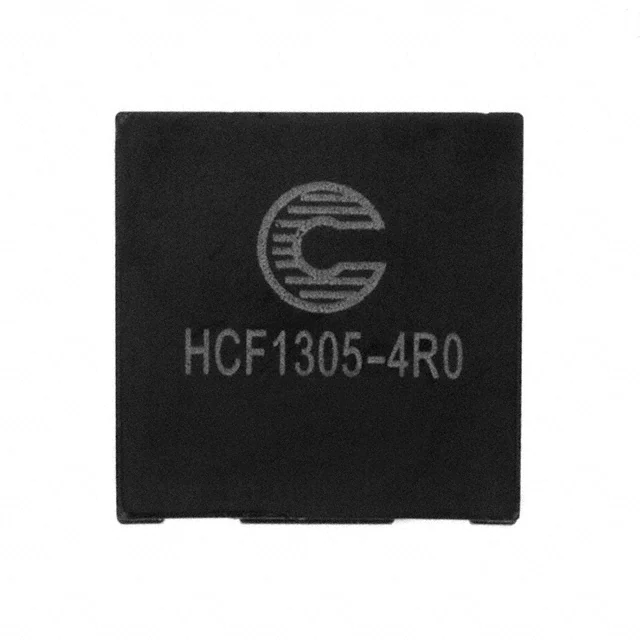

HCF1305-4R0-RFIXED IND 4UH 10.9A 7.2 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
HCF1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 10.9 A | 12A | - | Unshielded | 7.2mOhm Max | 4 µH | - | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
FP1208R1-R18-RFIXED IND 180NH 50A 0.29MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
FLAT-PAC, FP1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 50 A | 72A | - | Unshielded | 0.29mOhm | 180 nH | - | - | Surface Mount | - | 0.476" L x 0.315" W (12.10mm x 8.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.315" (8.00mm) |
|
FP1010V14-R090-RIND FP1010V14-R090-R FLAT-PAC Eaton - Electronics Division |
0 | - |
|
数据表 |
FP1010 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 68 A | 107A | - | Unshielded | 158mOhm Max | 90 nH | - | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.394" (10.00mm) |
|
|
FP1010V14-R100-RIND FP1010V14-R100-R FLAT-PAC Eaton - Electronics Division |
0 | - |
|
数据表 |
FP1010 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±10% | 68 A | 124A | - | Unshielded | 158mOhm Max | 100 nH | - | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | - | -40°C ~ 125°C | 100 kHz | 0.394" (10.00mm) |
|
|
TL1012V2-R150-RTRANS IND, 150NH, 75A, 4 PADS Eaton - Electronics Division |
0 | - |
|
数据表 |
TL1012V2 | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±10% | 75 A | 58A | - | Unshielded | 0.37mOhm | 150 nH | - | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.472" (12.00mm) |
|
|
TL1012V2-R170-RTRANS IND, 170NH, 66A, 4 PADS Eaton - Electronics Division |
0 | - |
|
数据表 |
TL1012V2 | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | Wirewound | Ferrite | ±10% | 75 A | 51A | - | Unshielded | 0.37mOhm | 170 nH | - | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.472" (12.00mm) |
|
UP2UC-101-RFIXED IND 100UH 1.3A 280MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
UNI-PAC™ 2UC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1.3 A | 1.2A | - | Unshielded | 280mOhm Max | 100 µH | - | 9MHz | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | - | -25°C ~ 85°C | 100 kHz | 0.205" (5.21mm) |
