固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WCLA1608V1-3R9-RFIXED IND 3.9NH 700MA 80MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
WCLA1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±5% | 700 mA | - | 0603 | Unshielded | 80mOhm Max | 3.9 nH | 22 @ 250MHz | 6.9GHz | Surface Mount | AEC-Q200 | 0.070" L x 0.043" W (1.78mm x 1.10mm) | - | -40°C ~ 125°C | 250 MHz | 0.037" (0.95mm) |
|
|
WCLA1608V1-221-RFIXED IND 220NH 200MA 2.1OHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
WCLA1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±5% | 200 mA | - | 0603 | Unshielded | 2.1Ohm Max | 220 nH | 25 @ 100MHz | 900MHz | Surface Mount | AEC-Q200 | 0.070" L x 0.043" W (1.78mm x 1.10mm) | - | -40°C ~ 125°C | 100 MHz | 0.037" (0.95mm) |
|
|
WCLA1608V1-180-RFIXED IND 18NH 700MA 170MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
WCLA1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±5% | 700 mA | - | 0603 | Unshielded | 170mOhm Max | 18 nH | 35 @ 250MHz | 3.1GHz | Surface Mount | AEC-Q200 | 0.070" L x 0.043" W (1.78mm x 1.10mm) | - | -40°C ~ 125°C | 250 MHz | 0.037" (0.95mm) |
|
|
WCLA1608V1-7R5-RFIXED IND 7.5NH 700MA 110MOHM SM Eaton - Electronics Division |
0 | - |
|
数据表 |
WCLA1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | - | ±5% | 700 mA | - | 0603 | Unshielded | 110mOhm Max | 7.5 nH | 28 @ 250MHz | 4.8GHz | Surface Mount | AEC-Q200 | 0.070" L x 0.043" W (1.78mm x 1.10mm) | - | -40°C ~ 125°C | 250 MHz | 0.037" (0.95mm) |
|
EXL1V0503-2R2-RFIXED IND 2.2UH 9.7A 14.5MOHM SM Eaton - Electronics Division |
1 | - |
|
数据表 |
EXL1V0503 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | ±20% | 9.7 A | 9A | - | Shielded | 14.5mOhm Max | 2.2 µH | - | 33MHz | Surface Mount | - | 0.236" L x 0.224" W (6.00mm x 5.70mm) | - | -40°C ~ 125°C | 100 kHz | 0.122" (3.10mm) |
|

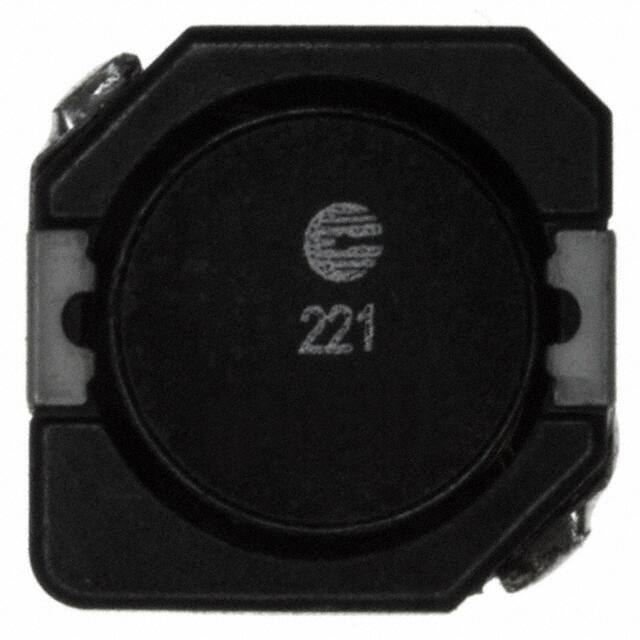

DR1040-221-RFIXED IND 220UH 700MA 640MOHM SM Eaton - Electronics Division |
0 | - |
|
数据表 |
DR1040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 700 mA | 920mA | - | Shielded | 640mOhm Max | 220 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
|
HCMA0703-R82-RFIXED IND 820NH 13A 8 MOHM SMD Eaton - Electronics Division |
0 | - |
|
数据表 |
HCMA0703 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | ±20% | 13 A | 24A | - | Shielded | 8mOhm Max | 820 nH | - | - | Surface Mount | AEC-Q200 | 0.280" L x 0.268" W (7.10mm x 6.80mm) | - | -55°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
HCM1A4020V2-1R0-RFIXED IND 1UH 5.6A 24 MOHM SMD Eaton - Electronics Division |
7 | - |
|
数据表 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | ±20% | 5.6 A | 7A | - | Shielded | 24mOhm Max | 1 µH | - | 60MHz | Surface Mount | AEC-Q200 | 0.173" L x 0.165" W (4.40mm x 4.20mm) | - | -55°C ~ 155°C | 100 kHz | 0.079" (2.00mm) |
|
|
EXL1V0603-1R0-RFIXED IND 1UH 18A 6.05 MOHM SMD Eaton - Electronics Division |
25 | - |
|
数据表 |
EXL1V0603 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | ±20% | 18 A | 18A | - | Shielded | 6.05mOhm Max | 1 µH | - | 52MHz | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
DR1040-151-RFIXED IND 150UH 850MA 430MOHM SM Eaton - Electronics Division |
4 | - |
|
数据表 |
DR1040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 850 mA | 1.15A | - | Shielded | 430mOhm Max | 150 µH | - | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | - | -40°C ~ 125°C | 100 kHz | 0.157" (4.00mm) |
