固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

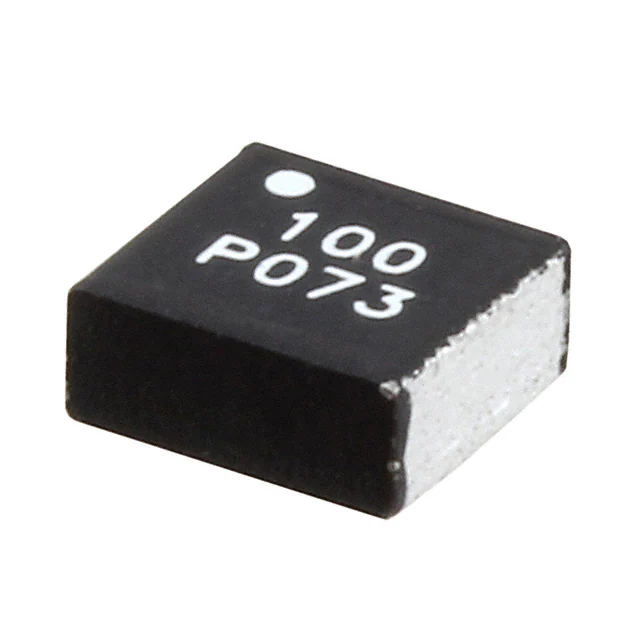

0420CDMCBDS-3R3MCFIXED IND 3.3UH 3.3A 49 MOHM SMD |
0 | - |
|
数据表 |
0420CDMCB/DS | 2-SMD | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 3.3 A | 4.1A | SMD | Shielded | 49mOhm | 3.3 µH | - | - | Surface Mount | - | 0.177" L x 0.161" W (4.50mm x 4.10mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
|
|
0420CDMCBDS-4R7MCFIXED IND 4.7UH 2.9A 67 MOHM SMD |
0 | - |
|
数据表 |
0420CDMCB/DS | 2-SMD | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 2.9 A | 3.4A | SMD | Shielded | 67mOhm | 4.7 µH | - | - | Surface Mount | - | 0.177" L x 0.161" W (4.50mm x 4.10mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
-,80mm.jpg)
|
CIG10WR47MNCFIXED IND 470NH 1.1A 150MOHM SMD |
0 | - |
|
数据表 |
CIG10W | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±20% | 1.1 A | - | - | Shielded | 150mOhm | 470 nH | - | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 125°C | 1 MHz | - |
|
|
CIG10W2R2MNCFIXED IND 2.2UH 750MA 300MOHM SM |
0 | - |
|
数据表 |
CIG10W | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±20% | 750 mA | - | - | Shielded | 300mOhm | 2.2 µH | - | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 125°C | 1 MHz | - |
|
|
CIG10W3R3MNCFIXED IND 3.3UH 700MA 400MOHM SM |
0 | - |
|
数据表 |
CIG10W | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±20% | 700 mA | - | - | Shielded | 400mOhm | 3.3 µH | - | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -40°C ~ 125°C | 1 MHz | - |
-2,00x1.25x,80mm.jpg)
|
CIG21F1R0MNCFIXED IND 1UH 800MA 190 MOHM SMD |
0 | - |
|
数据表 |
CIG21F | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±20% | 800 mA | - | - | Shielded | 190mOhm | 1 µH | - | - | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -40°C ~ 125°C | 1 MHz | - |
|
|
CIG21W1R5MNEFIXED IND 1.5UH 960MA 150MOHM SM |
0 | - |
|
数据表 |
CIG21W | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±25% | 960 mA | - | - | Shielded | 150mOhm | 1.5 µH | - | - | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - | -40°C ~ 125°C | 1 MHz | - |
-2,5x2,0x1,00mm.jpg)
|
CIG22H1R2MNEFIXED IND 1.2UH 1.5A 94 MOHM SMD |
0 | - |
|
数据表 |
CIG22H | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±20% | 1.5 A | 2.8A | 1008 (2520 Metric) | Shielded | 94mOhm | 1.2 µH | - | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
|
|
CIG22H3R3MNEFIXED IND 3.3UH 1A 133 MOHM SMD |
0 | - |
|
数据表 |
CIG22H | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±20% | 1 A | 1A | 1008 (2520 Metric) | Shielded | 133mOhm | 3.3 µH | - | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
|
CIH05T1N2CNCFIXED IND 1.2NH 300MA 120MOHM SM |
0 | - |
|
数据表 |
CIH05T | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±0.2nH | 300 mA | - | - | Unshielded | 120mOhm Max | 1.2 nH | 8 @ 100MHz | 10GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | - |
|
|
CIH05T4N7CNCFIXED IND 4.7NH 300MA 240MOHM SM |
0 | - |
|
数据表 |
CIH05T | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±0.2nH | 300 mA | - | - | Unshielded | 240mOhm Max | 4.7 nH | 8 @ 100MHz | 4GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | - |
|
|
CIH05T4N3SNCFIXED IND 4.3NH 300MA 240MOHM SM |
0 | - |
|
数据表 |
CIH05T | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±0.3nH | 300 mA | - | - | Unshielded | 240mOhm Max | 4.3 nH | 8 @ 100MHz | 4GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -55°C ~ 125°C | 100 MHz | - |
|
CIH10T1N2SNCFIXED IND 1.2NH 800MA 50MOHM SMD |
0 | - |
|
数据表 |
CIH10T | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±0.3nH | 800 mA | - | - | Unshielded | 50mOhm Max | 1.2 nH | 8 @ 100MHz | 10GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 100 MHz | - |
|
|
CIH10T1N8SNCFIXED IND 1.8NH 800MA 100MOHM SM |
0 | - |
|
数据表 |
CIH10T | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±0.3nH | 800 mA | - | - | Unshielded | 100mOhm Max | 1.8 nH | 8 @ 100MHz | 6GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 100 MHz | - |
|
|
CIH10T2N2SNCFIXED IND 2.2NH 800MA 100MOHM SM |
0 | - |
|
数据表 |
CIH10T | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±0.3nH | 800 mA | - | - | Unshielded | 100mOhm Max | 2.2 nH | 8 @ 100MHz | 6GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 100 MHz | - |
|
|
CIH10T2N7SNCFIXED IND 2.7NH 800MA 100MOHM SM |
0 | - |
|
数据表 |
CIH10T | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±0.3nH | 800 mA | - | - | Unshielded | 100mOhm Max | 2.7 nH | 10 @ 100MHz | 6GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 100 MHz | - |
|
|
CIH10T3N3SNCFIXED IND 3.3NH 800MA 120MOHM SM |
0 | - |
|
数据表 |
CIH10T | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±0.3nH | 800 mA | - | - | Unshielded | 120mOhm Max | 3.3 nH | 10 @ 100MHz | 6GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 100 MHz | - |
|
|
CIH10T4N7SNCFIXED IND 4.7NH 800MA 160MOHM SM |
0 | - |
|
数据表 |
CIH10T | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±0.3nH | 800 mA | - | - | Unshielded | 160mOhm Max | 4.7 nH | 10 @ 100MHz | 4GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 100 MHz | - |
|
|
CIH10T6N8JNCFIXED IND 6.8NH 700MA 220MOHM SM |
0 | - |
|
数据表 |
CIH10T | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±5% | 700 mA | - | - | Unshielded | 220mOhm Max | 6.8 nH | 10 @ 100MHz | 4GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 100 MHz | - |
|
|
CIH10T33NJNCFIXED IND 33NH 500MA 550MOHM SMD |
0 | - |
|
数据表 |
CIH10T | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±5% | 500 mA | - | - | Unshielded | 550mOhm Max | 33 nH | 12 @ 100MHz | 1.2GHz | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | -55°C ~ 125°C | 100 MHz | - |
