固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9310-02-RCFIXED IND 220NH 1.9A 55 MOHM TH |
0 | - |
|
数据表 |
9310 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.9 A | - | - | Unshielded | 55mOhm Max | 220 nH | 50 @ 25MHz | 450MHz | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - | -55°C ~ 105°C | 25 MHz | - |
|
9310-04-RCFIXED IND 330NH 1.4A 90 MOHM TH |
0 | - |
|
数据表 |
9310 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.4 A | - | - | Unshielded | 90mOhm Max | 330 nH | 45 @ 25MHz | 360MHz | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - | -55°C ~ 105°C | 25 MHz | - |
|
9310-06-RCFIXED IND 470NH 1.225A 120MOHM |
0 | - |
|
数据表 |
9310 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.225 A | - | - | Unshielded | 120mOhm Max | 470 nH | 45 @ 25MHz | 310MHz | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - | -55°C ~ 105°C | 25 MHz | - |
|
9310-12-RCFIXED IND 1UH 830MA 290 MOHM TH |
0 | - |
|
数据表 |
9310 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 830 mA | - | - | Unshielded | 290mOhm Max | 1 µH | 50 @ 25MHz | 200MHz | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - | -55°C ~ 105°C | 25 MHz | - |
|
9310-14-RCFIXED IND 1.2UH 650MA 420MOHM TH |
0 | - |
|
数据表 |
9310 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 650 mA | - | - | Unshielded | 420mOhm Max | 1.2 µH | 33 @ 7.9MHz | 180MHz | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - | -55°C ~ 105°C | 7.9 MHz | - |
|
9310-20-RCFIXED IND 2.2UH 435MA 950MOHM TH |
0 | - |
|
数据表 |
9310 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 435 mA | - | - | Unshielded | 950mOhm Max | 2.2 µH | 33 @ 7.9MHz | 135MHz | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - | -55°C ~ 105°C | 7.9 MHz | - |
|
9310-32-RCFIXED IND 6.8UH 600MA 500MOHM TH |
0 | - |
|
数据表 |
9310 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 600 mA | - | - | Unshielded | 500mOhm Max | 6.8 µH | 50 @ 7.9MHz | 55MHz | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - | -55°C ~ 105°C | 7.9 MHz | - |
|
9310-36-RCFIXED IND 10UH 445MA 900 MOHM TH |
0 | - |
|
数据表 |
9310 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 445 mA | - | - | Unshielded | 900mOhm Max | 10 µH | 55 @ 7.9MHz | 45MHz | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - | -55°C ~ 105°C | 7.9 MHz | - |
|
9310-40-RCFIXED IND 15UH 370MA 1.4 OHM TH |
0 | - |
|
数据表 |
9310 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 370 mA | - | - | Unshielded | 1.4Ohm Max | 15 µH | 65 @ 2.5MHz | 40MHz | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - | -55°C ~ 105°C | 2.5 MHz | - |
|

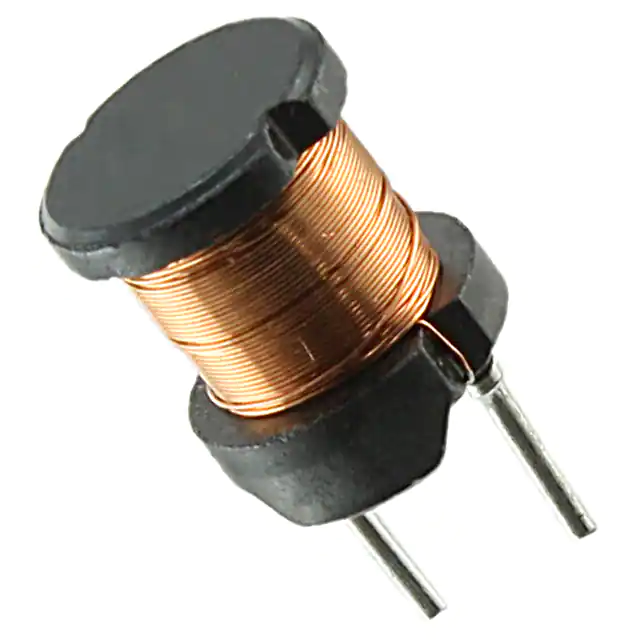

RL895-333K-RCFIXED IND 33MH 48MA 64.2 OHM TH |
0 | - |
|
数据表 |
RL895 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 48 mA | - | - | Unshielded | 64.2Ohm Max | 33 mH | 70 @ 79.6kHz | 210kHz | Through Hole | - | 0.307" Dia (7.80mm) | - | -30°C ~ 100°C | 1 kHz | 0.374" (9.50mm) |
|
9220-18-RCFIXED IND 620UH 88MA 13 OHM TH |
0 | - |
|
数据表 |
9220 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±5% | 88 mA | - | - | Unshielded | 13Ohm Max | 620 µH | 60 @ 7.9MHz | 3.5MHz | Through Hole | - | 0.190" Dia x 0.440" L (4.83mm x 11.18mm) | - | -55°C ~ 105°C | 7.9 MHz | - |
|
|
9310-00-RCFIXED IND 150NH 2.45A 30 MOHM TH |
0 | - |
|
数据表 |
9310 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 2.45 A | - | - | Unshielded | 30mOhm Max | 150 nH | 50 @ 25MHz | 525MHz | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - | -55°C ~ 105°C | 25 MHz | - |
|
|
9310-07-RCFIXED IND 560NH 1.22A 135MOHM TH |
0 | - |
|
数据表 |
9310 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 1.22 A | - | - | Unshielded | 135mOhm Max | 560 nH | 50 @ 25MHz | 280MHz | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - | -55°C ~ 105°C | 25 MHz | - |
|
|
9310-08-RCFIXED IND 680NH 1.1A 150 MOHM TH |
0 | - |
|
数据表 |
9310 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 1.1 A | - | - | Unshielded | 150mOhm Max | 680 nH | 50 @ 25MHz | 250MHz | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - | -55°C ~ 105°C | 25 MHz | - |
|
|
9310-10-RCFIXED IND 820NH 900MA 220MOHM TH |
0 | - |
|
数据表 |
9310 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 900 mA | - | - | Unshielded | 220mOhm Max | 820 nH | 50 @ 25MHz | 220MHz | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - | -55°C ~ 105°C | 25 MHz | - |
|
|
9310-16-RCFIXED IND 1.5UH 600MA 500MOHM TH |
0 | - |
|
数据表 |
9310 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 600 mA | - | - | Unshielded | 500mOhm Max | 1.5 µH | 33 @ 7.9MHz | 160MHz | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - | -55°C ~ 105°C | 7.9 MHz | - |
|
|
9310-18-RCFIXED IND 1.8UH 525MA 650MOHM TH |
0 | - |
|
数据表 |
9310 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 525 mA | - | - | Unshielded | 650mOhm Max | 1.8 µH | 33 @ 7.9MHz | 150MHz | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - | -55°C ~ 105°C | 7.9 MHz | - |
|
|
9310-22-RCFIXED IND 2.7UH 385MA 1.2 OHM TH |
0 | - |
|
数据表 |
9310 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 385 mA | - | - | Unshielded | 1.2Ohm Max | 2.7 µH | 33 @ 7.9MHz | 120MHz | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - | -55°C ~ 105°C | 7.9 MHz | - |
|
|
9310-24-RCFIXED IND 3.3UH 300MA 2 OHM TH |
0 | - |
|
数据表 |
9310 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 300 mA | - | - | Unshielded | 2Ohm Max | 3.3 µH | 33 @ 7.9MHz | 110MHz | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - | -55°C ~ 105°C | 7.9 MHz | - |
|
|
9310-26-RCFIXED IND 3.9UH 280MA 2.3 OHM TH |
0 | - |
|
数据表 |
9310 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 280 mA | - | - | Unshielded | 2.3Ohm Max | 3.9 µH | 33 @ 7.9MHz | 100MHz | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - | -55°C ~ 105°C | 7.9 MHz | - |
