固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L4018C2R2MDWDTFIXED IND 2.2UH 1.44A 60MOHM SMD |
0 | - |
|
数据表 |
L-DWD | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.44 A | - | - | Shielded | 60mOhm Max | 2.2 µH | - | 52MHz | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -25°C ~ 120°C | 100 kHz | 0.071" (1.80mm) |
|
L0402C4N7SRMSTFIXED IND 4.7NH 300MA 210MOHM SM |
0 | - |
|
数据表 |
L-RMS | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±0.3nH | 300 mA | - | 0402 (1005 Metric) | Unshielded | 210mOhm Max | 4.7 nH | 10 @ 100MHz | 6GHz | Surface Mount | - | 0.039" L x 0.023" W (1.00mm x 0.58mm) | - | -55°C ~ 125°C | 100 MHz | 0.018" (0.45mm) |
|
L0603CR15JRMSTFIXED IND 150NH 300MA 1.2OHM SMD |
0 | - |
|
数据表 |
L-RMS | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | 300 mA | - | 0603 (1608 Metric) | Unshielded | 1.2Ohm Max | 150 nH | 13 @ 100MHz | 800MHz | Surface Mount | - | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | -40°C ~ 85°C | 100 MHz | 0.028" (0.71mm) |
|
|
L0603C18NJRMSTFIXED IND 18NH 300MA 350MOHM SMD |
0 | - |
|
数据表 |
L-RMS | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | 300 mA | - | 0603 (1608 Metric) | Unshielded | 350mOhm Max | 18 nH | 15 @ 100MHz | 3GHz | Surface Mount | - | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | -40°C ~ 85°C | 100 MHz | 0.028" (0.71mm) |
-0,60x0,30x0,33mm.jpg)
|
L0201C15NJRMSTFIXED IND 15NH 100MA 800MOHM SMD |
0 | - |
|
数据表 |
L-RMS | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | 100 mA | - | 0201 (0603 Metric) | Unshielded | 800mOhm Max | 15 nH | 7 @ 100MHz | 3.3GHz | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - | -55°C ~ 125°C | 100 MHz | 0.013" (0.33mm) |
|
|
L0603C1N0SRMSTFIXED IND 1NH 300MA 50 MOHM SMD |
0 | - |
|
数据表 |
L-RMS | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±0.3nH | 300 mA | - | 0603 (1608 Metric) | Unshielded | 50mOhm Max | 1 nH | 14 @ 100MHz | 13GHz | Surface Mount | - | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | -40°C ~ 85°C | 100 MHz | 0.028" (0.71mm) |
|
L1207C470KPWSTFIXED IND 47UH 205MA 920MOHM SMD |
0 | - |
|
数据表 |
L-PWS | 1207 (3218 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 205 mA | - | 1207 (3218 Metric) | Unshielded | 920mOhm | 47 µH | - | 12MHz | Surface Mount | - | 0.126" L x 0.071" W (3.20mm x 1.80mm) | - | -40°C ~ 105°C | 2.52 MHz | 0.079" (2.00mm) |
|
L1210R101MDWITFIXED IND 100UH 270MA 1.4OHM SMD |
0 | - |
|
数据表 |
L-DWI | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 270 mA | - | 1210 | Unshielded | 1.4Ohm | 100 µH | - | 6MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 105°C | 100 kHz | 0.106" (2.70mm) |
|
|
L1210R220MDWITFIXED IND 22UH 620MA 270MOHM SMD |
0 | - |
|
数据表 |
L-DWI | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 620 mA | - | 1210 | Unshielded | 270mOhm | 22 µH | - | 17MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 105°C | 100 kHz | 0.106" (2.70mm) |
|
|
L1210R4R7MDWITFIXED IND 4.7UH 1.25A 100MOHM SM |
0 | - |
|
数据表 |
L-DWI | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.25 A | - | 1210 | Unshielded | 100mOhm | 4.7 µH | - | 70MHz | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - | -40°C ~ 105°C | 100 kHz | 0.106" (2.70mm) |
|
|
L0603C47NJRMSTFIXED IND 47NH 300MA 700MOHM SMD |
0 | - |
|
数据表 |
L-RMS | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | 300 mA | - | 0603 (1608 Metric) | Unshielded | 700mOhm Max | 47 nH | 17 @ 100MHz | 1.6GHz | Surface Mount | - | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | -40°C ~ 85°C | 100 MHz | 0.028" (0.71mm) |
|
|
L0603C10NJRMSTFIXED IND 10NH 300MA 260MOHM SMD |
0 | - |
|
数据表 |
L-RMS | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±5% | 300 mA | - | 0603 (1608 Metric) | Unshielded | 260mOhm Max | 10 nH | 14 @ 100MHz | 4.6GHz | Surface Mount | - | 0.063" L x 0.032" W (1.60mm x 0.81mm) | - | -40°C ~ 85°C | 100 MHz | 0.028" (0.71mm) |
|
L0805C100MDWITFIXED IND 10UH 240MA 1.2 OHM SMD |
0 | - |
|
数据表 |
L-DWI | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 240 mA | - | 0805 (2012 Metric) | Unshielded | 1.2Ohm | 10 µH | - | 40MHz | Surface Mount | - | 0.083" L x 0.059" W (2.11mm x 1.50mm) | - | -40°C ~ 105°C | 2.52 MHz | 0.041" (1.04mm) |
|
0520CDMCDS-R33MCFIXED IND 330NH 7.9A 8 MOHM SMD |
0 | - |
|
数据表 |
0520CDMC/DS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 7.9 A | 14A | - | Shielded | 8mOhm | 330 nH | - | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
|
0520CDMCDS-R68MCFIXED IND 680NH 6.6A 13 MOHM SMD |
0 | - |
|
数据表 |
0520CDMC/DS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 6.6 A | 10A | - | Shielded | 13mOhm | 680 nH | - | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
|
|
0520CDMCDS-2R2MCFIXED IND 2.2UH 4.1A 30 MOHM SMD |
0 | - |
|
数据表 |
0520CDMC/DS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 4.1 A | 6A | - | Shielded | 30mOhm | 2.2 µH | - | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
|

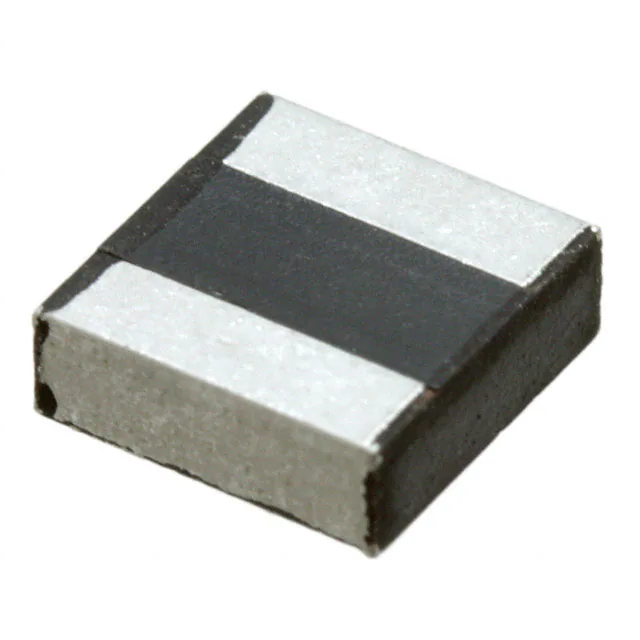

0520CDMCDS-3R3MCFIXED IND 3.3UH 3.6A 50 MOHM SMD |
0 | - |
|
数据表 |
0520CDMC/DS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 3.6 A | 4.9A | - | Shielded | 50mOhm | 3.3 µH | - | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
|
|
0520CDMCDS-4R7MCFIXED IND 4.7UH 2.8A 65 MOHM SMD |
0 | - |
|
数据表 |
0520CDMC/DS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 2.8 A | 4.4A | - | Shielded | 65mOhm | 4.7 µH | - | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | - | -40°C ~ 105°C | 100 kHz | 0.079" (2.00mm) |
|
IR02EV330KFIXED IND 33UH 130MA 3.4 OHM TH |
0 | - |
|
数据表 |
IR | Axial | Tape & Reel (TR) | Obsolete | - | Ferrite | ±10% | 130 mA | - | - | Unshielded | 3.4Ohm Max | 33 µH | 45 @ 2.5MHz | 24MHz | Through Hole | - | 0.120" Dia x 0.260" L (3.05mm x 6.60mm) | - | -55°C ~ 105°C | 2.5 MHz | - |
|
PM1008S-5R6M-RCFIXED IND 5.6UH 1A 400 MOHM SMD |
0 | - |
|
数据表 |
PM1008S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1 A | - | 1008 (2520 Metric) | Shielded | 400mOhm Max | 5.6 µH | 38 @ 1MHz | 150MHz | Surface Mount | - | 0.150" L x 0.150" W (3.81mm x 3.81mm) | - | -40°C ~ 85°C | 100 kHz | 0.108" (2.74mm) |
