固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELJ-QF9N1ZFFIXED IND 9.1NH 320MA 380MOHM SM |
0 | - |
|
数据表 |
QF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±0.2nH | 320 mA | - | 0402 (1005 Metric) | Unshielded | 380mOhm Max | 9.1 nH | 10 @ 100MHz | 3.1GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -40°C ~ 85°C | 100 MHz | 0.022" (0.55mm) |
|
|
ELJ-QF13NGFFIXED IND 13NH 280MA 530MOHM SMD |
0 | - |
|
数据表 |
QF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±2% | 280 mA | - | 0402 (1005 Metric) | Unshielded | 530mOhm Max | 13 nH | 10 @ 100MHz | 2.6GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -40°C ~ 85°C | 100 MHz | 0.022" (0.55mm) |
|
|
ELJ-QF20NGFFIXED IND 20NH 220MA 750MOHM SMD |
0 | - |
|
数据表 |
QF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±2% | 220 mA | - | 0402 (1005 Metric) | Unshielded | 750mOhm Max | 20 nH | 10 @ 100MHz | 2.1GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -40°C ~ 85°C | 100 MHz | 0.022" (0.55mm) |
|
|
ELJ-QF30NGFFIXED IND 30NH 190MA 1.3 OHM SMD |
0 | - |
|
数据表 |
QF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±2% | 190 mA | - | 0402 (1005 Metric) | Unshielded | 1.3Ohm Max | 30 nH | 10 @ 100MHz | 1.8GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -40°C ~ 85°C | 100 MHz | 0.022" (0.55mm) |
|
GL2R0KA7B250FIXED IND 2UH 250MA 1.45 OHM TH |
0 | - |
|
数据表 |
GL | Nonstandard | Bulk | Obsolete | Drum Core, Wirewound | Iron Powder | ±10% | 250 mA | - | - | Unshielded | 1.45Ohm | 2 µH | - | - | Through Hole | - | 0.102" L x 0.065" Sq Pyramid (2.59mm x 1.65mm) | - | -55°C ~ 125°C | - | - |
|
|
GL110KA7B115FIXED IND 11UH 115MA 7 OHM TH |
0 | - |
|
数据表 |
GL | Nonstandard | Bulk | Obsolete | Drum Core, Wirewound | Iron Powder | ±10% | 115 mA | - | - | Unshielded | 7Ohm | 11 µH | - | - | Through Hole | - | 0.182" L x 0.072" Sq Pyramid (4.62mm x 1.83mm) | - | -55°C ~ 125°C | - | - |
|

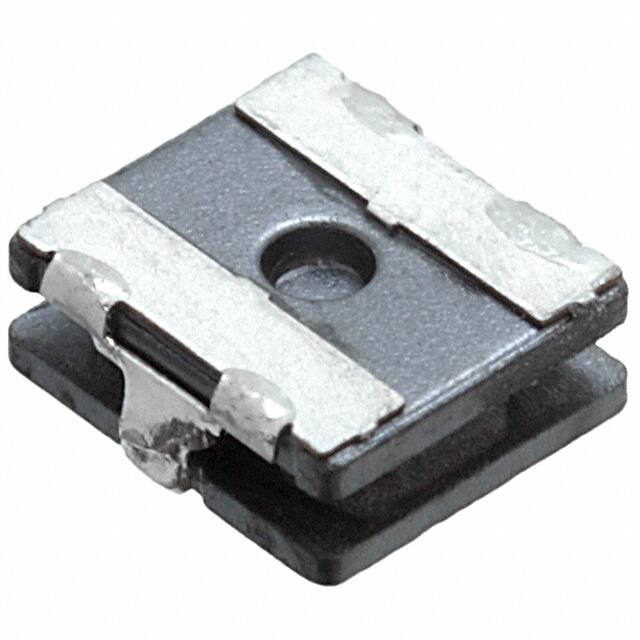

ELL-5PRR47NFIXED IND 470NH 3.9A 12 MOHM SMD |
0 | - |
|
数据表 |
R | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 3.9 A | 5.5A | - | Shielded | 12mOhm | 470 nH | - | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | - | 100 kHz | 0.079" (2.00mm) |
|
ELL-5PR1R0NFIXED IND 1UH 3A 21 MOHM SMD |
0 | - |
|
数据表 |
R | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 3 A | 4.5A | - | Shielded | 21mOhm | 1 µH | - | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | - | 100 kHz | 0.079" (2.00mm) |
|
|
ELL-5PR1R2NFIXED IND 1.2UH 3A 21 MOHM SMD |
0 | - |
|
数据表 |
R | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 3 A | 4.2A | - | Shielded | 21mOhm | 1.2 µH | - | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | - | 100 kHz | 0.079" (2.00mm) |
|
|
ELL-5PR1R5NFIXED IND 1.5UH 2.85A 25MOHM SMD |
0 | - |
|
数据表 |
R | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 2.85 A | 4A | - | Shielded | 25mOhm | 1.5 µH | - | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | - | 100 kHz | 0.079" (2.00mm) |
|

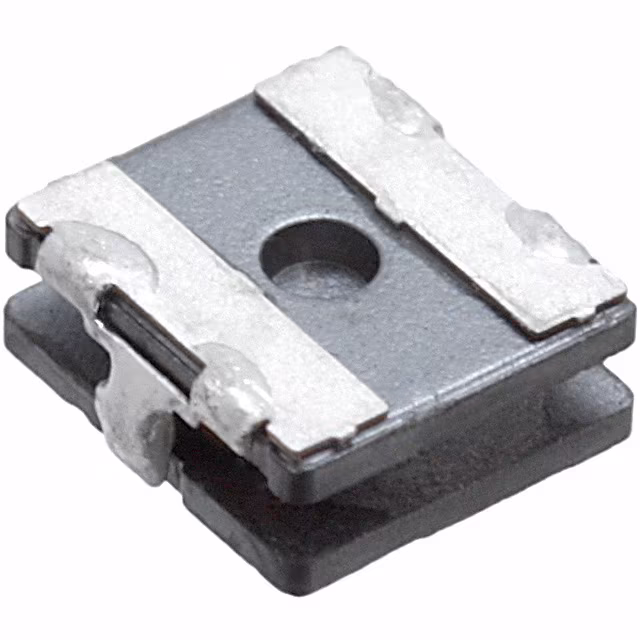

ELL-5PR2R2NFIXED IND 2.2UH 2.4A 32 MOHM SMD |
0 | - |
|
数据表 |
R | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 2.4 A | 3.2A | - | Shielded | 32mOhm | 2.2 µH | - | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | - | 100 kHz | 0.079" (2.00mm) |
|
|
ELL-5PR3R3NFIXED IND 3.3UH 2.3A 37 MOHM SMD |
0 | - |
|
数据表 |
R | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 2.3 A | 2.6A | - | Shielded | 37mOhm | 3.3 µH | - | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | - | 100 kHz | 0.079" (2.00mm) |
|
|
ELL-5PR4R7NFIXED IND 4.7UH 1.8A 56 MOHM SMD |
0 | - |
|
数据表 |
R | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 1.8 A | 2.2A | - | Shielded | 56mOhm | 4.7 µH | - | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | - | 100 kHz | 0.079" (2.00mm) |
|
|
ELL-5PR6R8NFIXED IND 6.8UH 1.4A 85 MOHM SMD |
0 | - |
|
数据表 |
R | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 1.4 A | 1.7A | - | Shielded | 85mOhm | 6.8 µH | - | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | - | 100 kHz | 0.079" (2.00mm) |
|
|
ELL-5PR100MFIXED IND 10UH 1.06A 150MOHM SMD |
0 | - |
|
数据表 |
R | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 1.06 A | 1.4A | - | Shielded | 150mOhm | 10 µH | - | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | - | 100 kHz | 0.079" (2.00mm) |
|
SC10F-100FIXED IND 10UH 4.5A 47 MOHM SMD |
0 | - |
|
数据表 |
SC10F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 4.5 A | 2.6A | - | Unshielded | 47mOhm Max | 10 µH | - | - | Surface Mount | - | 0.453" L x 0.382" W (11.50mm x 9.70mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
|
SC10F-102FIXED IND 1MH 440MA 2.8 OHM SMD |
0 | - |
|
数据表 |
SC10F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±10% | 440 mA | 310mA | - | Unshielded | 2.8Ohm Max | 1 mH | - | - | Surface Mount | - | 0.453" L x 0.382" W (11.50mm x 9.70mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
|
SC10F-180FIXED IND 18UH 3.4A 67 MOHM SMD |
0 | - |
|
数据表 |
SC10F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 3.4 A | 2.15A | - | Unshielded | 67mOhm Max | 18 µH | - | - | Surface Mount | - | 0.453" L x 0.382" W (11.50mm x 9.70mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
|
SC10F-331FIXED IND 330UH 780MA 1 OHM SMD |
0 | - |
|
数据表 |
SC10F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±10% | 780 mA | 530mA | - | Unshielded | 1Ohm Max | 330 µH | - | - | Surface Mount | - | 0.453" L x 0.382" W (11.50mm x 9.70mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
|
SC10F-391FIXED IND 390UH 720MA 1.09OHM SM |
0 | - |
|
数据表 |
SC10F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±10% | 720 mA | 490mA | - | Unshielded | 1.09Ohm Max | 390 µH | - | - | Surface Mount | - | 0.453" L x 0.382" W (11.50mm x 9.70mm) | - | -40°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
