固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELC-18E390LFIXED IND 39UH 4.5A 28 MOHM TH |
0 | - |
|
数据表 |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 4.5 A | - | - | Shielded | 28mOhm | 39 µH | - | - | Through Hole | - | 0.748" Dia (19.00mm) | - | - | 10 kHz | 0.988" (25.10mm) |
|
|
ELC-18E391LFIXED IND 390UH 1.8A 120 MOHM TH |
0 | - |
|
数据表 |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 1.8 A | - | - | Shielded | 120mOhm | 390 µH | - | - | Through Hole | - | 0.748" Dia (19.00mm) | - | - | 10 kHz | 0.988" (25.10mm) |
|
|
ELC-18E470LFIXED IND 47UH 4.1A 30 MOHM TH |
0 | - |
|
数据表 |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 4.1 A | - | - | Shielded | 30mOhm | 47 µH | - | - | Through Hole | - | 0.748" Dia (19.00mm) | - | - | 10 kHz | 0.988" (25.10mm) |
|
|
ELC-18E471LFIXED IND 470UH 1.5A 150 MOHM TH |
0 | - |
|
数据表 |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 1.5 A | - | - | Shielded | 150mOhm | 470 µH | - | - | Through Hole | - | 0.748" Dia (19.00mm) | - | - | 10 kHz | 0.988" (25.10mm) |
|
|
ELC-18E560LFIXED IND 56UH 3.8A 31 MOHM TH |
0 | - |
|
数据表 |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 3.8 A | - | - | Shielded | 31mOhm | 56 µH | - | - | Through Hole | - | 0.748" Dia (19.00mm) | - | - | 10 kHz | 0.988" (25.10mm) |
|
|
ELC-18E561LFIXED IND 560UH 1.4A 170 MOHM TH |
0 | - |
|
数据表 |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 1.4 A | - | - | Shielded | 170mOhm | 560 µH | - | - | Through Hole | - | 0.748" Dia (19.00mm) | - | - | 10 kHz | 0.988" (25.10mm) |
|
|
ELC-18E5R6LFIXED IND 5.6UH 6.7A 11 MOHM TH |
0 | - |
|
数据表 |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 6.7 A | - | - | Shielded | 11mOhm | 5.6 µH | - | - | Through Hole | - | 0.748" Dia (19.00mm) | - | - | 10 kHz | 0.988" (25.10mm) |
|
|
ELC-18E680LFIXED IND 68UH 3.6A 36 MOHM TH |
0 | - |
|
数据表 |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 3.6 A | - | - | Shielded | 36mOhm | 68 µH | - | - | Through Hole | - | 0.748" Dia (19.00mm) | - | - | 10 kHz | 0.988" (25.10mm) |
|
|
ELC-18E681LFIXED IND 680UH 1.2A 190 MOHM TH |
0 | - |
|
数据表 |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 1.2 A | - | - | Shielded | 190mOhm | 680 µH | - | - | Through Hole | - | 0.748" Dia (19.00mm) | - | - | 10 kHz | 0.988" (25.10mm) |
|
|
ELC-18E6R8LFIXED IND 6.8UH 6.5A 13 MOHM TH |
0 | - |
|
数据表 |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 6.5 A | - | - | Shielded | 13mOhm | 6.8 µH | - | - | Through Hole | - | 0.748" Dia (19.00mm) | - | - | 10 kHz | 0.988" (25.10mm) |
|
|
ELC-18E820LFIXED IND 82UH 3.5A 40 MOHM TH |
0 | - |
|
数据表 |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 3.5 A | - | - | Shielded | 40mOhm | 82 µH | - | - | Through Hole | - | 0.748" Dia (19.00mm) | - | - | 10 kHz | 0.988" (25.10mm) |
|
|
ELC-18E821LFIXED IND 820UH 1.1A 210 MOHM TH |
0 | - |
|
数据表 |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 1.1 A | - | - | Shielded | 210mOhm | 820 µH | - | - | Through Hole | - | 0.748" Dia (19.00mm) | - | - | 10 kHz | 0.988" (25.10mm) |
|
|
ELC-18E8R2LFIXED IND 8.2UH 6.2A 13 MOHM TH |
0 | - |
|
数据表 |
18E-L | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 6.2 A | - | - | Shielded | 13mOhm | 8.2 µH | - | - | Through Hole | - | 0.748" Dia (19.00mm) | - | - | 10 kHz | 0.988" (25.10mm) |
|

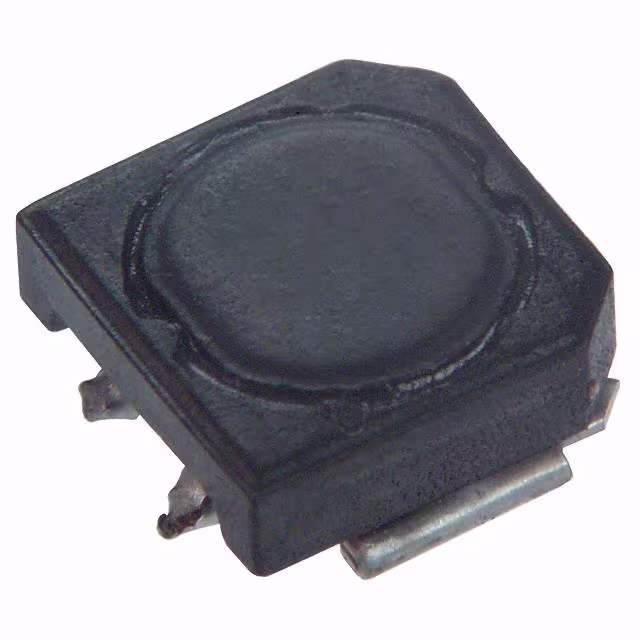

ELL-6RH4R7MFIXED IND 4.7UH 1.58A 49MOHM SMD |
0 | - |
|
数据表 |
H | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 1.58 A | - | - | Shielded | 49mOhm | 4.7 µH | - | - | Surface Mount | - | 0.252" L x 0.236" W (6.40mm x 6.00mm) | - | - | 100 kHz | 0.110" (2.80mm) |
|

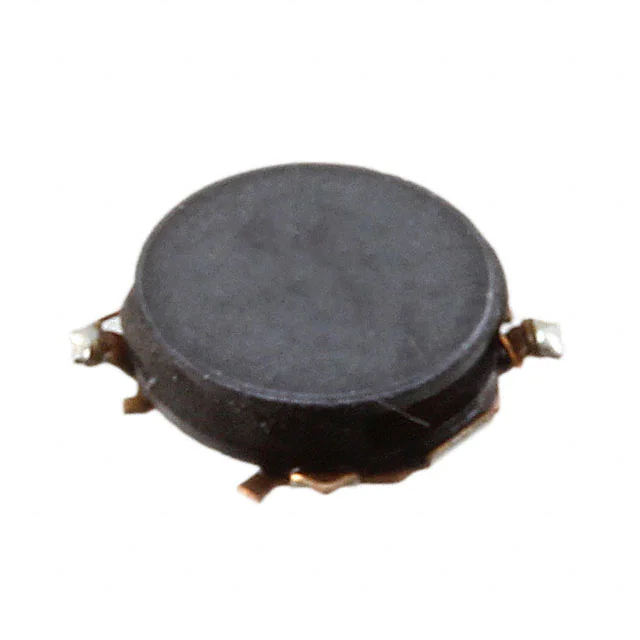

ELL-SFG3R3NAFIXED IND 3.3UH 1.15A 110MOHM SM |
0 | - |
|
数据表 |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 1.15 A | 1.1A | - | Shielded | 110mOhm | 3.3 µH | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | - | 100 kHz | 0.047" (1.20mm) |
|
|
ELL-SFG4R7NAFIXED IND 4.7UH 1.1A 130MOHM SMD |
0 | - |
|
数据表 |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 1.1 A | 1A | - | Shielded | 130mOhm | 4.7 µH | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | - | 100 kHz | 0.047" (1.20mm) |
|
|
ELL-SFG6R8NAFIXED IND 6.8UH 950MA 180MOHM SM |
0 | - |
|
数据表 |
G | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 950 mA | 800mA | - | Shielded | 180mOhm | 6.8 µH | - | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | - | 100 kHz | 0.047" (1.20mm) |
|
ELJ-QF1N1DFFIXED IND 1.1NH 400MA 60MOHM SMD |
0 | - |
|
数据表 |
QF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±0.3nH | 400 mA | - | 0402 (1005 Metric) | Unshielded | 60mOhm Max | 1.1 nH | 10 @ 100MHz | 6GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -40°C ~ 85°C | 100 MHz | 0.022" (0.55mm) |
|
|
ELJ-QF1N1ZFFIXED IND 1.1NH 400MA 60MOHM SMD |
0 | - |
|
数据表 |
QF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±0.2nH | 400 mA | - | 0402 (1005 Metric) | Unshielded | 60mOhm Max | 1.1 nH | 10 @ 100MHz | 6GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -40°C ~ 85°C | 100 MHz | 0.022" (0.55mm) |
|
|
ELJ-QF5N1ZFFIXED IND 5.1NH 350MA 180MOHM SM |
0 | - |
|
数据表 |
QF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±0.2nH | 350 mA | - | 0402 (1005 Metric) | Unshielded | 180mOhm Max | 5.1 nH | 10 @ 100MHz | 4.7GHz | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | -40°C ~ 85°C | 100 MHz | 0.022" (0.55mm) |
